4088-DC-A-B00-LH

d:fine CORE 4088 Directional Headset Mic, Black, MicroDot termination, no adapter included


$995.00 CAD $1,120.00
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

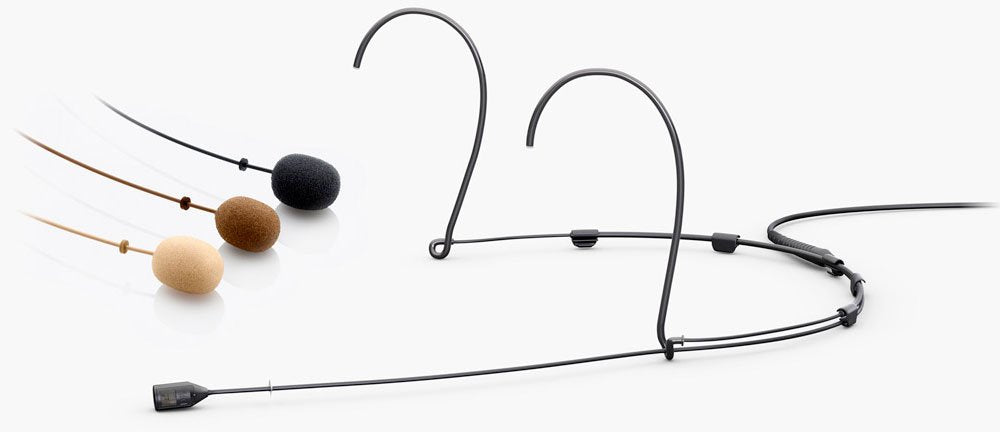

DPA 4088 is a miniature cardioid headset mic built on the finest DPA experiences in microphone design and manufacturing, providing the best sounding directional headworn microphone available today for performing talent of various sorts.

Open, natural and reliable are the most describing words for this microphone. The high quality of the microphone itself means that you will hear the sound of the voice right away - not the microphone. In acoustically demanding live performance environments, where background noise and feedback is a concern, the 4088 will tackle these challenges with ease.

The smooth and elegant design of the 4088 makes it the most invisible headworn cardioid microphone today. Sound quality, visual elegance and versatility go hand in hand to transform every show into the performance of a lifetime. The capsule is a pre-polarized first order pressure gradient transducer, hidden in a small and lightweight housing with dimensions just slightly larger than our omni capsules.

The mechanical design is based on the proven quality of the 4066 headset microphone. The headset mount is exactly the same; the boom however is 3 centimeters longer in order to meet the need for placement at the corner of the mouth. The flexibility and stability of this construction is unique and has no equal.

Available in three colors: black, beige and brown, and also available with connector.

Includes a choice of adapter for: 3-pin Lemo - Sennheiser SK50 / 250 / 3063 / 5012 Locking Mini-Jack - Sennheiser Evolution / G2 / X2 Digital TA4F Mini-XLR - Shure U1 / UR1 / UT1 / SC1 / SLX1 / ULX1 TA5F Mini-XLR - Lectrosonics LM / SM / UM Series (low DC micrphones)

Features

Resistant to humidity

Available in three colors and three sizes

Modular adapter system fits most professional wireless systems

Specifications

Directional pattern:

Cardioid

Principle of operation:

Pressure gradient

Cartridge type:

Pre-polarized condenser

Frequency range:

20 Hz - 20 kHz

Frequency range, Β±2 dB, Near field 2-3 cm (0.8 - 1.2 in):

100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)

Sensitivity, nominal, Β±3 dB at 1 kHz:

6 mV/Pa; 44 dB re. 1 V/Pa

Equivalent noise level, A-weighted:

Typ. 26 dB(A) re. 20 Β΅Pa (max. 28 dB(A))

Equivalent noise level, ITU-R BS.468-4:

Typ. 38 dB (max. 40 dB)

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):

Typ. 68 dB (A)

Total harmonic distortion (THD) - Legacy:

< 1% up to 123 dB SPL peak; < 1% up to 120 dB SPL RMS sine

Total harmonic distortion (THD) - CORE:

< 1% THD up to 137 dB SPL peak

Dynamic range - Legacy:

Typ. 97 dB

Dynamic range - CORE:

Typ. 111 dB

Max. SPL, peak before clipping:

144 dB

Output impedance:

30 - 40

Cable drive capability:

Up to 300 m (984 ft)

Power supply (for full performance)


For wireless systems: Min. 5 V - max. 50 V through DPA adapter.
With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power Β±4 V for full performance.

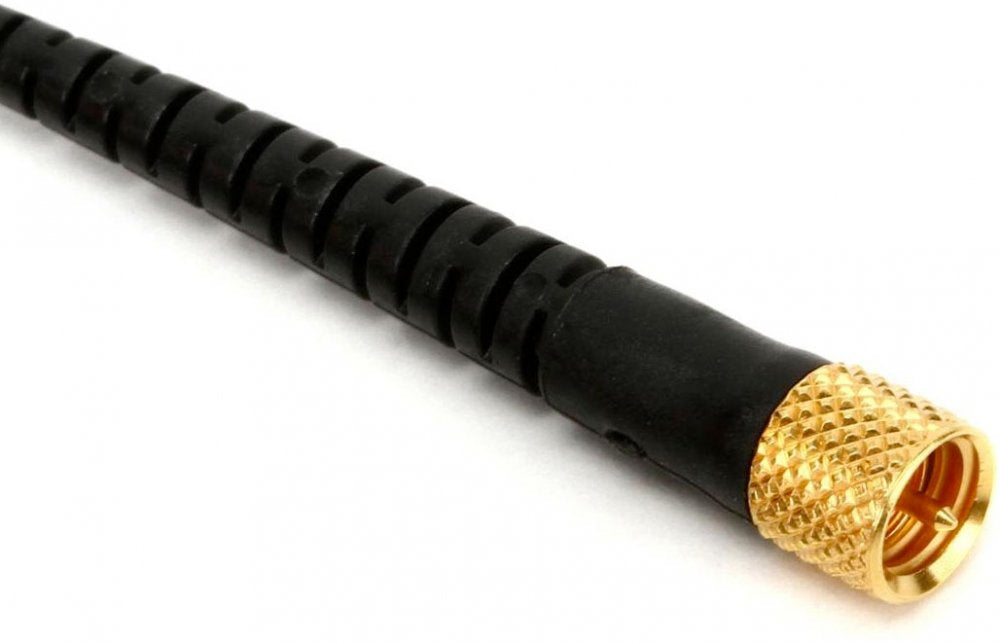

Connector:

MicroDot termination

Color:

Black

Weight:

14 g (0.5 oz) incl. Cable and MicroDot connector

Microphone diameter :

5.5 mm (0.25 in)

Microphone length:

11 mm (0.5 in)

Cable length:

1.2 m (3.9 ft)

Cable diameter:

1.6 mm (0.06 in)

Polarity:

Positively increasing sound pressure produces positive going voltage on MicroDot pin

Temperature range:

-40C to 45C (-40F to 113F)

Relative humidity(RH):

Up to 90%
