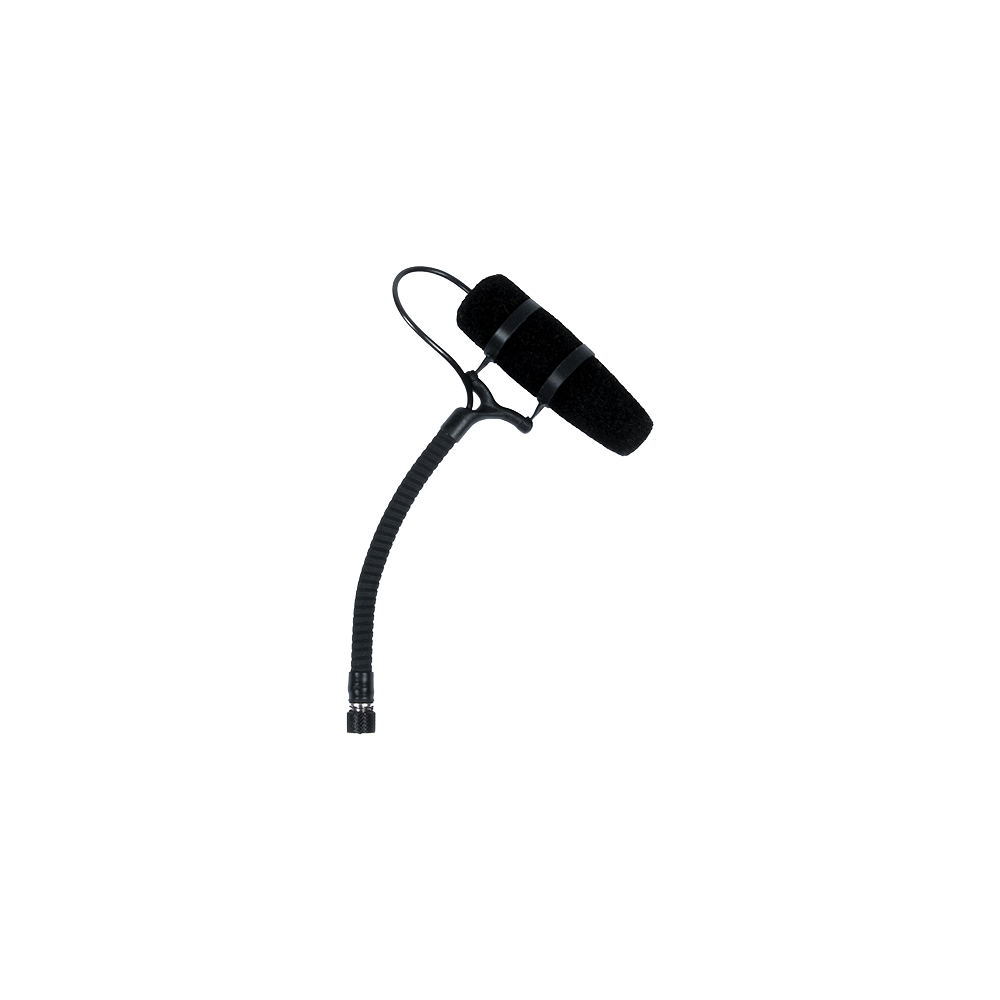

4097-DP-G-B90-010

Highly Directional Pickup
The supercardioid pattern focuses on the speaker while reducing unwanted sound from the sides and rear.

Natural Speech Reproduction
A linear response, low distortion, and low self-noise support clear, consistent dialogue.

CORE+ Technology
Advanced microphone technology preserves detail and clarity in demanding recording environments.

High Sound-Level Handling
Loud speech and shouting remain natural and undistorted, even in tight spaces.

Flexible Gooseneck
The full gooseneck allows quick, accurate microphone positioning in confined locations.

Secure MicroLock Connection
The locking connector provides a stable and flexible connection for compatible equipment.

Built-In Isolation
The integrated shock mount and cable-noise isolation reduce handling and movement noise.

Discreet Design
The slim profile and matte black finish help minimize visibility and light reflections on set.

Wind Protection
The replaceable foam windscreen helps reduce wind noise during location recording.

Versatile Connectivity
The microphone connects to compatible wireless systems and includes an adapter for XLR equipment.

General Specifications
Device Type: Micro shotgun microphone
Directional Pattern: Supercardioid
Operating Principle: Pressure gradient
Cartridge Type: Pre-polarized condenser
Frequency Response: 20 Hz to 20 kHz
Effective Frequency Range: 80 Hz to 15 kHz, ±2 dB at 20 cm
Presence Boost: 2 dB soft boost at 10 to 12 kHz
Nominal Sensitivity: 16 mV/Pa; -36 dB re. 1 V/Pa at 1 kHz, ±3 dB
Equivalent Noise Level, A-Weighted: 23 dB(A) typical; 26 dB(A) maximum re. 20 µPa
Equivalent Noise Level, ITU-R BS.468-4: 35 dB typical; 38 dB maximum
Dynamic Range: 111 dB typical
Maximum SPL: 136 dB SPL peak at 10% THD
SPL at Less Than 0.5% THD: 130 dB SPL RMS; 133 dB SPL peak
SPL at Less Than 1% THD: 131 dB SPL RMS; 134 dB SPL peak

Electrical Specifications
Output Impedance, MicroLock: 30 to 40 Ω
Output Impedance, DAD9099 Adapter: 100 Ω
Cable Drive Capability: Up to 300 m with DAD9099 adapter
Common-Mode Rejection Ratio: Greater than 60 dB from 50 Hz to 15 kHz with DAD9099 adapter
Wireless Power Requirement: 5 to 10 V through a compatible adapter
Wired Power Requirement: P48 phantom power with DAD9099 adapter; operational from 12 V
Microphone Current Consumption: 1.5 mA typical
Current Consumption with DAD9099 Adapter: 3.5 mA
Connector: MicroLock
XLR Connectivity: Supplied DAD9099 adapter

Physical Specifications
Gooseneck Type: Full gooseneck
Microphone Length: 10.4 cm (4 in)
Weight: 10 g (0.35 oz)
Maximum Total Height: 253 cm (100 in)
Color: Black
Surface Finish: Matte, non-reflective
Shock Isolation: Integrated shock mount and cable-noise isolation
Windscreen: Replaceable foam

Environmental Specifications
Ingress Protection: IP58
Operating Temperature: -40°C to 45°C (-40°F to 113°F)
Relative Humidity: Up to 90%
