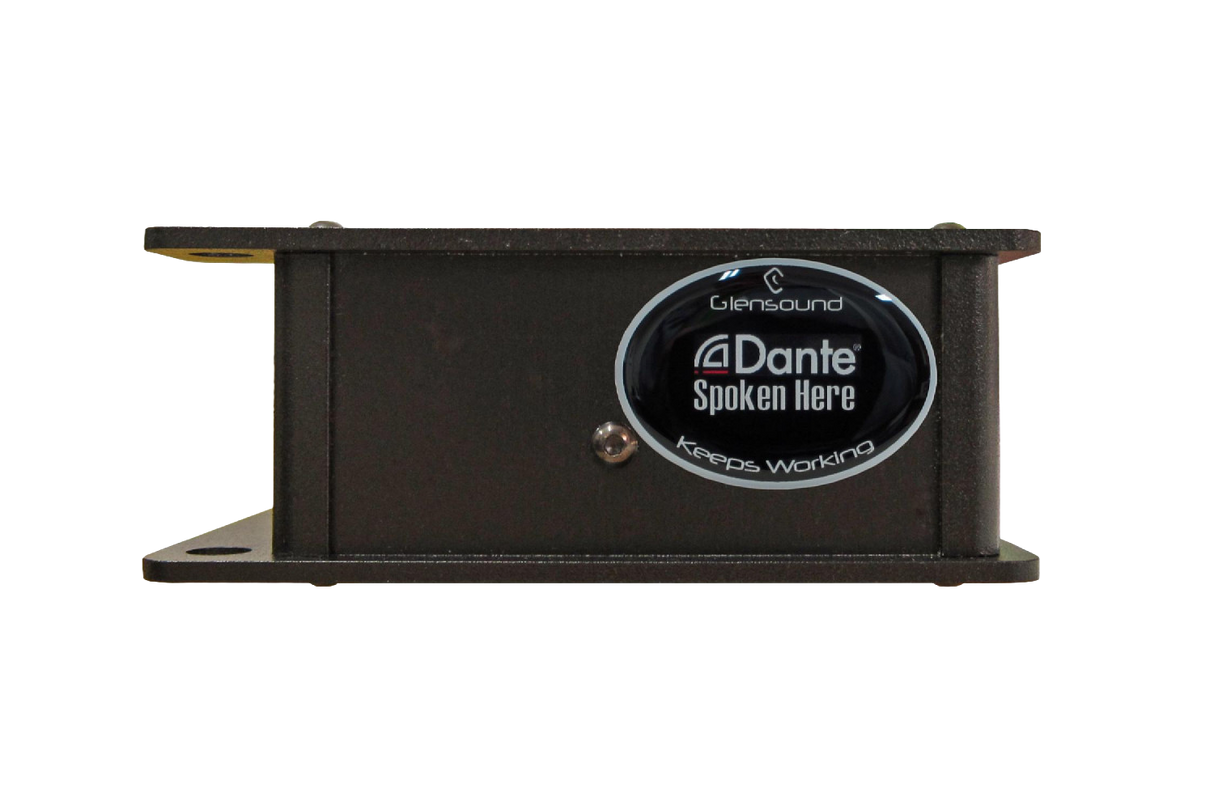

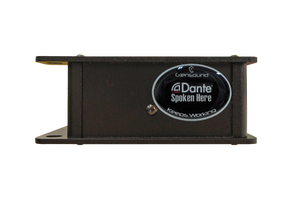

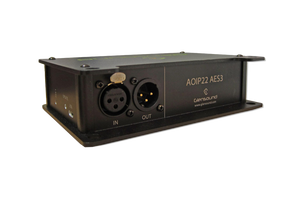

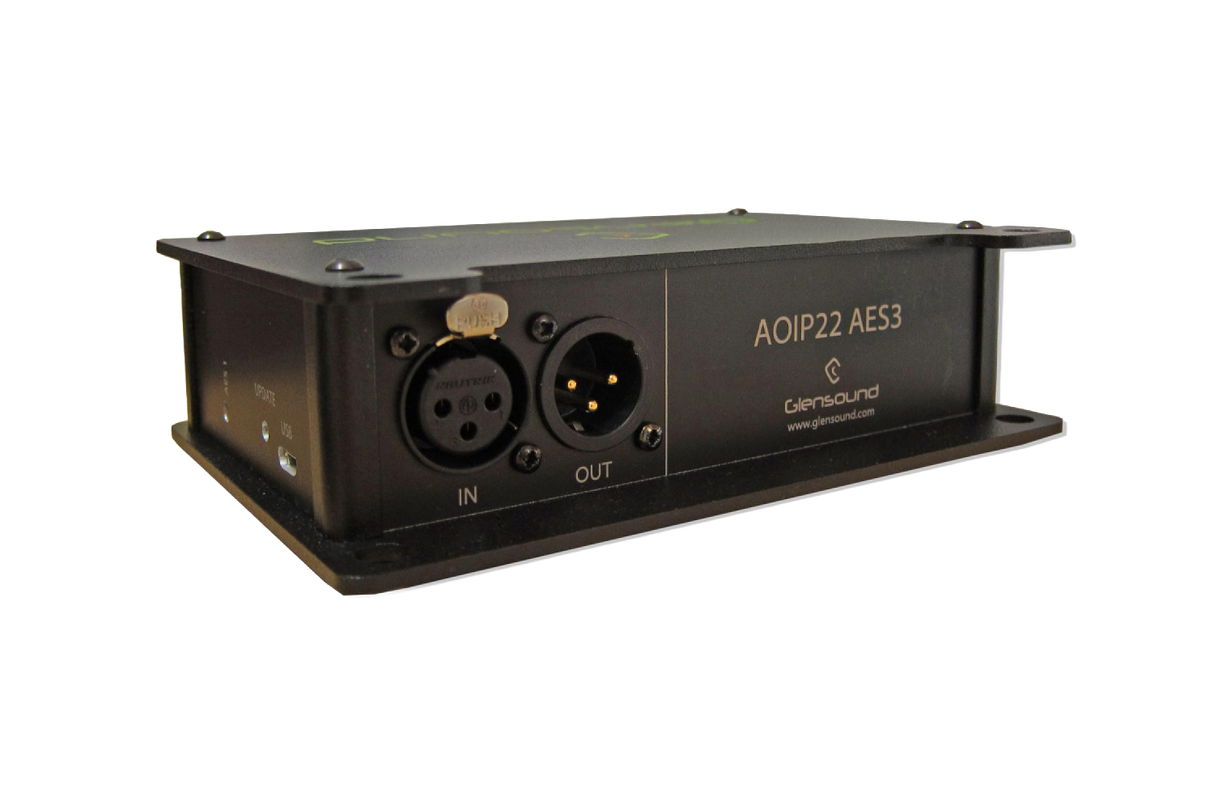

AoIP-22 AES3

AES3 to Dante/AES67 Interface
Connects AES3 audio equipment to Dante and AES67 network audio systems for seamless digital audio integration.

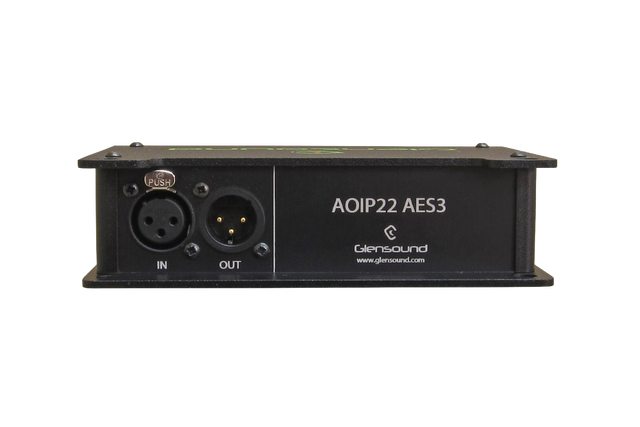

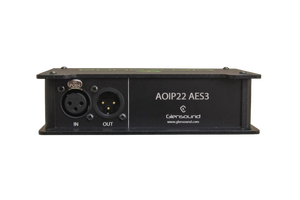

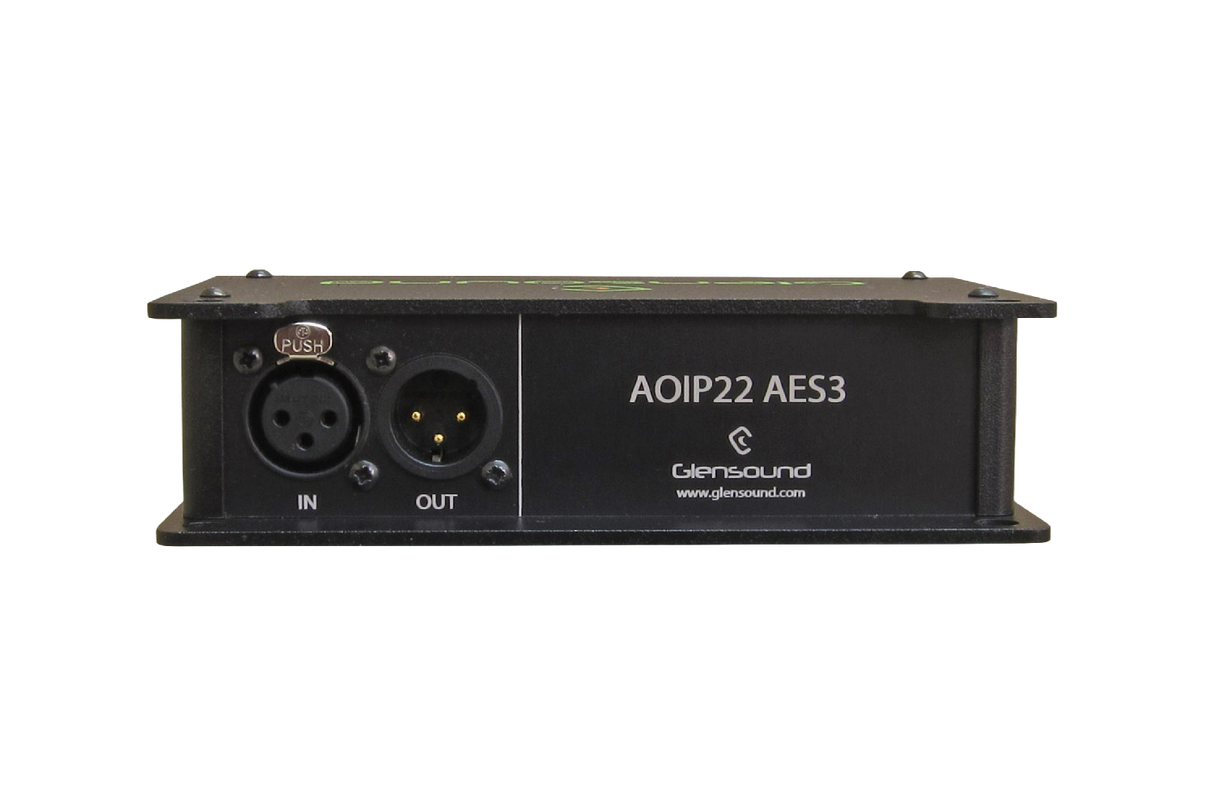

Single AES3 Input and Output
Provides one balanced AES3 input and one balanced AES3 output for reliable two-way digital audio connectivity.

Supports High Sample Rates
Delivers high-quality audio with support for output sample rates up to 96 kHz.

Built-In Sample Rate Conversion
Automatically synchronizes incoming AES3 signals with the network clock for smooth, reliable operation.

Network-Synchronized Output
Keeps the AES3 output locked to the network audio clock for stable and accurate digital audio transmission.

Power over Ethernet
Operates using Power over Ethernet, allowing both power and audio to be delivered through a single network cable.

Transformer-Balanced Input
Features a transformer-balanced AES3 input that provides electrical isolation and helps maintain clean, noise-free audio.

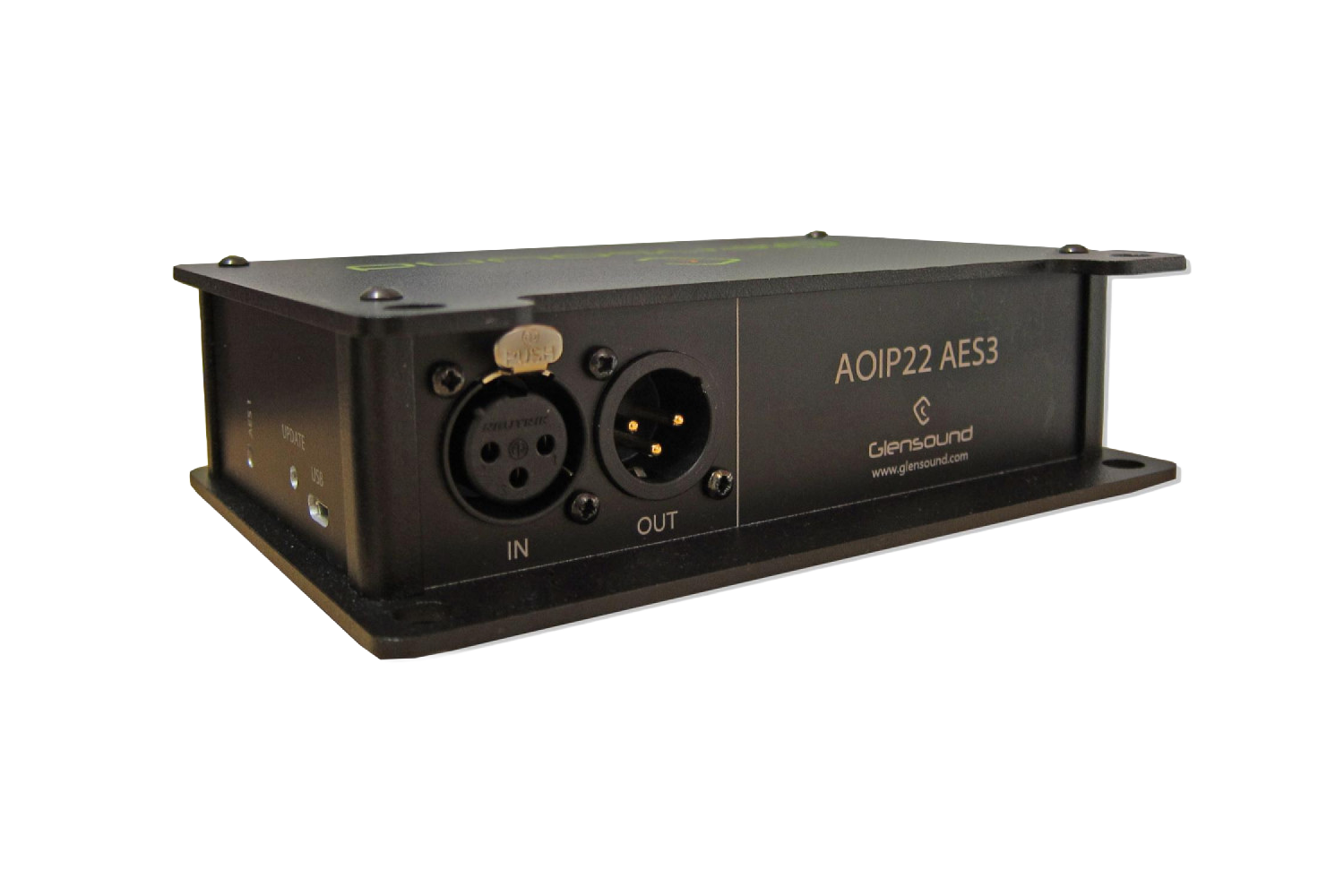

Compact and Rugged Design
Built with a durable aluminum enclosure that is ideal for broadcast, theater, live events, and location recording.

Flexible Installation
Includes rubber feet for desktop use and integrated cable tie mounting points for secure temporary installations.

Professional Network Connectivity
Equipped with a locking EtherCON network connector for dependable connections in demanding production environments.

Reliable Professional Performance
Designed for dependable, low-maintenance operation in professional audio installations, mobile production, and broadcast workflows.

General Specifications
Device Type: AES3 to Dante/AES67 audio interface
Audio Channels: 1 balanced AES3 input/output circuit
Network Compatibility: Dante, AES67
Maximum Output Sample Rate: 96 kHz
Power Source: Power over Ethernet (PoE)

Audio Specifications
Frequency Response: Flat to 22 kHz
Maximum Input Level: 0 dBFS
Maximum Output Level: 0 dBFS
Input Impedance: 110 Ω
Output Impedance: 110 Ω
Distortion: 0.00006% THD+N @ 1 kHz (referenced to +18 dBu output)
Noise: > -123 dBu (Residual)
Dynamic Range: 141 dB
Input Sample Rates: 32 kHz to 192 kHz
Output Sample Rates: 44.1, 48, 88.2, 96 kHz (1 AES3 output)

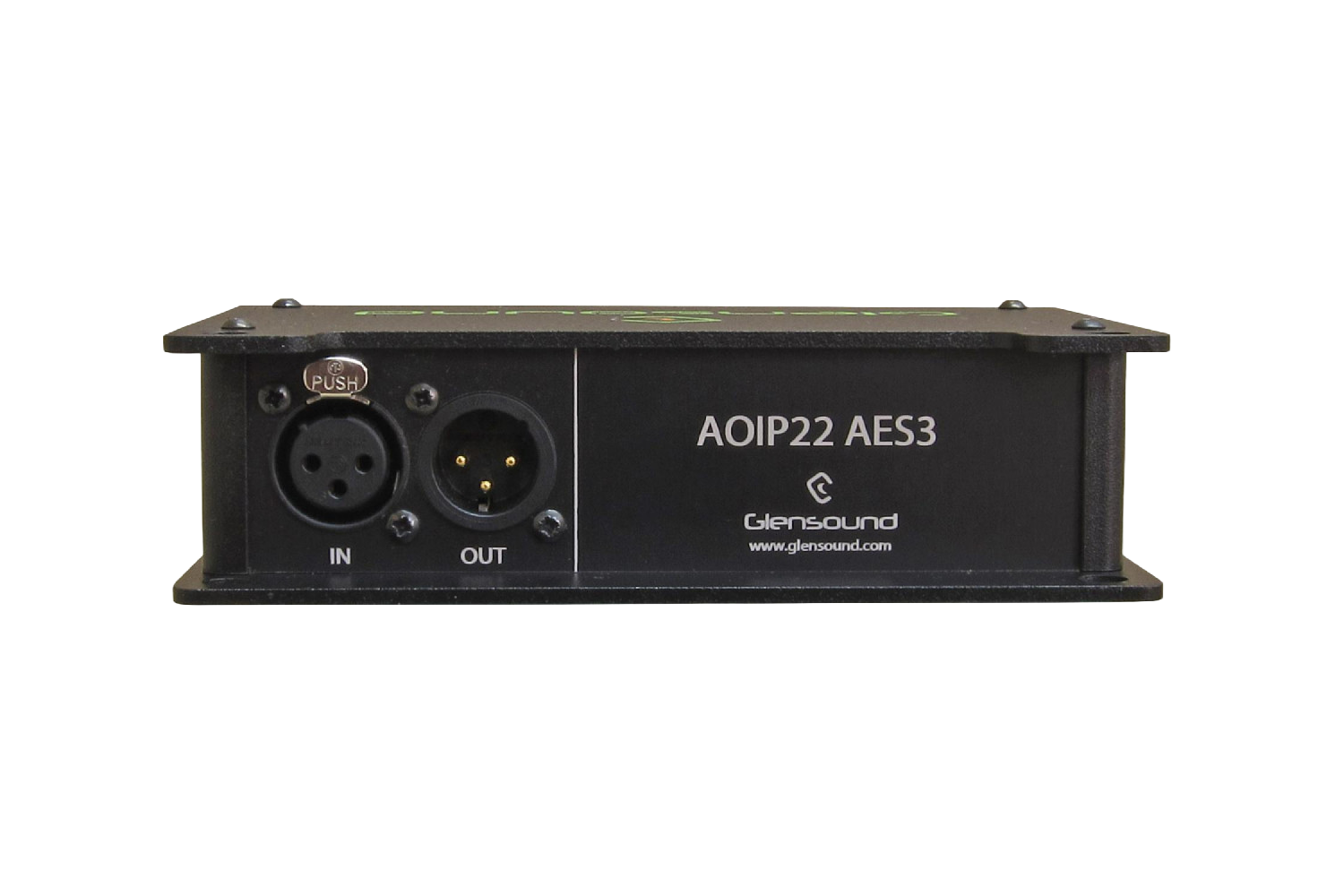

Input Type: Transformer-balanced AES3 on Neutrik 3-pin XLR

Network

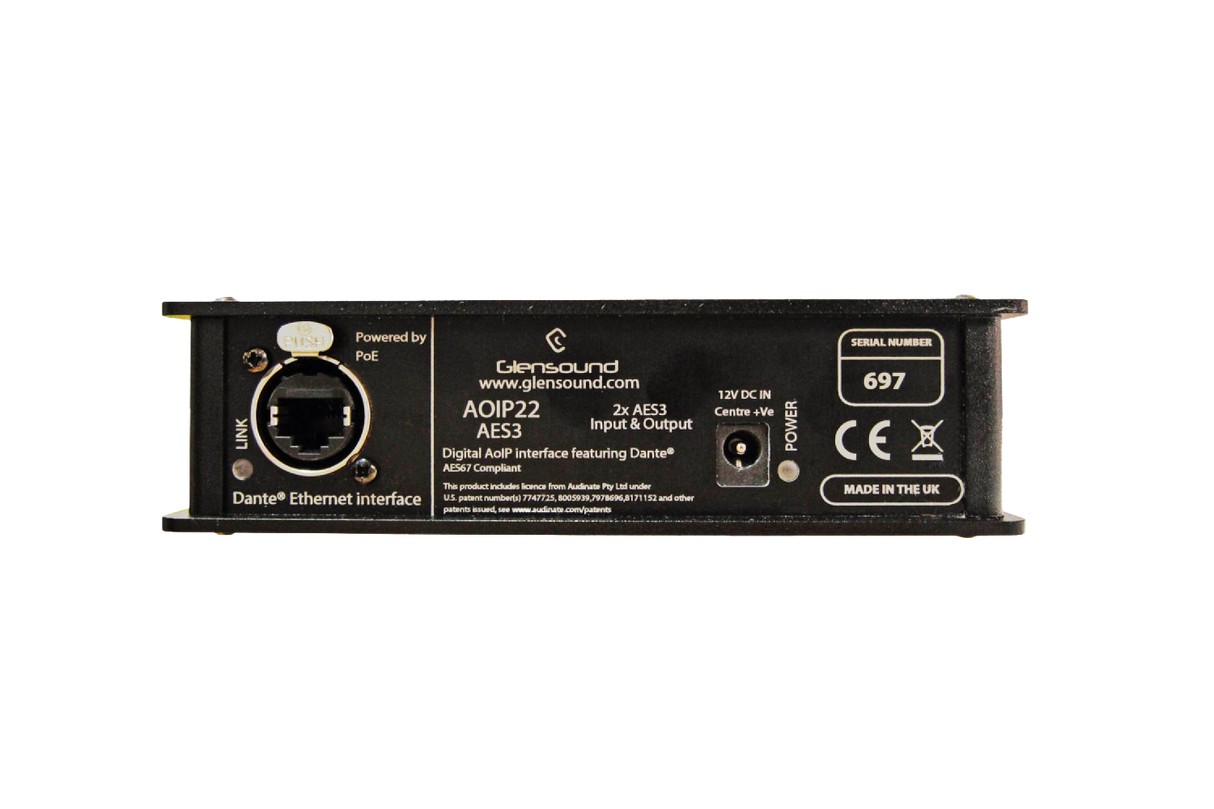

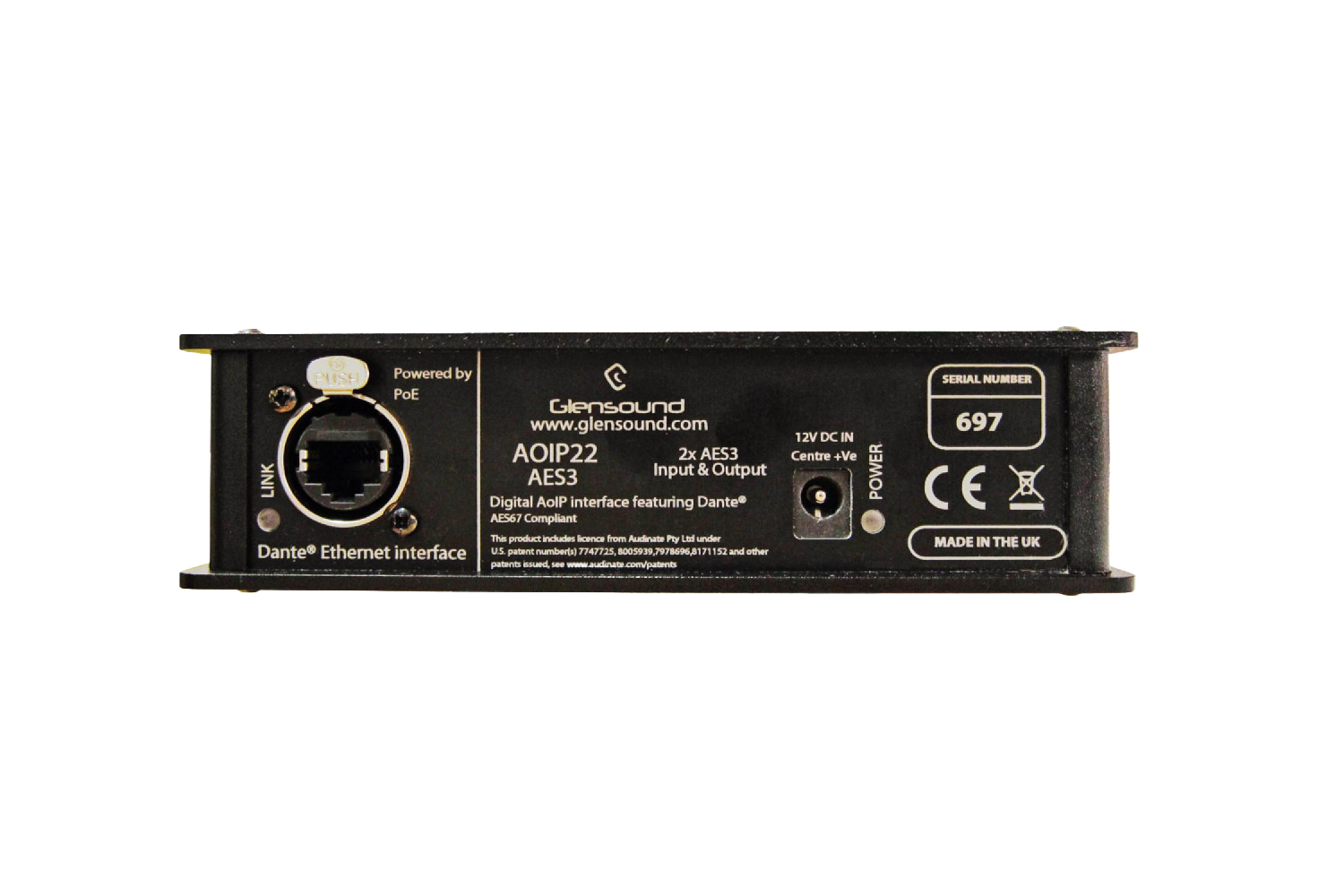

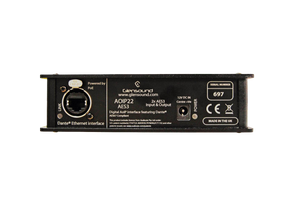

Network Connection: Neutrik RJ45 EtherCON
Dante Sample Rates: 44.1, 48, 88.2, 96 kHz
AES67 Sample Rate: 48 kHz
Output Synchronization: Network synchronized

Power
Power Consumption: 1.2 W
Power Source: PoE-enabled switch or mid-span PoE injector

Physical Specifications
Dimensions: 153 × 105 × 41 mm
Weight: 405 g
Construction: Anodized aluminum
Finish: Laser etched
Rubber Feet: Yes
Cable Tie Mounting Holes: Yes

Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: 0–95% non-condensing

Features
Sample rate converters on AES3 inputs
Transformer-balanced AES3 inputs
Network-synchronized AES3 outputs
Supports Dante and AES67 audio networks
Designed for outside broadcast, theatre, and location applications
Single-cable PoE operation
