GLENSOUND  |  SKU: 24940

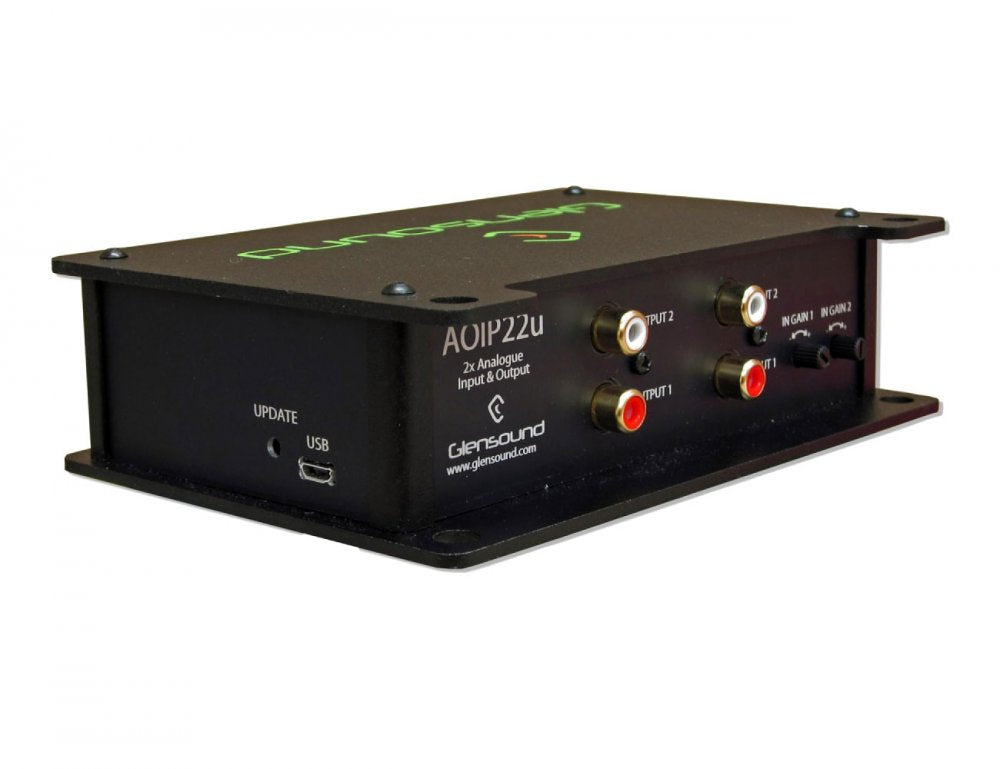

AoIP-22u - 2 x Unbalanced Analogue Inputs & Outputs Portable Unit Dante/ AES67

Ethernet

2 RCA inputs, 2 RCA outputs, input gain per channel, Dante AES67 support, RJ45 Ethercon, PoE or 12V DC, rugged aluminium build, compact and portable

$795.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Packaged in a small & rugged format and designed for outside broadcast, theatre and location applications.

The AoIP22u is designed to easily and quickly interface unbalanced, domestic level analogue equipment to a Dante / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation. 12VDC power is also an option if PoE is not available.

Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician's life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.

EASY TO USE Dante Controller by Audinate is a free application that controls all your Dante enabled devices on your network.

It will automatically find the AoIP22u and allow you, just by the click of a mouse, to route audio circuits to/ from it.

Dante network audio has become very popular because it just works and it's so easy to use. Yet underneath the simple trouble free setup is a very sophisticated Audio over IP (AoIP) protocol working in real time across standard network switches with clever digital clock synchronisation to keep all equipment working in perfect harmony.

Features

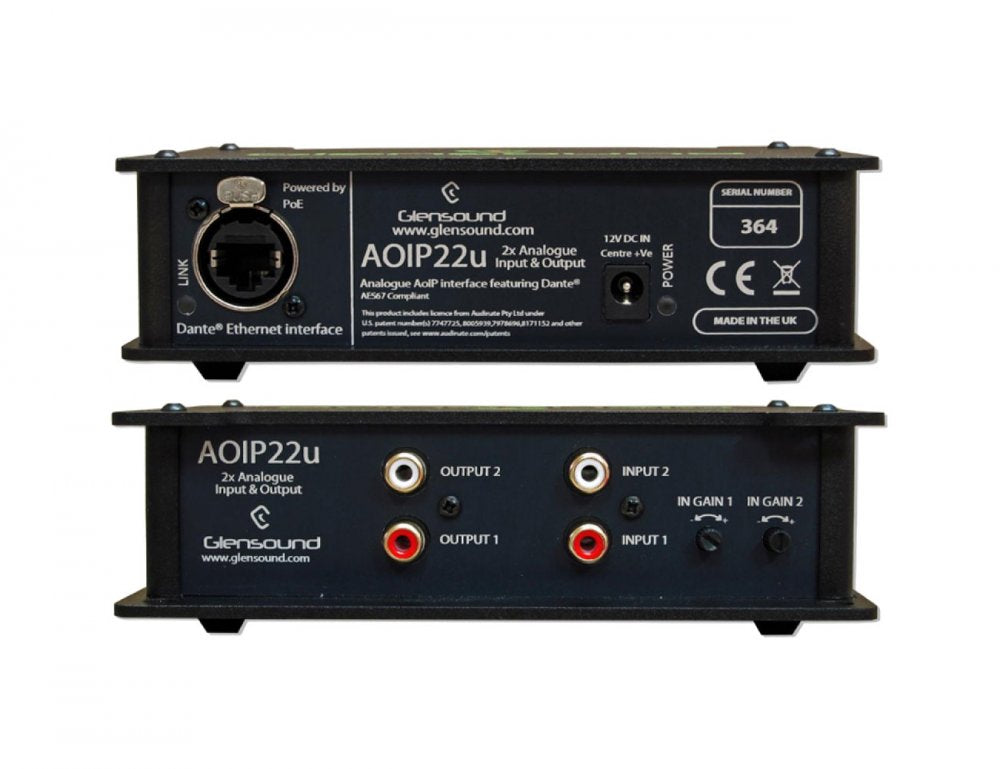

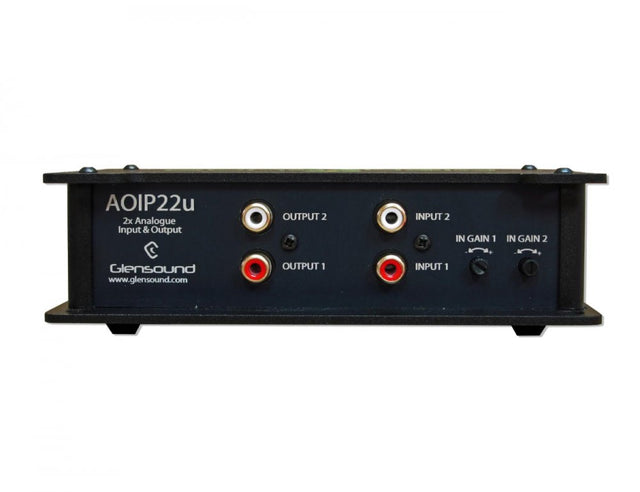

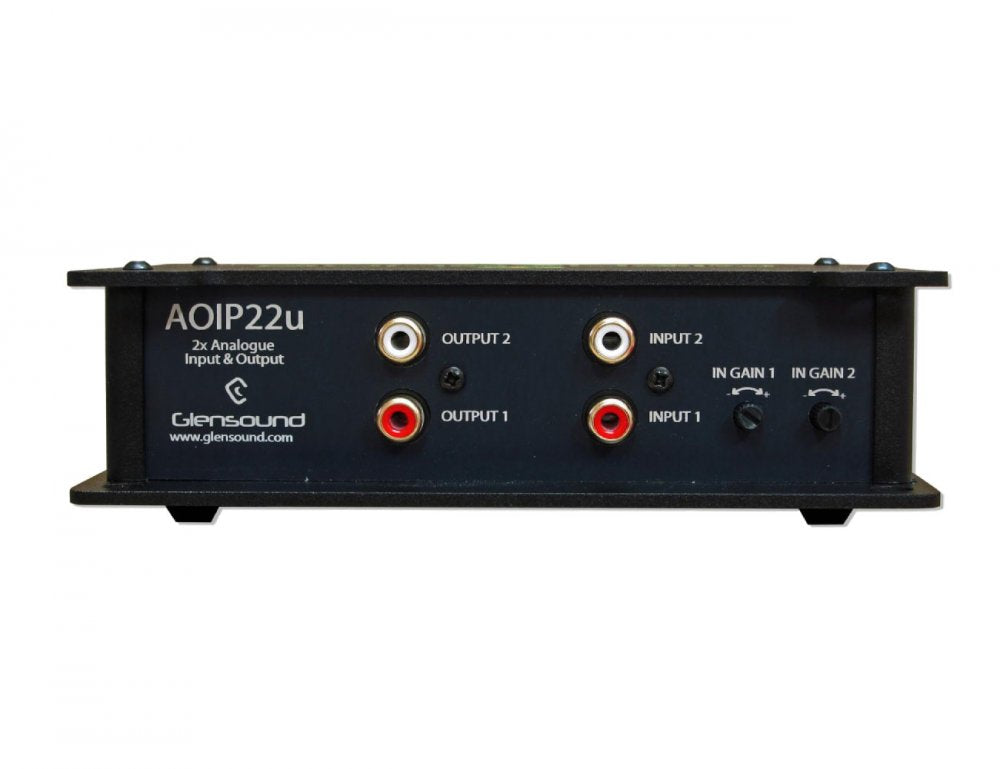

2 unbalanced analogue audio inputs on RCA/phono connectors

2 unbalanced analogue audio outputs on RCA/phono connectors

Adjustable input gain control per channel

Neutrik Ethercon RJ45 network connector

Connection to Dante / AES67 network for control and configuration

44.1 - 96kS/s Dante network interface

48kS/s AES67 network interface

Simple AoIP audio interface for professional location work

Robust, reliable lightweight aluminium enclosure

Rubber feet & cable tie mounting points

Powered by PoE or 12V DC

Specifications

AUDIO


Input Type: unbalanced RCA/phono
Input Impedence:
Output Impedence:
Output Type: unbalanced RCA/phono
Max Input before clip: +18dBu
Max output: +18dbu
Frequency Response: 20Hz to 22KHz <=+/-0.25dB
Noise: THD+N Analogue In to Network Out: Relative (1k +18dBu):
THD+N Dante In to Analogue Out: Relative (1k +18dBu):
Dynamic Range: 108dBs
Crosstalk (0dBu input to output 1k tone):
Digital Full Scale: +18dBu = 0dBFs

NETWORK AUDIO


Compatible Audio Networks: Dante uncompressed, low latency audio & AES67
AES67 Compliant: The Audinate Ultimo chipset that we use in this product is AES67 compliant

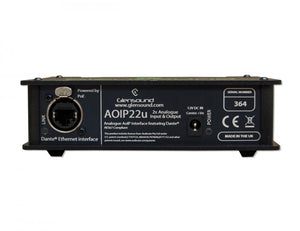

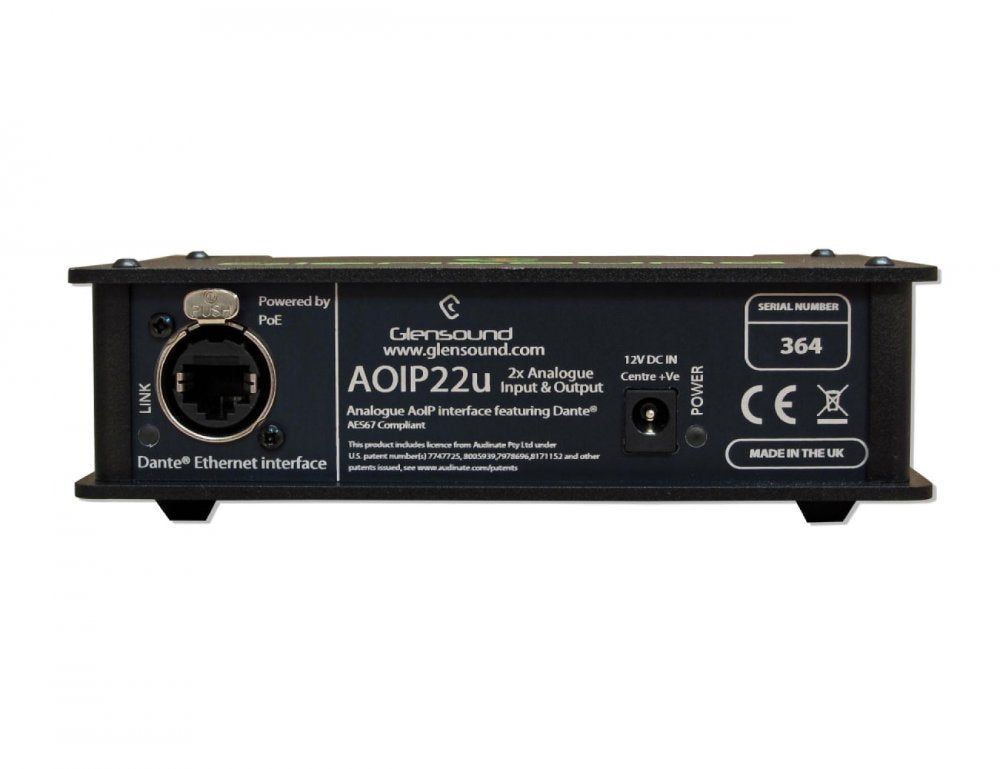

Network Connection: Neutrik RJ45 EtherCON
Dante Network resolution: 24bit
Dante Network sample rate: 44.1/ 48/ 88.2 & 96kS/s
AES67 Network sample rate: 48kHz

POWER


PoE: Can be powered by PoE
Consumption: 2.6 Watts
DC: 12V

PHYSICAL


Size: 153 x 105 x 41mm (WxDxH)
Weight: 420g
Mechanics: All aluminium construction, anodized and laser etched

ENVIRONMENTAL


Operating Temperature: 0 to +50C (32 to 122F)
Storage Temperature: -20 to +70C (-4 to 158F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS


Handbook available by download
RJ45 Network Cable: 2 metre Cat5 RJ45 plug to RJ45 plug cable
