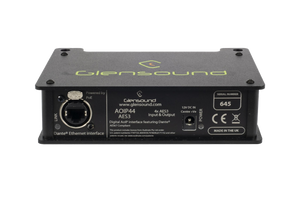

AoIP-44 AES3

AES3 to Dante/AES67 Interface
Connects AES3 audio equipment to Dante and AES67 network audio systems for seamless digital audio integration.

Two-Way Audio Connectivity
Provides balanced AES3 audio input and output, making it easy to send and receive audio over a network.

Supports High Sample Rates
Delivers high-quality audio with support for output sample rates up to 96 kHz.

Built-In Sample Rate Conversion
Automatically synchronizes incoming AES3 signals with the network clock for smooth, reliable operation.

Network-Synchronized Outputs
Keeps AES3 outputs locked to the network audio clock for accurate and stable digital audio transmission.

Power over Ethernet
Operates using Power over Ethernet, allowing both power and audio to be delivered through a single network cable.

Transformer-Balanced Inputs
Features transformer-balanced AES3 inputs that provide electrical isolation and help maintain clean audio signals.

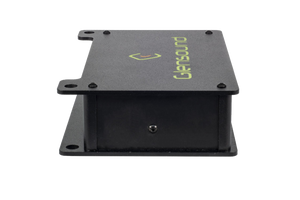

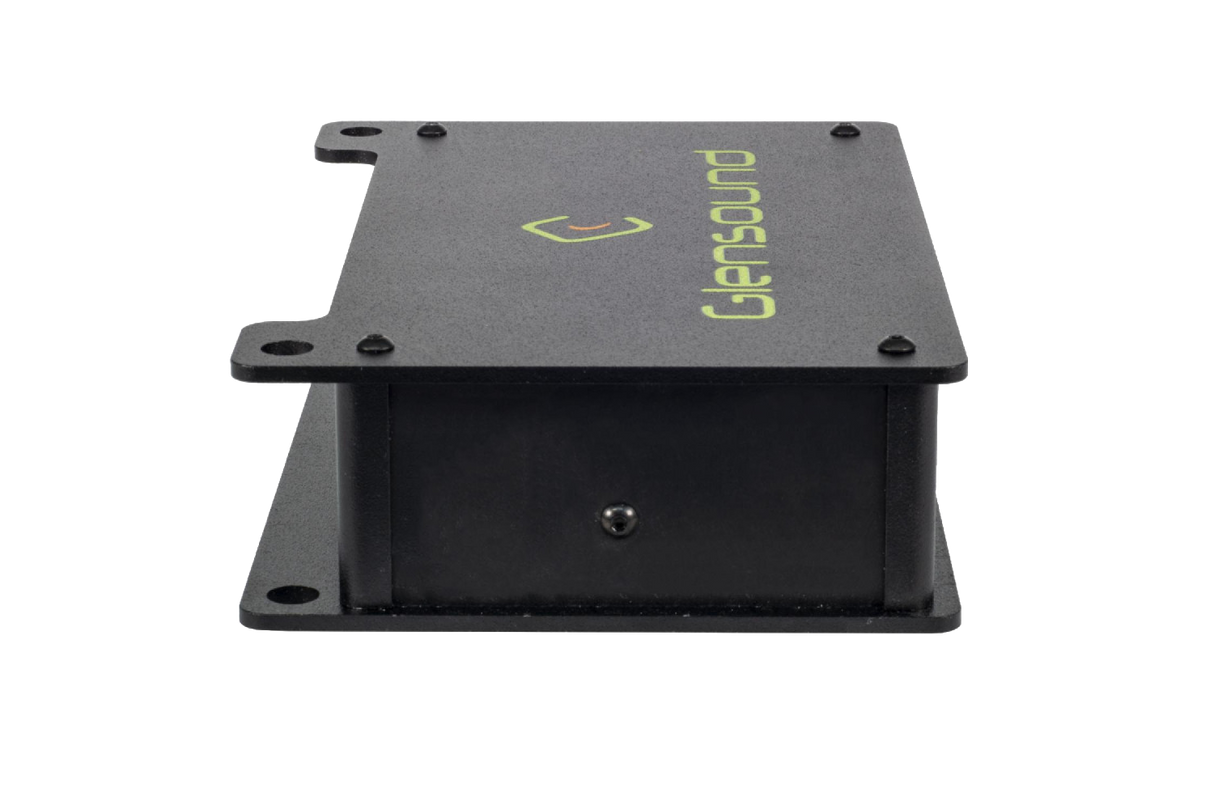

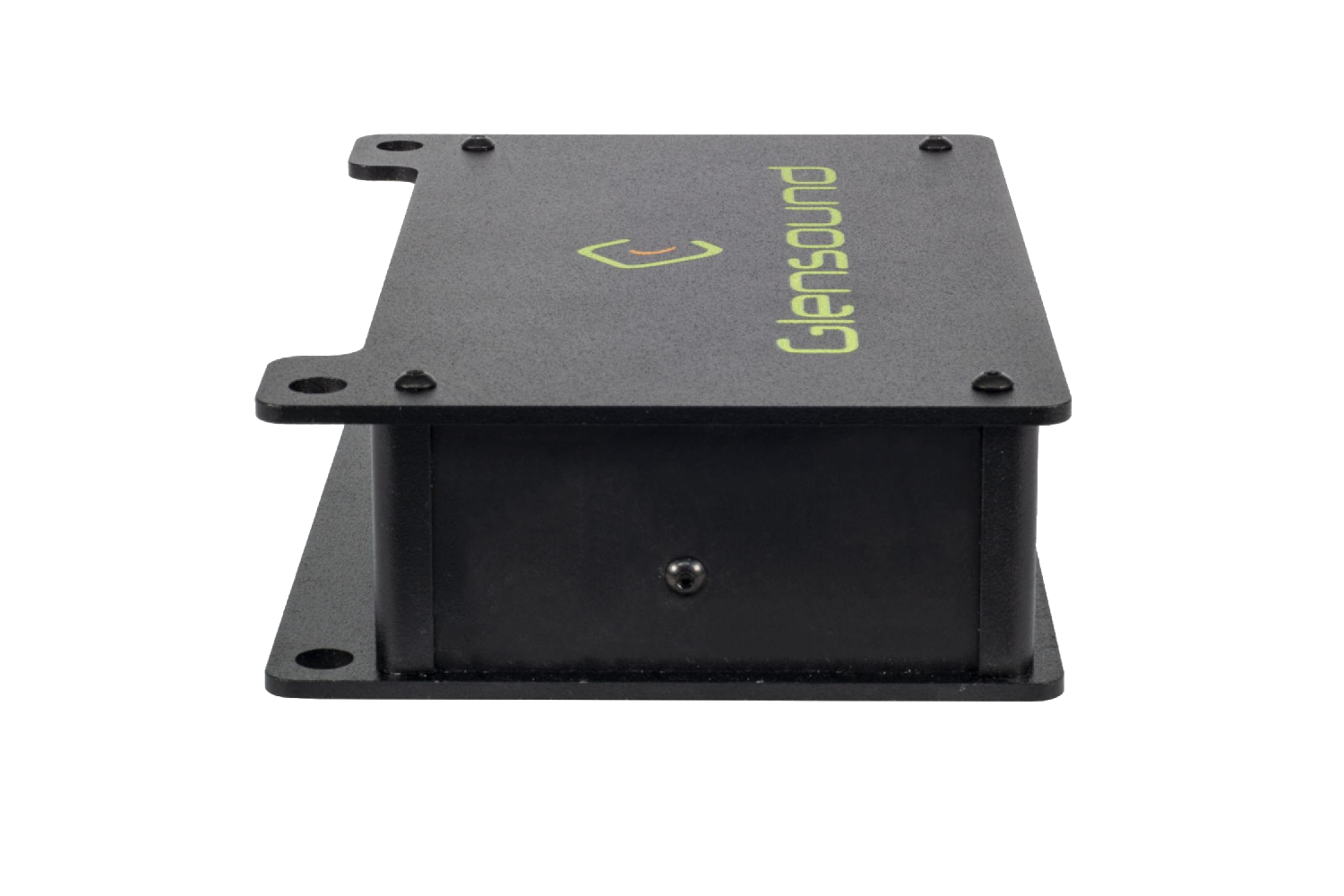

Compact and Rugged Design
Built with a durable aluminum enclosure that is ideal for broadcast, live events, theater, and location recording.

Flexible Installation
Includes rubber feet for desktop use and integrated cable tie mounting points for secure temporary installations.

Professional Network Connectivity
Equipped with a locking EtherCON network connector for dependable connections in demanding production environments.

Reliable Performance
Designed for dependable, low-maintenance operation in professional audio installations and mobile production workflows.

General Specifications
Device Type: AES3 to Dante/AES67 audio interface
Audio Channels: 2 balanced AES3 input/output circuits
Network Compatibility: Dante, AES67
Maximum Output Sample Rate: 96 kHz
Power Options: PoE, 12 V DC

Audio Specifications
Frequency Response: Flat to 22 kHz
Maximum Input Level: 0 dBFS
Maximum Output Level: 0 dBFS
Input Impedance: 110 Ω
Output Impedance: 110 Ω
Distortion: 0.00006% THD+N @ 1 kHz (referenced to +18 dBu output)
Noise: > -123 dBu (Residual)
Dynamic Range: 141 dB
Input Sample Rates: 32 kHz to 96 kHz
Output Sample Rates: 44.1, 48, 88.2, 96 kHz (1 AES3 output), 44.1 and 48 kHz (2 AES3 outputs locked to Dante)

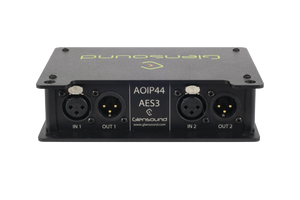

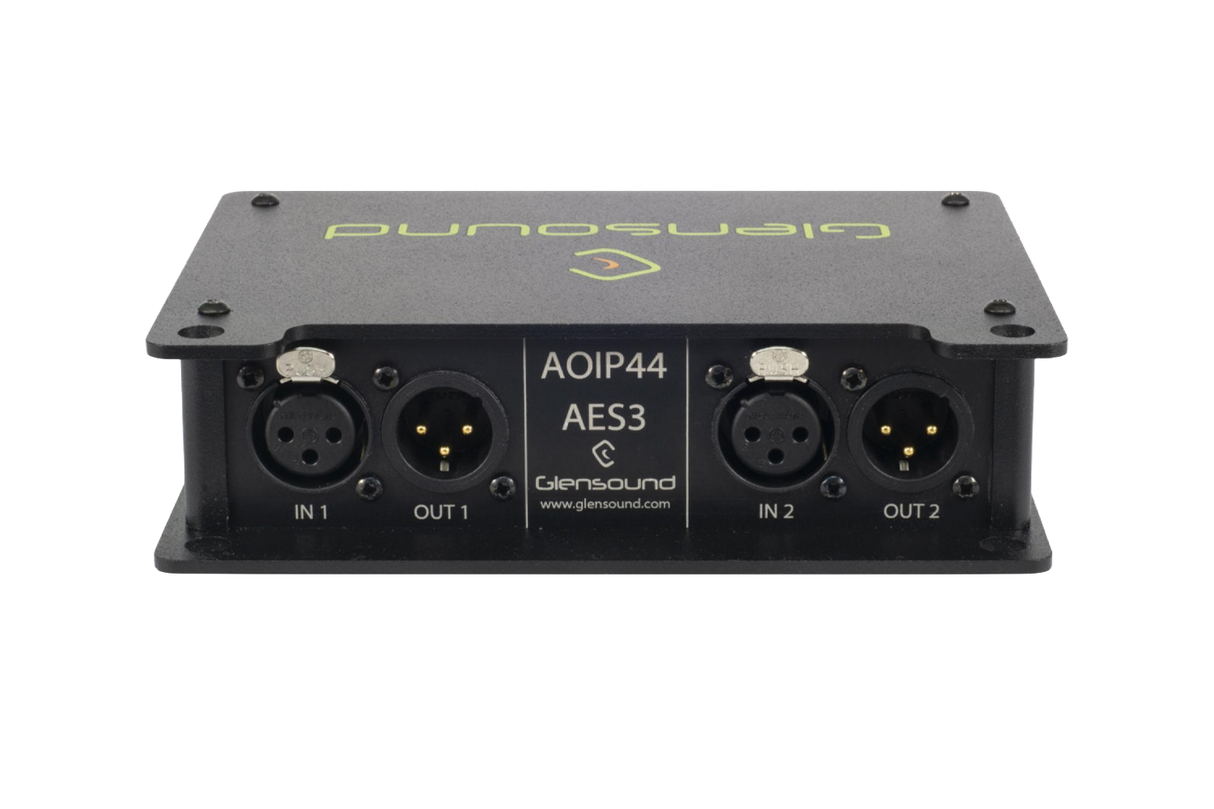

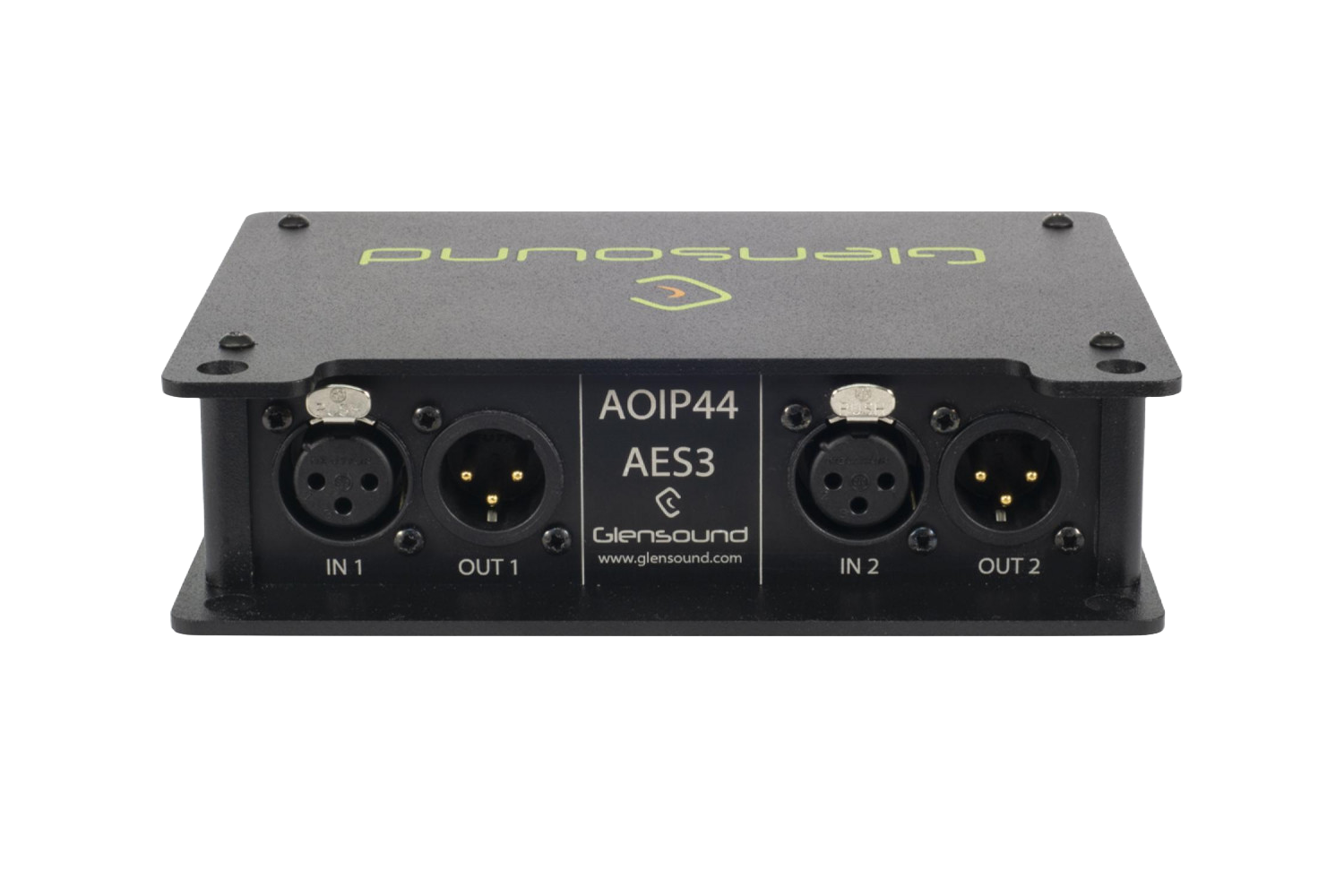

Input Type: Transformer-balanced AES3 on Neutrik 3-pin XLR

Network

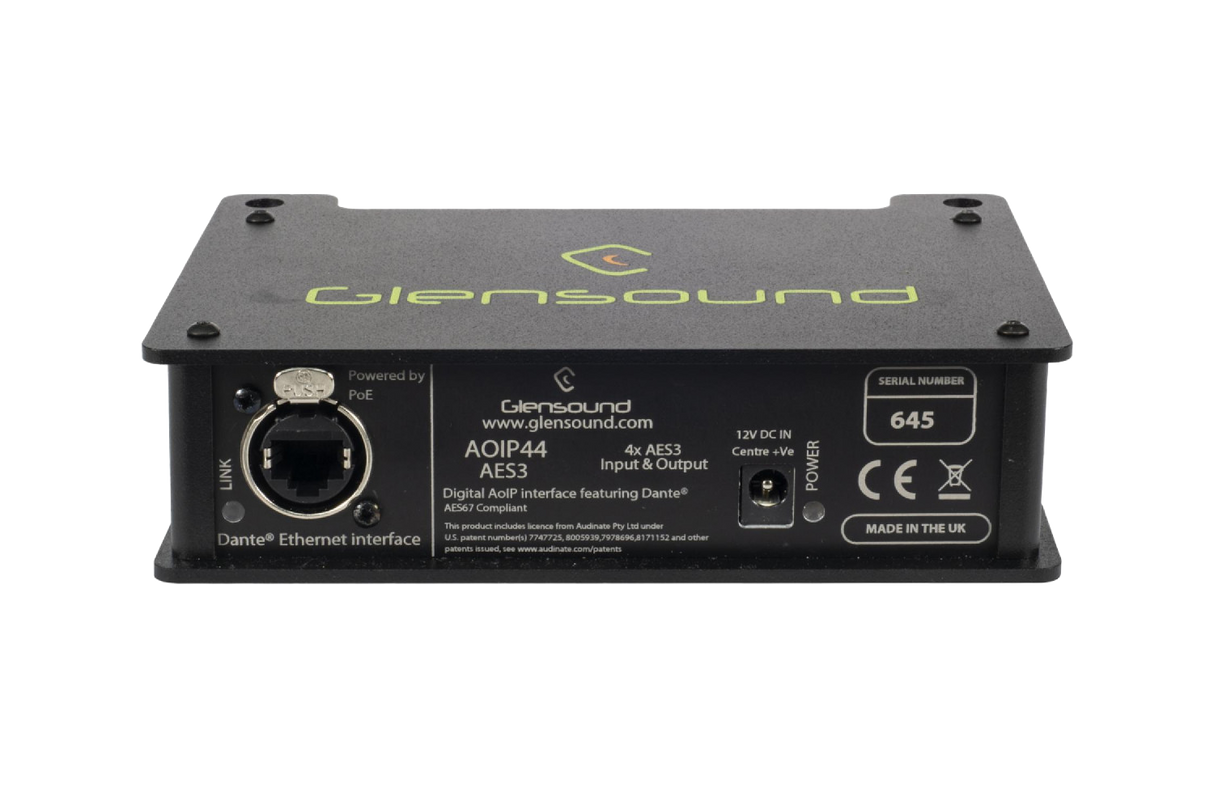

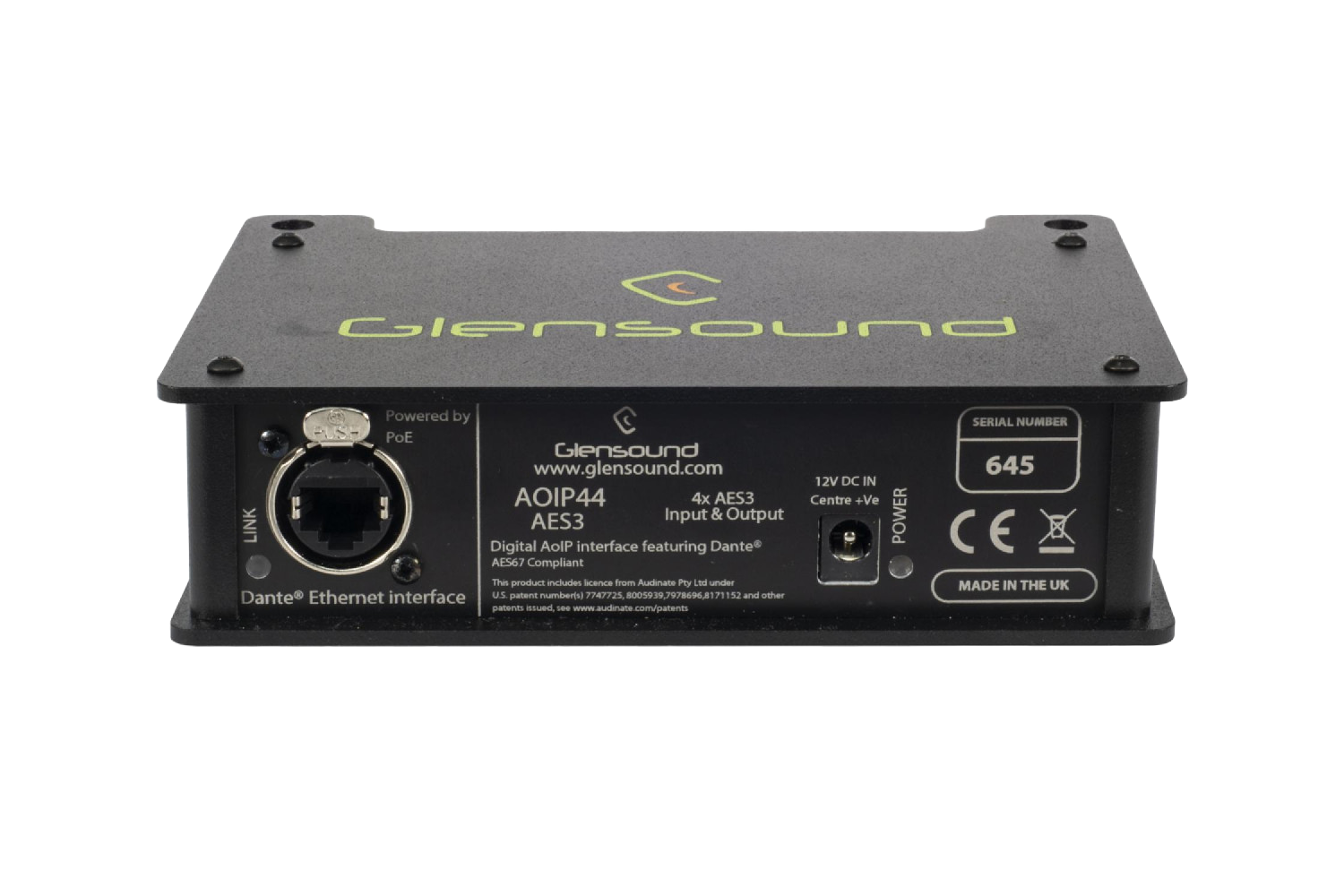

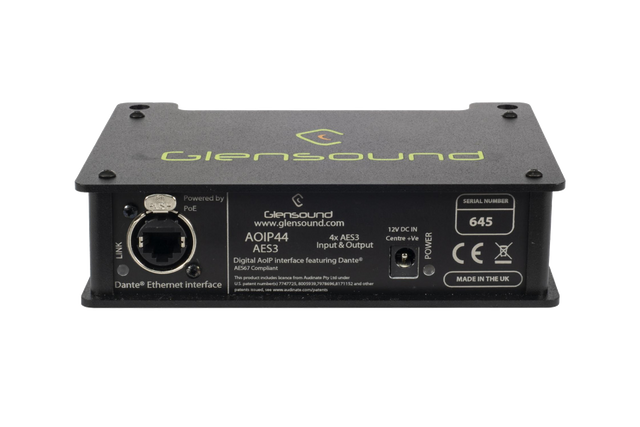

Network Connection: Neutrik RJ45 EtherCON
Dante Sample Rates: 44.1, 48, 88.2, 96 kHz
AES67 Sample Rate: 48 kHz
Output Synchronization: Network synchronized

Power
Power over Ethernet: 1.2 W
PoE Source: PoE-enabled switch or mid-span PoE injector
DC Input: 12 V DC

Physical Specifications
Dimensions: 153 × 105 × 41 mm
Weight: 420 g
Construction: Anodized aluminum
Finish: Laser etched
Rubber Feet: Yes
Cable Tie Mounting Holes: Yes

Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: 0–95% non-condensing

Features
Sample rate converters on AES3 inputs
Transformer-balanced AES3 inputs
Network-synchronized AES3 outputs
Supports Dante and AES67 audio networks
Designed for outside broadcast, theatre, and location applications
Single-cable PoE operation

Included Accessories
Handbook
RJ45 Network Cable: 2 m Cat5 RJ45 to RJ45 cable
