AUDIO-TECHNICA

AT5045P

Pair of instrument microphones, cardioid condenser, 20 Hz–20 kHz response, 149 dB SPL, low-noise performance, XLR outputs

$3,499.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

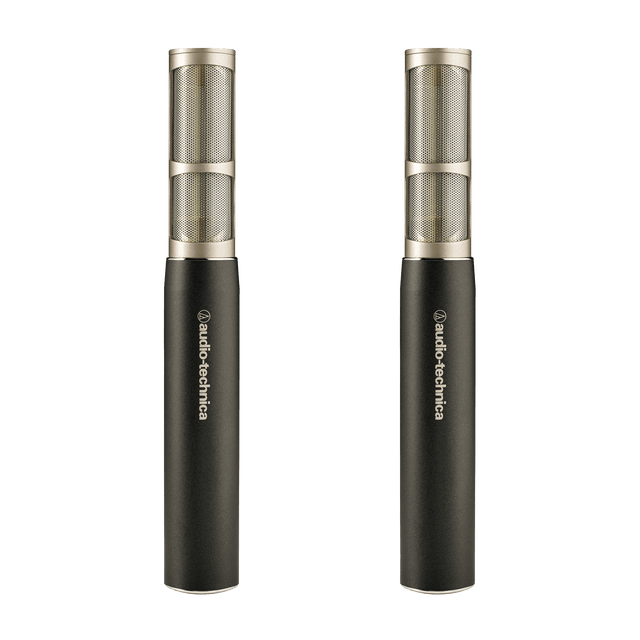

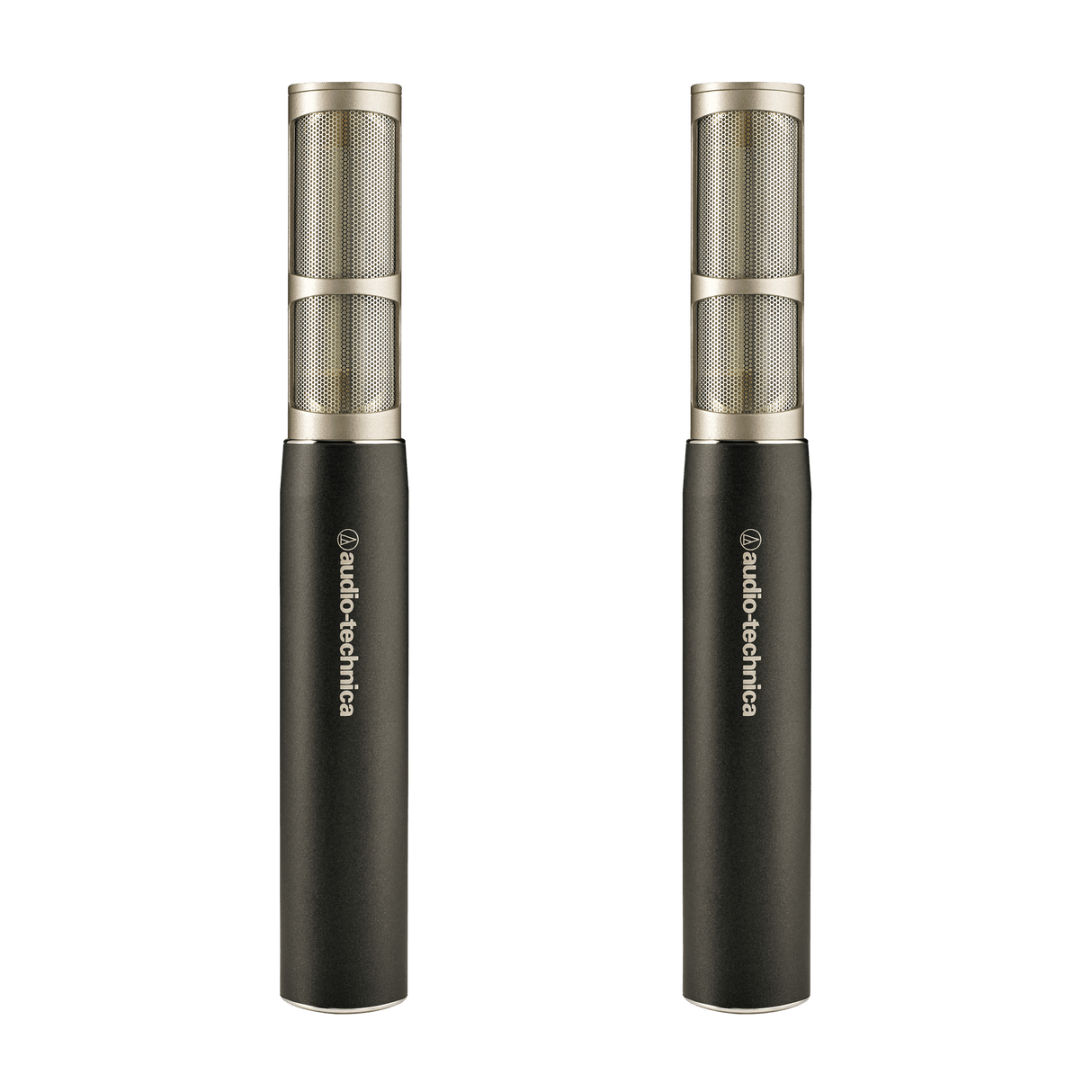

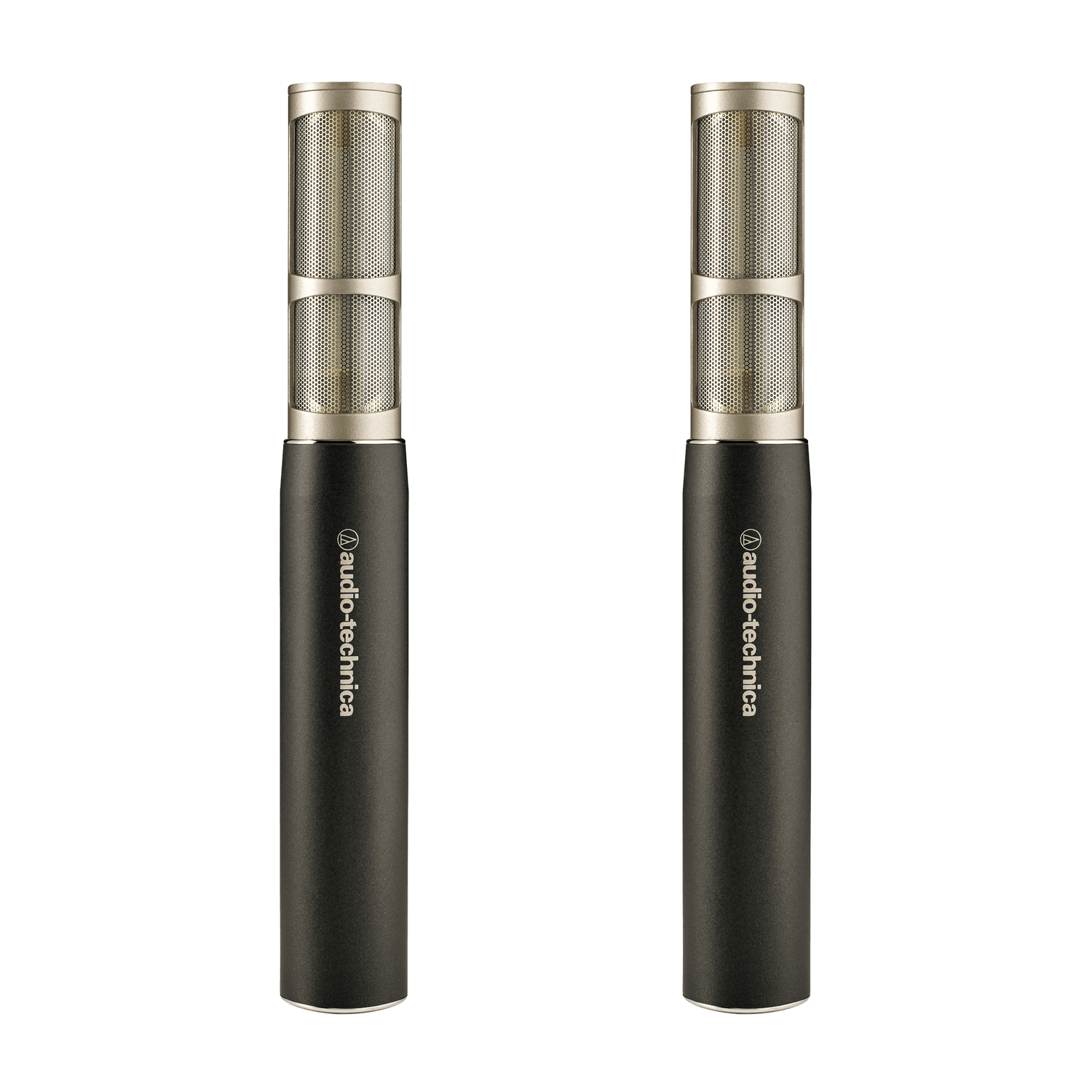

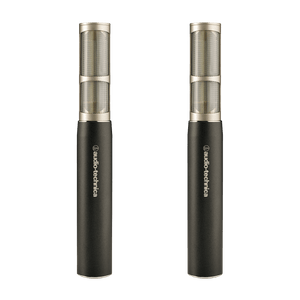

The Audio-Technica AT5045 Studio Instrument Microphone Pair is designed for capturing detailed, natural sound from acoustic instruments in professional studio and live-sound settings. With a side-address stick design and cardioid pickup pattern, these microphones are well suited for stereo recording setups such as drum overheads, acoustic guitar, strings, percussion, piano, and other instruments where clarity and placement matter.

Each microphone delivers a pure, realistic tone with fast response, low noise, and the ability to handle loud sound sources with confidence. The cardioid pattern helps focus on the performance while reducing unwanted room sound and bleed from nearby instruments, making the pair especially useful when recording ensembles or building a clean stereo image.

The microphones include secure isolation clamps, windscreens, and a protective hard-shell case with space for one or two microphones. Hand assembled and housed in durable aluminum and brass, the AT5045 pair offers a refined recording solution for musicians, engineers, and studios looking for dependable instrument microphones with a polished, professional feel.

Features

Studio Pair
Designed for use as a pair on overheads, acoustic instruments, percussion, strings, and other detailed studio sources.

Pure, Realistic Sound
Captures instruments with a natural, open sound that feels clear and lifelike.

Fast Detail Capture
Responds quickly to subtle playing details, helping preserve the character of each performance.

Focused Pickup
The cardioid design helps capture the sound in front of the microphones while reducing unwanted room noise.

Low Noise Performance
Keeps recordings clean and quiet, even when capturing delicate acoustic sources.

Handles Loud Sources
Works well on both soft and loud instruments without losing clarity.

Built-In Isolation
The included isolation clamps help reduce unwanted vibration and handling noise.

Premium Construction
Built with durable aluminum and brass housings for long-term studio use.

Protective Carrying Case
Includes a custom hard-shell case designed to protect one or two microphones.

Specifications

General Specifications
Device Type: Studio instrument microphone pair
Microphone Type: Large-diaphragm electret side-address condenser
Pair Configuration: 2 microphones
Intended Applications: Overheads, percussion, acoustic guitar, strings, acoustic instruments
Compatibility: 5/8"-27 threaded microphone stands
Housing Material: Aluminum and brass

Audio Specifications

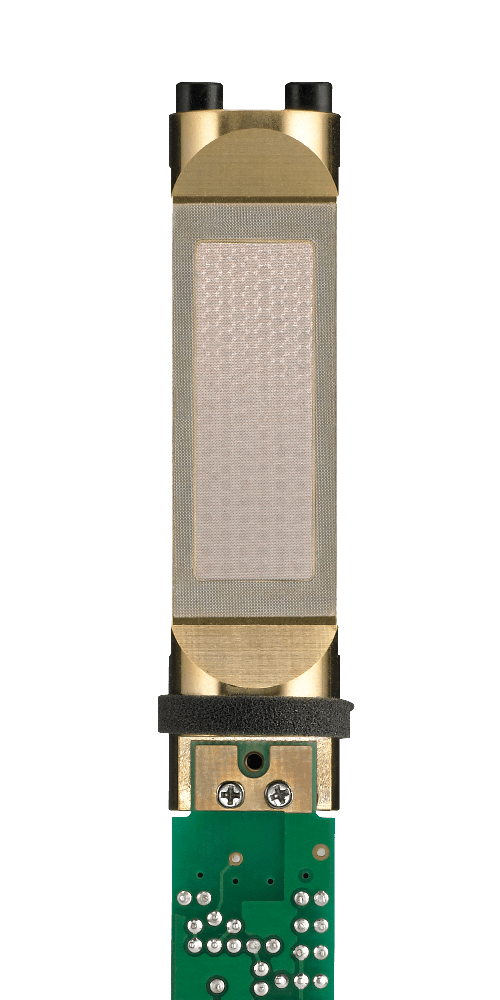

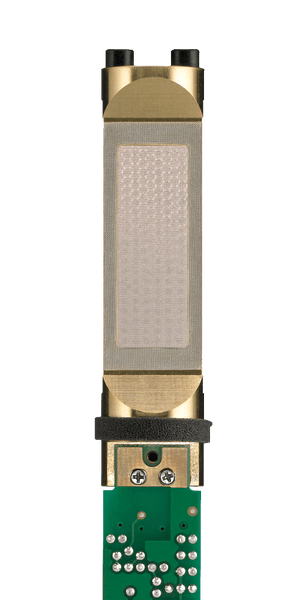

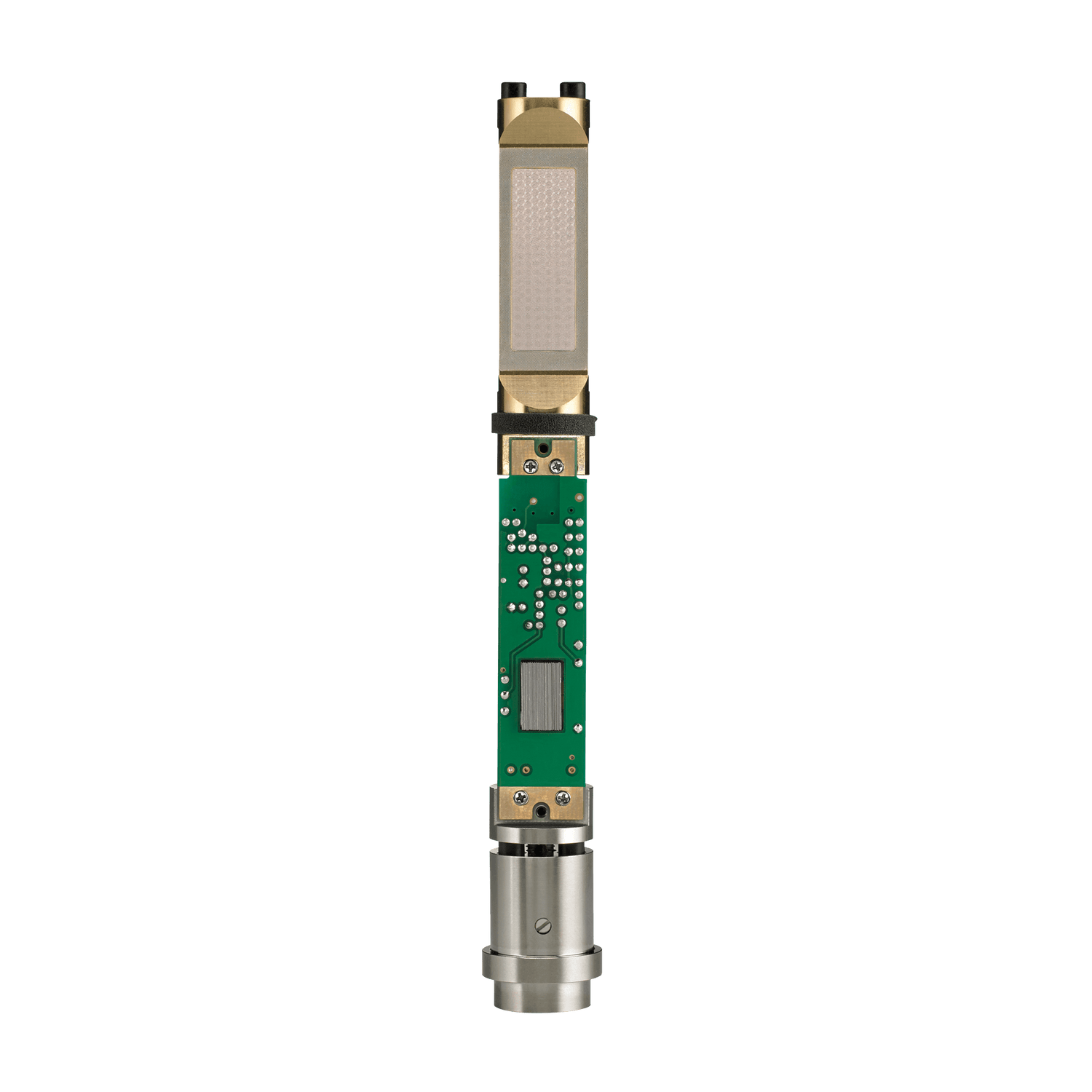

Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 20 Hz – 20,000 Hz
Open Circuit Sensitivity: -35 dB, 17.7 mV, re 1V at 1 Pa
Impedance: 100 ohms
Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.
Noise: 8 dB SPL, A-weighted
Dynamic Range: 141 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 86 dB, 1 kHz at 1 Pa

Power Specifications
Phantom Power Requirements: 48V DC, 1.4 mA typical per microphone
Pair Phantom Power Requirements: 48V DC, 2.8 mA typical total

Connectivity
Output Connector: Integral 3-pin XLRM-type
Output Type: Low impedance balanced
Output Phase: Pin 2 hot
Pin 1: Ground shield
Pin 2: Positive audio signal
Pin 3: Negative audio signal

Physical Specifications
Weight Per Microphone: 197 g
Weight Per Microphone: 7.0 oz
Pair Weight: 394 g
Pair Weight: 14.0 oz
Length Per Microphone: 177.0 mm
Length Per Microphone: 6.97 in
Maximum Body Diameter Per Microphone: 25.0 mm
Maximum Body Diameter Per Microphone: 0.98 in

Included Accessories

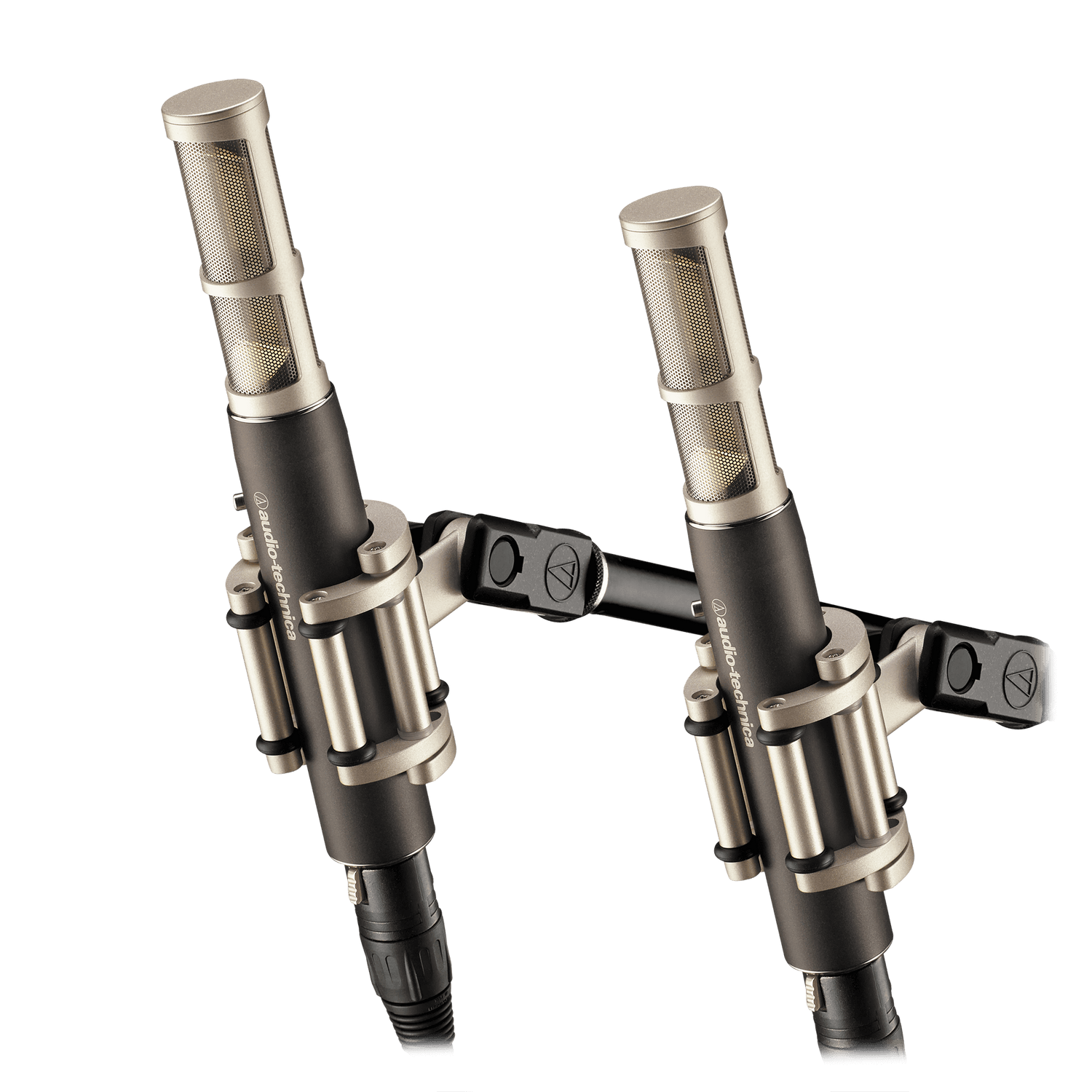

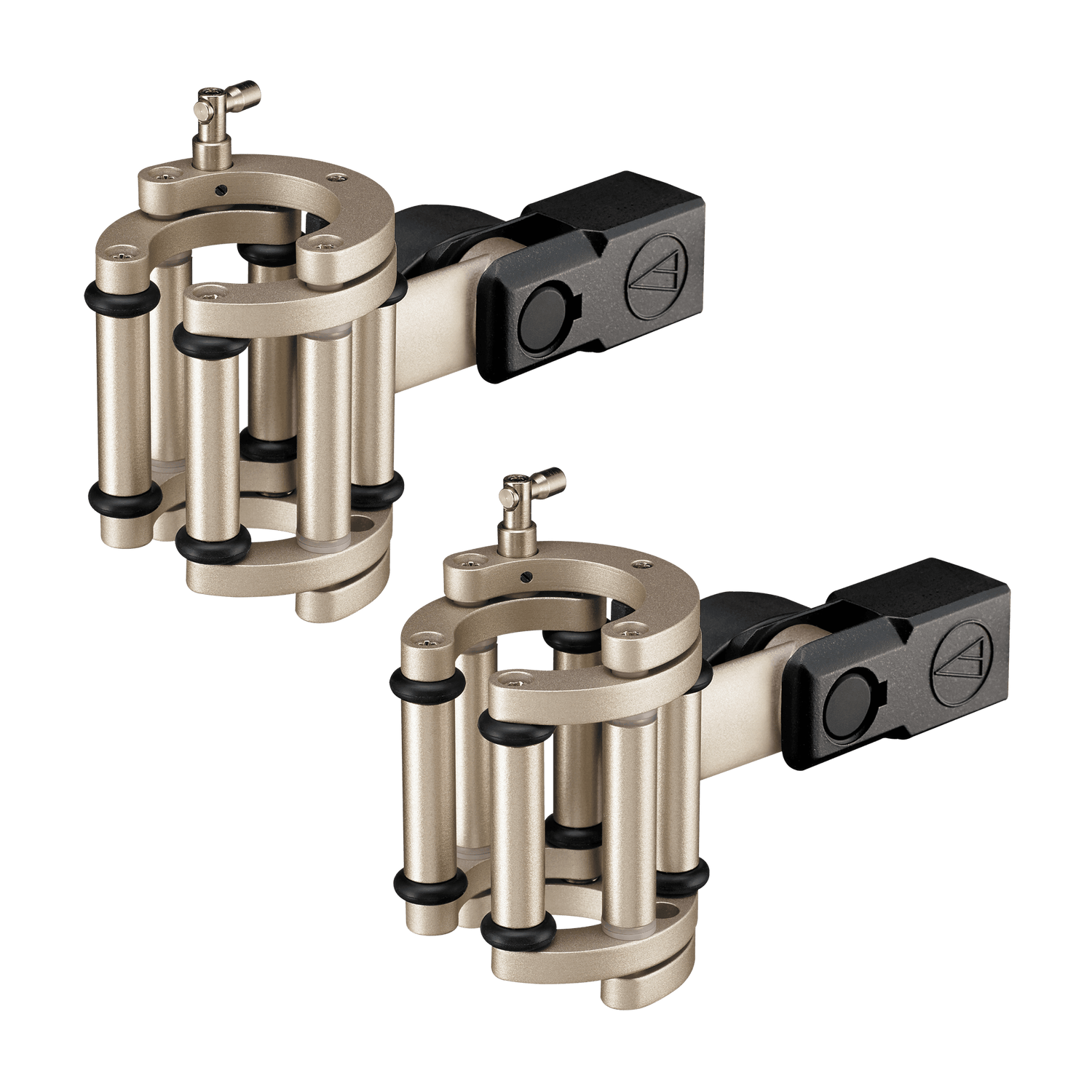

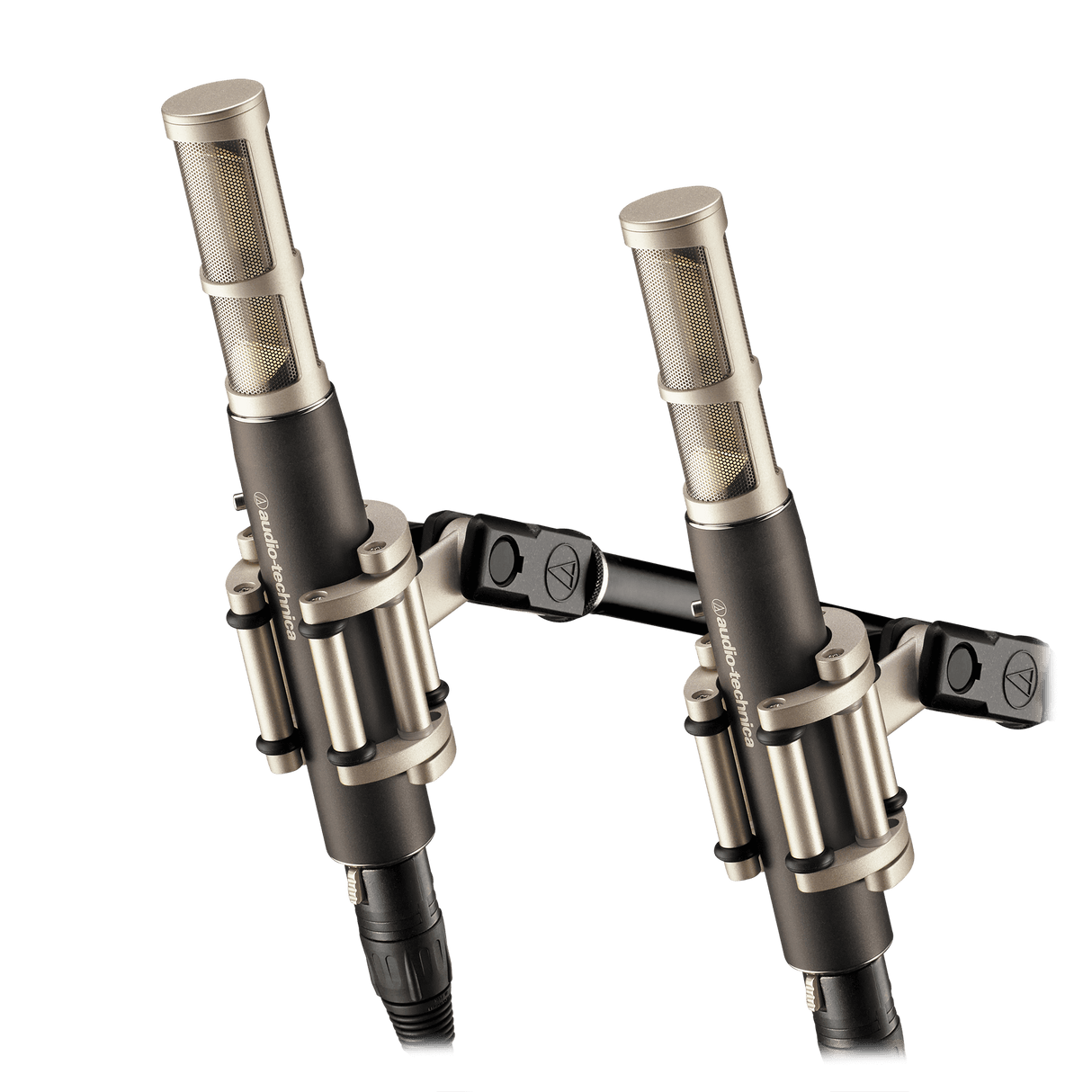

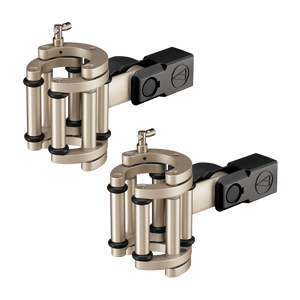

Isolation Clamp: AT8481 isolation clamp for 5/8"-27 threaded stands

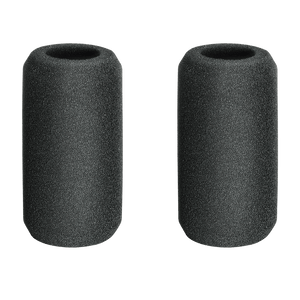

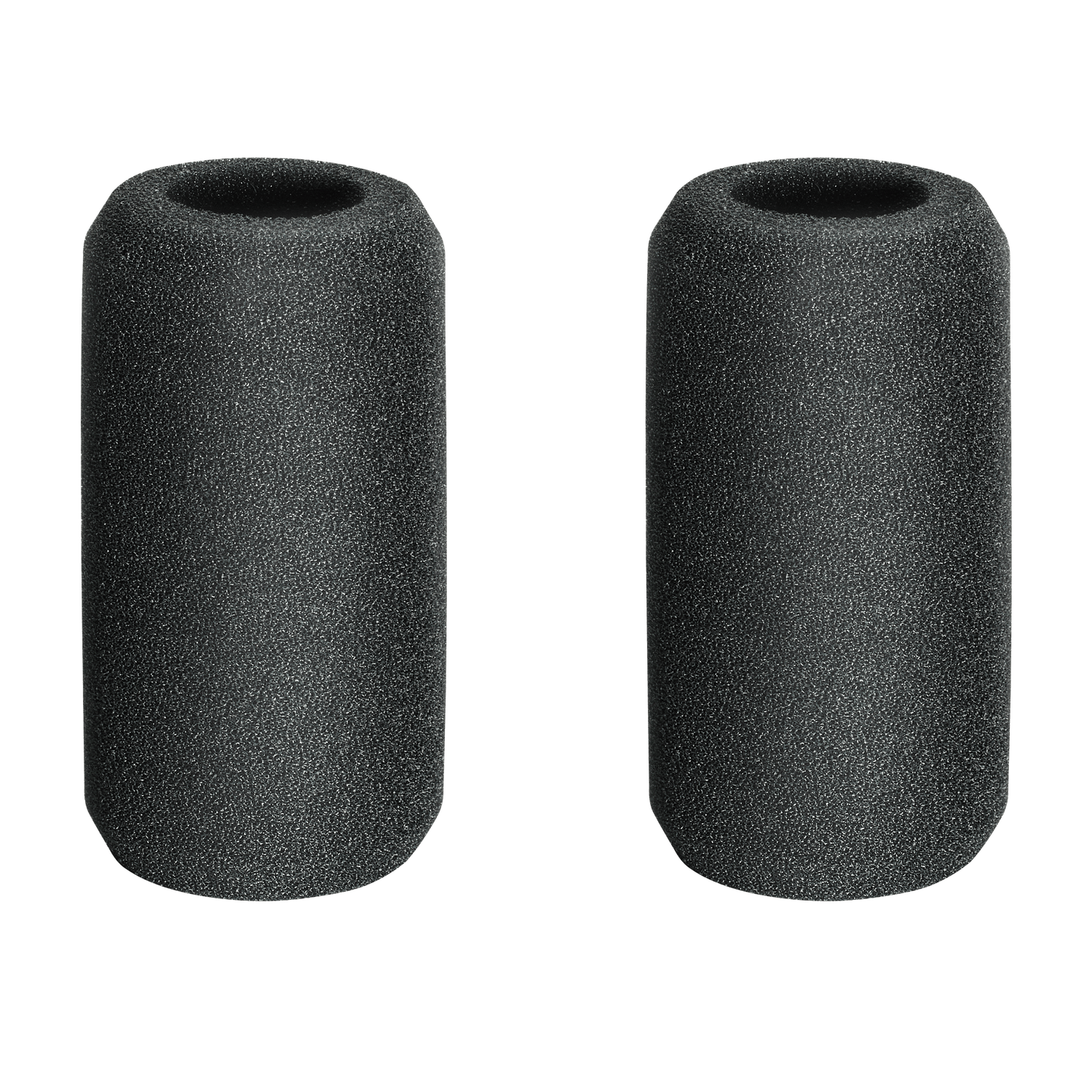

Windscreen: AT8165 windscreen

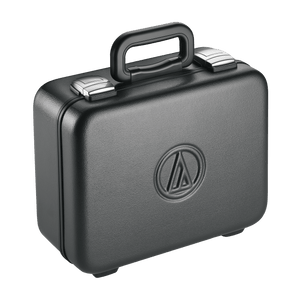

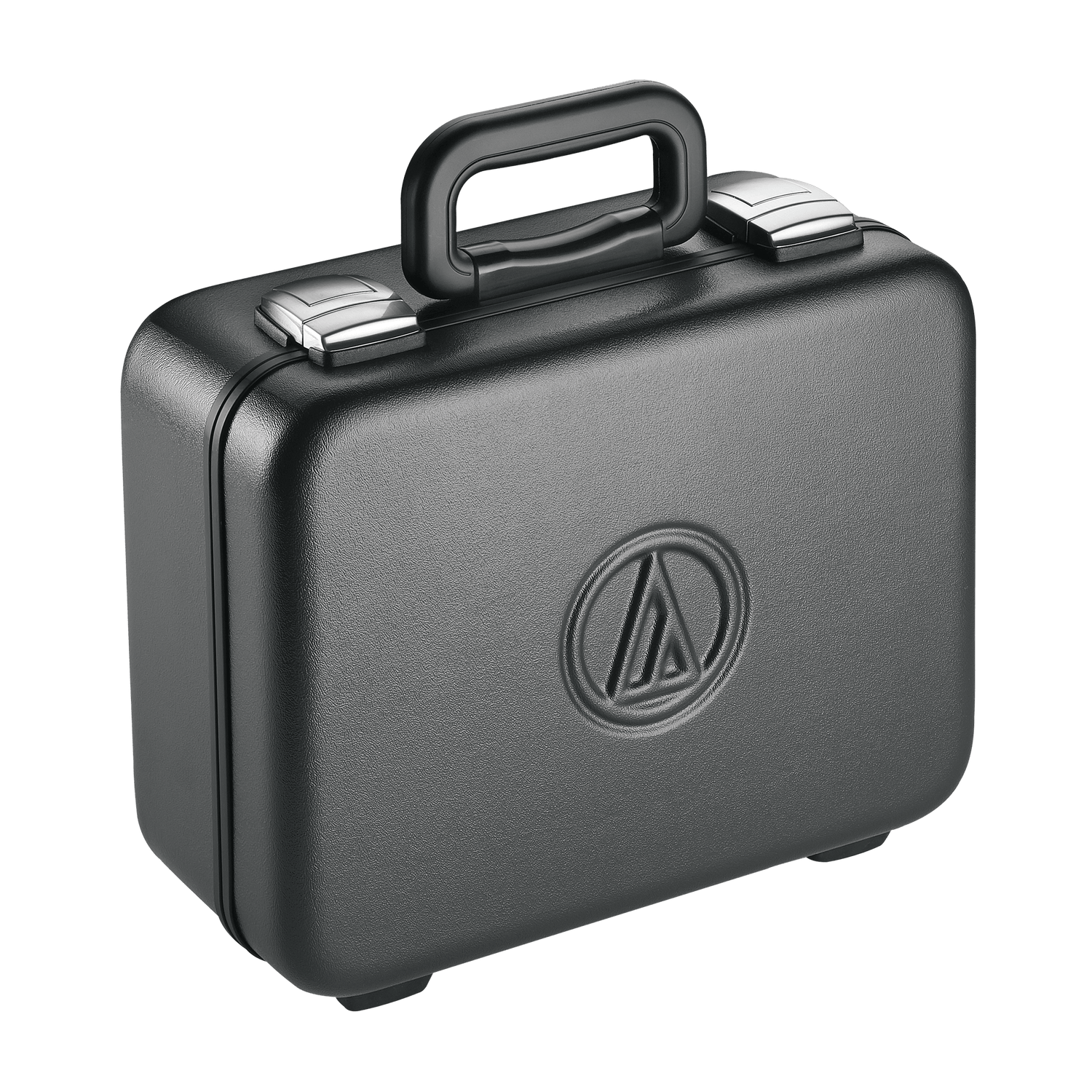

Carrying Case: Protective hard-shell carrying case with die-cut foam compartments for one or two microphones
