BLACKMAGIC DESIGN

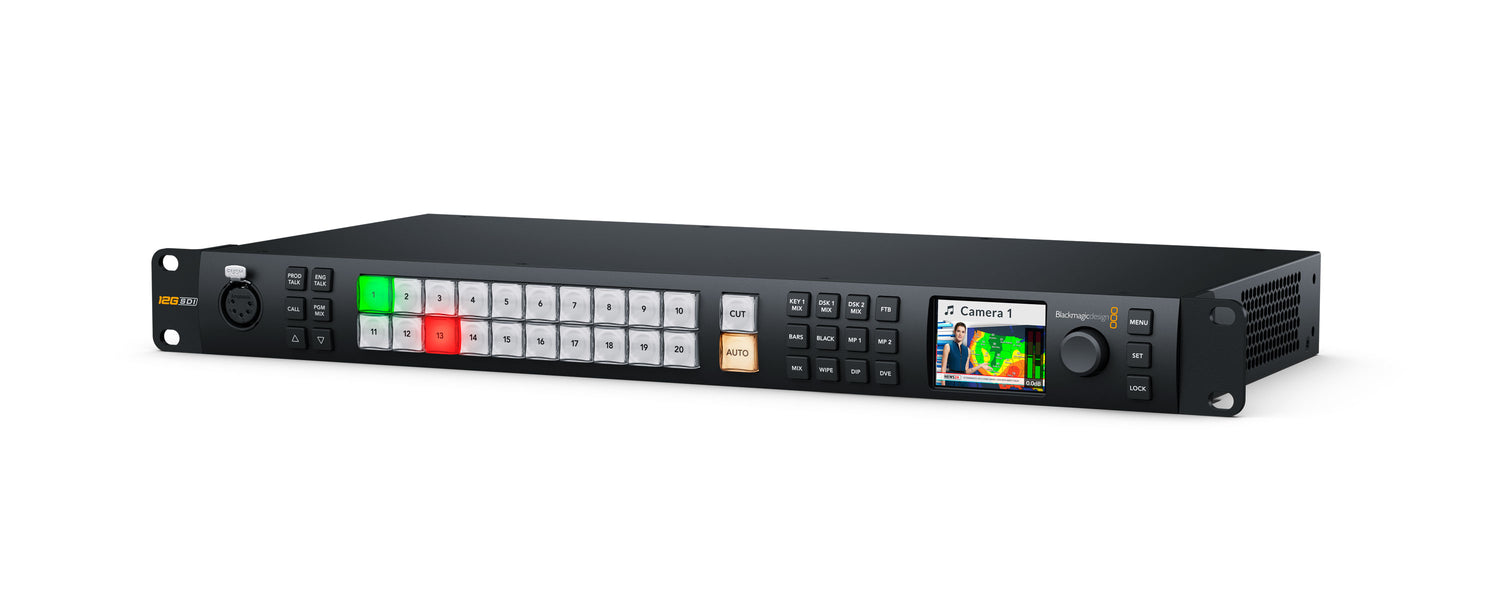

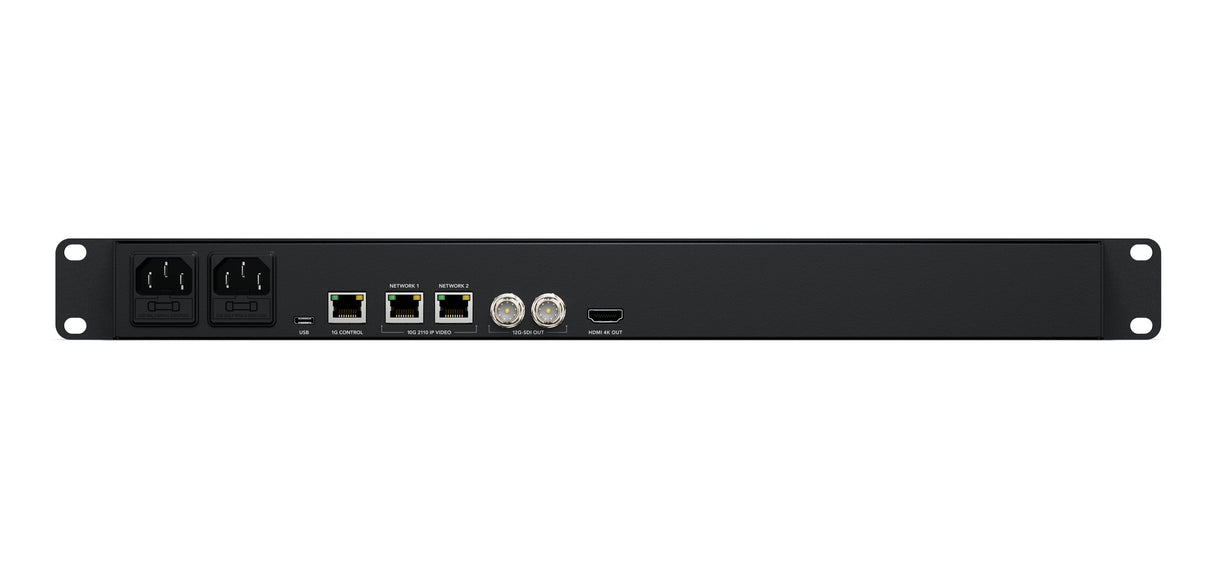

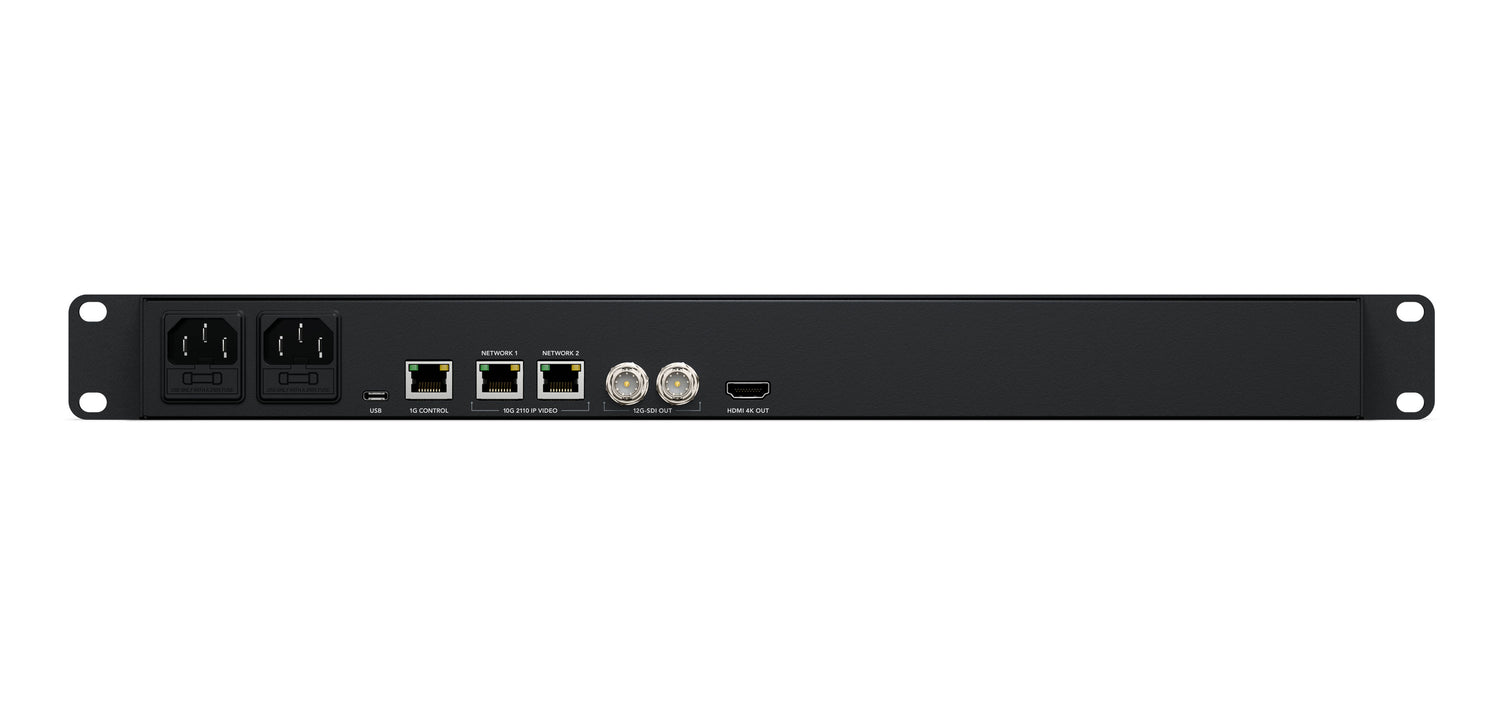

ATEM Monitoring Rack Panel 20 Video Converter, 1U

Switchers

Rackmount switcher control panel, dual 10G SMPTE-2110 IP connections, 12G-SDI and HDMI monitoring outputs, built-in LCD display, talkback support, emergency switching controls

$1,485.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Blackmagic Design ATEM Monitoring Rack Panel 20 combines live production control and video monitoring into a compact 1RU rackmount unit designed for professional broadcast environments. Built to work alongside ATEM Constellation IP switchers, it provides a streamlined way to control switching operations while also converting SMPTE-2110 IP video into local SDI and HDMI monitoring outputs. Its integrated LCD screen, front panel controls, and dedicated talkback connection make it a practical solution for control rooms, flypacks, and mobile production racks where space and efficiency matter.

Designed for modern IP-based workflows, the panel supports redundant 10G Ethernet SMPTE-2110 connections for dependable signal delivery in demanding live production setups. Operators can manage source selection, transitions, and emergency switching directly from the front panel using responsive illuminated buttons and an intuitive control layout. The built-in talkback functionality and support for ATEM Software Control on Mac and Windows systems allow teams to coordinate productions smoothly while maintaining flexible remote configuration options.

The ATEM Monitoring Rack Panel 20 also supports a wide range of HD and Ultra HD video standards, including 2160p60, making it suitable for everything from broadcast studios to large-scale live events. With dual 12G-SDI outputs, HDMI monitoring, embedded audio support, and redundant power inputs, it fits naturally into professional production systems that require reliability and straightforward operation.

Features

ATEM Monitoring Rack Panel 20
Professional rack-mounted monitoring and emergency control panel designed for ATEM Constellation IP live production systems.

Integrated Monitoring & Control
Combines a video monitoring converter and ATEM switcher control panel in a single compact rackmount unit.

Designed for ATEM Constellation IP
Built specifically for monitoring and controlling ATEM Constellation IP switchers in professional broadcast environments.

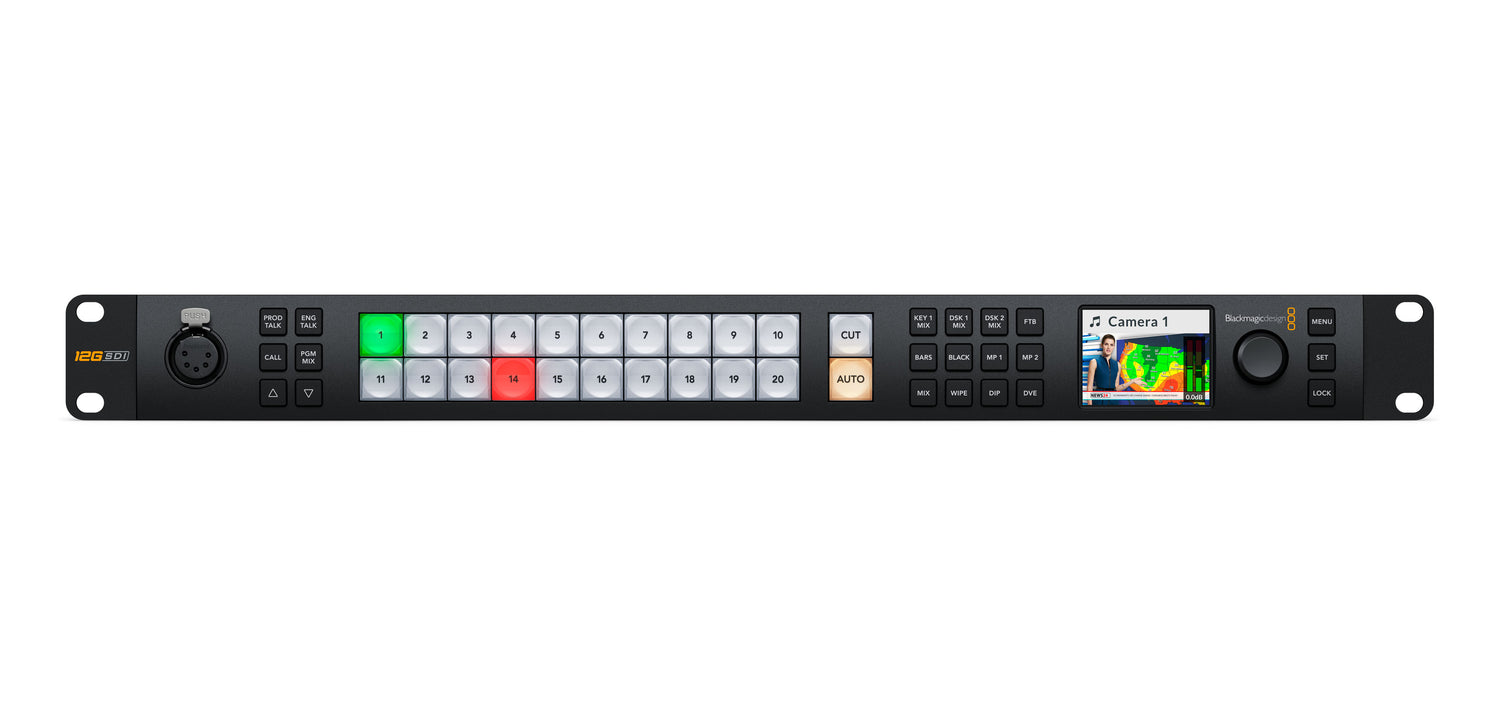

20 Dedicated Control Buttons
Front panel buttons provide fast access to source selection, transitions, emergency switching, and talkback controls.

Built-In LCD Monitoring Screen
Integrated HD LCD display allows local monitoring of live video feeds and switcher status information.

Redundant SMPTE-2110 Connectivity
Dual 10G Ethernet connections support SMPTE-2022-7 redundancy for reliable IP video monitoring workflows.

Integrated 12G-SDI & HDMI Outputs
Converts SMPTE-2110 IP video to local 12G-SDI and HDMI monitoring outputs for flexible broadcast setups.

Professional Talkback Support
Includes front-panel 5-pin XLR talkback connection for communication within live production environments.

Compact 1RU Rackmount Design
Fits easily into flypacks, control rooms, mobile production racks, and broadcast installations.

Emergency Switching Capability
Provides direct front-panel switching control for fast operation during live production scenarios.

Broadcast-Grade IP Video Support
Compatible with SMPTE-2110 video, audio, timing, and ancillary data standards.

Dual Redundant Power Supplies
Built-in redundant power inputs help ensure dependable operation during critical productions.

Flexible Software Integration
Works with ATEM Software Control for setup, configuration, and system management.

Specifications

General Specifications
Product Type: Rackmount ATEM control and monitoring panel
Application: ATEM 4 M/E Constellation IP switcher control and local monitoring
Panel Type: Hardware control panel
Mounting Type: Rackmount

Control Features
Switcher Control: Yes
Button Type: Premium hardware buttons
Ethernet Control Port: Dedicated Ethernet control
ATEM Workflow Support: Yes
Local Operation Support: Yes

Video Monitoring
Monitoring Conversion: 10G Ethernet to 12G-SDI and HDMI
Redundant Video Support: SMPTE-2022-7
SDI Output: 12G-SDI
HDMI Output: Yes
Local Video Monitoring: Yes

Audio and Talkback
Talkback Interface: 5-pin front panel connection
Program Monitoring Support: Yes

Compatibility
Compatible Switchers: ATEM 4 M/E Constellation IP
Compatible Switchers: ATEM 4 M/E Constellation IP Plus
Control System: ATEM hardware and software control ecosystem

System Features
Rack Workflow Integration: Yes
Front Panel Operation: Yes
Broadcast Switcher Control: Yes
Redundant Monitoring Conversion: Yes
