CRANBORNE AUDIO

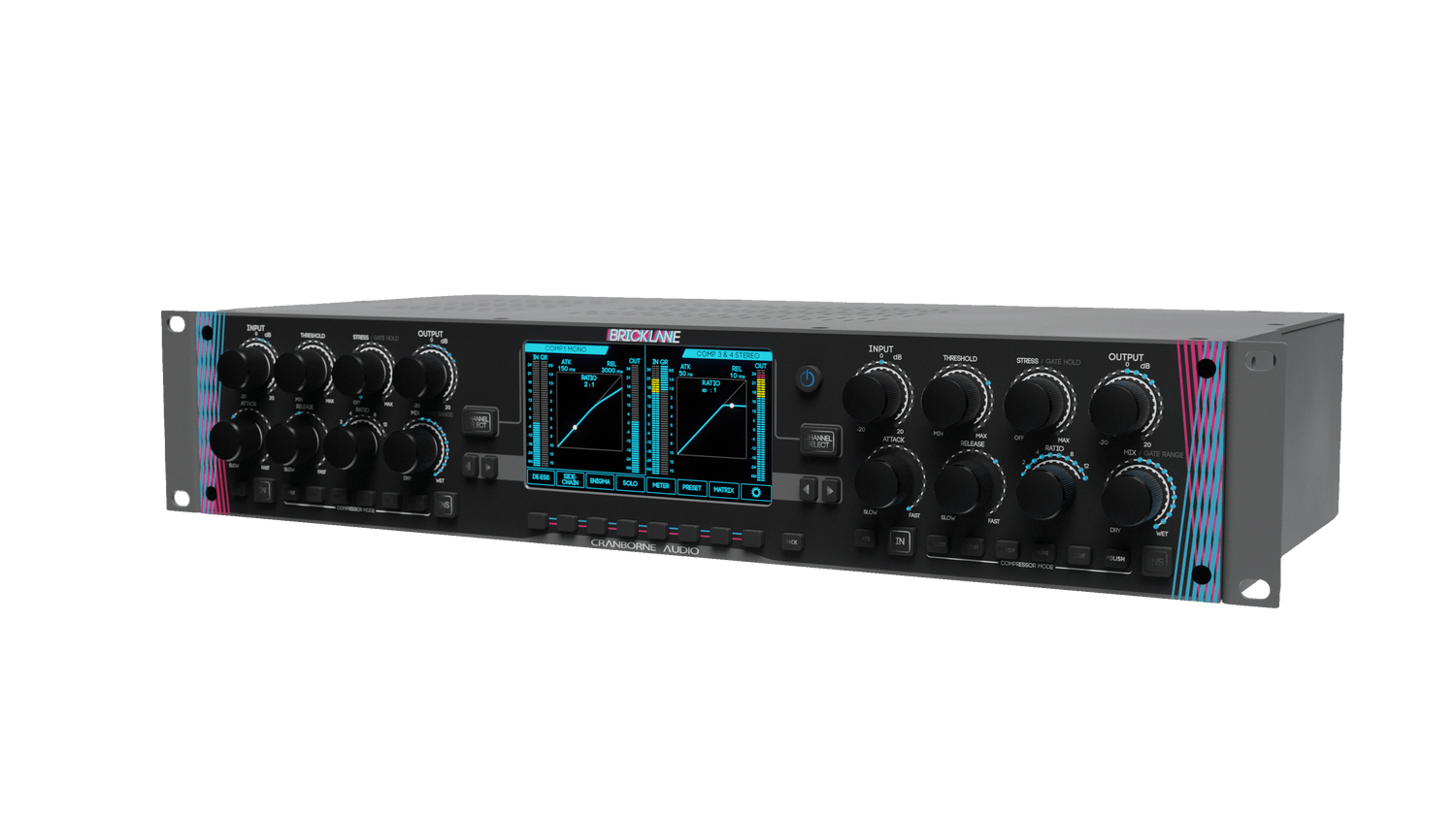

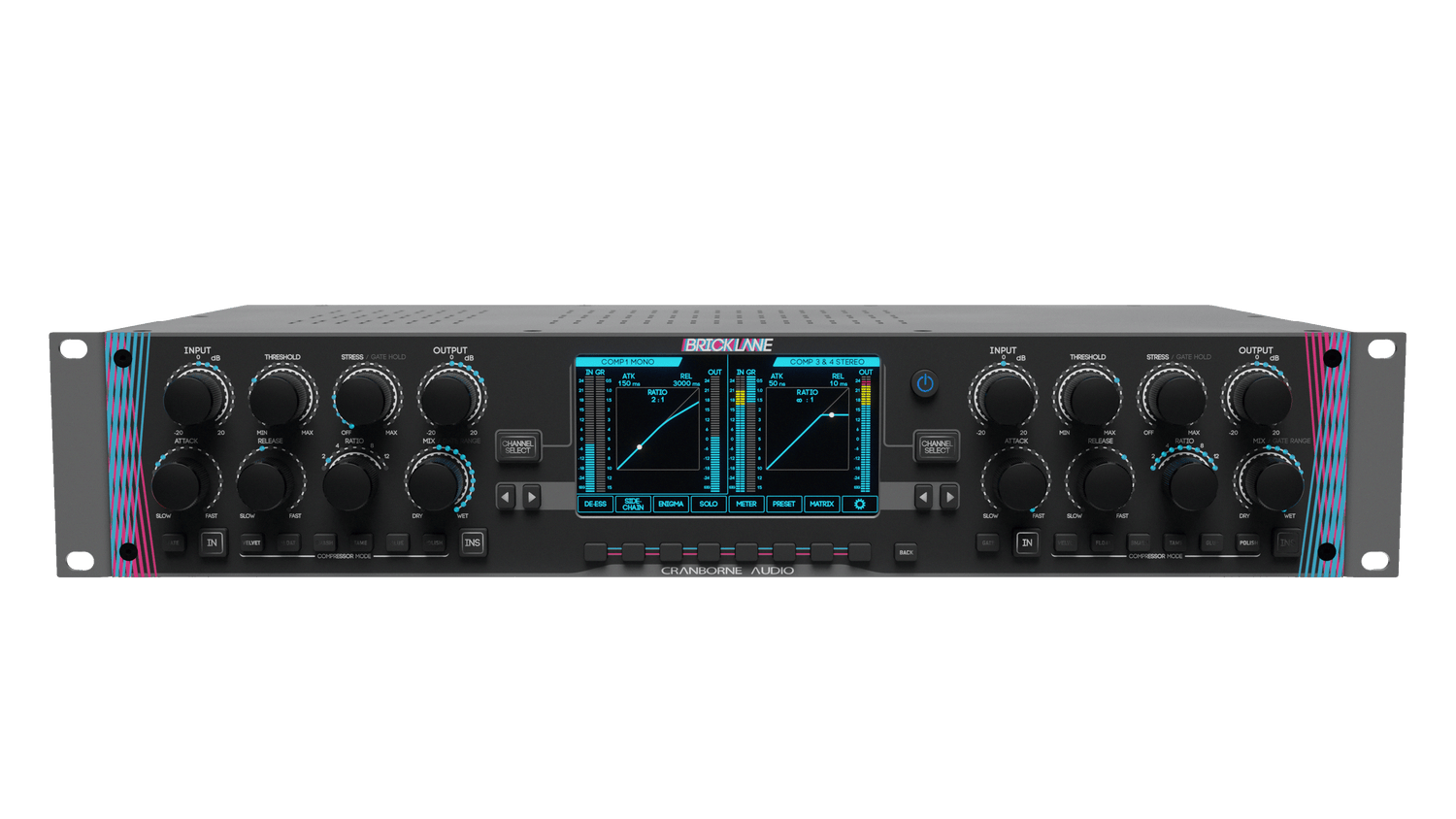

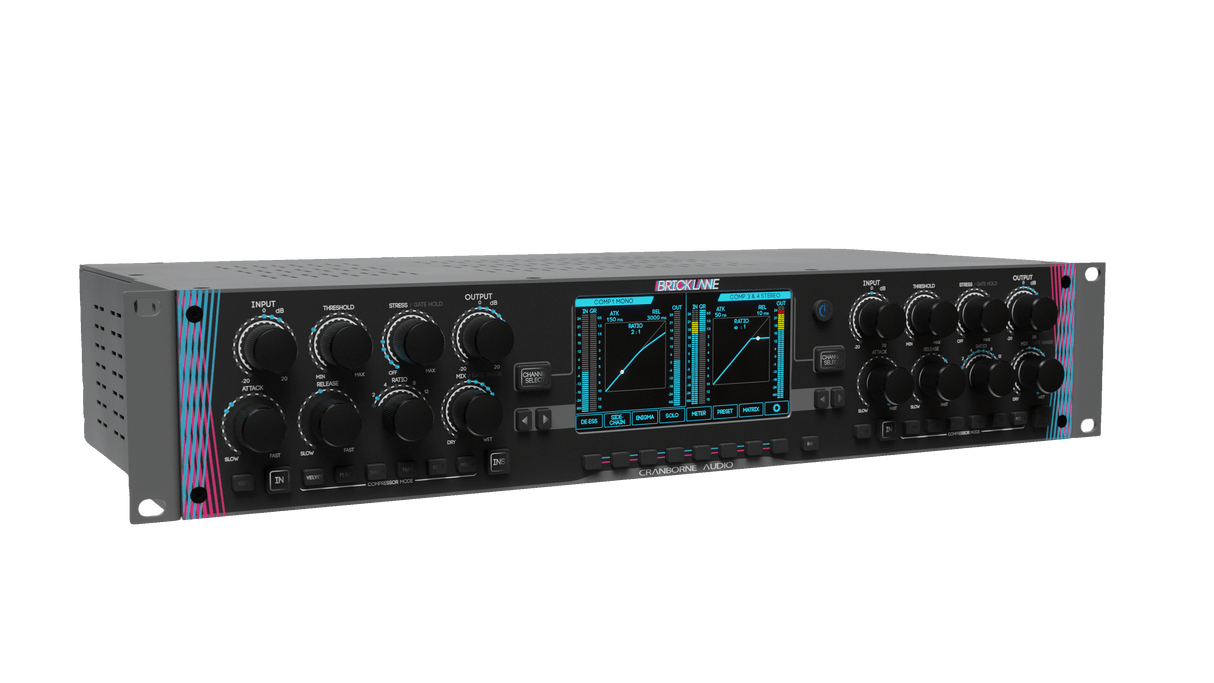

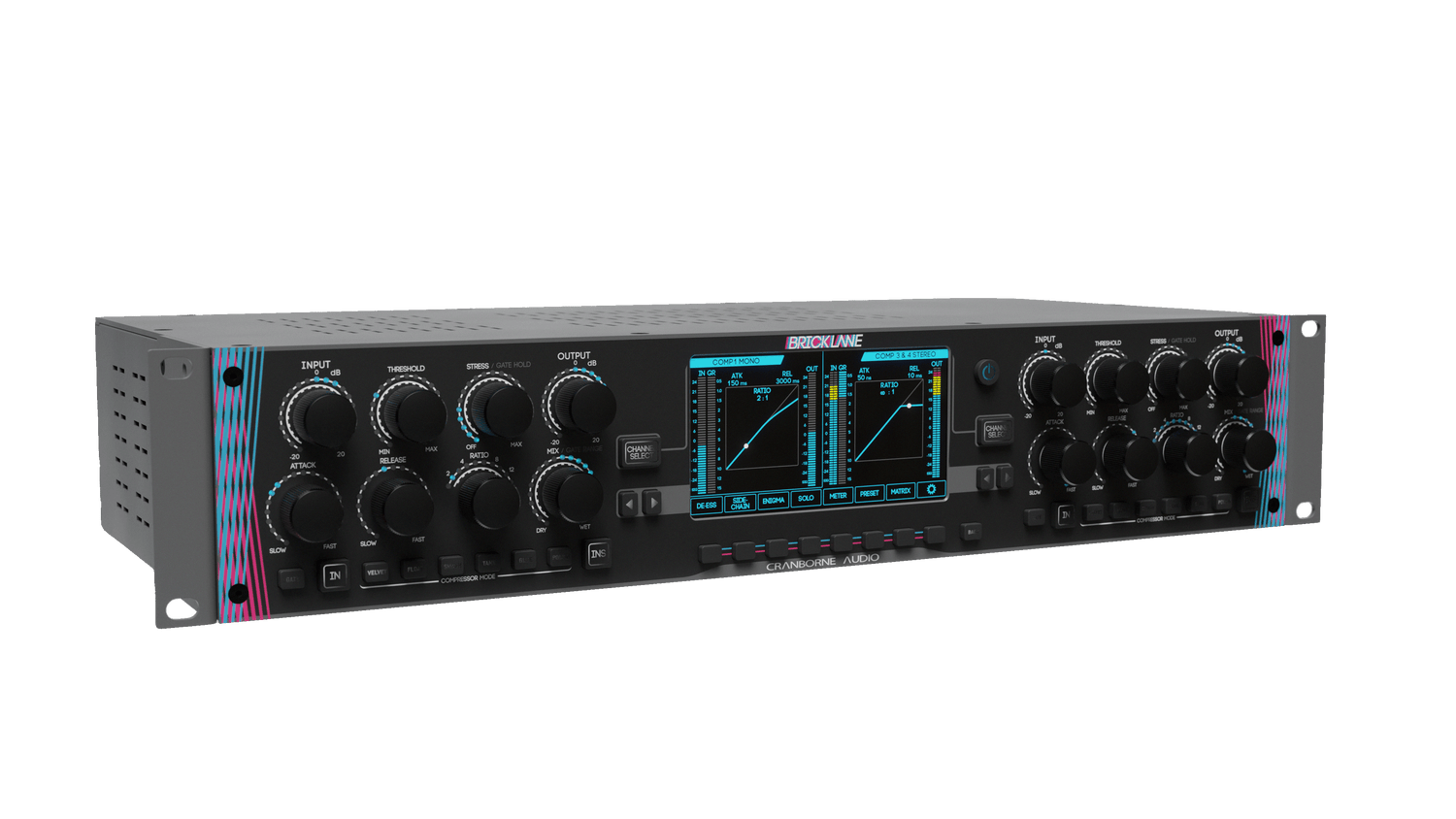

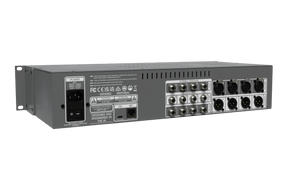

Brick Lane MC4

Multi-Channel Compressors

19” 2U digitally-controlled dynamics processor, 4-channel Modal PWM, mono/stereo/mid-side, dual-band, de-esser, analogue lookahead, USB/NET control, harmonic saturation

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Brick Lane MC4 by Cranborne Audio is a 4-channel analog dynamics processor designed to offer detailed control across mono, stereo, and Mid/Side workflows. Housed in a 2U 19-inch rackmount chassis, it features Modal PWM architecture that supports six compression styles. These range from vintage-inspired smoothness to sharper, more assertive responses. Each channel includes its own compressor and noise gate, along with a dedicated saturation circuit that responds to the character of the signal for a more tailored result.

The unit supports a variety of configurations, including dual-band compression, de-essing with analogue lookahead, and series processing for more layered control. External gear can be integrated through insert points, while flexible sidechain routing allows each channel to be triggered independently or by other inputs. Remote control is possible via USB or Ethernet, with a DAW-integrated plugin for storing and recalling settings. A full-color display and LED-ring encoders provide real-time visual feedback, ensuring a clear view of all adjustments in both standalone and remote operation.

Features

4-Channel Dynamics Control

Processes up to four audio channels with compression and gating for precise dynamics shaping.

Modal PWM Compression

Delivers six unique compression styles with smooth, musical responses tailored to different sources.

Flexible Operation Modes

Supports Mono, Stereo, Mid/Side, Dual-Band, Series, and De-Esser configurations for a variety of audio workflows.

Integrated Saturation Control

Each compression mode includes analog harmonic saturation for added warmth, punch, or clarity.

Series and Dual-Band Modes

Enables layered compression or separates frequency bands for targeted dynamic control.

Advanced De-Esser

Smoothly controls harsh sibilance and high-frequency spikes using lookahead analog technology.

ENIGMA Fine-Tuning

Provides deep control over compression behavior including attack, release, knee, and frequency focus.

USB and Network Integration

Allows remote control and full recall of settings directly from your DAW using the included plugin.

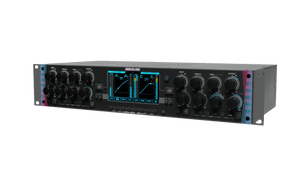

Visual Feedback Display

Features a 5” color screen and LED-ringed encoders for intuitive, real-time control and monitoring.

Insert and Sidechain Options

Includes insert points and external sidechain inputs for creative signal routing and advanced audio control.

100% Analog Signal Path

Maintains analog purity throughout with no digital audio conversion, preserving sonic integrity.

Specifications

General Specifications

Device Type: 4-channel Modal PWM Dynamics Processor

Form Factor: 19" Rackmount, 2U

Control Interface: Digitally controlled via USB and Ethernet network

Screen: 5” Full-Color TFT Display

Encoder Type: Digital encoders with LED rings

Signal Path: Fully analog

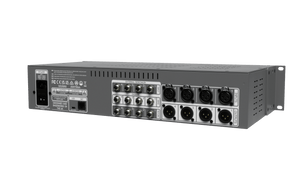

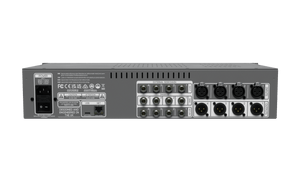

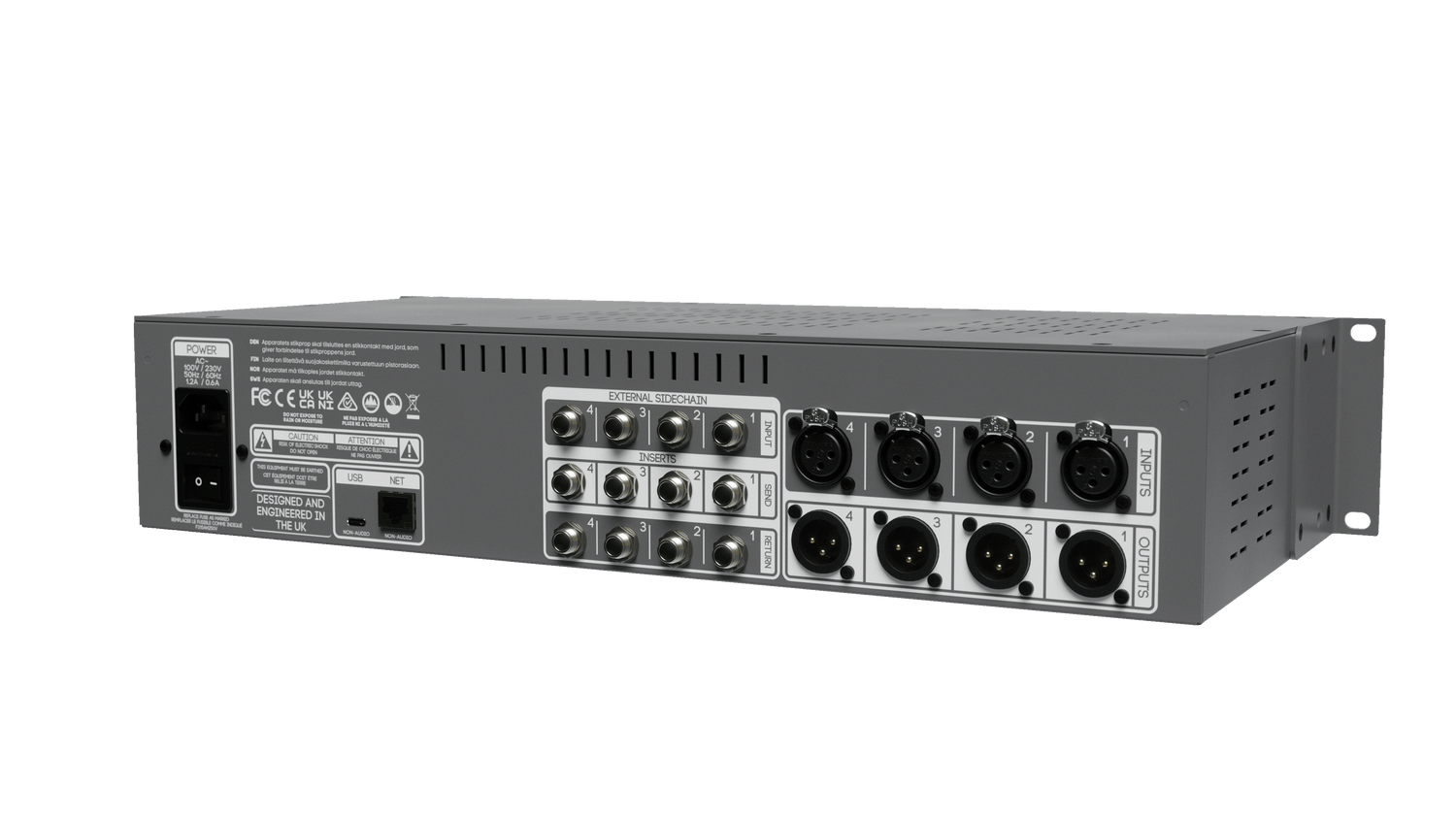

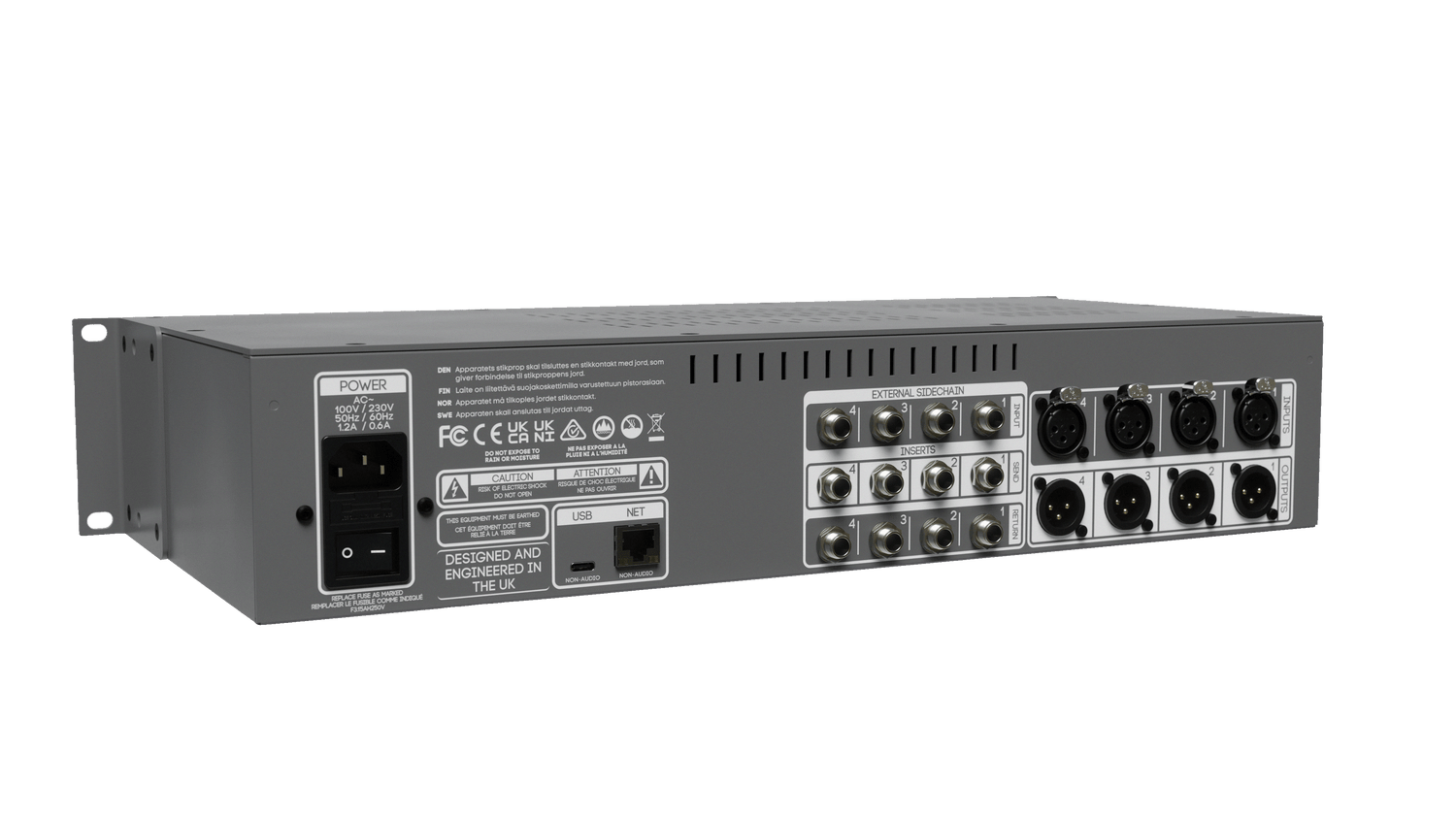

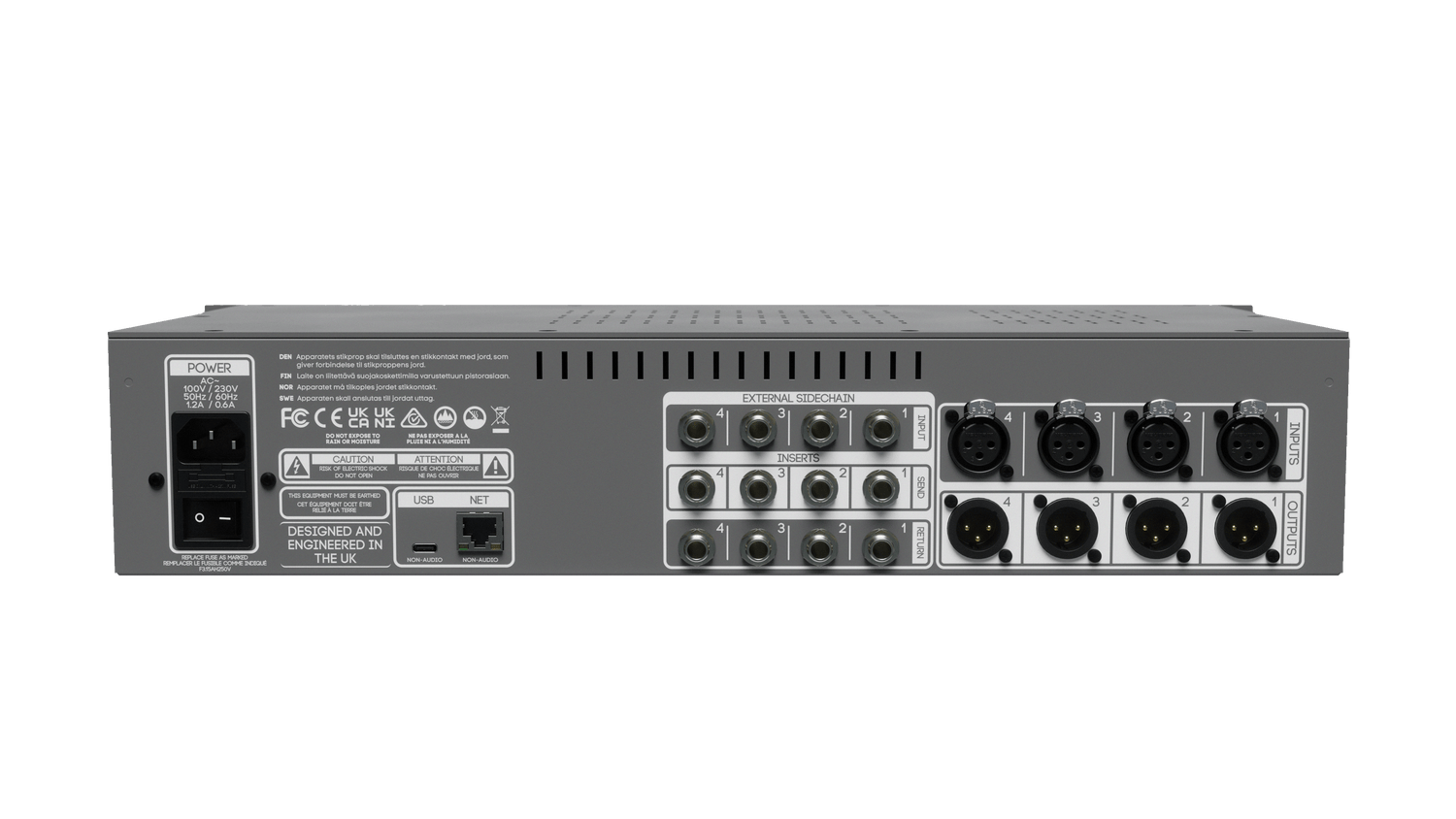

Insert Points: 4x TRS balanced, dedicated send & return, normalled

Insert Configuration: Post M/S encoding & compressor, pre M/S decoding

External Sidechain Inputs: 4x assignable inputs

Processing Modes: Mono, Stereo, Mid/Side, Series, Dual-Band, De-Esser

Compressor Modes: Velvet, Float, Smash, Tame, Glue, Polish

Modal PWM Saturation: 6 harmonically enriched analog saturation styles

Advanced Controls: ENIGMA control for knee, attack/release weighting, detector behavior, HF emphasis

Lookahead: Analogue Lookahead for compression and gating

Remote Plugin Control: DAW integration with preset save/load and parameter recall

Construction: Developed in the UK by Cranborne Audio

Dimensions

Unit Dimensions: 48 cm x 23.6 cm x 8.8 cm

Gain

Input Gain Range: ±20 dB

Output/Make-Up Gain Range: ±20 dB

Input/Output

Max Input Level: +24 dBu (<0.003% THD)

Max Output Level: +26.5 dBu (<0.003% THD)

Input Impedance: 43 kΩ

Output Impedance: 150 Ω

Insert Max Input Level (Return): +26.0 dBu (<0.003% THD+N)

Insert Max Output Level (Send): +26.0 dBu (<0.003% THD+N)

Compression

Compressor Element: Pulse Width Modulation

Switching Frequency: 250 kHz

Distortion (0 dB GR): <0.0006% THD+N

Distortion (5–20 dB GR): <0.00085% THD

Stress Control Harmonics: <20% THD depending on conditions

Minimum Attack Time (Standard): 6 ns (2 µs processing delay)

Minimum Attack Time (POLISH Mode): 6 ns, 0 ns processing delay @ 20 kHz

Sidechain HPF Options: OFF, 60 Hz, 100 Hz, 200 Hz

Mid/Side Processing

Type: Encoder/Decoder

Matrix: Sum-Difference

Performance

Frequency Response: ±0.5 dB, 2 Hz – 80 kHz

Dynamic Range: >118 dB

Noise Floor: <–100 dBu (unweighted)
