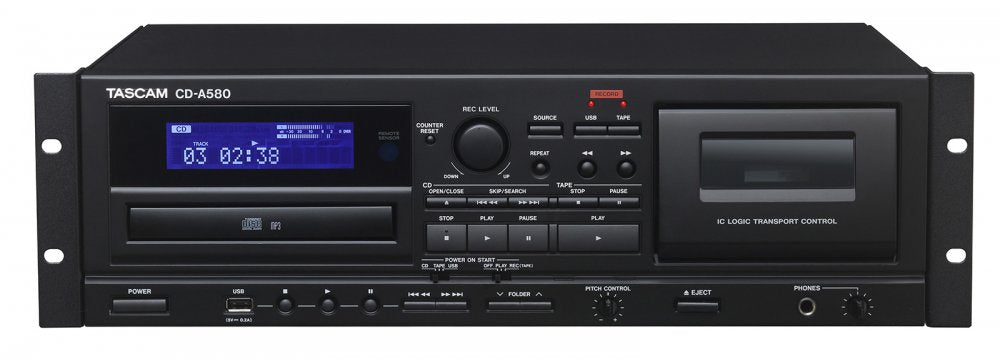

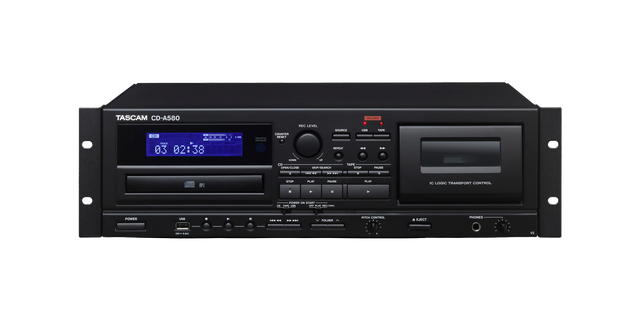

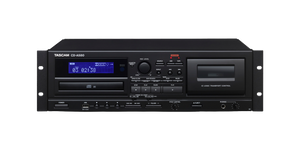

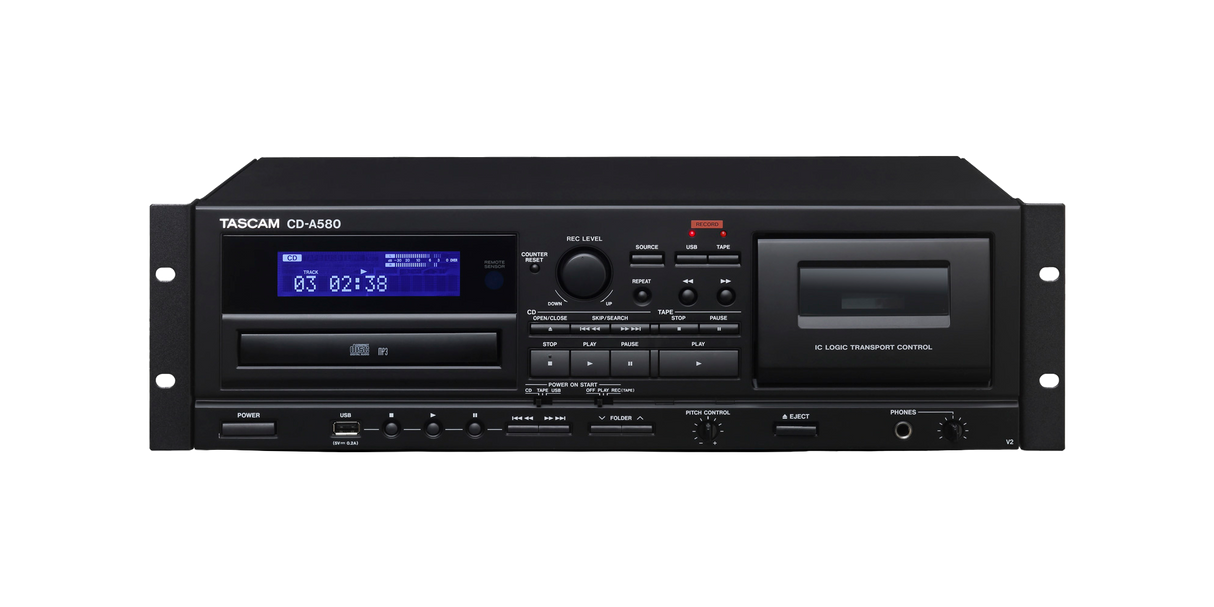

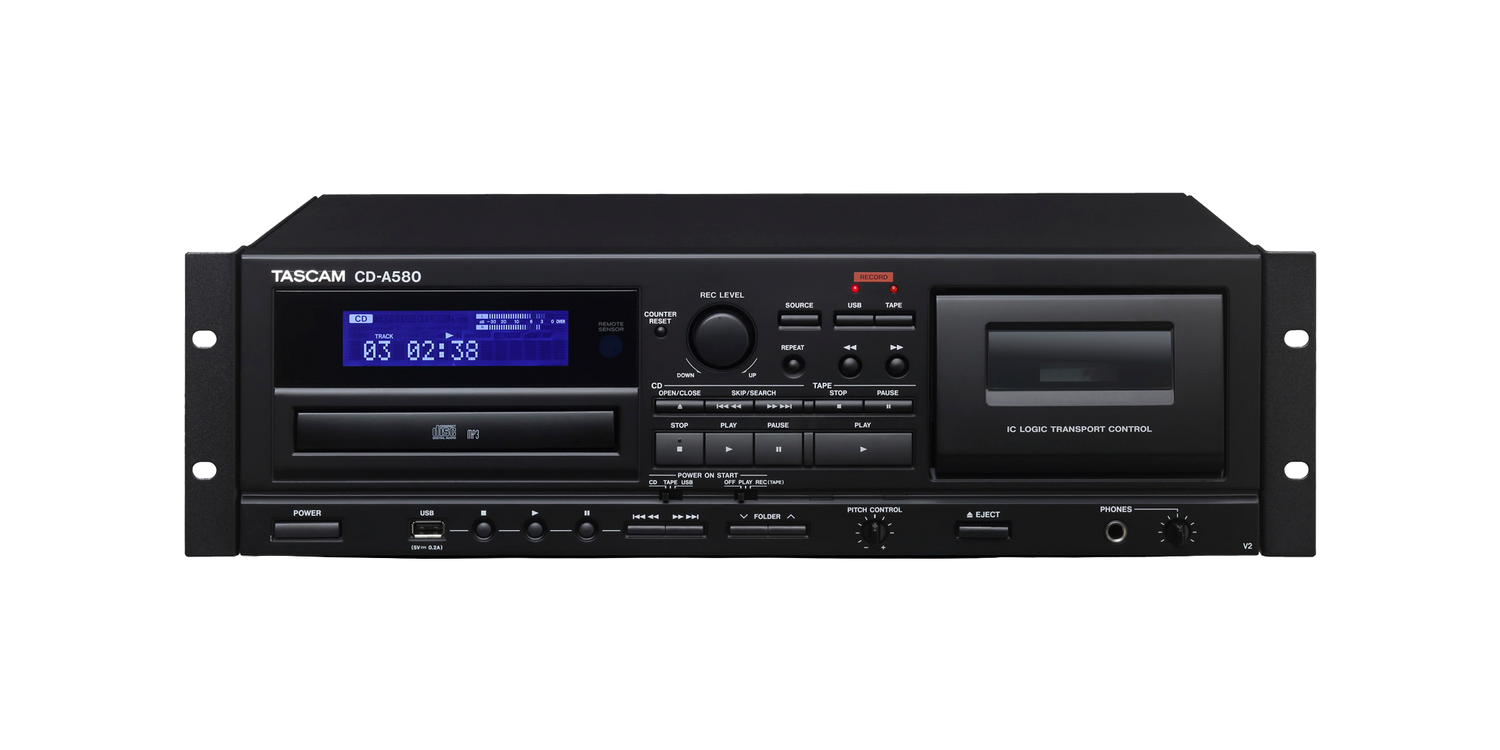

CD-A580-V2

Multi-Format Playback
Play CDs, cassette tapes, and MP3 files from USB memory with one convenient audio component.

Cassette Recording and Dubbing
Record to cassette and create cassette copies from CD for simple analog media production.

USB MP3 Recording
Record audio from CD, cassette, or line input directly to USB memory as MP3 files.

Flexible Playback Options
Use shuffle, program, and repeat modes for CD and USB playback to suit different listening needs.

Pitch Control for Cassettes
Adjust cassette playback speed for practice, performance, or archive review.

Simple System Integration

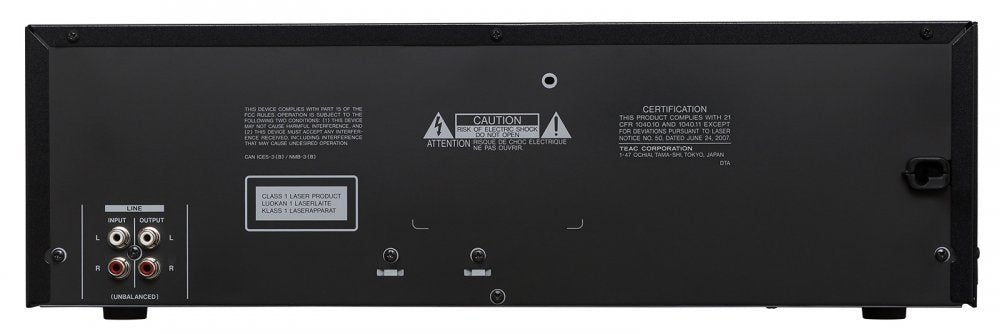

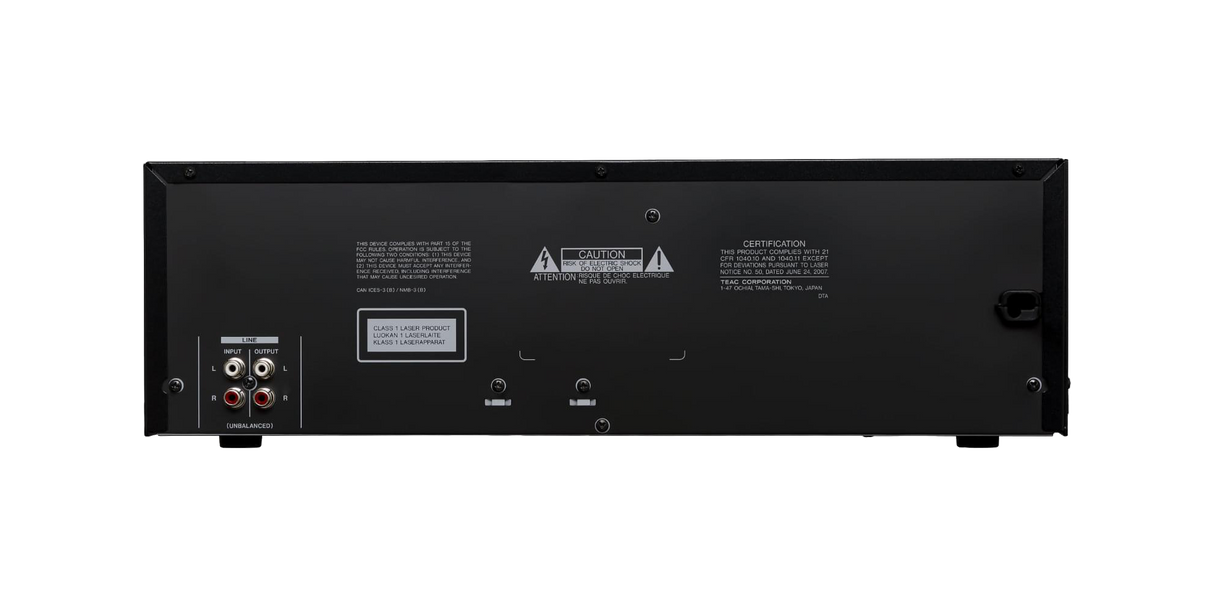

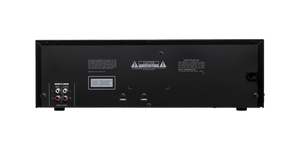

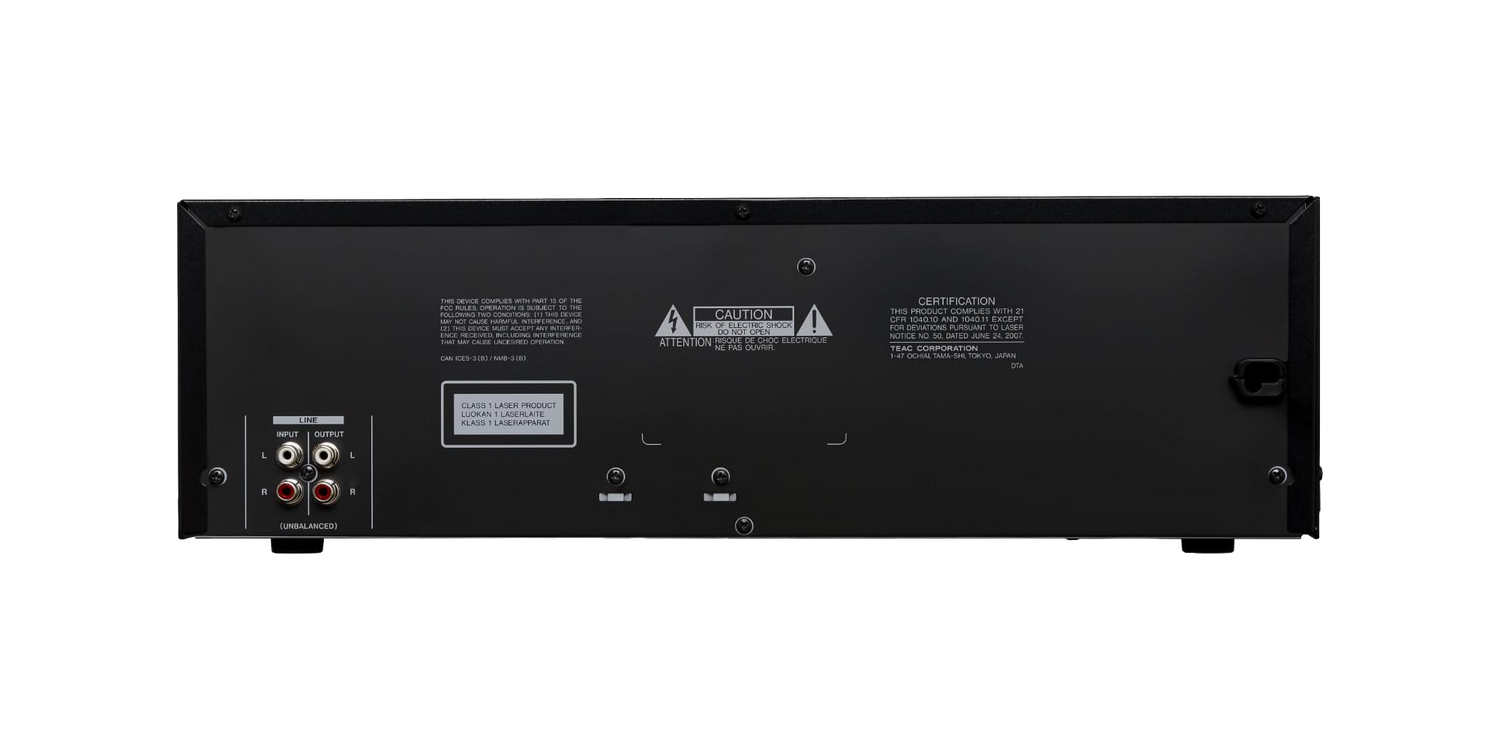

RCA inputs and outputs connect easily to common audio systems and installed sound setups.

Headphone Monitoring
A front headphone output with level control allows convenient private listening and monitoring.

Rackmount Design
The 3U chassis fits standard rack installations for clean placement in professional audio systems.

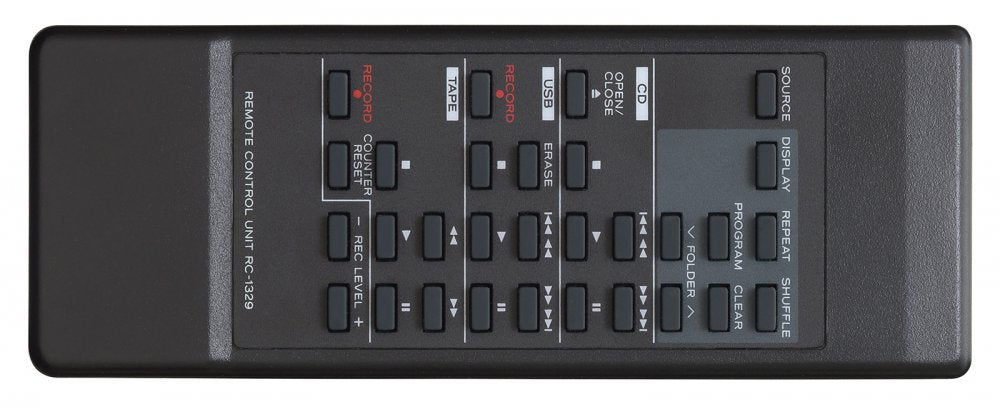

Remote Control Included
The included wireless remote provides convenient control from a distance.

General Specifications
Device Type: CD player, cassette deck, USB recorder/player
Chassis Format: 3U rackmount
Display: LC display with level meters
Remote Control: Wireless remote included
Power Supply: AC 230 V, 50-60 Hz
Power Consumption: 13 W
Dimensions: 483 mm x 139 mm x 290 mm
Weight: 6.0 kg
Operating Temperature: 5-35 °C
Operating Humidity: 25-85 %RH at 32 °C, non-condensing

Cassette Deck
Track System: 2-channel stereo
Heads: Record/playback head x1, erase head x1
Supported Cassette Types: C-10 to C-90
Playback Tape Types: Normal Type I, Chrome Type II, Metal Type IV
Recording Tape Types: Normal Type I, Chrome Type II
Tape Speed: 4.76 cm/s
Motor: DC servo motor
Pitch Control: +/-10 % playback only
Fast Winding Time: Approx. 120 seconds for C-60 tape

Cassette Audio Performance
Wow and Flutter: 0.25 % WRMS
Frequency Response: 50 Hz-12.5 kHz +/-4 dB, Chrome and Normal
S/N Ratio: 59 dB, maximum input level, A-weighted

Cassette Analogue Input and Output
Line Input: RCA unbalanced
Nominal Input Level: -4.5 dBu, 0.46 V
Input Impedance: >50 kOhm
Line Output: RCA unbalanced
Nominal Output Level: -4.5 dBu, 0.46 V
Nominal Output Impedance: >50 kOhm

CD Player
Supported Disc Types: CD, CD-R, CD-RW, 12 cm and 8 cm
Audio CD Format: CD-DA
Audio CD Sampling Frequency: 44.1 kHz
Audio CD Quantization Bit Rate: 16-bit
Audio CD Channels: 2
Data CD Format: MP3, ISO 9660 Level 1/Level 2
Data CD Modes: Stereo, Joint Stereo, Dual Channel, Mono
Data CD Sampling Frequency: 16 kHz-48 kHz
Data CD Bit Rate: 8 kbit/s-320 kbit/s
DRM Compatibility: Not compatible
Anti-Shock Memory: 2 seconds

CD Audio Performance
Frequency Response: 20 Hz-20 kHz, +/-2 dB
Distortion: <0.02 % THD+N at 1 kHz
S/N Ratio: >87 dB, IHF-A
Maximum Output Level: +6 dBV, 2 V

USB Recorder/Player
Playback File Format: MP3
Playback Sampling Frequency: 16 kHz-48 kHz
Playback Bit Rate: 8 kbit/s-320 kbit/s
Recording File Format: MP3
Recording Sampling Frequency: 44.1 kHz
Recording Bit Rate: 128 kbit/s
Folder Support: Up to 8 levels
USB Port: USB 2.0 Full Speed, 12 Mbit/s
USB Connector: USB A-type
DRM Compatibility: Not compatible

USB Audio Performance
Playback Frequency Response: 20 Hz-20 kHz, +/-2 dB
Playback S/N Ratio: >85 dB
Recording Frequency Response CD to USB: 20 Hz-15 kHz, +/-3 dB
Recording Frequency Response Line In to USB: 100 Hz-15 kHz, +/-3 dB
Recording S/N Ratio: >85 dB

USB Analogue Input and Output
Nominal Input Level: RCA, -4.5 dBu, 0.46 V
Maximum Output Level: RCA, +6 dBV, 2.0 V

Headphones Output
Connector: 6.3 mm stereo jack
Nominal Output Level: 10 mW + 10 mW
Distortion: 0.1 % THD+N, 32 Ohm, CD Monitor

Supplied Accessories
Remote Control: RC-1329
Batteries: 2 AAA batteries
Rack Mounting Hardware: 1 rack mounting screw kit
Manual: Owner's manual
