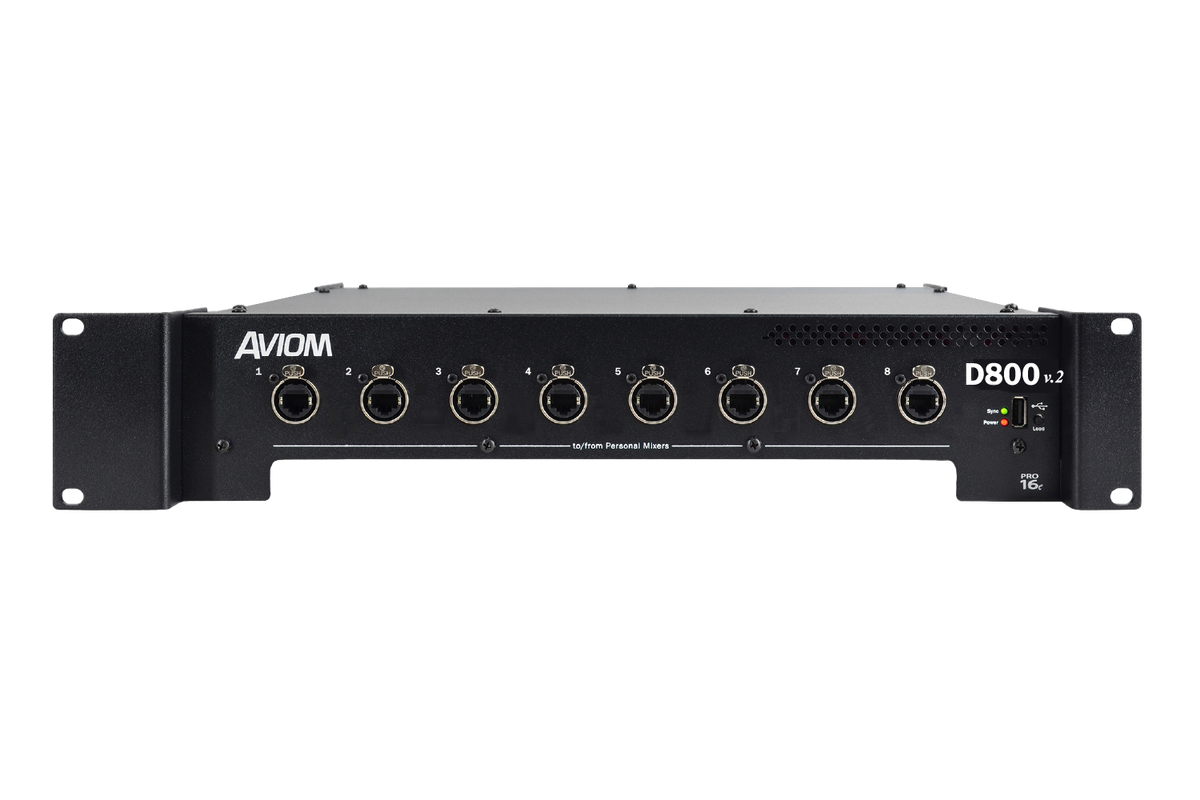

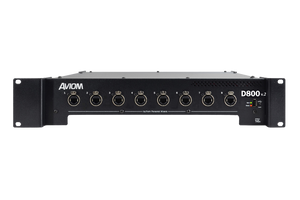

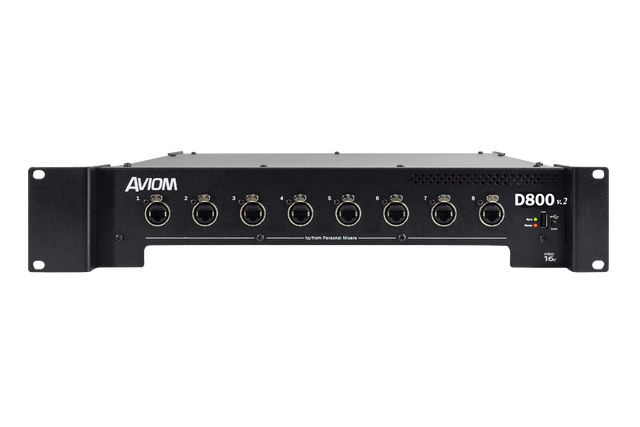

D800 v.2

Eight Powered Mixer Connections
Provides audio and DC power to as many as eight compatible Personal Mixers through locking RJ45 connections.

High-Channel-Count Distribution
Accepts up to four synchronized Pro16 A-Net streams through an A-Net Bridge connection for access to as many as 64 channels.

Automatic Bidirectional Setup
Automatically configures bidirectional communication with compatible Personal Mixers without front-panel I/II switches.

Network Mix Back
Combines personal stereo mixes into a dedicated A-Net stream for streamlined connections to wireless in-ear monitor transmitters.

iOS Display Support
Connects to a compatible Wi-Fi network through Ethernet for use with supported iOS display applications.

Expandable A-Net System
Passes the incoming Pro16e audio stream to additional A-Net distributors through the rear-panel A-Net Out connection.

Flexible Mixer Compatibility
Supports A640, A360, A320, and A-16II Personal Mixers in any combination.

Quiet Thermal Management
Uses a whisper-quiet thermal design and an internal universal power supply for dependable installation in professional audio systems.

General Specifications
Device Type: A-Net distributor
Rack Height: 2U
Personal Mixer Capacity: Up to 8
Compatible Personal Mixers: A640, A360, A320, A-16II
A640 Firmware Requirement: Version 4.00 or later for full functionality
Bidirectional Communication: Automatic
System Compatibility: Interchangeable with original distributor versions

A-Net Connections
Personal Mixer Connections: 8 powered locking RJ45 connectors
A-Net Input: Pro16 or Pro16e A-Net, 1 locking RJ45 connector
A-Net Bridge Input: Up to 4 synchronized Pro16 A-Net streams
A-Net Output: Pro16e A-Net, 1 unpowered locking RJ45 connector
A-Net Mixes Output: Pro16e A-Net, 1 unpowered locking RJ45 connector
Mix Back Capacity: Up to 16 channels, 8 stereo pairs
Maximum Audio Channels: 64

Network and Service Connections
Ethernet: 1 RJ45 connector for supported iOS display integration
USB: Firmware updates

Indicators
Front-Panel LEDs: Power On red, Sync green

Cabling
Front-Panel Cable Type: Shielded Cat-5e or better
Rear-Panel Cable Type: Unshielded Cat-5e supported
Personal Mixer Power Transmission: Over Cat-5e cable

Power
Personal Mixer Output Voltage: 24VDC, 0.5A
Power Supply: Internal universal switching type
Power Connector: IEC
Input Voltage: 100-240VAC, 50-60Hz
Power Rating: 300W
Fuse: 250VAC, T4AL

Physical Specifications
Width: 19 in. (482.6 mm)
Depth: 14.25 in. (362 mm)
Height: 3.5 in. (88.9 mm)
Weight: 12.0 lb. (5.44 kg)
