Desert Island Set MK 4

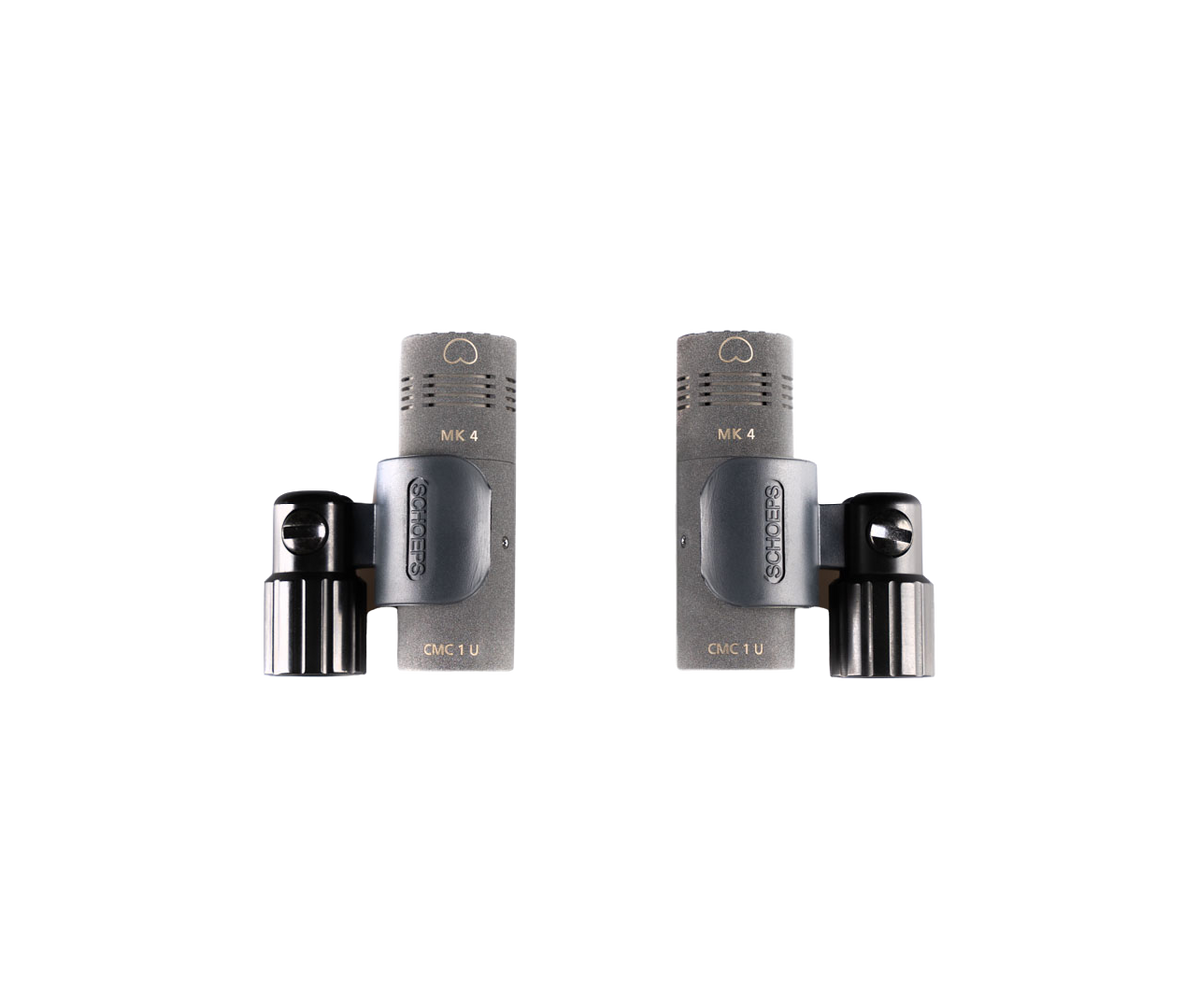

Matched Stereo Pair
Selected capsules provide consistent performance between channels and include a certificate of matching.

Cardioid Pickup
Focused front-facing sensitivity reduces sound arriving from the rear for improved source isolation.

Consistent Directivity
The stable polar response helps maintain natural tonal balance across the frequency range.

Transparent Reproduction
Flat frequency response supports clear, accurate capture of acoustic instruments and other sound sources.

Versatile Stereo Recording
The matched cardioid pair is well suited to X/Y, ORTF, and other directional stereo arrangements.

Compact Modular Design
Miniature amplifiers create a lightweight system compatible with interchangeable capsules and active accessories.

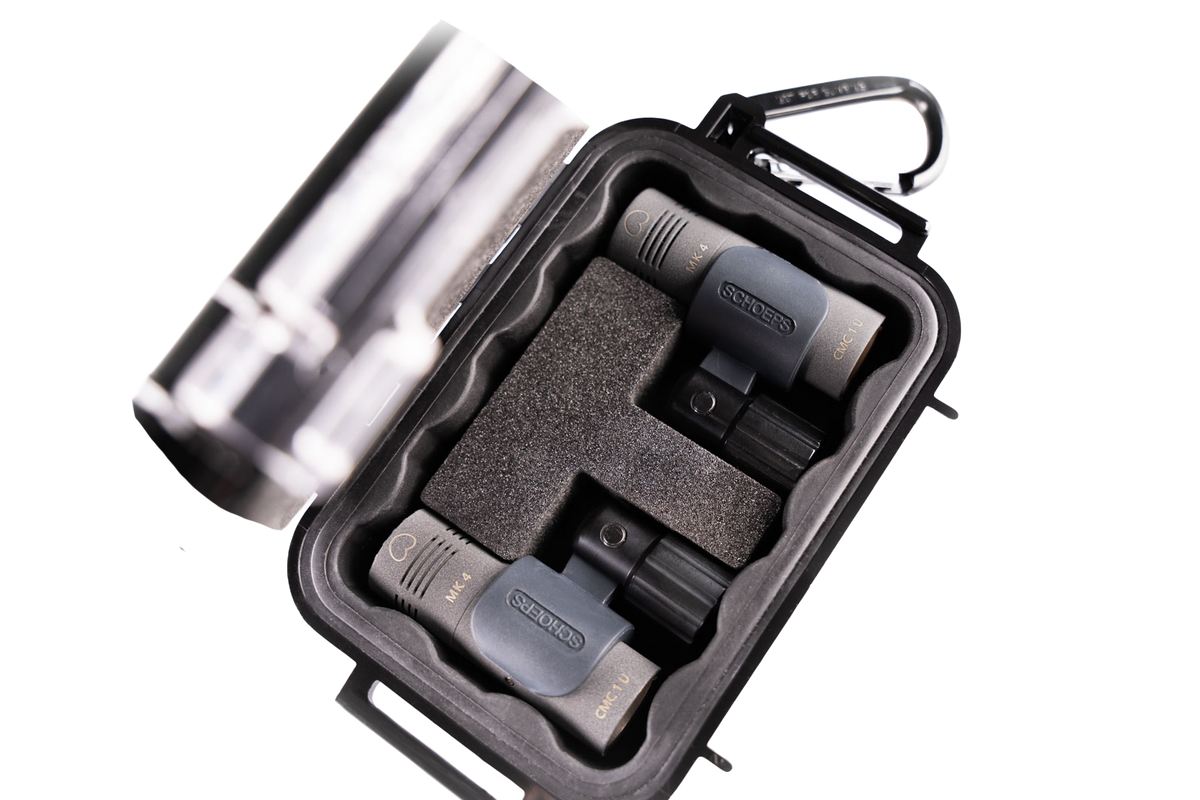

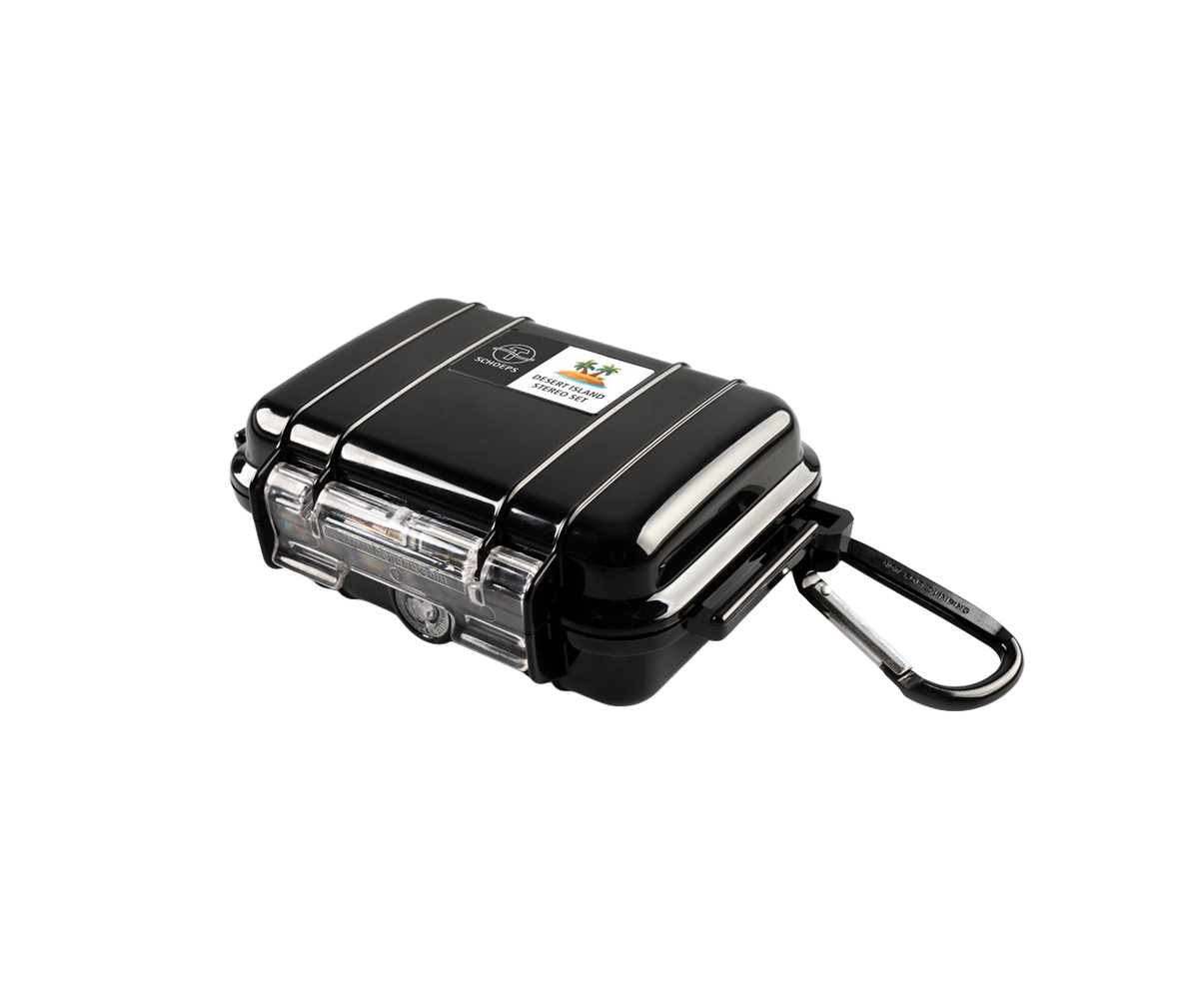

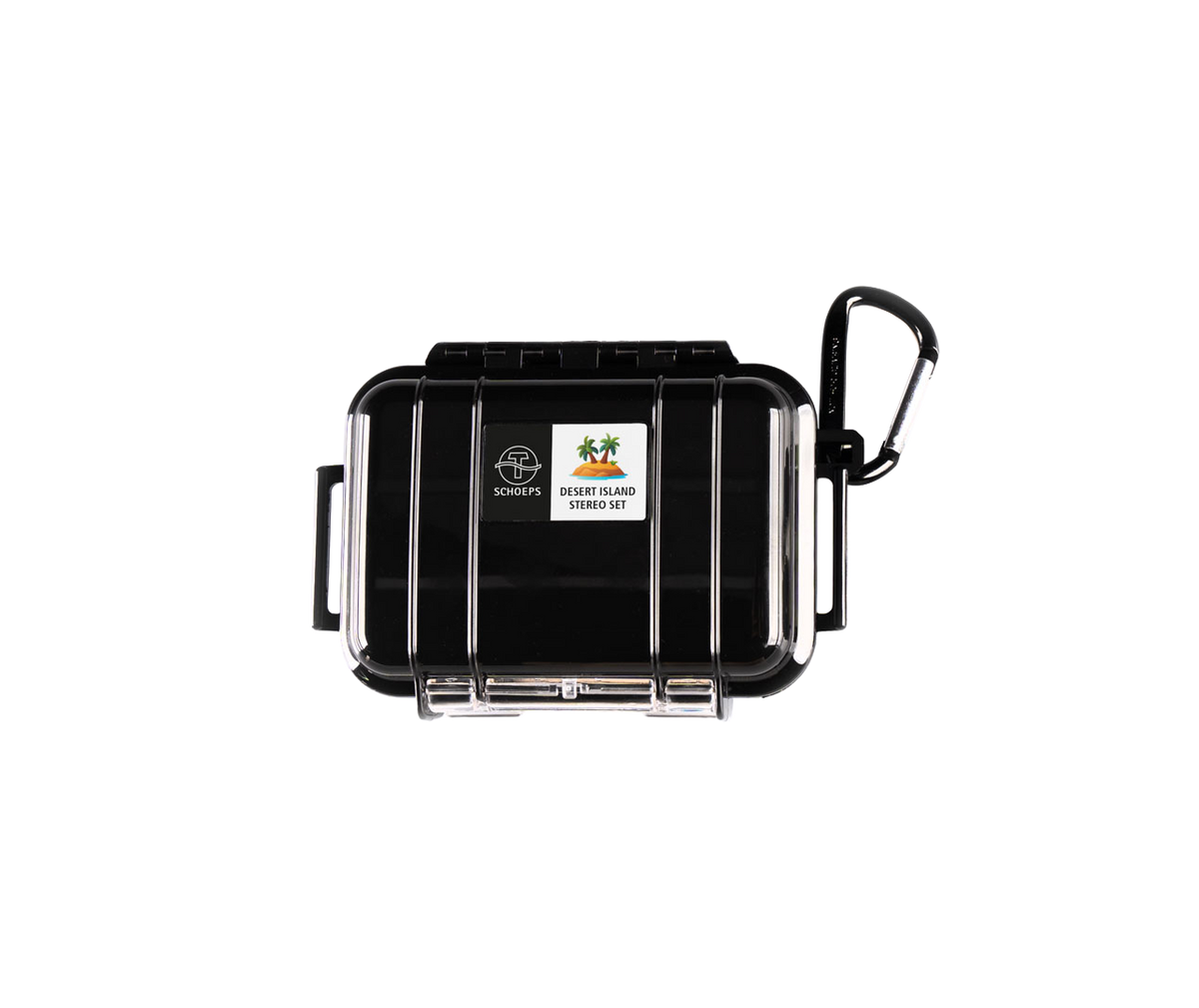

Portable Protection
A robust Peli case keeps the microphones and stand clamps securely organized during transport.

General Specifications
Set Type: Matched modular stereo microphone set
Microphone Configuration: 2 cardioid capsules with 2 analog microphone amplifiers
Primary Applications: Stereo recording, spot recording, acoustic instruments, conferences
Compatible Stereo Techniques: X/Y, ORTF

Capsule Specifications
Pickup Pattern: Cardioid
Transducer Type: Pressure-gradient transducer
Frequency Range: 40 Hz to 26 kHz
Sensitivity: -36.5 dB V/Pa, 15 mV/Pa
Equivalent Noise Level, A-Weighted: 14 dB
Equivalent Noise Level, CCIR: 24 dB
Signal-to-Noise Ratio, A-Weighted: 80 dB
Maximum Sound Pressure Level: 135 dB SPL with miniature amplifier
Maximum SPL Distortion Threshold: Less than 0.5%
Attenuation at 90 Degrees: 6 dB
Attenuation at 180 Degrees: 20 to 30 dB
Capsule Length: 22 mm
Capsule Diameter: 20 mm
Capsule Weight: 17 g
Surface Finish: Matte gray

Amplifier Specifications
Frequency Range: 20 Hz to 20 kHz
Maximum Output Voltage: 1.8 V at 1 kΩ load
Maximum Sound Pressure Level at P48: 135 dB SPL
Maximum Sound Pressure Level at P12: 131 dB SPL
Low-Cut Filter: 20 Hz, 12 dB per octave
Output Impedance: 50 Ω ± 1 Ω from 8 Hz to 50 kHz
Minimum Recommended Load Impedance: 1 kΩ
Common-Mode Rejection Ratio: Greater than 55 dB at 1 kHz
Maximum Cable Length: Greater than 400 m
Phantom Power: P48, 30 V to 52 V; P12, 11 V to 13 V
Current Consumption: 2 mA at P48; 3 mA at P12
Output Connector: XLR-3M
Output Type: Analog, single channel
RF Interference Shielding: Yes
Amplifier Length: 36 mm
Amplifier Diameter: 20 mm
Amplifier Weight: 36 g
Surface Finish: Matte gray

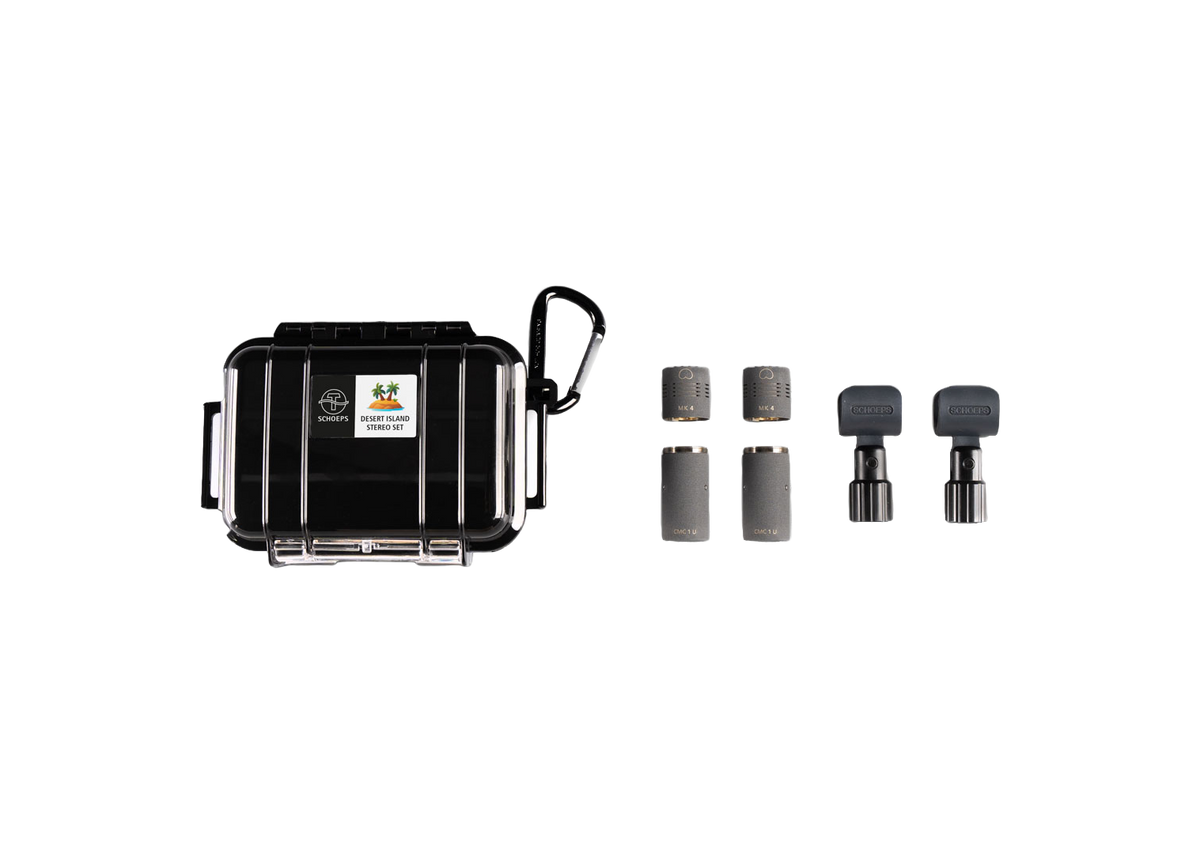

Included Items
Matched Cardioid Capsules: 2
Miniature Microphone Amplifiers: 2
Stand Clamps: 2
Capsule-Matching Certificate: Included
Peli Case with Carabiner: Included
