Desert Island Set MK 5

Switchable Polar Patterns
A sliding mechanical selector changes each capsule between omnidirectional and cardioid pickup.

Single-Diaphragm Design
Each pattern uses the same diaphragm while operating as a pressure transducer in omni mode and a pressure-gradient transducer in cardioid mode.

Omnidirectional Versatility
The omni setting captures spacious ambience with extended bass response and low sensitivity to wind and handling noise.

Focused Cardioid Pickup
The cardioid setting provides directional capture for isolating instruments and controlling room sound.

Matched Stereo Pair
Selected capsules support consistent stereo imaging and include a certificate of matching.

Compact Modular System
Miniature amplifiers support interchangeable capsules, compatible active accessories, and professional phantom-powered equipment.

Portable Protection

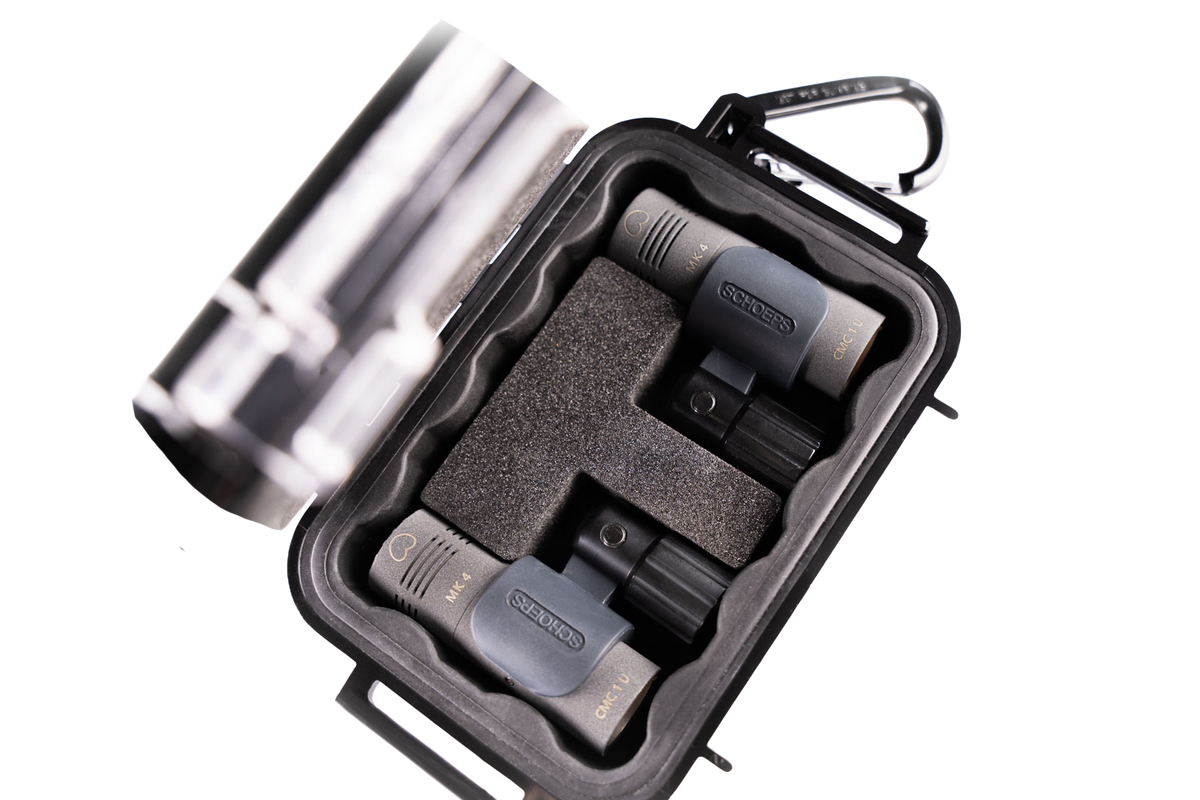

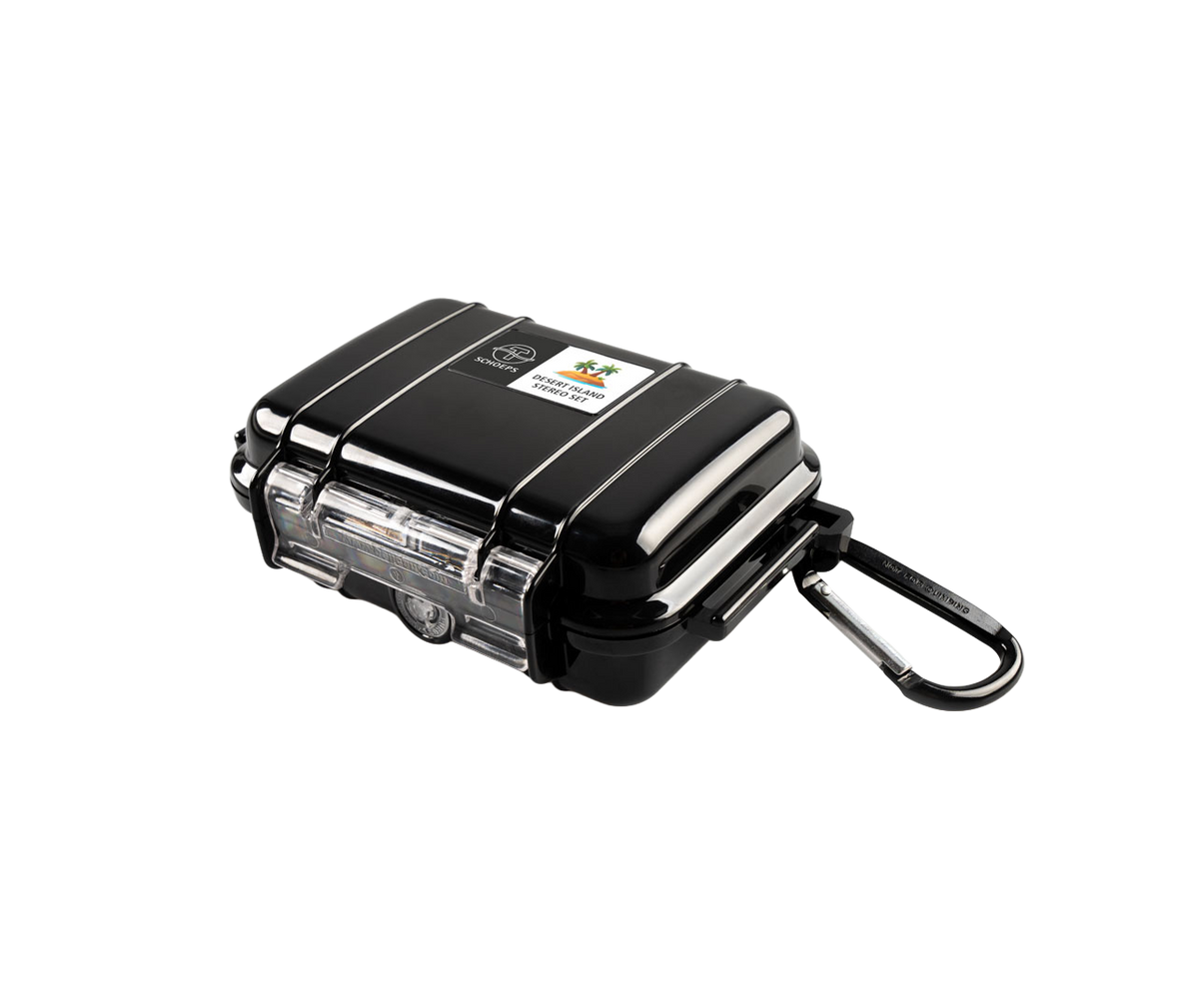

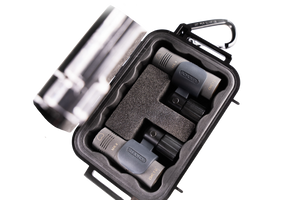

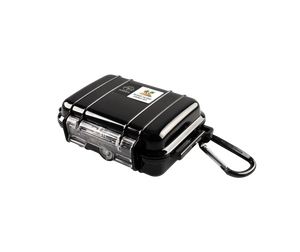

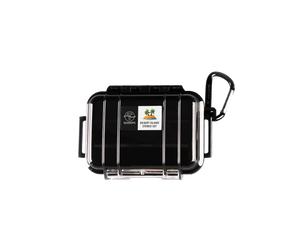

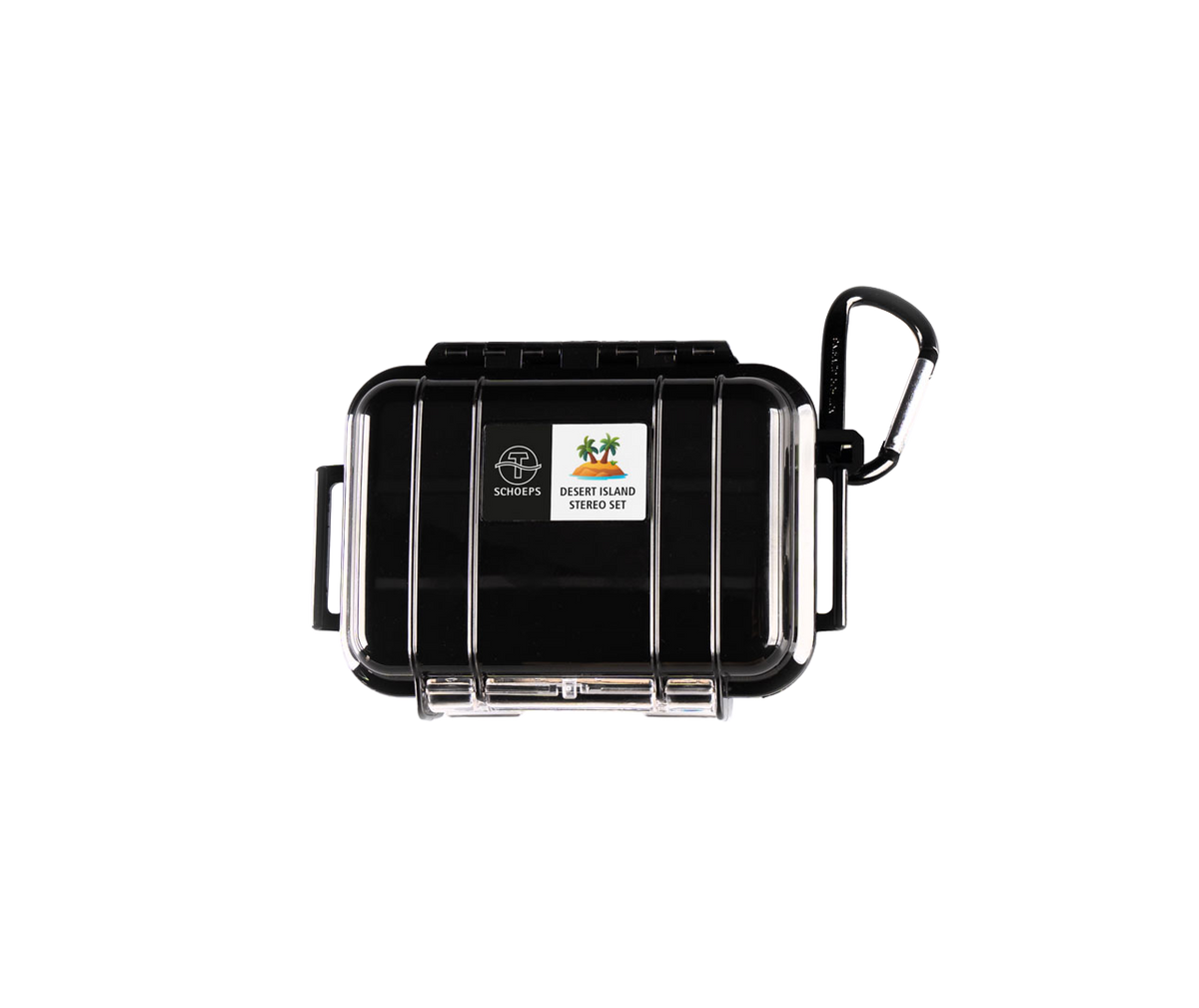

A robust Peli case keeps the microphones and stand clamps securely organized during transport.

General Specifications
Set Type: Matched modular stereo microphone set
Microphone Configuration: 2 switchable capsules with 2 analog microphone amplifiers
Polar Pattern Selection: Mechanical sliding selector
Capsule Design: Single diaphragm
Available Pickup Patterns: Omnidirectional and cardioid

Omnidirectional Specifications
Pickup Pattern: Omnidirectional
Transducer Type: Pressure transducer
Frequency Range: 20 Hz to 28 kHz
Sensitivity: -38 dB V/Pa, 12 mV/Pa
Equivalent Noise Level, A-Weighted: 12 dB
Equivalent Noise Level, CCIR: 24 dB
Signal-to-Noise Ratio, A-Weighted: 82 dB
Maximum Sound Pressure Level: 136 dB SPL with miniature amplifier
Maximum SPL Distortion Threshold: Less than 0.5%

Cardioid Specifications
Pickup Pattern: Cardioid
Transducer Type: Pressure-gradient transducer
Frequency Range: 40 Hz to 26 kHz
Sensitivity: -37 dB V/Pa, 14 mV/Pa
Equivalent Noise Level, A-Weighted: 13 dB
Equivalent Noise Level, CCIR: 23 dB
Signal-to-Noise Ratio, A-Weighted: 81 dB
Maximum Sound Pressure Level: 135 dB SPL with miniature amplifier
Maximum SPL Distortion Threshold: Less than 0.5%

Capsule Dimensions
Length: 27 mm
Diameter: 20 mm
Weight: 25 g
Surface Finish: Matte gray

Amplifier Specifications
Frequency Range: 20 Hz to 20 kHz
Maximum Output Voltage: 1.8 V at 1 kΩ load
Low-Cut Filter: 20 Hz, 12 dB per octave
Output Impedance: 50 Ω ± 1 Ω from 8 Hz to 50 kHz
Minimum Recommended Load Impedance: 1 kΩ
Common-Mode Rejection Ratio: Greater than 55 dB at 1 kHz
Maximum Cable Length: Greater than 400 m
Phantom Power: P48, 30 V to 52 V; P12, 11 V to 13 V
Current Consumption: 2 mA at P48; 3 mA at P12
Output Connector: XLR-3M
Output Type: Analog, single channel
RF Interference Shielding: Yes
Amplifier Length: 36 mm
Amplifier Diameter: 20 mm
Amplifier Weight: 36 g
Surface Finish: Matte gray

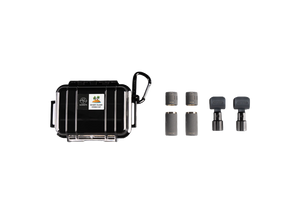

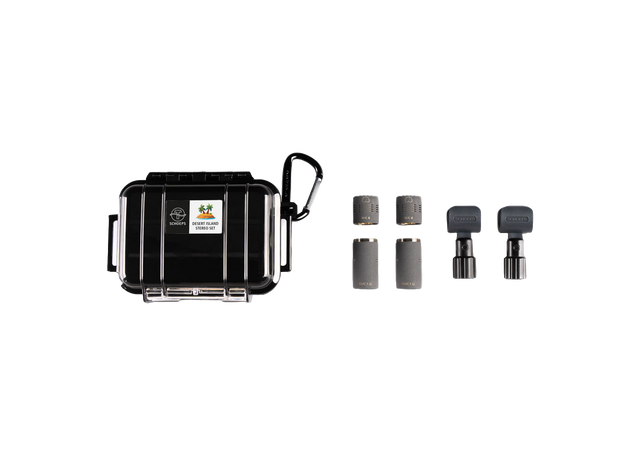

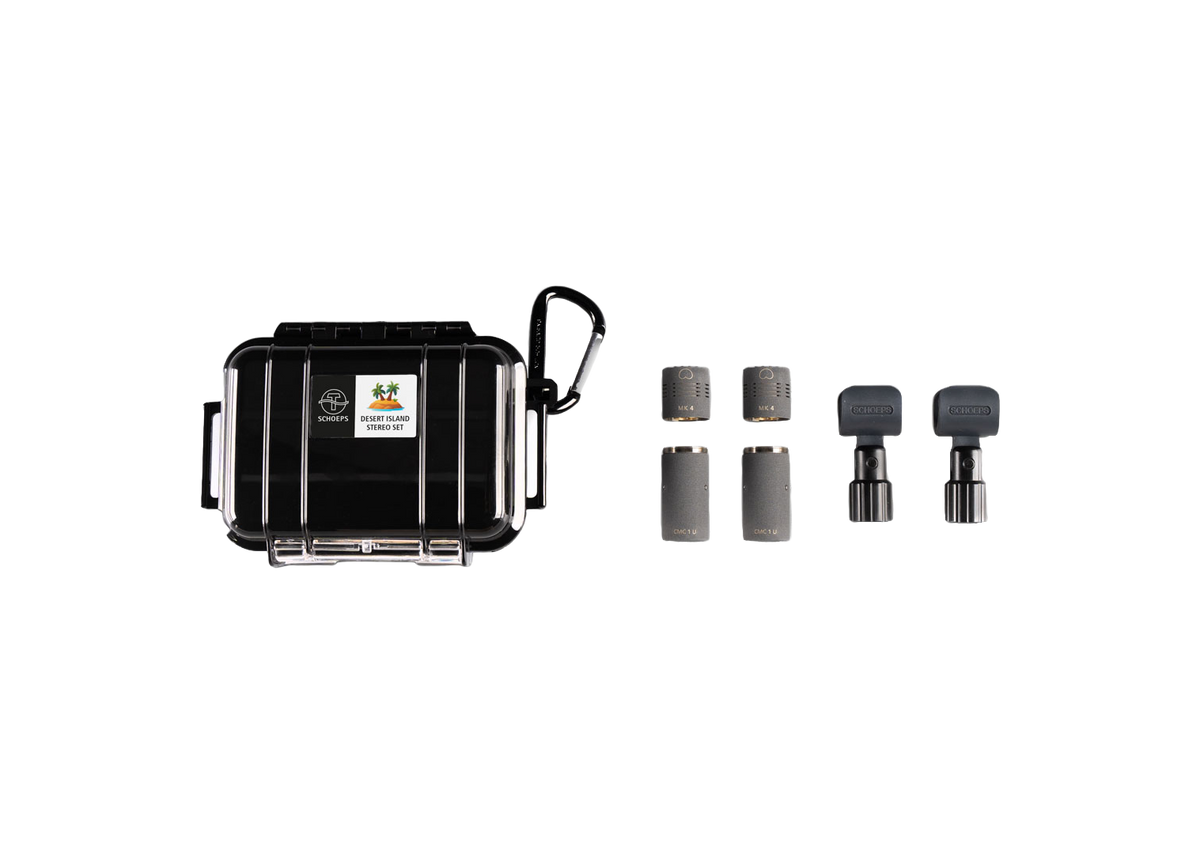

Included Items
Matched Switchable Capsules: 2
Miniature Microphone Amplifiers: 2

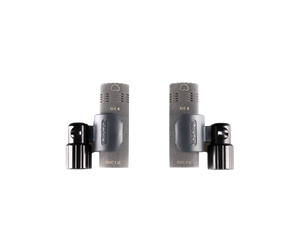

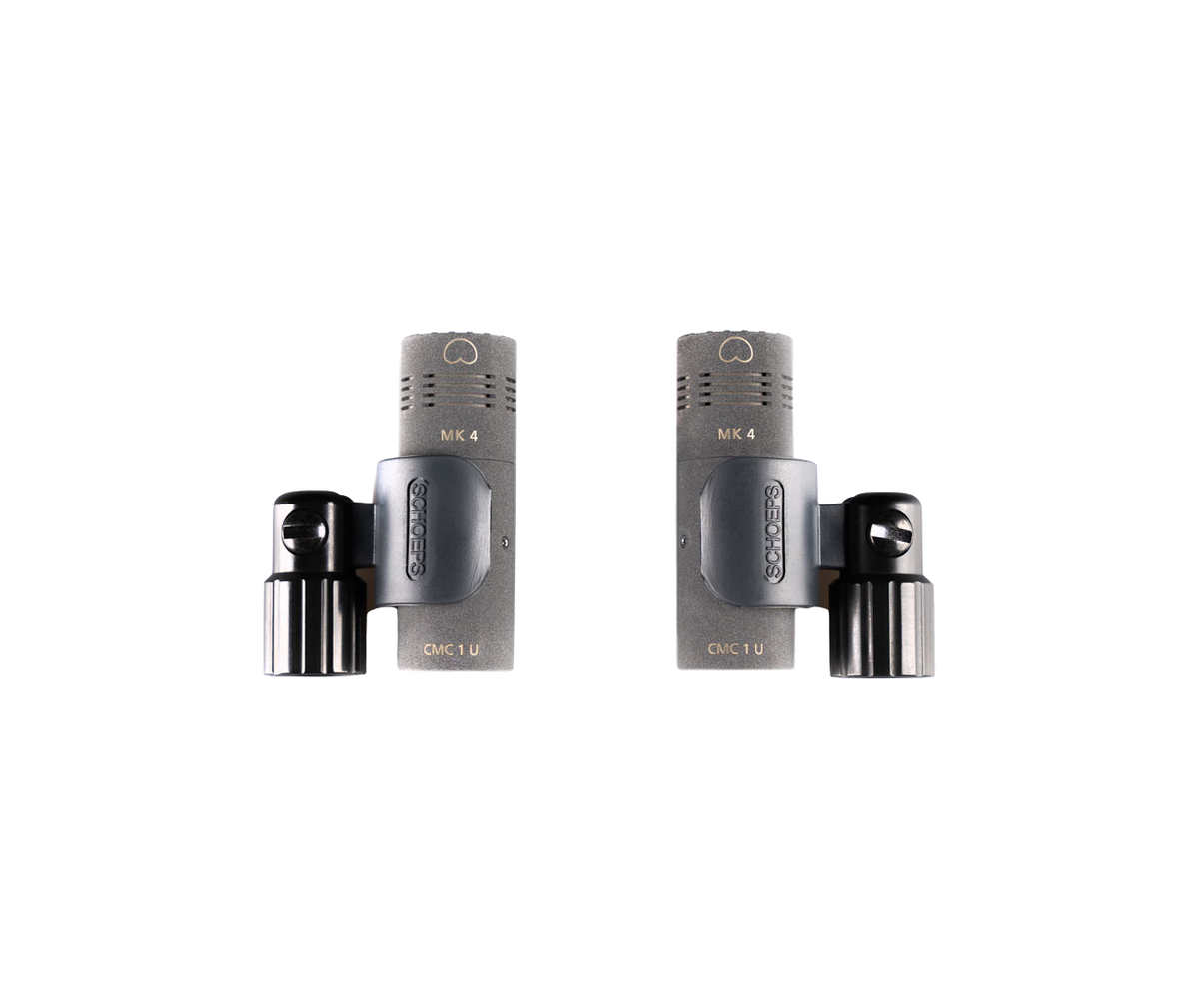

Stand Clamps: 2
Capsule-Matching Certificate: Included
Peli Case with Carabiner: Included
