ANTELOPE AUDIO

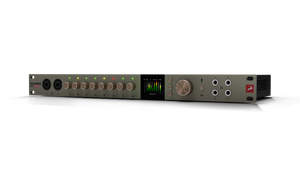

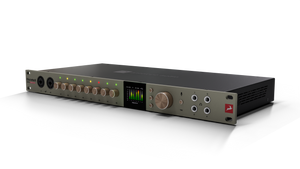

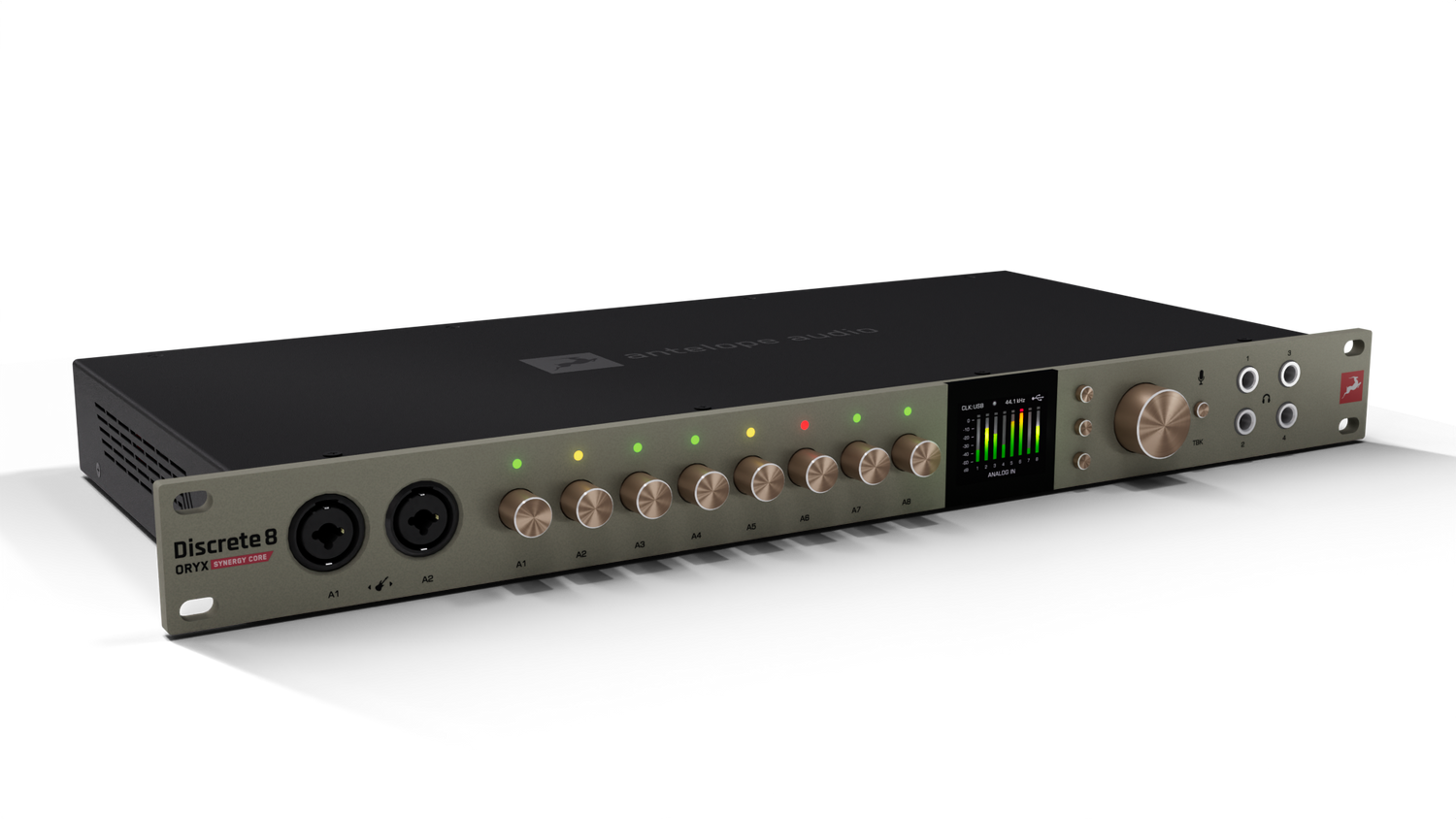

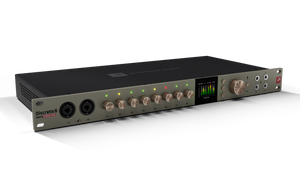

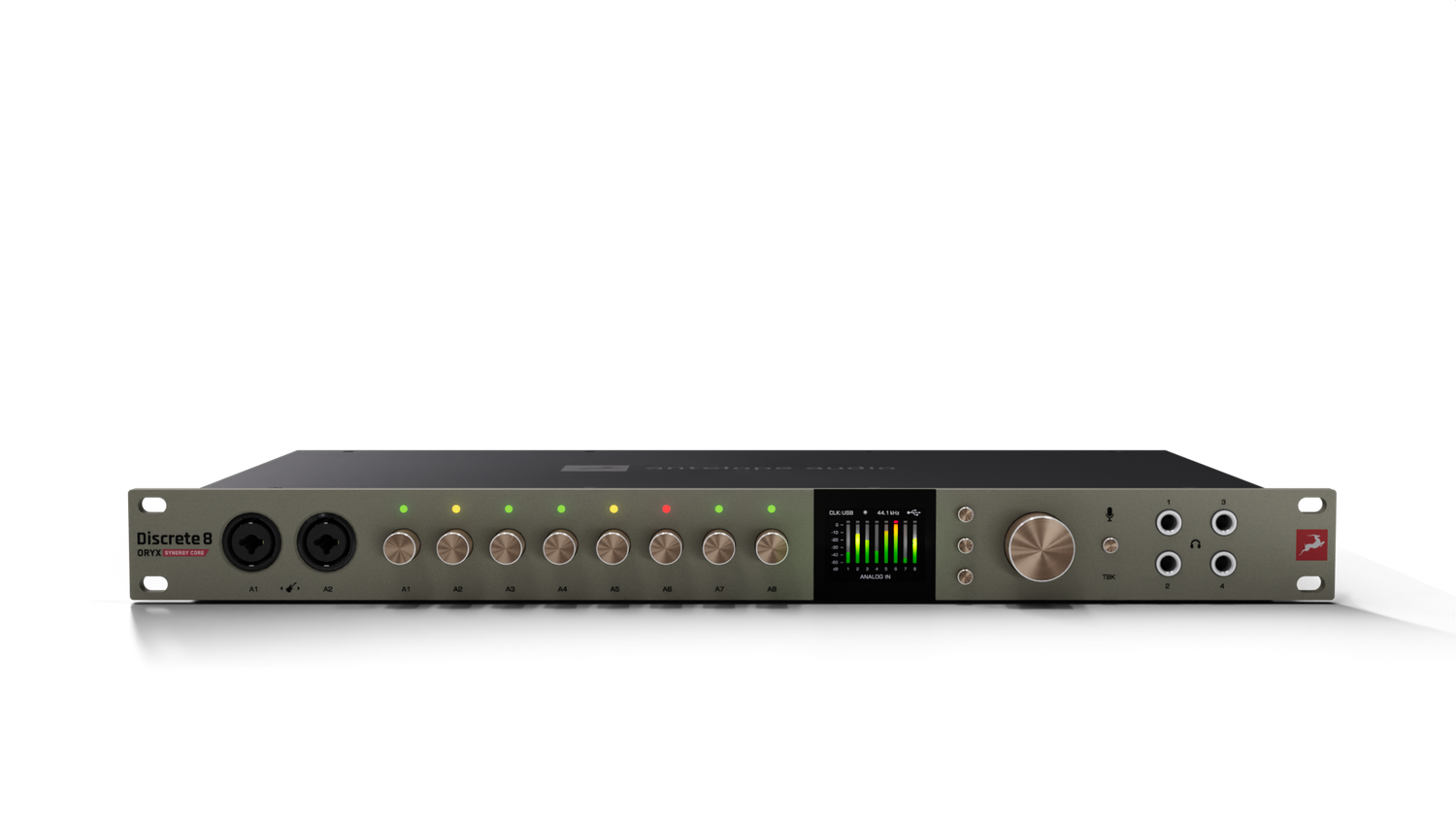

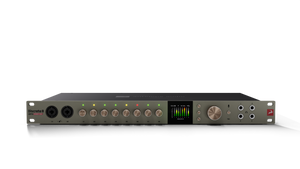

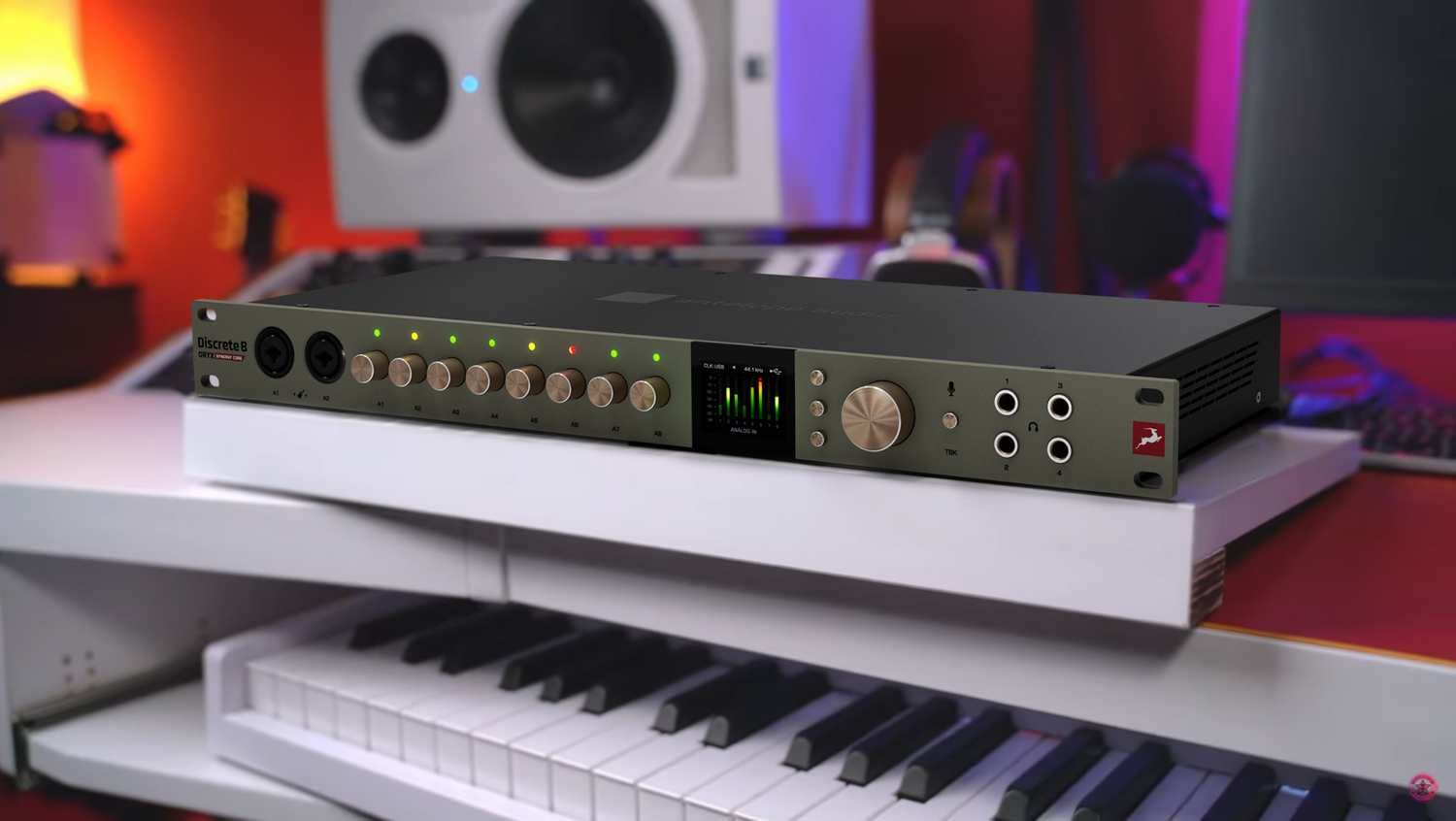

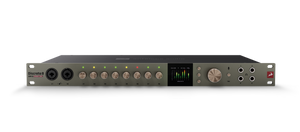

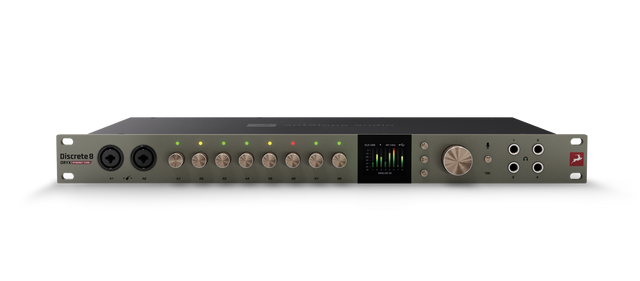

Discrete 8 Oryx Synergy Core

Thunderbolt

8 preamps, 130dB AD/DA, 37 real-time FX, 4 headphone outs with X-feed, 26×38 I/O, USB-C, ADAT, S/PDIF, virtual patch bay, zero-latency processing

$1,830.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

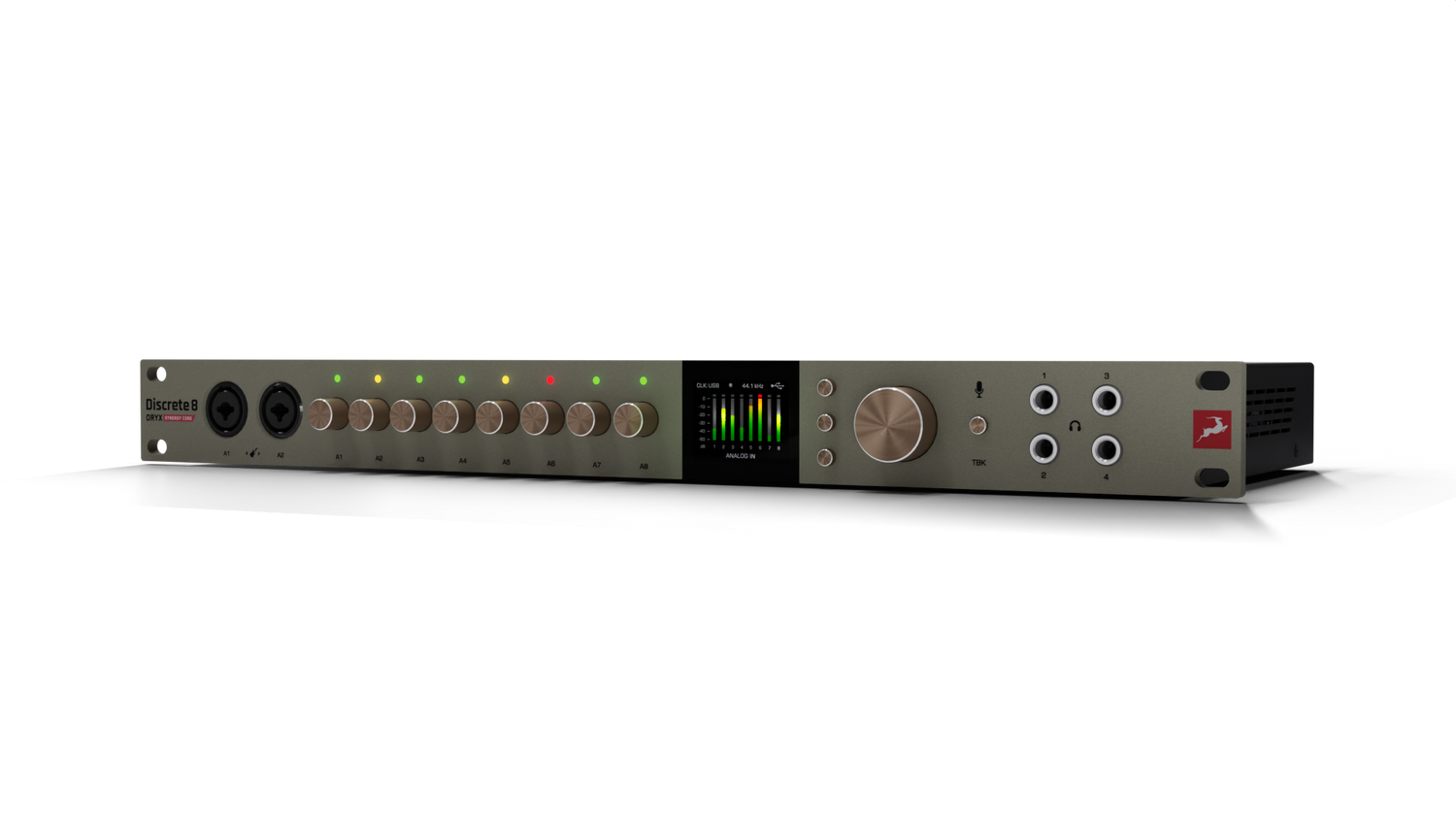

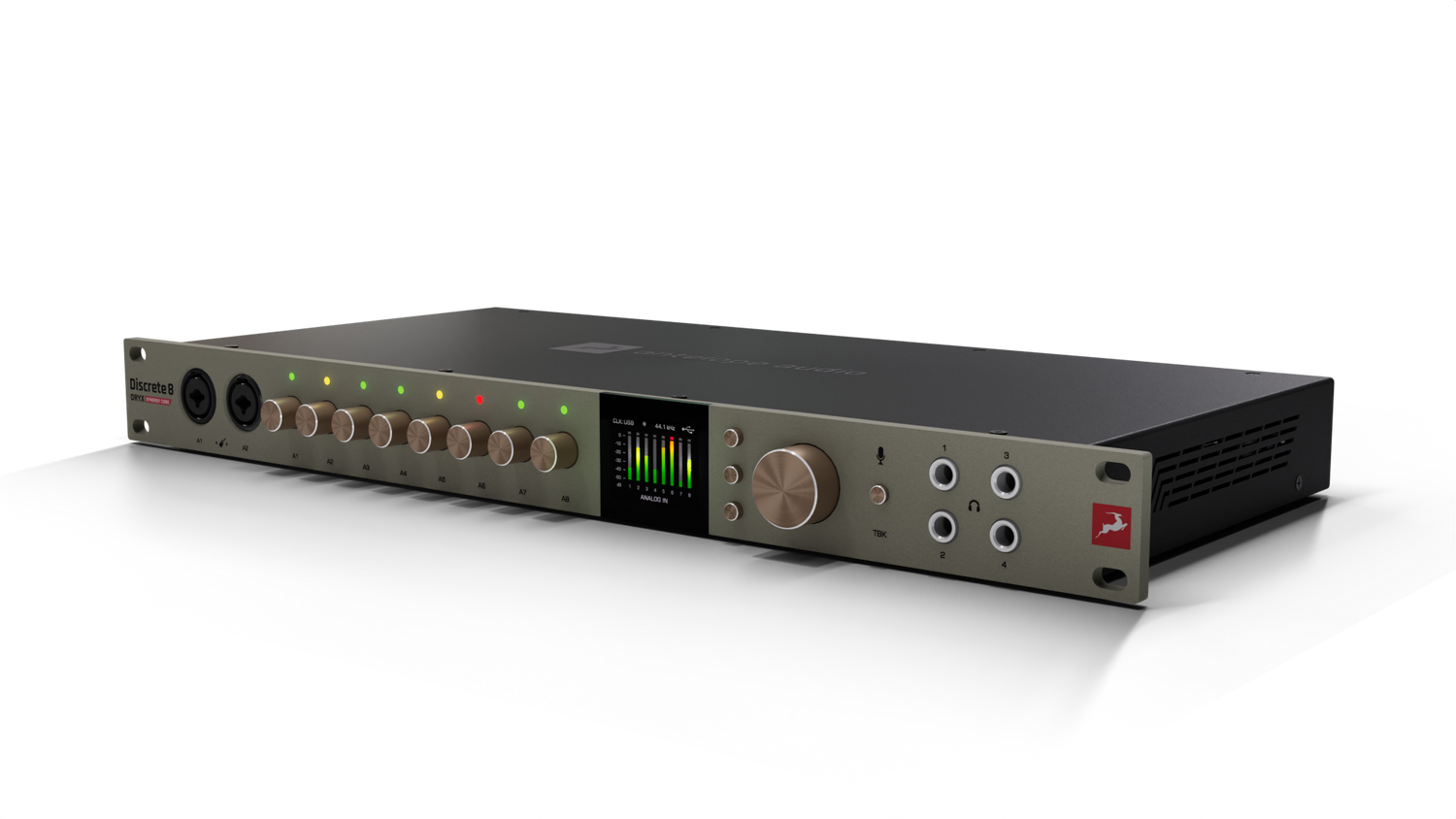

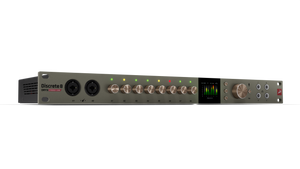

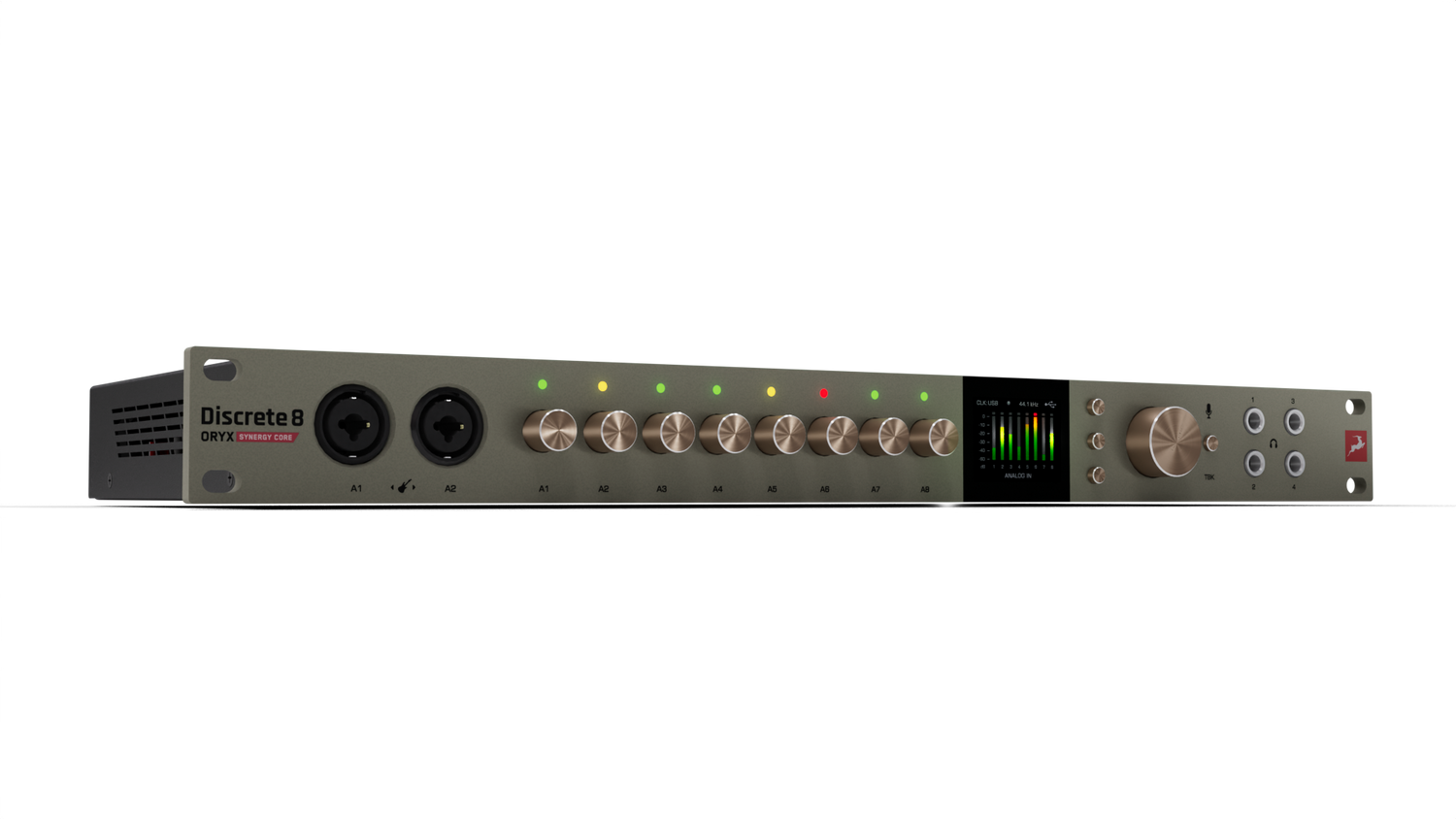

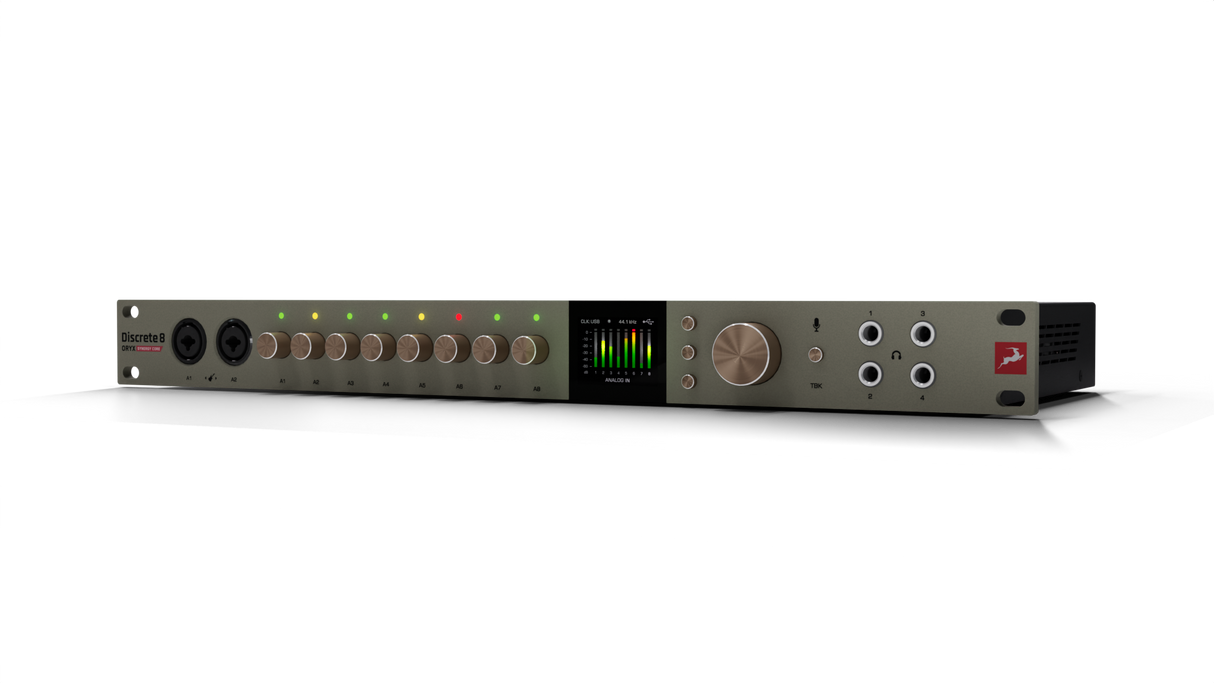

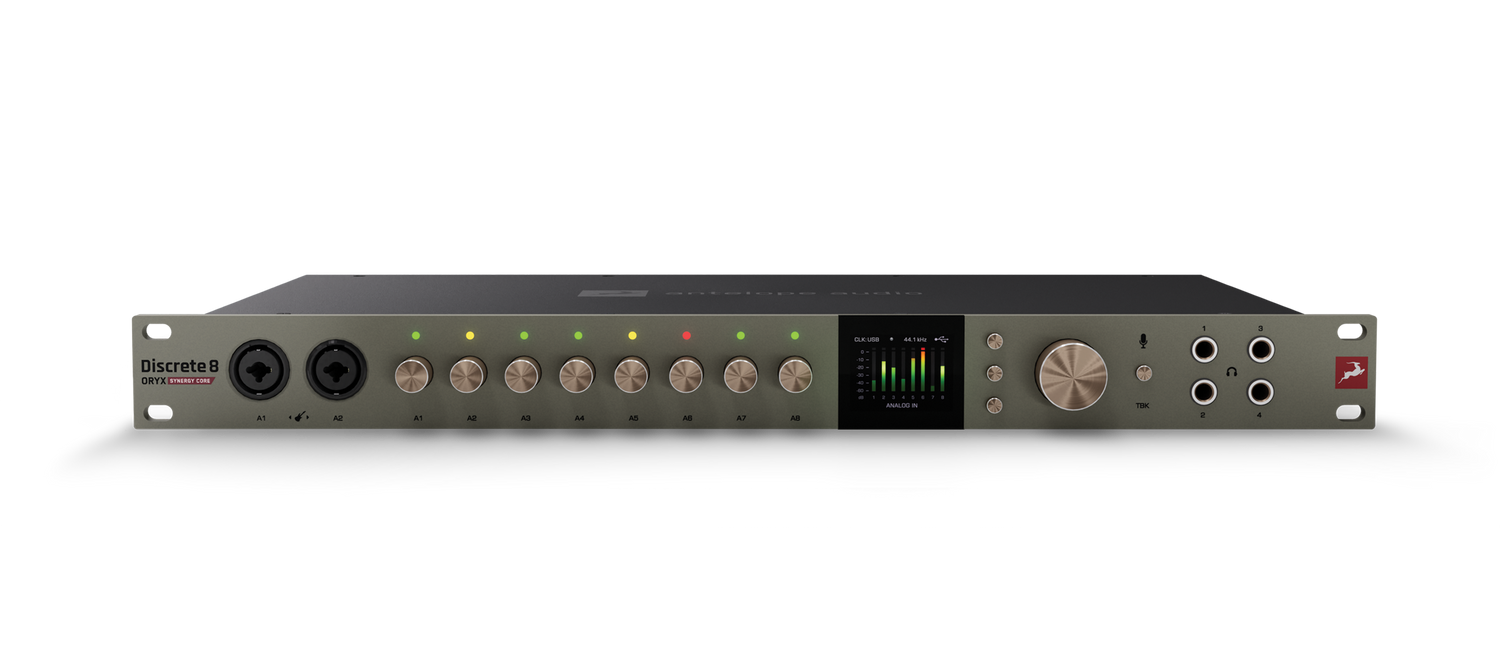

The Discrete 8 Oryx by Antelope Audio is a professional-grade USB-C audio interface designed to be the heart of any modern studio. Built with hybrid workflows in mind, it combines eight pristine discrete preamps, cutting-edge AD/DA conversion, and Antelope’s renowned 64-bit AFC™ clocking for stunning sonic clarity and depth. Whether you're a producer, engineer, or multi-instrumentalist, the Discrete 8 Oryx offers the tools to elevate your recordings, from tracking live bands to producing polished mixes, while maintaining ultra-low latency and detailed stereo imaging.

What truly sets this interface apart is its Synergy Core real-time FX processing, powered by dual DSP and FPGA chips. With 37 premium effects included, you can apply compressors, EQs, mic preamps, amps, reverbs, and more, all in real time with zero perceptible latency. It also features four independently controlled headphone outputs with crossfeed and calibration, an intuitive virtual patch bay, reamp outputs, and 26×38 channel I/O support. Whether you're crafting headphone mixes for vocal sessions, routing complex signals, or running vintage emulations on your favorite mics, the Discrete 8 Oryx delivers unmatched versatility and performance in a single rack unit.

Features

High-Quality Sound
Delivers clean, detailed audio with professional-grade conversion and clocking.

Vintage-Inspired Preamps
Eight analog-style preamps provide warm, accurate recordings.

Real-Time Effects
Built-in processing runs 37 studio-grade effects with no noticeable delay.

Powerful Headphone Mixing
Four independent headphone outs with crossfeed and calibration for accurate monitoring.

Extensive Connectivity
Supports 26 inputs and 38 outputs including ADAT, S/PDIF, reamp, and monitor outs.

Flexible Routing
Virtual patch bay allows full use of analog and digital channels at once.

Direct Monitoring
Track with effects in real time without burdening your computer.

Standalone Operation
Can work without being connected to a computer.

Remote Control
Control settings from another device on the same network.

Included FX Collection
Comes with compressors, EQs, preamps, guitar amps, cabs, reverb, and more.

Specifications

General Specifications
26×38 USB-C Audio Interface with Synergy Core Real-Time FX Processing
8 Discrete 6-transistor preamps with 75dB gain
2 DSP + 1 FPGA for onboard FX processing
Includes 37 Synergy Core FX
Standalone operation without computer
Remote control via networked computer
Color front panel display with navigation buttons
Hardware relay-based gain knobs and mode control
Supports customizable presets and monitoring mixes

Conversion & Clocking
AD/DA conversion up to 24-bit/192kHz
AD dynamic range: 121 dB
AD THD+N: -112 dB
DA monitor dynamic range: 130 dB
DA monitor THD+N: -115 dB
DA line out dynamic range: 121 dB
DA line out THD+N: -100 dB
Mic preamp EIN: -128 dBu (A-weighted)
Mic preamp dynamic range: -121 dB (A-weighted)
Mic preamp THD: -106 dB
Mic preamp max input: +20 dBu
Clocking: 4th Gen Acoustically Focused Clocking (64-bit DDS)
Sample rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz

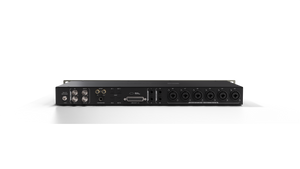

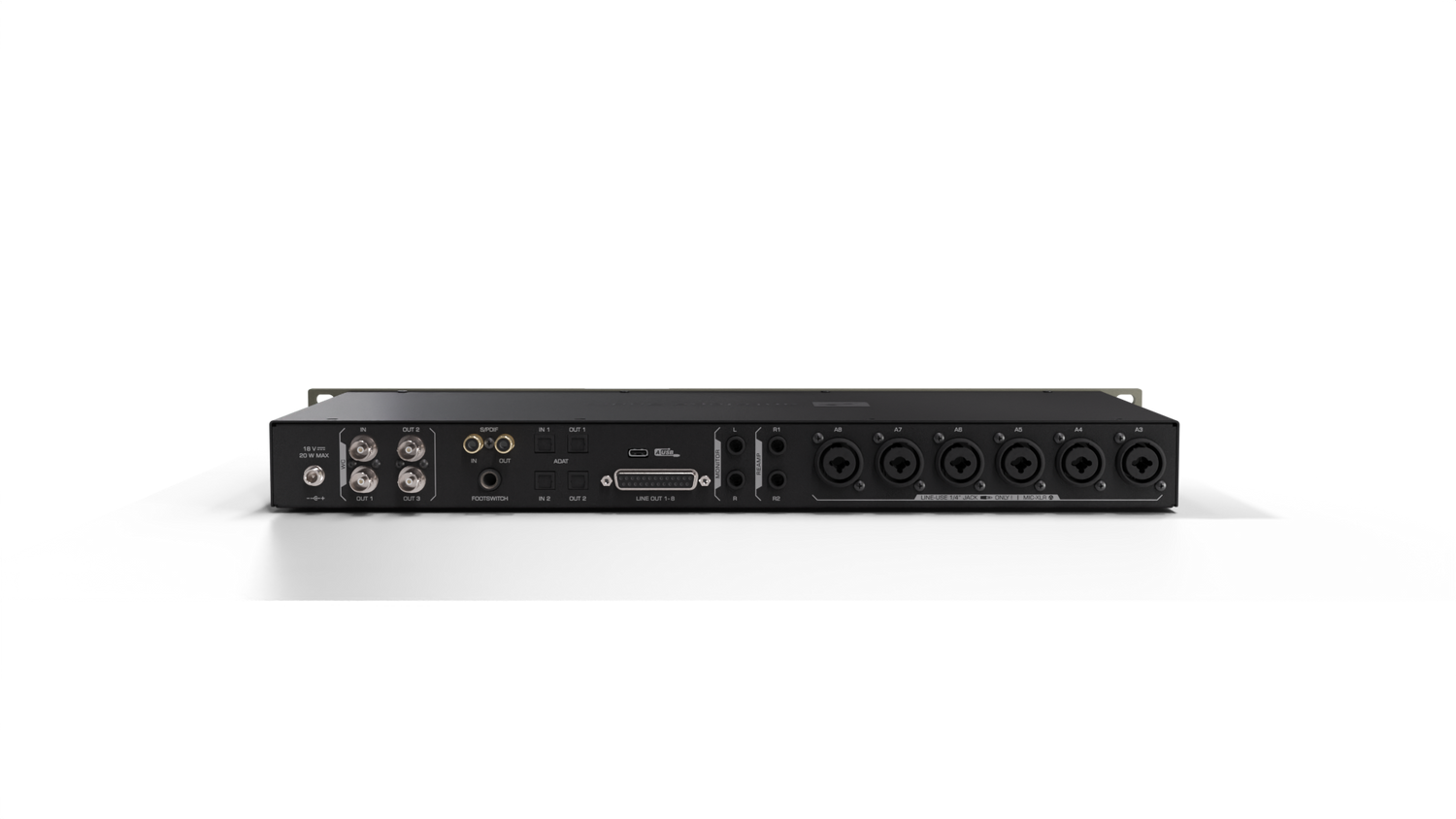

Connectivity
8 x Mic/Line inputs (6 standard, 2 with Hi-Z)
8 x Line outputs on DB25 (DC-coupled)
2 x ReAmp outputs on TRS ¼” jacks
1 x Monitor output on TRS ¼” jacks
4 x Stereo headphone outputs with gain control
2 x ADAT I/O (up to 16 channels)
1 x S/PDIF I/O (2 channels)
USB 2.0 Type-C port
3 x Word Clock outputs (BNC, 75 Ohm)
1 x Word Clock input (BNC, 75 Ohm)
1 x Footswitch input (¼” TS)

Real-Time FX Processing
Powered by 2 DSP + 1 FPGA
Includes 37 FX (compressors, EQs, mic pres, guitar amps, reverb, tuner, more)
Compatible with Antelope Edge mic modeling

Monitoring & Mixing
4 independent headphone outputs with X-feed and calibration
Direct monitoring with FX, zero perceptible latency
Customizable monitor mixes with volume, pan, and reverb
Front-panel talkback with built-in microphone

Dimensions & Weight
Unit: 483 mm (W) x 44 mm (H) x 220 mm (D)
Unit Weight: 3.1 kg / 6.83 lbs
Box: 645 mm (W) x 100 mm (H) x 340 mm (D)
Box Weight: 4.9 kg / 10.8 lbs

Power & Operating Conditions
Power consumption: 25 Watts
Operating temperature: 0–50°C / 32–122°F
