ALLEN & HEATH

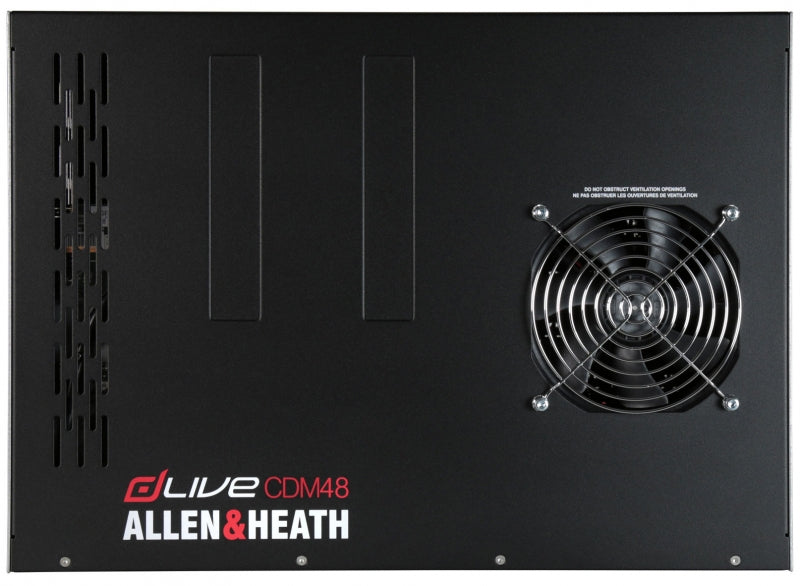

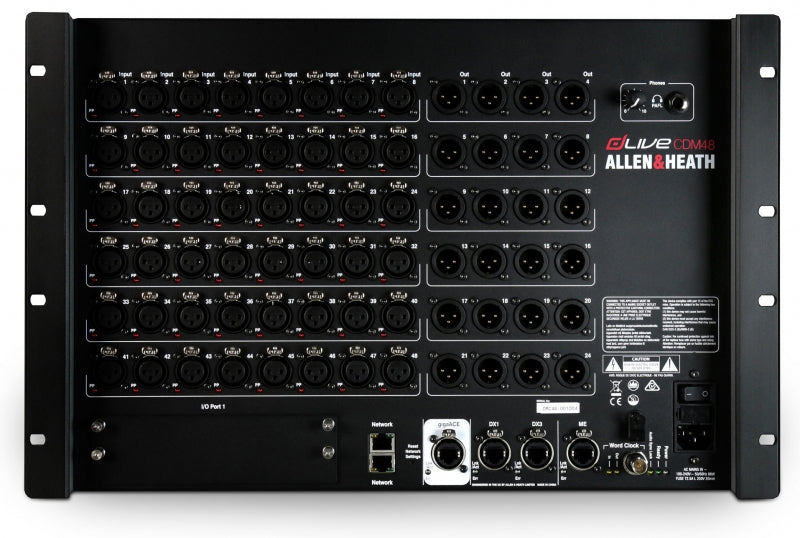

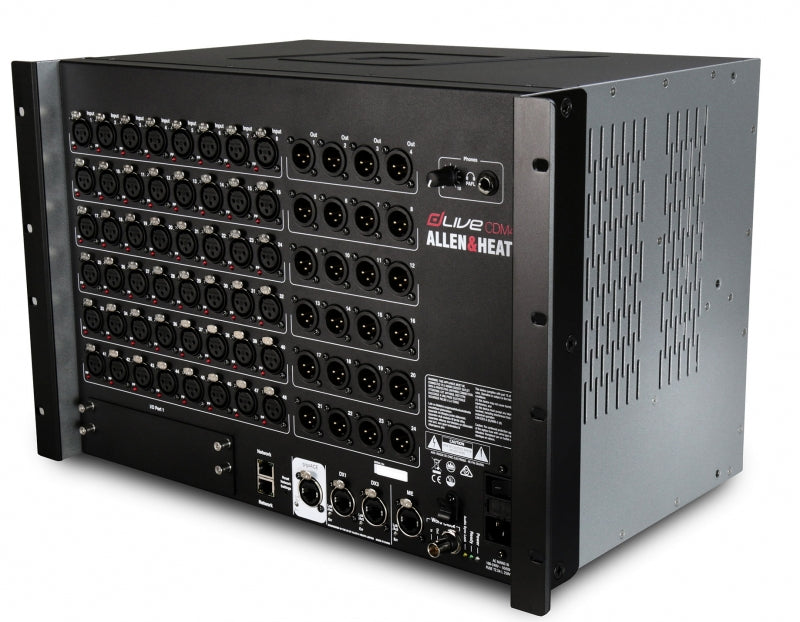

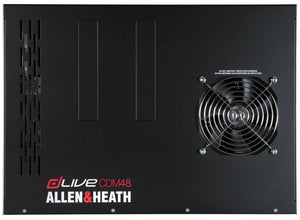

dLive CDM48 MixRack

Digital Stage Boxes

The MixRack CDM48 is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports

$0.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

There are different sizes of dLive MixRack available. All feature the same mix engine and can work with the full 128 channels by adding DX expanders or digital sources.

The dLive C Class makes the full power and flexibility of dLive available in an accessible, compact format, making it ideal for corporate AV, houses of worship, regional rental companies and theatres.

Features

48 Mic/Line Inputs and 24 Line Outputs: Provides extensive connectivity for various audio sources and outputs

XCVI Core Processing: Utilizes a 96kHz FPGA processing engine for high-quality audio performance

128 Input Channels and 64 Mix Outputs: Offers comprehensive channel and output management for complex audio setups

Configurable 64-Bus Architecture: Supports flexible routing and mixing configurations to suit various applications

16 RackExtra FX with Dedicated Stereo Returns: Includes built-in effects processing for enhanced audio control

Ultra-Low Latency of 0.7ms: Ensures real-time audio processing with minimal delay

Expandable I/O Ports: Features an I/O port for additional connectivity options, including Dante, Waves, and MADI

Dedicated ME-1 Port: Allows integration with Allen & Heath's personal monitoring system for customized mixes

Remote Control Capability: Can be managed via a laptop, iPad, or third-party controllers over TCP/IP, enabling flexible operation

Specifications

Inputs: 48 mic/line XLR inputs with fully recallable preamps; input sensitivity range: -60 to +15dBu; maximum input level: +30dBu (with PAD engaged)

Outputs: 24 balanced XLR line outputs; nominal output level: +4dBu; maximum output level: +22dBu

Processing Core: XCVI 160-64 FPGA core operating at 96kHz sample rate; 128 input channels and 16 stereo FX returns with full processing; configurable 64-bus architecture; ultra-low latency of 0.7ms from MixRack XLR in to XLR out

Expansion and Networking: One I/O port supporting 128 channels at 96kHz for audio networking; two DX links for I/O expansion; dedicated ME-1 48kHz port for personal monitoring; gigaACE gigabit link to Surface; wordclock BNC I/O; two network ports for control and third-party integration

Physical Specifications: Dimensions: 481.6 mm (width) x 309 mm (depth) x 310 mm (height); occupies 7U of rack space; weight: 12 kg (26.5 lbs); operating temperature range: 0C to 35C (32F to 95F); mains power supply: 100-240V AC, 50-60Hz, 175W max

Additional Features: 16 RackExtra FX slots with dedicated stereo returns; 24 DCAs; built-in signal generator and RTA; new preamp design for enhanced transparency; unique Active PAD circuit for consistent performance with various sources; flush front panel with ultra-quiet fan; reversible rack ears design for flexible installation
