AUDIOROOT

DYAD-CC-U

Batteries & Power Distribution

Passive power-combining cable, dual DC inputs, battery cup second input, USB-C and USB-A outputs, no telemetry

$251.00 CAD
Shipping calculated at checkout.
Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

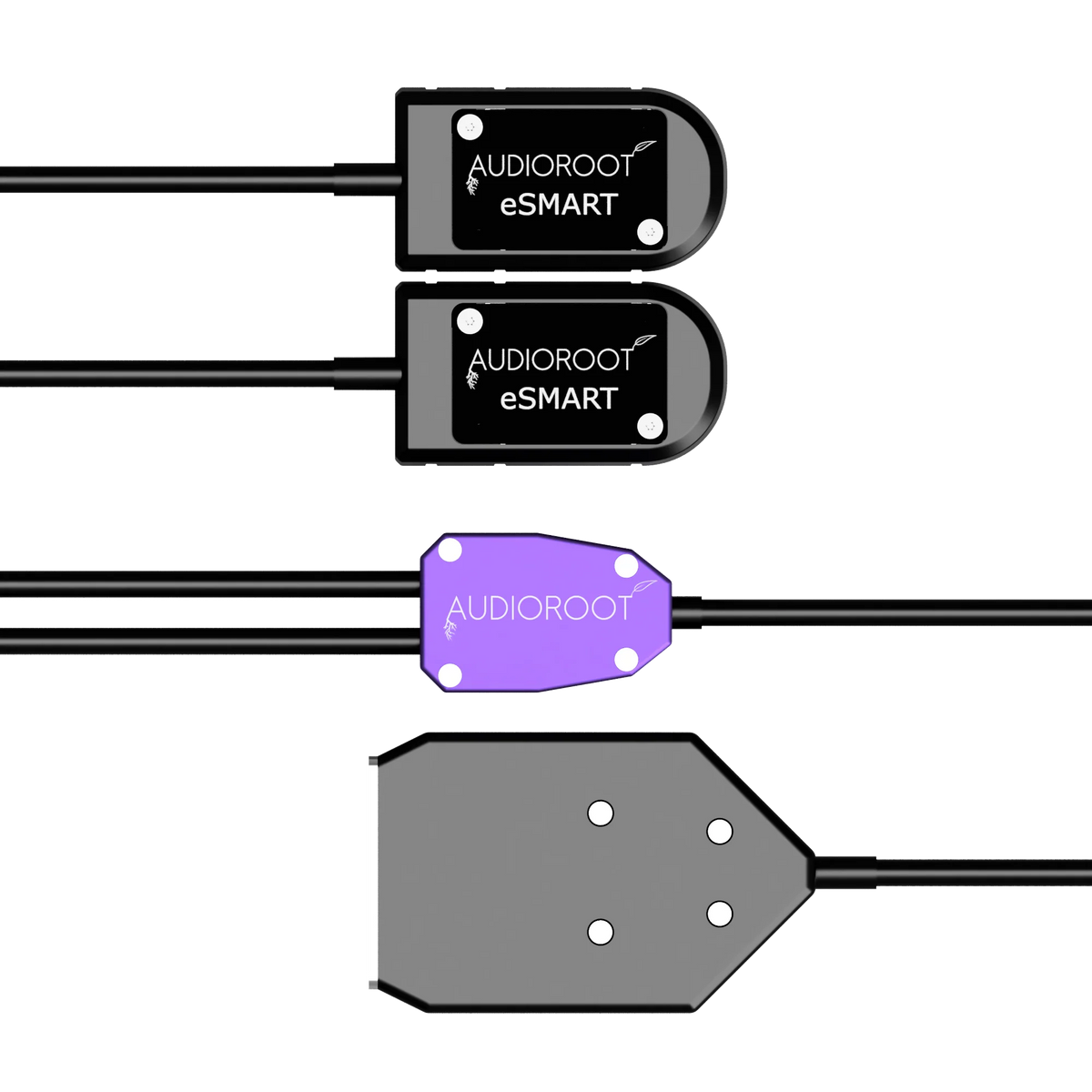

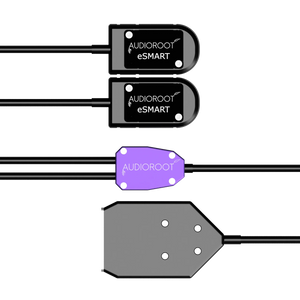

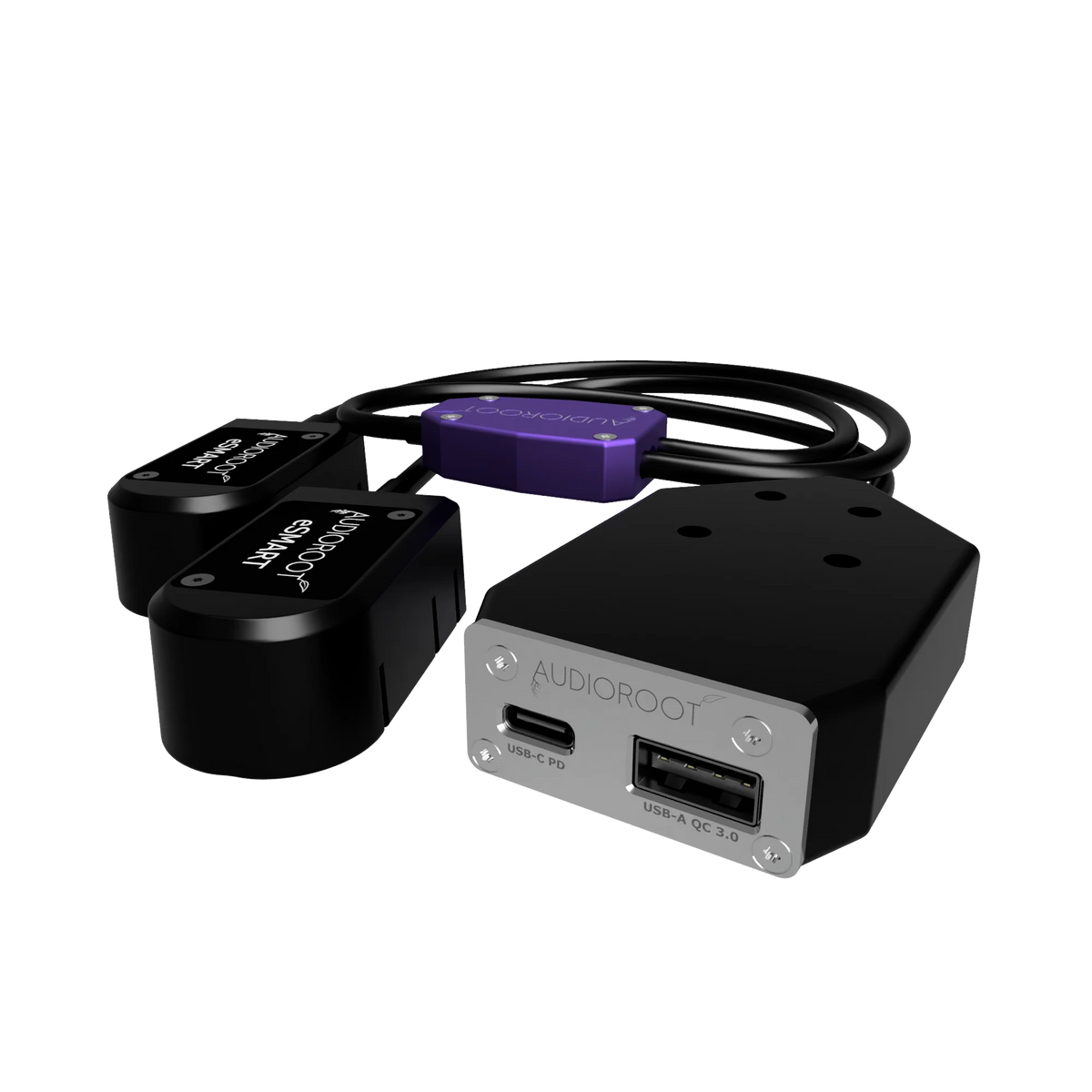

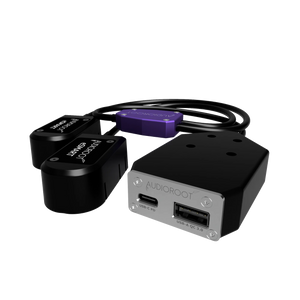

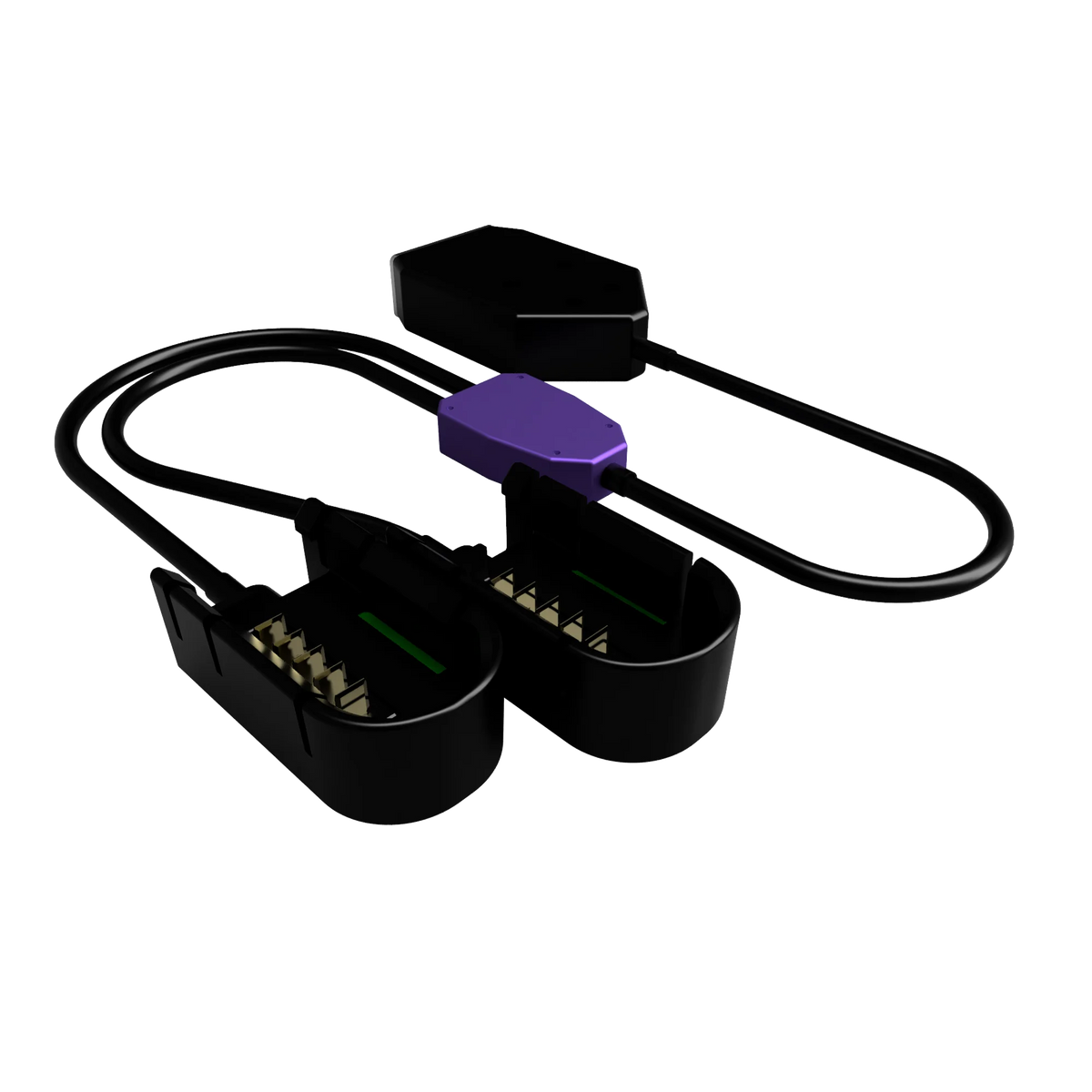

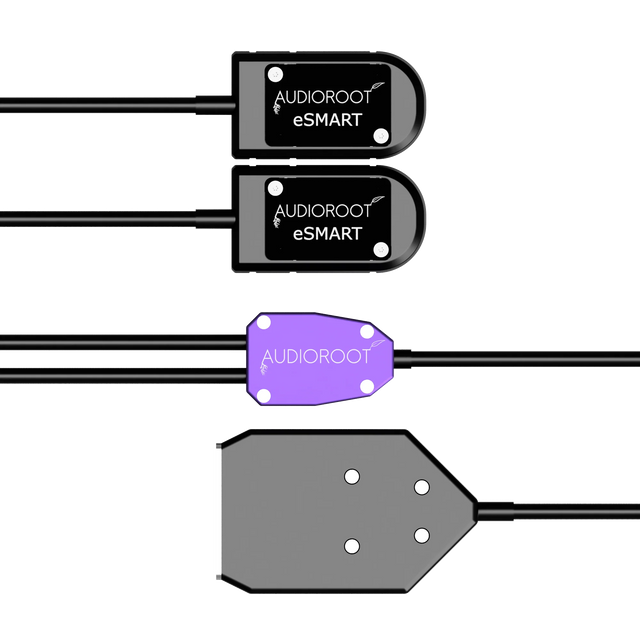

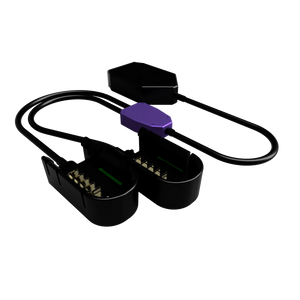

The Audioroot DYAD-CC-U is a passive power-combining cable that merges power from up to two independent batteries or DC sources without smart battery telemetry. This configuration features a battery cup for the second input and USB-C plus USB-A output connections.

The cable supports extended-runtime setups, battery hot-swapping and AC backup configurations. It is compatible with Audioroot vmDBOX units and third-party power distributors that do not require telemetry.

Features

Dual-Source Power Combining
Combines power from up to two independent batteries or DC sources for flexible power management.

Passive Operation
Transfers power without merging SMBus data or smart battery telemetry.

Battery Hot-Swapping
Supports battery changes while another connected power source continues supplying power.

Battery Cup Input
The second input uses a battery cup connection.

USB Output Connections
Provides USB-C and USB-A output connector options in this configuration.

Power Distribution Compatibility
Works with Audioroot vmDBOX units and non-telemetry third-party power distributors.

Flexible Power Configurations
Suitable for extended-runtime systems and AC backup arrangements.

Specifications

General Specifications
Product Type: Passive power-combining cable
Number of Inputs: 2
Telemetry Support: No
Maximum Recommended Output Current: 5.0 A
Default Cable Length: 60 cm

Connection Specifications
Second Input Connector: Battery cup
Output Connectors: USB-C and USB-A

Compatibility
Power Distribution Compatibility: Audioroot vmDBOX series and non-telemetry third-party power distributors
