SONNET  |  SKU: 17709

Echo Express SE III

Thunderbolt

3-slot desktop Thunderbolt 3 expansion system for PCIe cards

$1,247.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

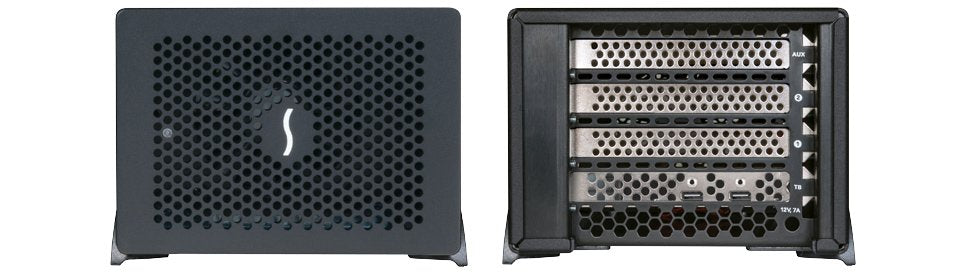

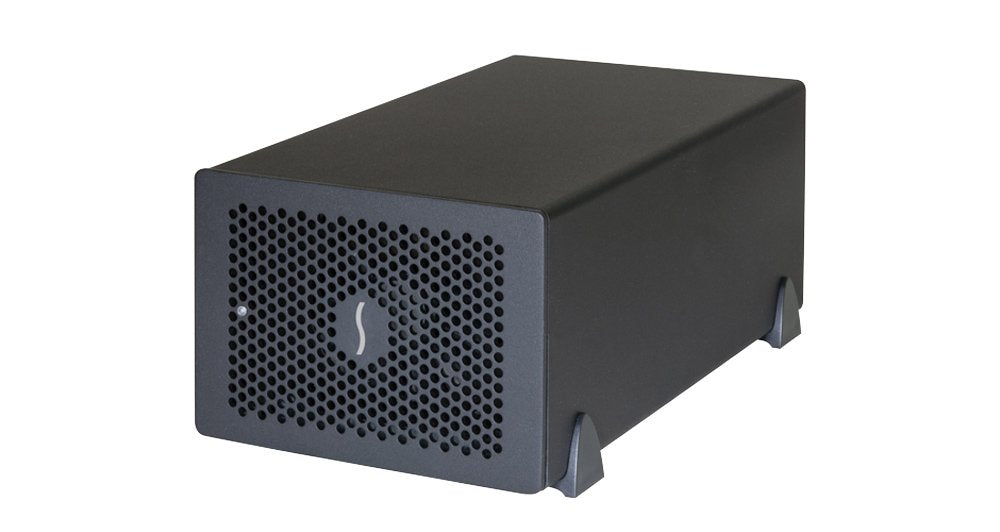

Connect Three Full-height, Half-length+ PCIe Cards to Computers with Thunderbolt 3 Ports Although thin Mac, Windows and Linux computers with Thunderbolt 3 ports offer processing power to spare, for many (such as pros in the creative fields) onboard processing power alone is not enough. Sonnet's Echo Express SE III is a compact, desktop Thunderbolt 3 to PCIe card expansion system that enables you to connect three professional PCIe cards at the same time to any computer with Thunderbolt 3 ports.

Features

Connect PCIe Cards


Use multiple high-performance PCIe cards with any computer with a Thunderbolt 3 port.

Three PCIe 3.0 x8 Slots


Supports three full-height, half-length+ (up to 7.75 inches long), single-width cards, or one double-width card plus one single-width card.

40Gbps Thunderbolt 3 Interface


Offers 2750 MB/s of PCIe bandwidth, doubling the performance capabilities of Thunderbolt 2.

Pro Performance. Compact Design.


Takes up little space on the desktop, but large enough to support nearly every Thunderbolt-compatible PCIe card, at full performance.

Two Thunderbolt 3 Ports


One port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.

Temperature-controlled Fan


Automatically operates slower and quieter with cooler cards; provides better cooling for hotter cards.

Energy Saver Mode


Powers on/off automatically with the computer.

Rugged Aluminum Housing


Provides robust and secure protection.

Power for Peripherals


Daisy chain port provides up to 15W of power to connected peripherals.

Specifications

Form Factor


Desktop expansion system

External Connectors


Two Thunderbolt 3 ports
12V power port

Expansion Slots


One x8 mechanical (x4 electrical) PCIe 3.0
Two x8 mechanical (x8 electrical) PCIe 3.0

PCIe Cards Supported


One half-length+ (up to 7.75 inches long), double-width, full-height x8 PCIe card, plus one single-width card or
Three half-length+, single-width, full-height x8 PCIe cards

Power Adapter


Universal 120W, 100-240V, 50-60 Hz

Compatibility

Mac Compatibility

Mac with Thunderbolt 3 ports

Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)

macOS 10.12.6+

macOS Big Sur compatible

Windows Compatibility

See FAQ (for SE III/III-D & III-R Thunderbolt 3 Editions)

Linux Compatibility

Linux computer with Thunderbolt 3 ports

Linux Kernel 5.0+

PCIe Card Compatibility


For a list of compatible PCIe cards, view PDF of Sonnet's PCIe Card Thunderbolt Compatibility Chart
