AVID

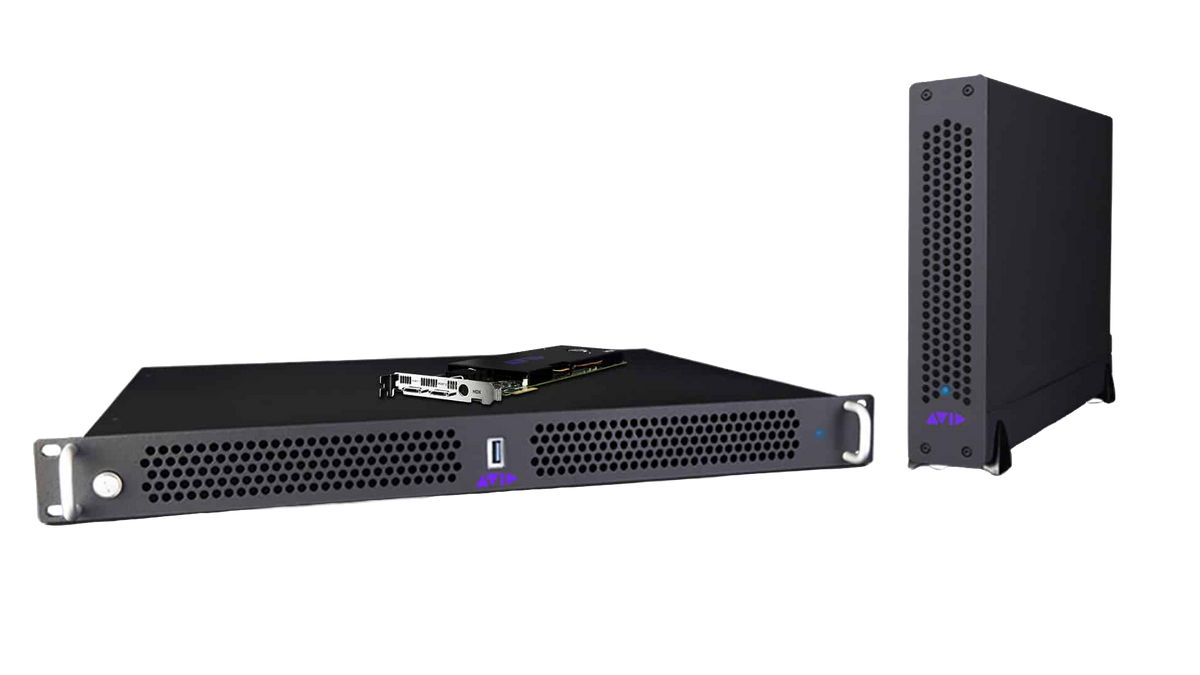

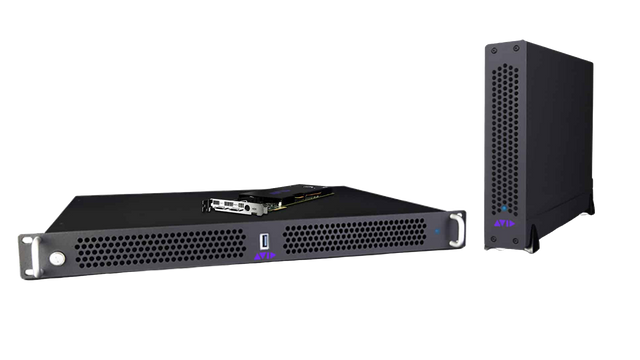

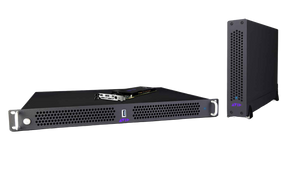

HDX Thunderbolt 3 Desktop to Rackmount Kit

Thunderbolt

Desktop-to-rackmount conversion kit, 1U configuration, HDX chassis compatibility, Mac mini enclosure support

$579.00 CAD
Shipping calculated at checkout.
Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

This desktop-to-rackmount conversion kit adapts a Thunderbolt 3 HDX desktop chassis for installation in a standard 1U studio or mobile rack. It is suited to studios, production facilities, and live systems that need a secure rack-based configuration.

The resulting rackmount setup supports one HDX PCIe card and provides space for a compatible Mac mini from 2010 through 2023. It also offers front-panel USB access and retains the chassis connectivity, performance, and portable system design.

Features

Desktop-to-Rackmount Conversion
Converts a compatible Thunderbolt 3 HDX desktop chassis into a 1U rackmount configuration.

Integrated Mac mini Support
The rackmount configuration provides an internal enclosure for securing a compatible Mac mini.

Front-Panel USB Access
The converted rackmount chassis provides convenient access to a USB 3.0 port.

Flexible Studio Deployment
Allows the chassis to transition from desktop use to a secure rack-based setup for studios, facilities, and mobile rigs.

HDX System Compatibility
Maintains support for a single HDX PCIe card and Thunderbolt-equipped Mac or Windows computers.

Specifications

General Specifications
Product Type: Chassis conversion kit
Conversion Direction: Desktop to rackmount
Starting Configuration: Desktop chassis
Finished Configuration: 1U rackmount chassis

Compatibility
Compatible Chassis: Pro Tools | HDX Thunderbolt 3 desktop chassis
Supported Expansion Card: Pro Tools | HDX PCIe card
Expansion Card Capacity: 1
HDX PCIe Card Included: No
Computer Requirement: Avid-qualified Thunderbolt-equipped computer
Supported Computer Platforms: Mac and Windows
Mac mini Compatibility: 2010-2023 models with Thunderbolt 3 ports

Rackmount Configuration
Rack Space: 1U
Mac mini Enclosure: Internal secure enclosure
Front-Panel USB Ports: 1
USB Version: USB 3.0
Dimensions with Rack Ears and Rails: 1.7 x 19 x 17.3 inches
Metric Dimensions with Rack Ears and Rails: 44 x 482 x 439 mm

Thunderbolt Connectivity
Thunderbolt Version: Thunderbolt 3
Thunderbolt Ports: 2
Thunderbolt Interface Bandwidth: 40 Gbit/s
Primary Port Function: Computer connection
Secondary Port Function: Device daisy-chaining
Daisy-Chain Capacity: Up to 5 additional Thunderbolt or USB devices

Performance
PCIe Interface Bandwidth: 2,750 MB/s

Power and Environment
Power Supply: 96 W
Operating Temperature: 32-95 degrees F
Operating Temperature: 0-35 degrees C
