LINDELL AUDIO

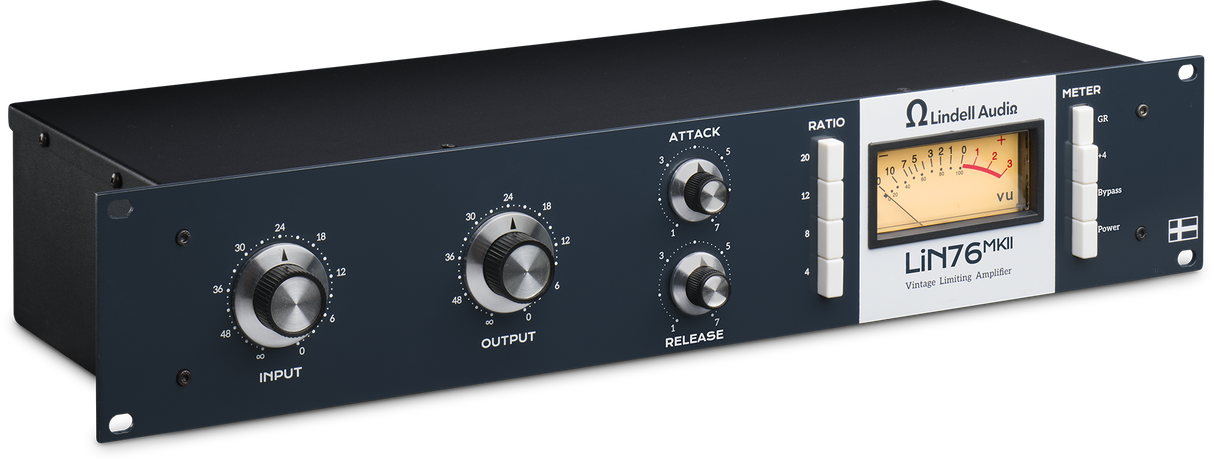

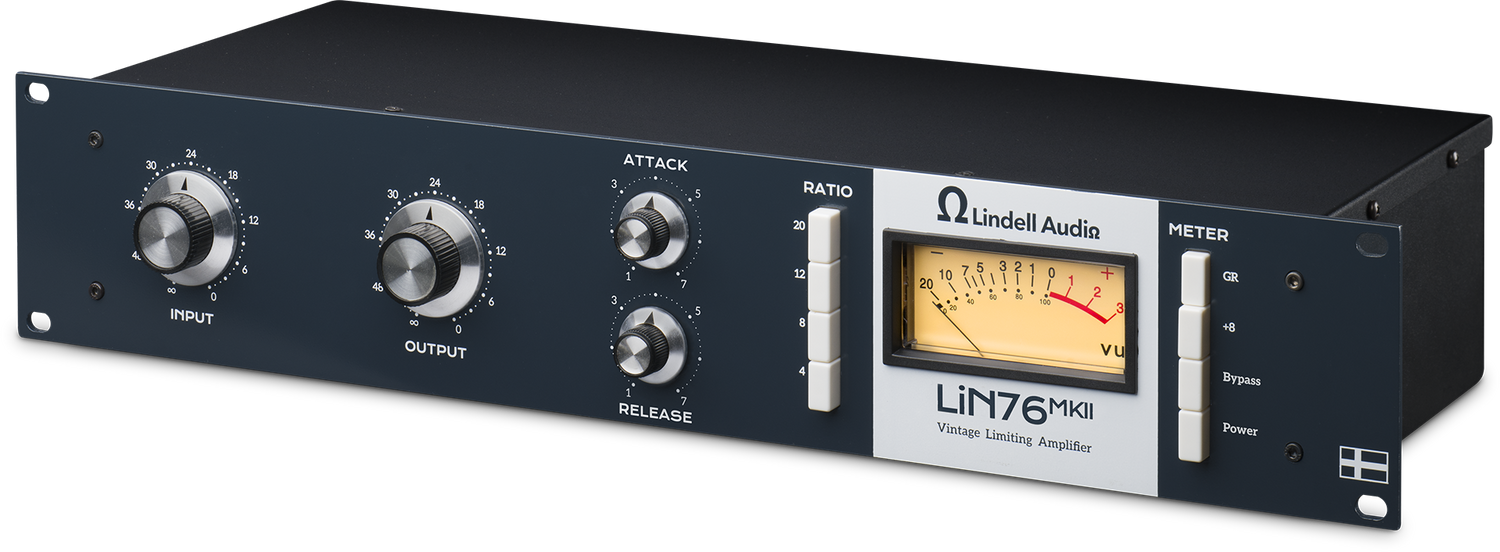

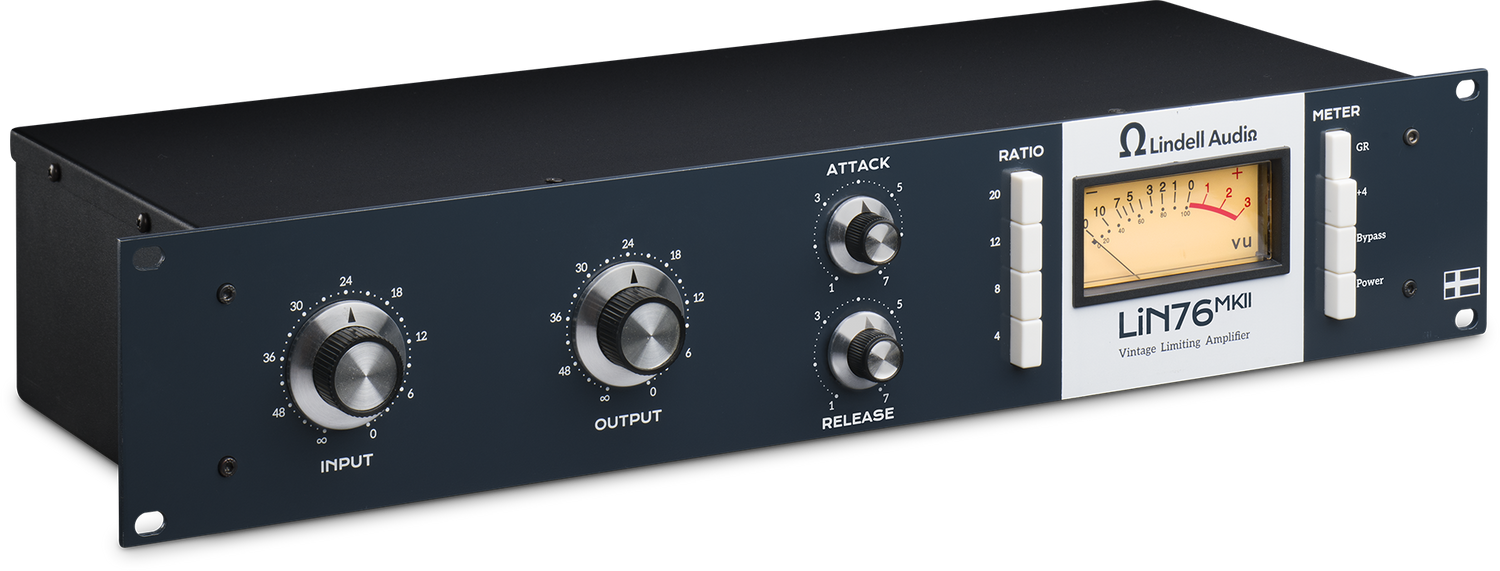

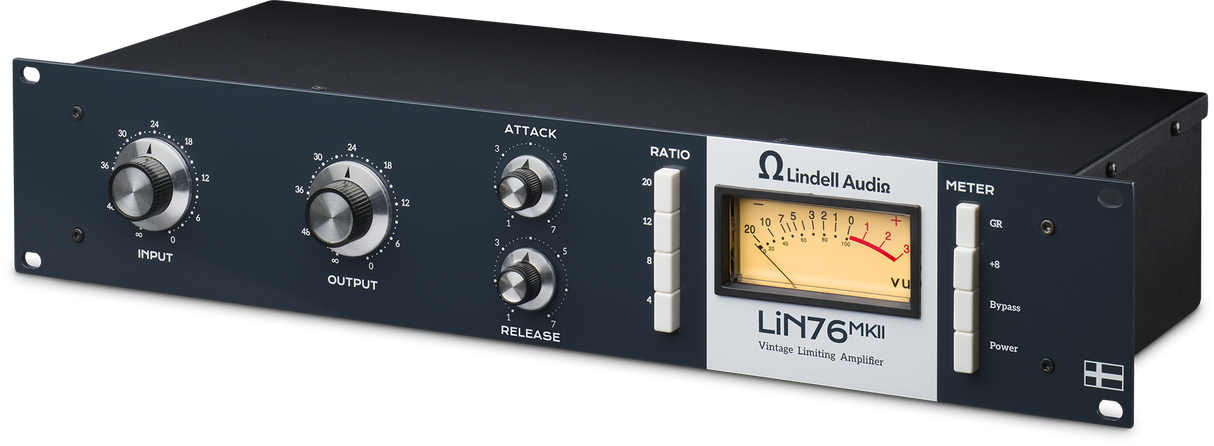

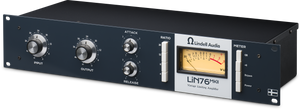

Lin76 mkII

Mono Compressors

FET compressor, true bypass, stereo linking, low-noise circuit, custom transformer, VU meter, 4 ratio modes, ultra-fast attack

$549.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Lindell Audio LiN76 mkII is a vintage-style limiting amplifier inspired by classic 76 compression, designed to bring anything from smooth, transparent control to bold, energetic character. It is well suited for shaping vocals, tightening bass, adding punch to drums, or driving room mics into a more aggressive, textured sound. With its familiar hands-on layout and vintage-style VU meter, it gives engineers a direct, musical way to dial in dynamics without overcomplicating the workflow.

Building on the original LiN76, the mkII adds useful refinements such as true bypass for quick comparisons, stereo linking for paired operation, an internal power supply, and an updated compression circuit designed for low-noise performance. Its blend of classic-inspired input, compression, and output stages gives users a wide tonal range, from clean and controlled to gritty and colorful when pushed. The result is a flexible studio compressor that brings classic character, practical updates, and everyday usability into one rackmount unit.

Features

Classic 76-Style Compression
Shape signals with smooth control or push them into bold, aggressive compression.

Low-Noise Performance
The redesigned compression circuit helps keep the sound clean and focused.

Stereo Linking
Link two units together for matched stereo processing.

True Bypass
Quickly bypass the unit to compare your processed and unprocessed sound.

Internal Power Supply
Connect with a standard power cable and avoid bulky external power supplies.

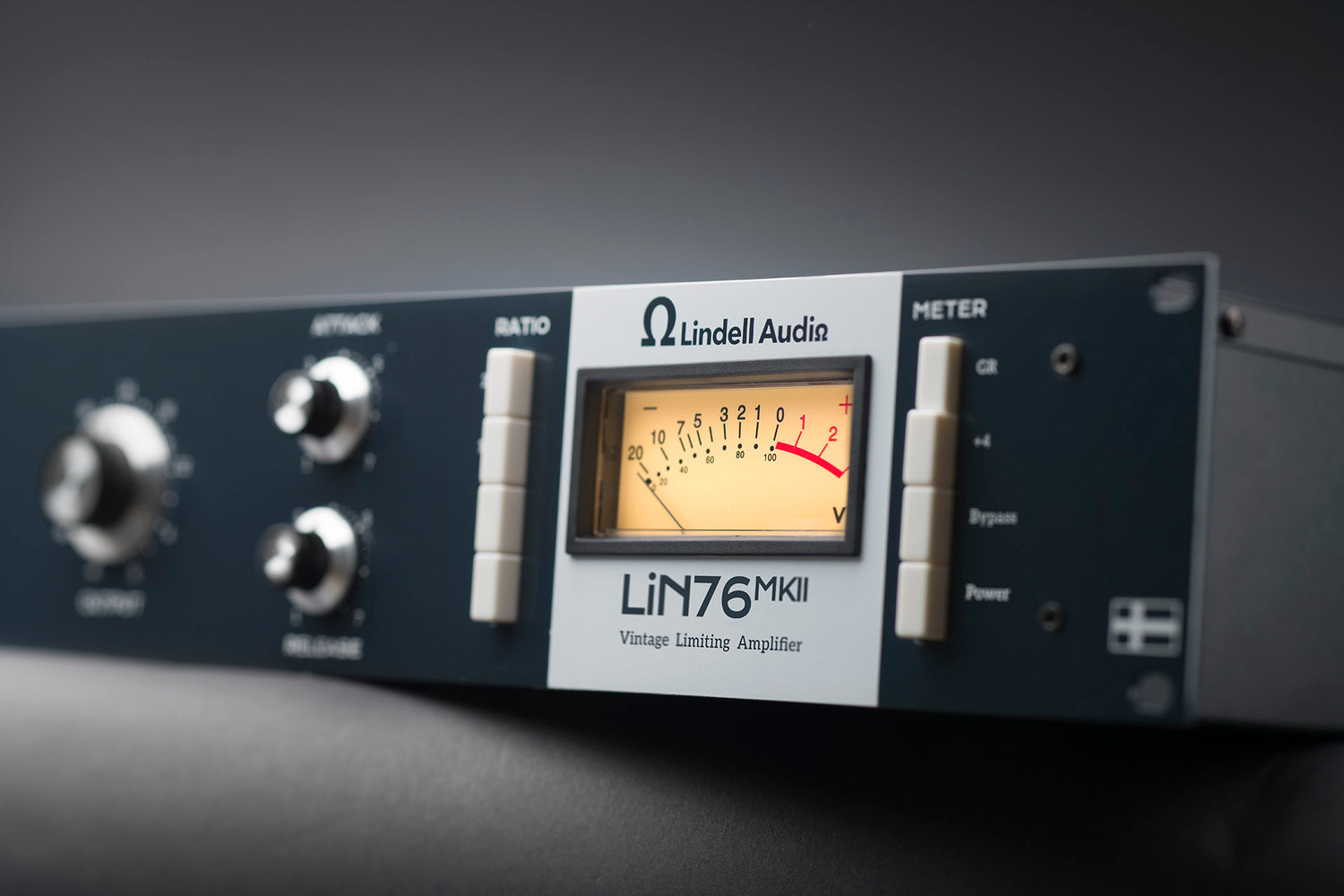

Vintage VU Meter
Monitor your signal with a classic analog-style meter.

Flexible Tone Control
Use the input and output controls to move between clean compression and colorful character.

Fast Response
Dial in quick attack and release behavior for punchy, lively dynamics.

Custom Transformer Character
Add classic analog tone and musical color to your signal.

Balanced Connections
Connect easily to studio gear, patch bays, and mixing setups.

Specifications

General Specifications
Device Type: Vintage limiting amplifier
Circuit Type: FET compressor
Topology: Feedback
Input Circuit: IC balanced
Transformer: Lindell custom

Compression
Ratio: Pushbutton selected 4:1, 8:1, 12:1, 20:1, any combination
All-Buttons-In Mode: Supported
Attack: Continuously variable 20 µs to 800 µs
Release: Continuously variable 50 ms to 1100 ms
Max Gain: 50 dB
THD: <0.75%

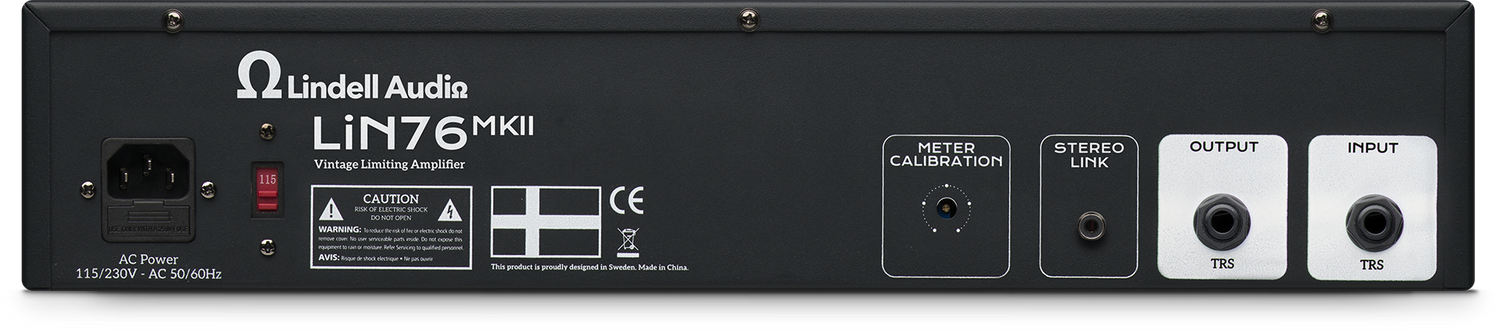

Connectivity
Audio Input: Balanced TRS
Audio Output: Balanced TRS
Stereo Link: External RCA
Stereo Operation: Matched stereo pairing via RCA link

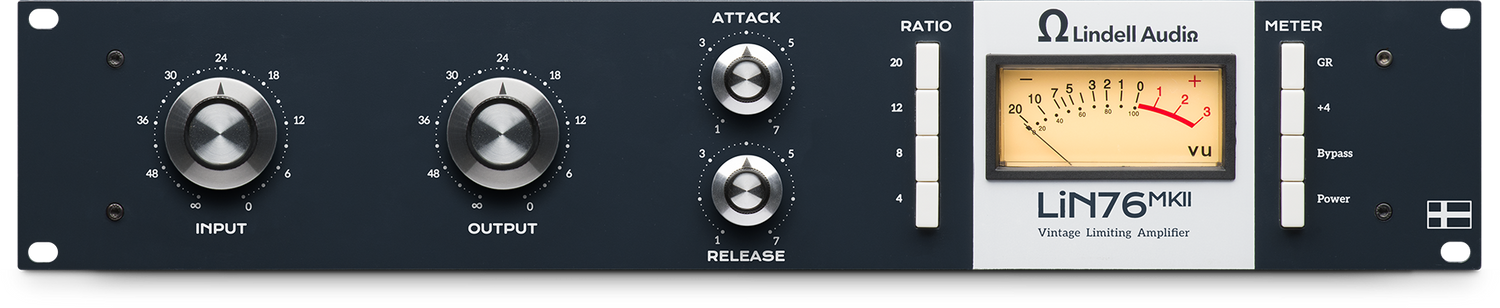

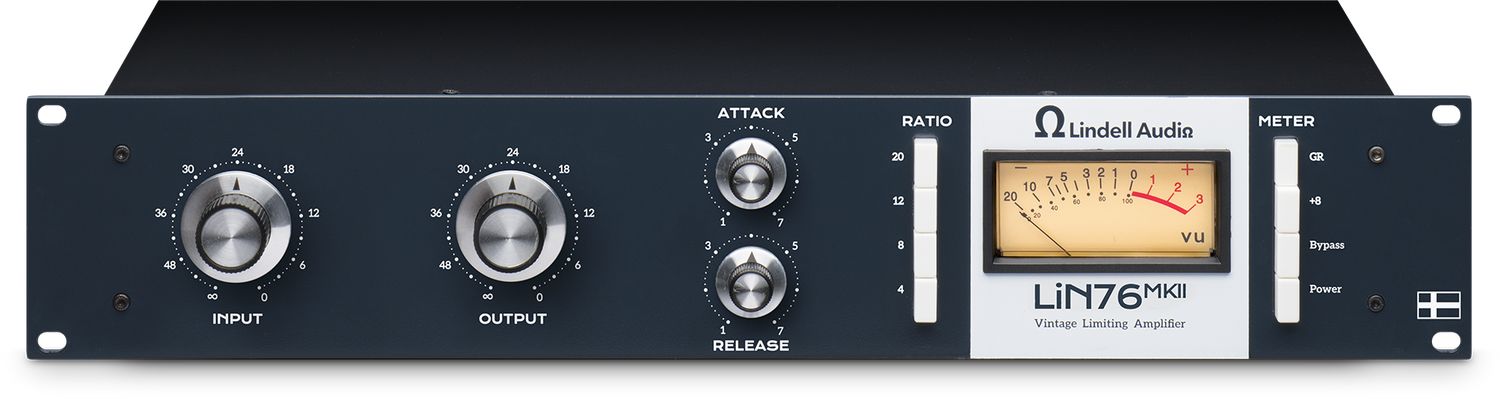

Controls
Input: Threshold and compression drive
Output: Makeup gain
Attack: Variable attack time
Release: Variable release time
Ratio: Pushbutton ratio selection
Meter Mode: GR, +4, Bypass, Power
Bypass: True bypass
Meter Calibration: Rear-panel calibration control

Metering
Meter Type: Vintage-style VU meter
Gain Reduction Metering: Supported
Output Level Metering: +4 dB reference
Calibration: Adjustable zero resting point

Power
Power Supply: Internal
Power Connection: Grounded IEC
Voltage: 12V
AC Mains Input: 100V–240V depending on supplied unit

Physical Specifications
Rack Size: 2U
Width: 438 mm (19")
Height: 88 mm (2U)
Depth: 152 mm (6")
Weight: 2.9 kg (6.48 lbs)
