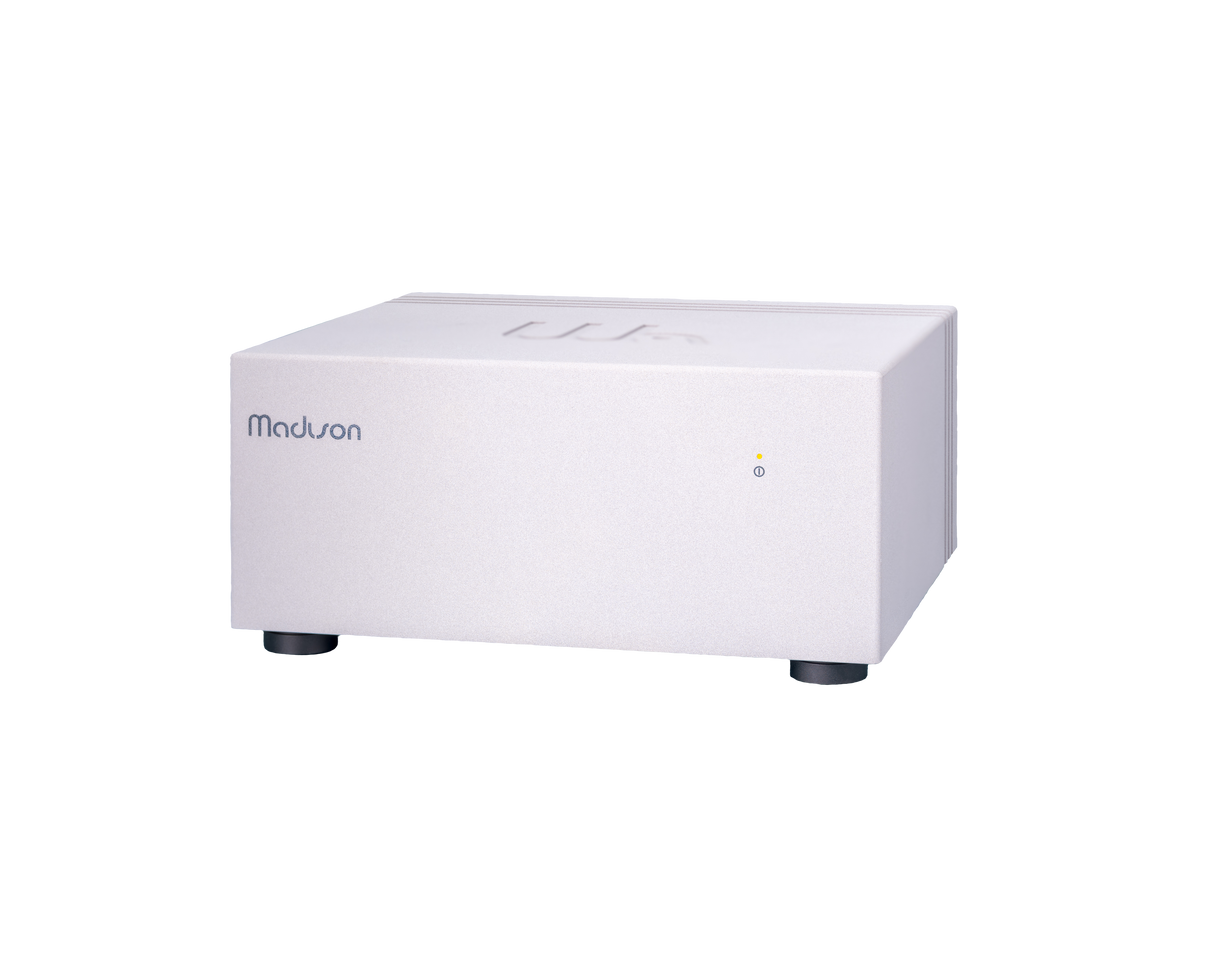

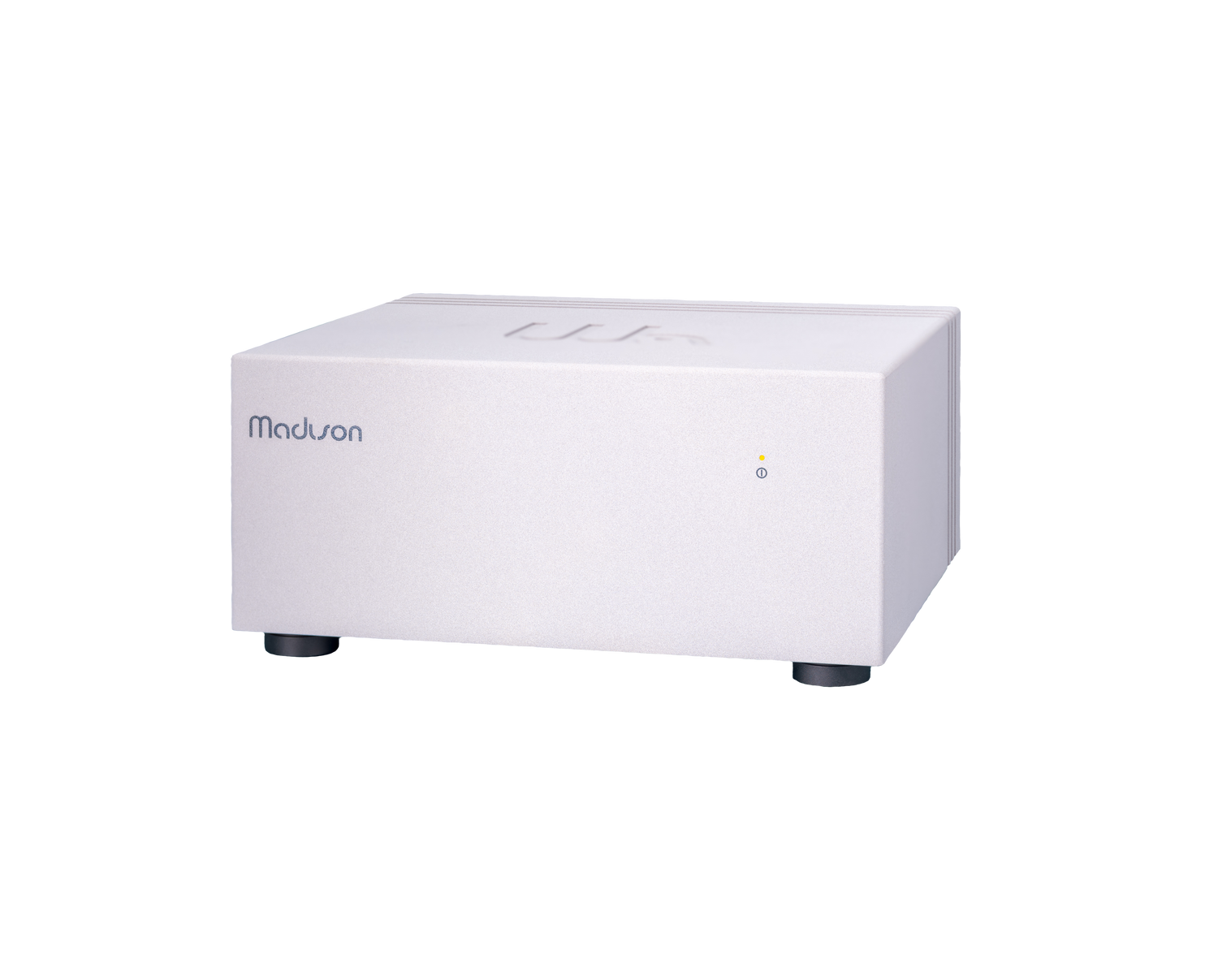

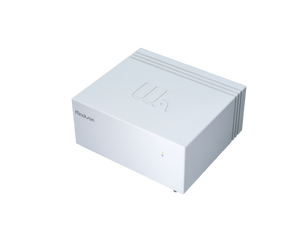

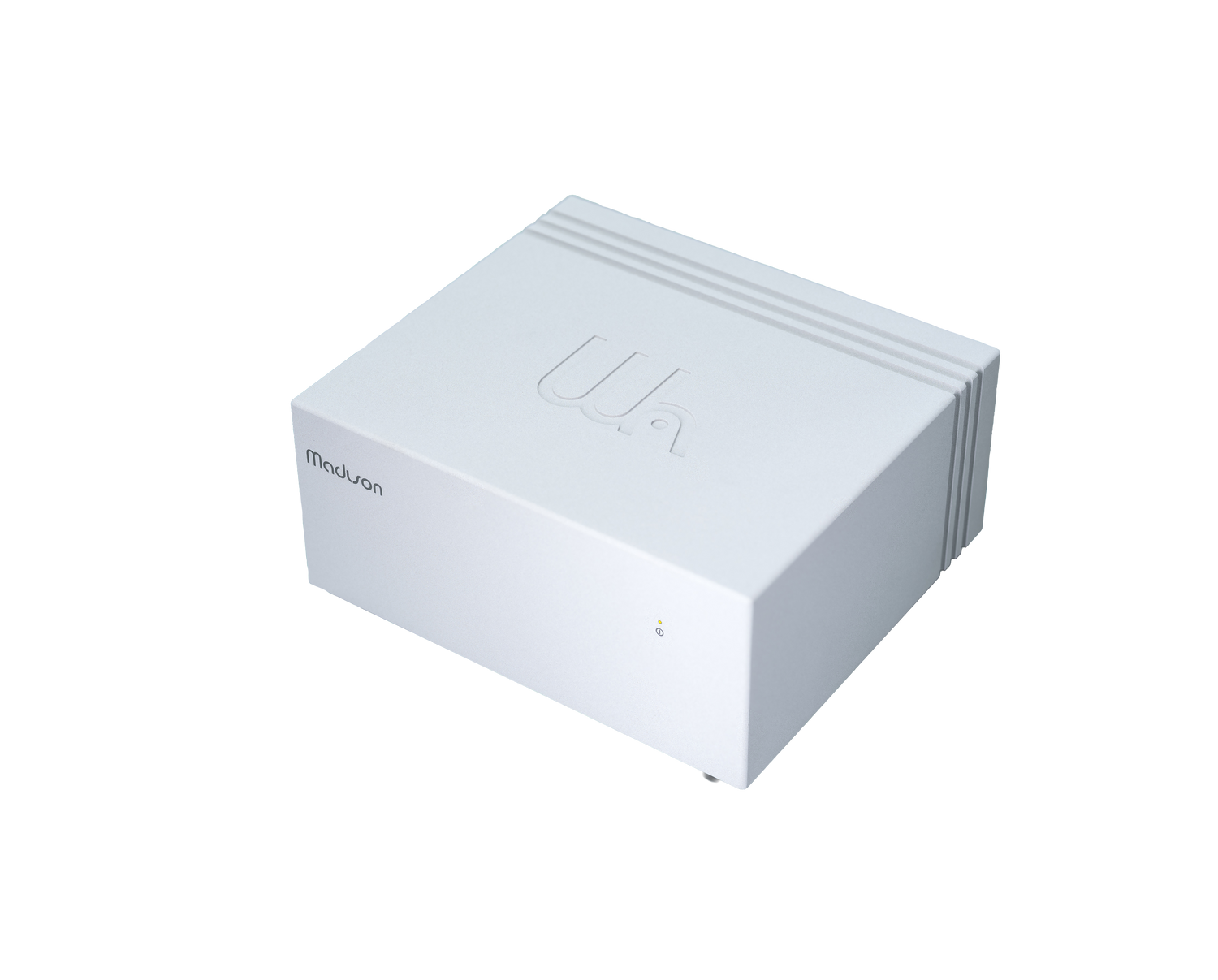

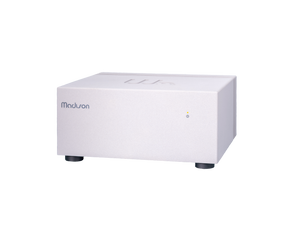

Madison Power S Supply - Light Gray

Dedicated Linear Power Supply
Purpose-built to enhance the performance of Madison Streamers with exceptionally clean and stable power delivery.

Swiss Precision Engineering
Designed and crafted in Switzerland by the same engineering team behind CH Precision and Wattson Audio.

Optimized for Madison Streamers
Engineered specifically to pair with Madison Streamers for seamless integration and maximum performance.

Ultra-Clean Power Delivery
Provides highly regulated power that helps preserve timing accuracy, detail, and musical realism.

Hybrid Power Architecture
Combines the efficiency of switching regulation with the refinement of linear control for optimal performance.

Low-Noise Operation
Reduces electrical noise and interference to create a cleaner foundation for audio playback.

Enhanced Musical Detail
Helps reveal subtle nuances, spatial information, and low-level details within recordings.

Improved Dynamic Performance
Supports greater dynamic expression and more impactful musical contrasts.

Precision Output Regulation
Utilizes a discrete bipolar transistor regulator for highly stable and accurate power delivery.

Advanced Filtering System
Employs multiple stages of filtering to minimize unwanted noise and maintain voltage stability.

Aluminum Chassis Construction
Features a precision-milled aluminum enclosure for mechanical stability and electromagnetic isolation.

Lower Noise Floor
Contributes to a quieter background that allows music to emerge with greater clarity and dimensionality.

Expanded Soundstage
Enhances spatial presentation and image stability for a more immersive listening experience.

Intelligent Protection Systems
Includes safeguards against over-voltage, over-current, short circuits, and excessive temperatures.

Energy-Efficient Standby Operation
Automatically reduces power consumption when the connected streamer enters standby mode.

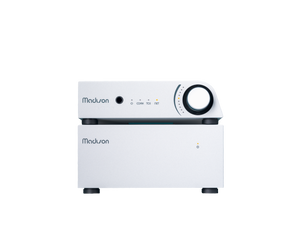

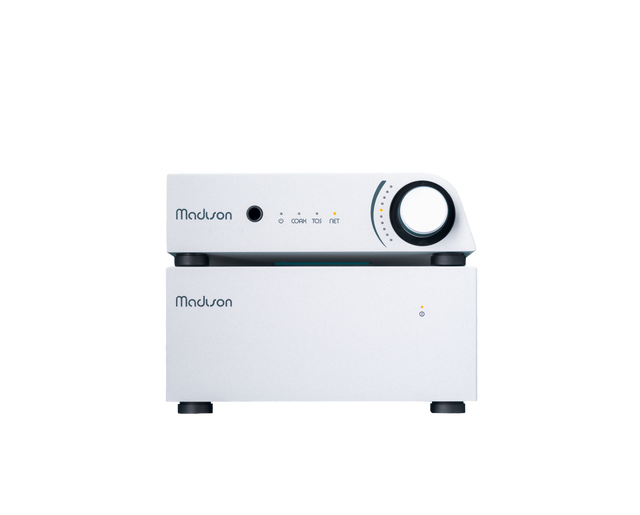

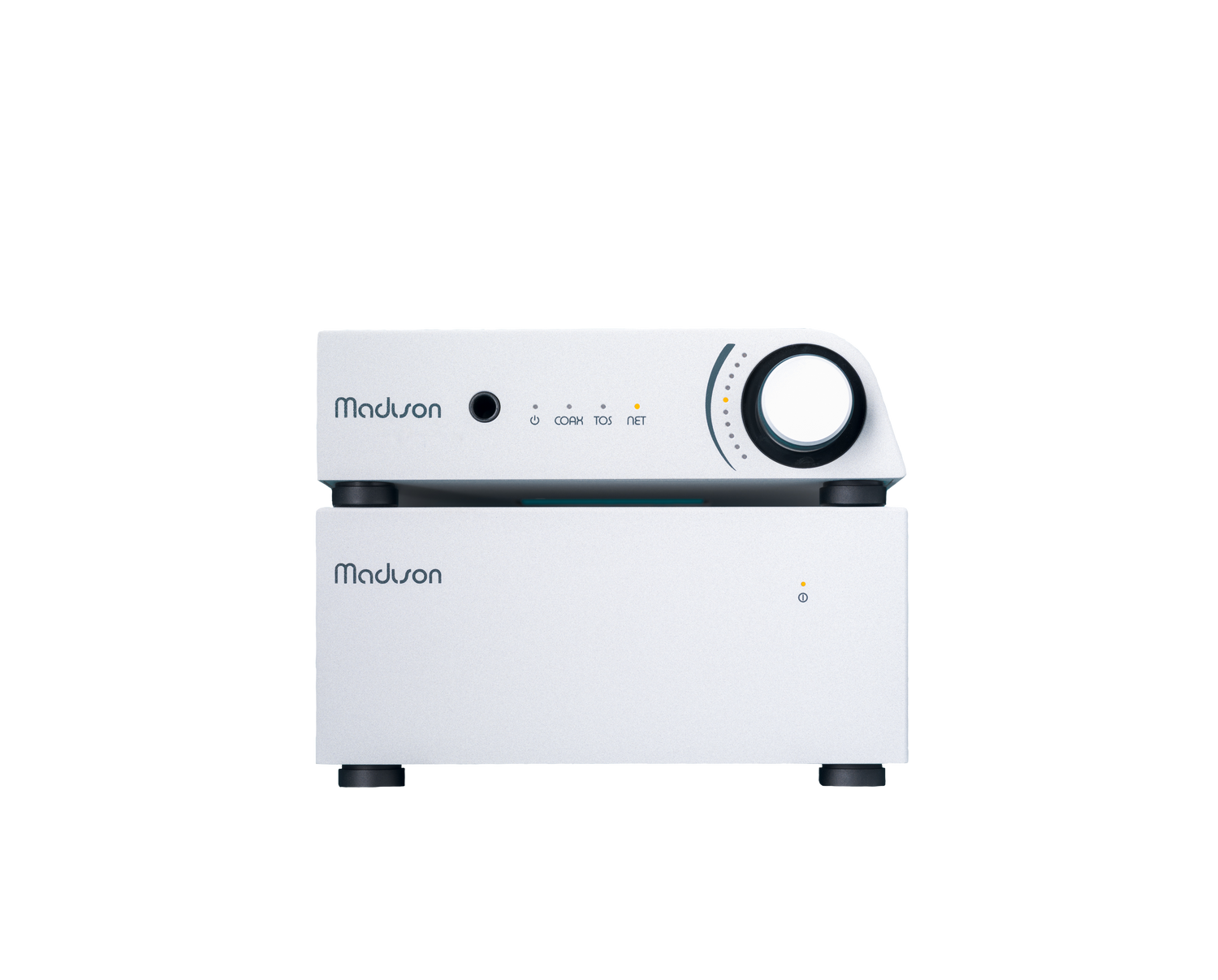

Seamless System Matching
Shares the same footprint and design language as Madison Streamers for a cohesive appearance.

Light Gray Finish
Finished in Wattson Audio’s signature Light Gray color for a clean and timeless aesthetic.

Reference-Grade Power Foundation
Applies the power supply expertise and design philosophy developed for high-end CH Precision components.

General Specifications
Device Type: External Power Supply
Series: Madison Power S
Color: Light Gray
Compatibility: Madison Streamers
Country of Design & Manufacture: Switzerland

Power Specifications
Input Voltage: 100–240 V AC, 50/60 Hz
Universal AC Input: Yes
Output Voltage: 30 V DC
Maximum Output Current: 3.0 A
Maximum Power Consumption: 30 W
Standby Power Consumption: Less than 0.5 W

Power Supply Architecture
Power Supply Design: Hybrid Switching and Linear Regulation
Input Power Line Filter: Yes
Passive Filtering: Yes
Active Filtering: Yes
Energy Storage Capacitors: Yes
Output Regulator Type: Discrete Bipolar Transistor Regulator
Low Noise Design: Yes
Voltage Regulation: Precision Regulated

Protection Features
Over-Voltage Protection: Yes
Over-Current Protection: Yes
Short-Circuit Protection: Yes
High Temperature Protection: Yes
Electronic Monitoring System: Yes

Construction
Chassis Material: Precision-Milled Aluminum
Mechanical Isolation: Yes
Electromagnetic Isolation: Yes

Electrical Specifications
Primary Fuse Type: Slow Blow
Fuse Rating: T500mA, 250 VAC
Fuse Size: 5 mm × 20 mm

Connectivity
AC Input: IEC AC Mains Connection
DC Output Connector: Circular Connector

Physical Specifications
Width: 175 mm
Depth: 155 mm
Height: 87 mm
Weight: 2.3 kg

Operating Requirements
Maximum Ambient Temperature: 35°C
Maximum Relative Humidity: 85%
Grounded AC Connection Required: Yes
Protective Earth Connection Required: Yes

Indicators & Controls
Front Status LED: Yes
Rear Power Switch: Rocker Switch
Automatic Standby Mode: Yes

Included Accessories
AC Power Cord: Included
DC Power Cord: Included

Finish
Color Finish: Light Gray
