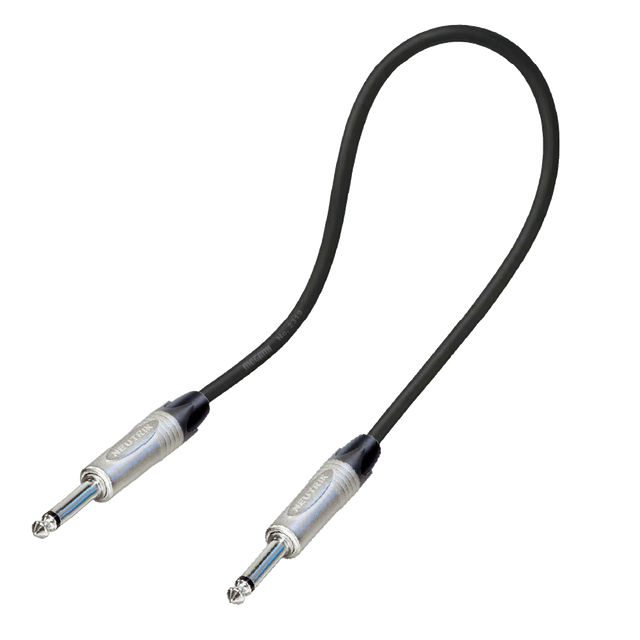

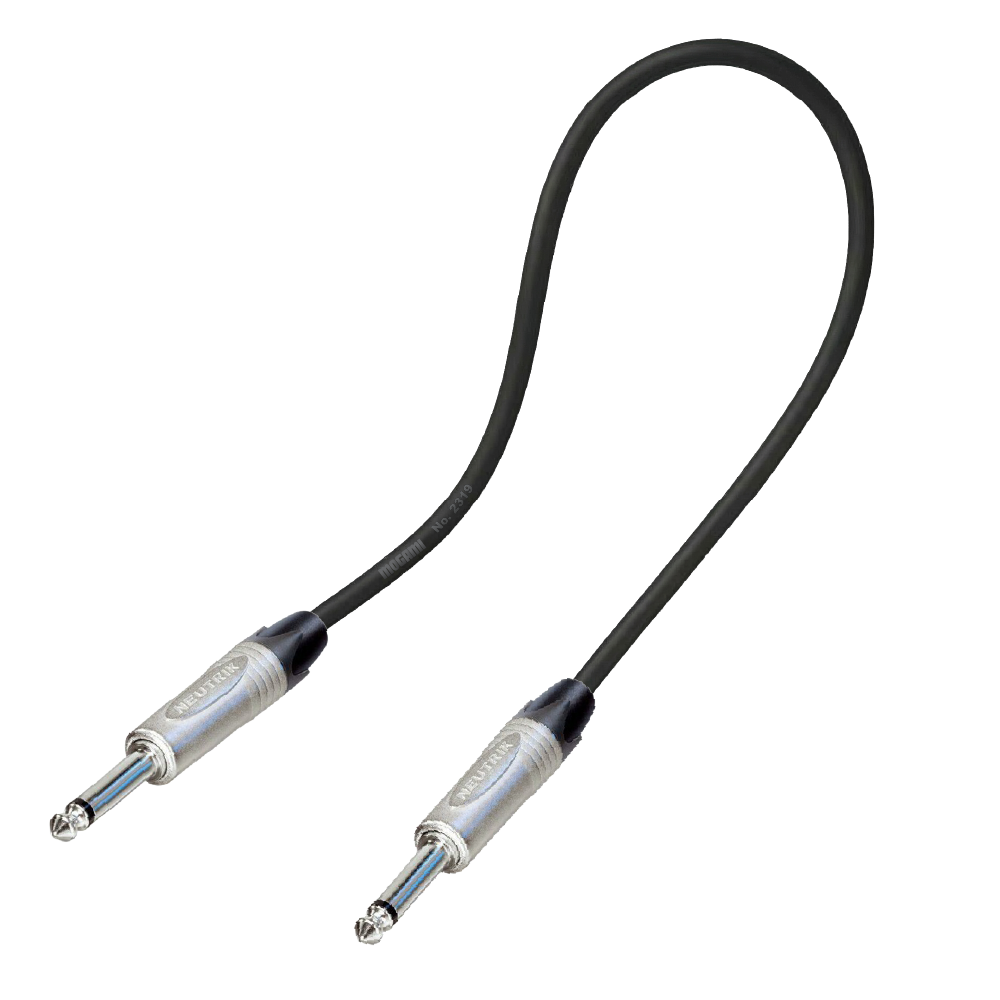

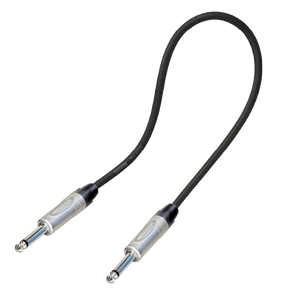

MM2319 TS-TS 01'

Flexible and Easy Routing
Designed for smooth handling and simple cable management in guitar and instrument setups.

Durable Outer Jacket
Resists wear, bending, and abrasion for long-lasting reliability.

Low Handling Noise Design
A conductive PVC layer reduces unwanted noise caused by movement and cable flex.

Clean Signal Transfer
Supports the natural tone of connected instruments with low-noise performance.

Instrument-Optimized Build
Designed for high-impedance sources such as electric guitars and basses.

Secure TS Connections
Two 1/4-inch connectors provide dependable connections to amplifiers, pedals, and other compatible equipment.

Reliable Performance
Suitable for consistent use in studios, live performances, and practice setups.

Professional Neutrik Connectors
High-quality plugs provide a secure fit, durable construction, and comfortable handling.

Multi-Purpose Use
Ideal for connecting guitars, pedals, amplifiers, audio interfaces, and other instrument-level equipment.

General Specifications
Product Type: Unbalanced instrument cable assembly
Cable Type: High-impedance instrument cable
Application: Guitar and instrument-level signal transmission
Cable Model: Mogami W2319
Configuration: TS to TS

Cable Construction
Conductor: 0.305 mm², 23 AWG copper
Conductor Stranding: 12/0.18
Insulation: Polyethylene
Insulation Diameter: 1.6 mm
Sub-Shield: Conductive carbon PVC
Sub-Shield Diameter: 1.8 mm
Shield: Served shield, approximately 38/0.16 stranding
Capacitance: 155 pF/m at 1 kHz, 20°C
Inductance: 0.3 µH/m
Outer Diameter: 5.0 mm
Jacket Material: PVC
Flex Life: 11,000 cycles
Tensile Strength: 303 N

Connector A
Type: 6.35 mm 2-pole TS phone plug
Model: Neutrik NP2X
Gender: Male
Contacts: Brass
Contact Plating: Nickel
Housing: Nickel-plated zinc diecast
Shell Width: 14.5 mm
Strain Relief: Chuck type
Cable Entry Range: 4 to 7 mm
Mechanical Life: More than 1,000 mating cycles
Standard Compliance: IEC 60603-11, EIA RS-453

Connector B
Type: 6.35 mm 2-pole TS phone plug
Model: Neutrik NP2X
Gender: Male
Contacts: Brass
Contact Plating: Nickel
Housing: Nickel-plated zinc diecast
Shell Width: 14.5 mm
Strain Relief: Chuck type
Cable Entry Range: 4 to 7 mm
Mechanical Life: More than 1,000 mating cycles
Standard Compliance: IEC 60603-11, EIA RS-453

Electrical
Signal Type: Unbalanced analog instrument signal
DC Resistance, Conductor: 0.064 Ω/m at 20°C
DC Resistance, Shield: 0.026 Ω/m at 20°C
Electrostatic Noise: 0.13 mV maximum
Electromagnetic Noise: 0.07 mV maximum at 10 kHz
Microphonics: 0.3 mV maximum
Insulation Resistance: 100,000 MΩ·m minimum at 500 V DC
Voltage Breakdown: 500 V DC for 15 seconds

Environmental
Cable Operating Temperature: -20°C to +60°C
Connector Operating Temperature: -20°C to +65°C
Solderability: IEC 68-2-20 compliant

Assembly
Termination: Hand-soldered
Termination Protection: Heat-shrink tubing
Compatibility: Guitars, basses, amplifiers, pedals, and audio interfaces
Shield Connection: Sleeve to sleeve

Physical
Length: 1 ft
Color: Black
