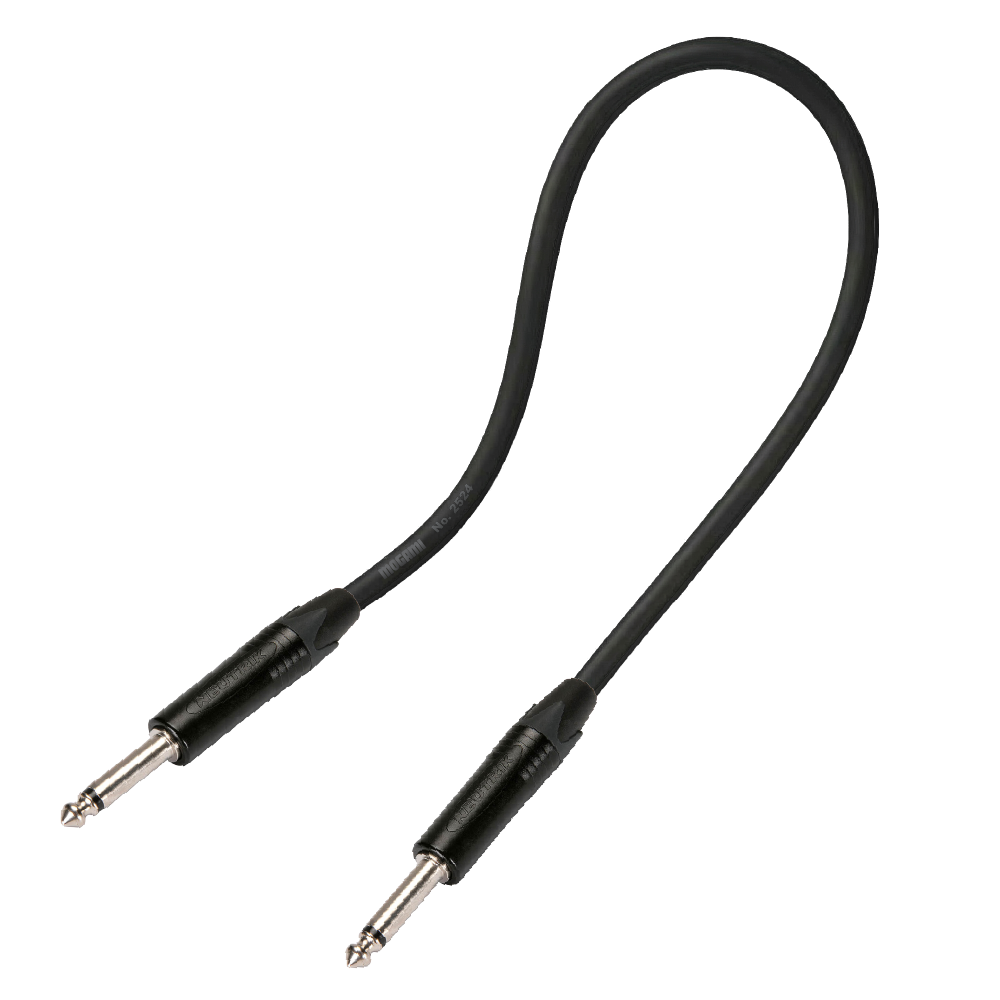

MM2524 TS-TS 06'

Genuine Mogami W2524 Cable
Made with W2524 guitar cable for high-impedance musical instrument signals.

Neutrik Plug X Series Connectors
Fitted with NP2X-BAG 2-pole 1/4-inch professional phone plugs at both ends.

6 Foot Length
Provides 6 feet of reach between instruments and compatible audio equipment.

High-Impedance Instrument Applications
Designed for musical instrument pickups such as those used in electric guitars.

Low Noise Design
A conductive PVC sub-shield helps drain voltage generated by cable movement and reduce microphonic noise.

Nickel-Plated Contacts
Precision-machined one-piece brass contacts feature 2 µm nickel plating.

Durable Connector Housings
Robust zinc diecast shells feature a black KTL coating.

Chuck Type Strain Relief
Proven chuck-type strain relief provides reliable cable retention.

Slimline Plug Design
The 14.5 mm-wide shell supports high-density jackfield layouts and comfortable handling.

General Specifications
Brand: Woolly Mammoth Cables
Device Type: Instrument Cable
Cable Type: 1/4-Inch TS to 1/4-Inch TS
Cable Length: 6 ft
Mogami Cable Model: W2524
Neutrik Connectors: 2 x NP2X-BAG

Cable Construction
Conductor Configuration: 50/0.12A
Conductor Size: 0.565 mm² (20 AWG)
Conductor Overall Diameter: 2.7 mm (0.106 in)
Insulation Material: PE
Insulation Color: Clear
Insulation Overall Diameter: 3.3 mm (0.130 in)
Sub-Shield Material: Conductive PVC
Sub-Shield Color: Black
Main Shield: Served shield, approximately 55/0.18A
Jacket Material: PVC
Jacket Color: Black
Cable Overall Diameter: 6.0 mm (0.236 in)
Applicable Temperature: -20°C to +60°C (-4°F to +140°F)

Electrical Specifications
Inner Conductor DC Resistance at 20°C: 0.033 Ω/m (0.010 Ω/ft)
Shield Conductor DC Resistance at 20°C: 0.014 Ω/m (0.0043 Ω/ft)
Capacitance at 1 kHz, 20°C: 130 pF/m (39.7 pF/ft)
Inductance: 0.2 µH/m (0.061 µH/ft)
Electrostatic Noise: 0.15 mV maximum
Electromagnetic Noise at 10 kHz: 0.07 mV maximum
Microphonics: 0.3 mV maximum
Voltage Breakdown: Withstands DC 500 V for 15 seconds
Insulation Resistance: 100,000 MΩ × m minimum at DC 500 V, 20°C
Flex Life: 15,000 cycles
Tensile Strength: 578 N at 26°C and 65% RH

Connector Specifications
Connector Model: Neutrik NP2X-BAG
Connector Type: 2-Pole 1/4-Inch Professional Phone Plug
Connector Gender: Male
Wiring: Solder Contacts
Cable Outside Diameter Range: 4 to 7 mm
Wire Size: 1 mm² (18 AWG)
Rated Voltage: Less than 50 V
Dielectric Strength: 1 kV DC
Insulation Resistance: Greater than 2 GΩ initially
Lifetime: Greater than 1,000 mating cycles
Temperature Range: -20°C to +65°C
Standard Compliance: IEC 60603-11 / EIA RS-453

Connector 1 (NP2X-BAG)
Contact Material: Brass
Contact Plating: 2 µm Nickel
Shell Material: Zinc Diecast
Shell Plating: Black KTL Coating
Insert Material: Polyamide
Strain Relief Material: Polyacetal
Bushing Material: Polyacetal and Polyurethane

Connector 2 (NP2X-BAG)
Contact Material: Brass
Contact Plating: 2 µm Nickel
Shell Material: Zinc Diecast
Shell Plating: Black KTL Coating
Insert Material: Polyamide
Strain Relief Material: Polyacetal
Bushing Material: Polyacetal and Polyurethane
