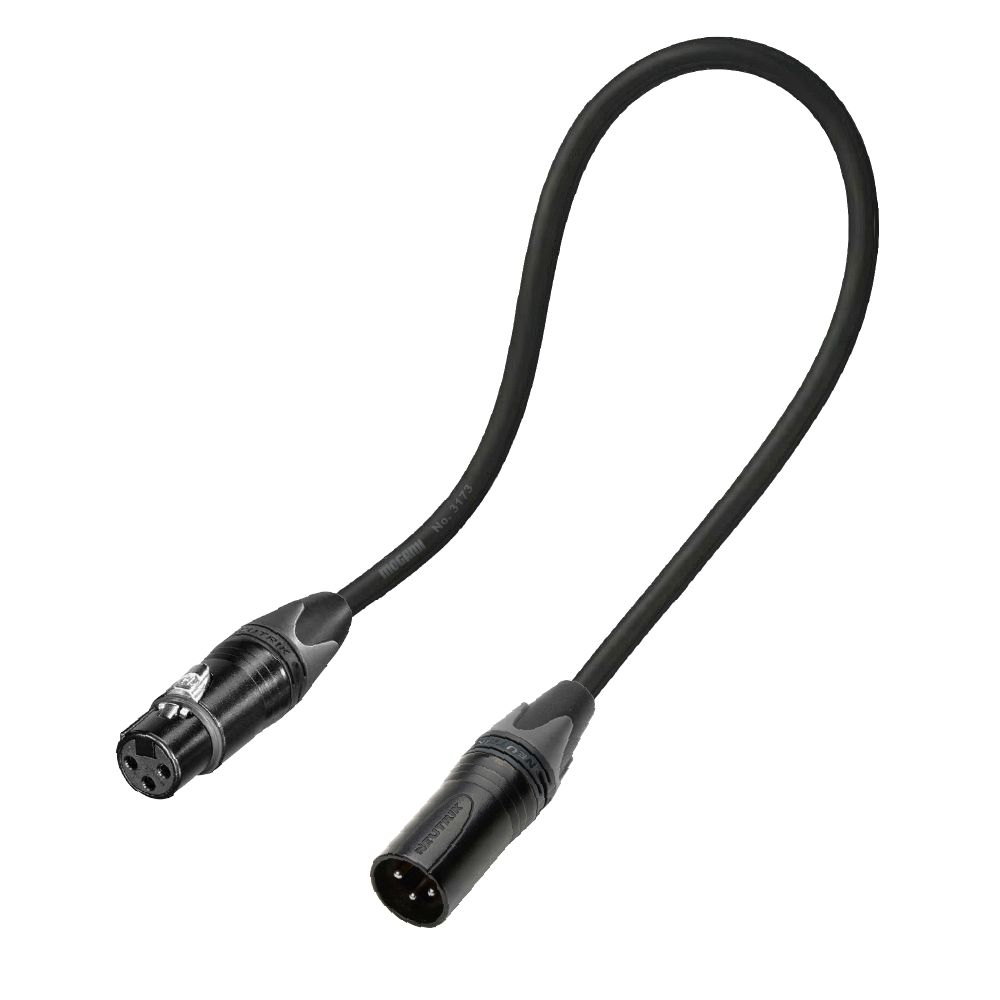

MM3173 XLR-XLR 03'

Genuine Mogami W3173 Cable
Built with genuine Mogami W3173 110Ω AES/EBU cable for exceptional signal integrity and dependable performance.

Neutrik XX Series XLR Connectors
Equipped with genuine Neutrik NC3FXX-BAG female and NC3MXX-BAG male XLR connectors for professional-grade reliability.

3 Foot Length
Perfect for short patch connections between nearby audio equipment, helping maintain a clean and organized setup.

Optimized for Digital Audio
Designed with a 110Ω impedance for AES/EBU digital audio while also delivering excellent performance for balanced analog audio signals.

Long-Distance Signal Performance
The Mogami W3173 cable is engineered to deliver low-loss, reliable signal transmission with excellent noise rejection.

Low Noise Design
High-quality shielding and cable construction help minimize interference and maintain a clean, accurate audio signal.

Silver-Plated Contacts
Silver-plated contacts provide low contact resistance for consistent and dependable signal transfer.

Durable Black Metal Connectors
Rugged black zinc die-cast connector housings are built to withstand the demands of professional use.

Secure Locking Connection
The female connector features an improved metal latch while the male connector incorporates a strengthened locking recess for a secure, dependable connection.

Enhanced Strain Relief
Neutrik's improved chuck-style strain relief securely grips the cable to reduce stress on the solder joints and improve durability.

Flexible Protective Boot
Polyurethane cable boots help protect against bending stress and extend cable life.

Hand-Assembled Construction
Professionally soldered connections provide dependable performance and long-lasting reliability.

General Specifications
Device Type: Professional XLR to XLR Audio Cable
Cable Type: Balanced AES/EBU Digital Audio Cable
Cable Length: 3 ft (0.91 m)
Cable Model: Mogami W3173
Connector A: Neutrik NC3MXX-BAG 3-Pin XLR Male
Connector B: Neutrik NC3FXX-BAG 3-Pin XLR Female
Connector Finish: Black KTL Metal Housing
Contact Plating: 2 µm Silver
Contact Type: Solder Contacts
Connector Locking: Latch Lock
Signal Format: Balanced Analog Audio, AES/EBU Digital Audio
Characteristic Impedance: 110 Ω ±10%
Maximum Recommended AES/EBU Distance (Cable): Up to 300 m (984 ft) without equalizer

Cable Construction
Conductors: 2
Conductor Size: 0.932 mm² (18 AWG)
Conductor Stranding: 19 × 0.25 mm
Conductor Colors: Red, White
Conductor Material: Annealed Copper
Insulation Material: Cellular Polypropylene (CPP)
Drain Wire: 20 × 0.18 mm, 0.509 mm² (21 AWG)
Shield: Served Copper Shield, Approx. 100 × 0.18 mm
Outer Jacket Material: PVC
Outer Jacket Color: Black
Overall Cable Diameter: 7.8 ±0.5 mm (0.307 ±0.020 in)

Electrical Specifications
Characteristic Impedance: 110 Ω ±10%
Capacitance: 50 pF/m (15.3 pF/ft)
Inductance: 0.7 µH/m (0.21 µH/ft)
DC Resistance (Inner Conductor): 0.020 Ω/m (0.0060 Ω/ft)
DC Resistance (Shield): 0.007 Ω/m (0.0021 Ω/ft)
Attenuation (6 MHz): 0.0347 dB/m (0.0106 dB/ft)
Phase Constant (6 MHz): 0.17 rad/m
Voltage Breakdown: 500 VDC for 15 seconds
Insulation Resistance: 10,000 MΩ × m minimum at 250 VDC
Operating Temperature (Cable): -20 °C to +60 °C (-4 °F to +140 °F)

Connector Specifications
Connector Type: 3-Pin XLR
Connector Housing: Zinc Diecast (ZnAl4Cu1)
Housing Finish: Black KTL
Boot Material: Polyurethane
Insert Material: Polyamide (PA66)
Strain Relief: Polyacetal (POM) Chuck Type
Cable Diameter Range: 3.5–8.0 mm
Maximum Wire Size: 2.5 mm² (14 AWG)
Insertion Force: ≤20 N
Withdrawal Force: ≤20 N
Contact Resistance: ≤3 mΩ
Contact Capacitance: ≤4 pF
Dielectric Strength: 1.5 kVDC
Insulation Resistance: >10 GΩ (Initial)
Rated Current: 16 A per Contact
Rated Voltage: <50 V
Mating Life: >1000 Cycles
Protection Class: IP40
Flammability Rating: UL 94 V-0
Standard Compliance: IEC 61076-2-103
Solderability: IEC 68-2-20 Compliant
Connector Operating Temperature: -30 °C to +80 °C

Male Connector (NC3MXX-BAG)
Gender: Male
Contact Material: Brass (CuZn39Pb3)
Contact Plating: 2 µm Silver
Locking Element: Zinc Diecast (ZnAl4Cu1)

Female Connector (NC3FXX-BAG)
Gender: Female
Contact Material: Bronze (CuSn8)
Contact Plating: 2 µm Silver
Locking Element: Zinc Diecast (ZnAl4Cu1) / Ck67 Spring
Locking Element Plating: Nickel
Ground Continuity: Additional Ground Spring Contacts
Female Contact Design: Cage Contact with Solder Barrier
