NEUTRIK

NC5MXX-BAG

Connectors

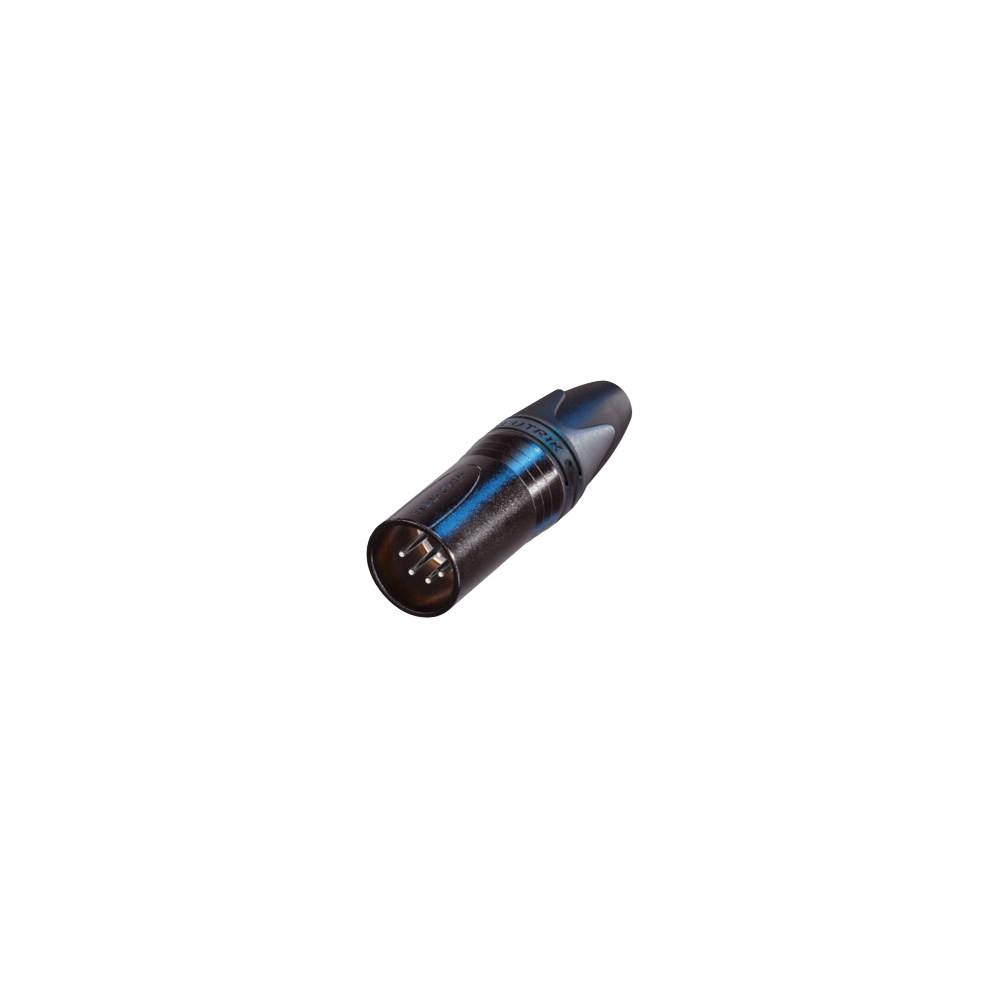

5-pole male XLR cable connector, black metal housing, silver contacts, solder terminals, latch lock, strain relief, 7.5A rating.

$11.85 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Neutrik NC5MXX-BAG is a 5-pole male XLR cable connector designed for professional audio, lighting, and control system applications that demand a secure and dependable connection. Featuring a rugged black metal housing and silver-plated contacts, this connector is part of Neutrik’s XX Series, an updated generation of the industry-standard XLR design that improves durability, assembly efficiency, and overall cable reliability.

Engineered for long-term performance, the NC5MXX-BAG incorporates an improved locking recess design that eliminates the traditional housing window, creating a stronger and more durable connector body. Its enhanced chuck-style strain relief system provides a firm grip on the cable, helping to resist pull-out forces while simplifying assembly. A polyurethane boot offers added protection against cable bending and mechanical stress, making the connector well suited for both fixed installations and demanding live production environments.

The connector’s zinc die-cast shell delivers excellent durability while maintaining a sleek, ergonomic form that is comfortable to handle. Designed for solder termination and compatible with cable diameters from 3.5 mm to 8.0 mm, the NC5MXX-BAG is an excellent choice for building reliable custom 5-pin XLR cables where consistent performance and robust construction are essential.

Features

5-Pole Male XLR Connector
Designed for professional audio and signal applications with a dependable male XLR connection.

Black Metal Housing
Durable metal construction provides long-lasting performance and a professional appearance.

Enhanced Locking Design
Improved locking recess and stronger housing construction help increase durability and reliability.

Advanced Strain Relief
Improved cable grip helps prevent cable pull-out while making assembly quicker and easier.

Cable Bend Protection
A polyurethane boot helps protect the cable from bending stress and everyday wear.

Easy Identification Options
Compatible with colored rings and boots for simple cable coding and organization.

Ergonomic Design
Comfortable shape allows for easy handling during installation and use.

Rugged Construction
Zinc die-cast shell provides dependable performance in demanding environments.

Protected Internal Threads
Internal threading is designed to resist damage and support long-term reliability.

Reliable Signal Transfer
Silver-plated contacts help maintain a secure electrical connection for consistent performance.

Secure Latch Lock
Latch locking mechanism helps keep connections firmly in place during operation.

Specifications

General Specifications
Device Type: 5-Pole Male Cable Connector
Connection Type: XLR
Gender: Male
Contact Configuration: 5-Pole
Housing Color: Black
Contact Finish: Silver Contacts

Electrical
Capacitance Between Contacts: ≤ 7 pF
Contact Resistance: ≤ 3 mΩ
Dielectric Strength: 1.5 kVdc
Insulation Resistance: > 10 GΩ (Initial)
Rated Current Per Contact: 7.5 A
Rated Voltage: < 50 V

Mechanical
Cable Outer Diameter: 3.5 – 8.0 mm
Insertion Force: ≤ 20 N
Withdrawal Force: ≤ 20 N
Mating Cycles: > 1000
Wire Size: Max. 1.0 mm²
Wire Size: Max. 18 AWG
Termination: Solder Contacts
Locking Device: Latch Lock

Materials
Boot Material: Polyurethane
Contact Plating: 2 µm Ag over 2 µm Ni
Contact Material: Brass (CuZn39Pb3)
Insert Material: Polyamide (PA66)
Locking Element Material: Zinc Diecast (ZnAl4Cu1)
Shell Material: Zinc Diecast (ZnAl4Cu1)
Shell Coating: Black KTL

Environmental
Flammability Rating: UL 94 V-0
Standard Compliance: IEC 61076-2-103
Protection Class: IP40
Solderability: IEC 68-2-20 Compliant
Operating Temperature: -30 °C to +80 °C

Features
Locking Recess Design: Improved Windowless Recess
Housing Construction: Increased Rigidity
Strain Relief Type: Improved Chuck Type
Cable Bend Protection: Polyurethane Gland
Identification Options: Colored Rings and Boots Available
Shell Construction: Rugged Zinc Diecast
Shell Thread Protection: Internal Protected Thread
Design: Ergonomic Housing
Assembly: Enhanced Ease of Assembly
Pull-Out Resistance: Increased Pull-Out Force
