MANLEY LABS  |  SKU: 21629

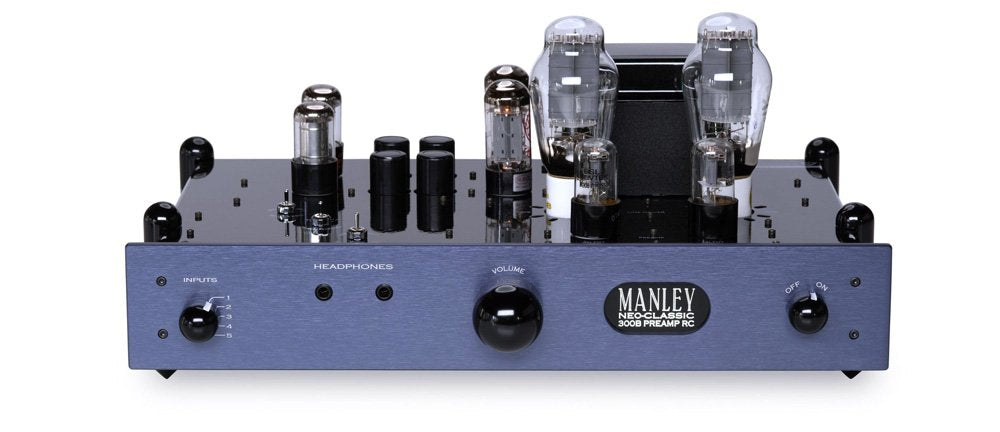

Neo-Classic 300B Preamplifier RC

Preamplifiers

5 stereo inputs preamplifier with all-triode input stage running in pure Class A

$10,725.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

We combine the historic 300B with another classic, the large octal based 6SL7GT, for the input stage- all triodes running in pure Class A operation. To complement this 'retro' feel, we implemented vacuum tube rectification and regulation in the power supply along with plenty of capacity. We also developed an additional (and innovative) ripple rejection circuit to filter out power supply noise making this an incredibly low-noise preamplifier- especially critical for headphone users.

Complementing this lovely and rich sounding line-driver is the ALPS audiophile volume control, gold plated RCA connectors, high purity silver wire, mil-spec printed circuit boards with extra thick copper and plating, and custom designed output transformers which we wind right here in our own magnetics department. It all adds up...

For 2002, we returned to our classic and elegant "Manley-Blue" pewter grey color and the chassis was reworked to accommodate a few updates we had in mind " and in 2022, we added Black and Silver faceplates as custom-order options.

Whether you use headphones or loudspeakers this preamp will deliver the goods and spoil you for any other preamplifier.

Specifications

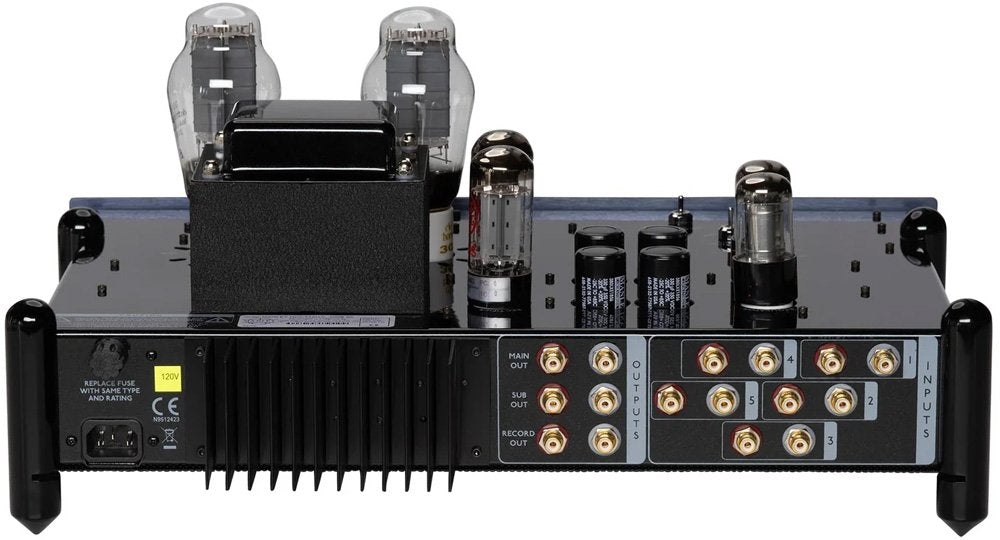

Inputs: 5 stereo pair unbalanced RCA jacks

Outputs: 2 stereo pairs MAIN out same as SUB out unbalanced RCA jacks

RECORD output: 1 stereo pair pre-volume control unbalanced RCA jacks

HEADPHONE Outs: 2 front panel 1/4" headphone jacks

Optimized headphone impedance switching: 30-400 Ohms to 300-4000 Ohms

MUTE: Selecting HEADPHONE operation mutes LlNE outputs

Output Vacuum Tubes: 2 x 300B Electro-Harmonix

Input Tubes: 2 x 6SL7 Sovtek

Rectifier Tubes: 2 x 5AR4 Ruby

Regulator Tubes: 2 x OD3

Gain: factory set at 12 dB at max Volume

Internal Variable Feedback: 8.5 dB of global NFB is used @ 12 dB of gain, adjustable trim -1.7dB to +1dB

Noise Floor: typically -70 dB (1 Hz - 100 KHz)

S/N Ratio: typically 105 dB (A WGT, 20 Hz - 20 KHz)

Frequency Response: 5 Hz to 50 KHz 1dB

Channel-to-Channel Separation (L to R): @1KHz 48 dB; @10KHz 35 dB; @20KHz 34 dB

Channel-to-Channel Separation (R to L): @1KHz 50 dB; @10KHz 40 dB; @20KHz 37 dB

THD: 0.08 % @ 1KHz at 1V rms out

Distortion THD+N: -80 dB (.01 %) zero "crossover" distortion, mostly 2nd harmonic

Input Sensitivity: 250mV (-9.8dBu) yields 1V out

Input Impedance: 100 kOhm Noble volume control

Maximum Input Level: 5.5dBu or 1.459 Vrms @ 1KHz, volume control at maximum

Output Impedance (LINE STAGE): 100 Ohms

Maximum Output Level: 17.2dBu or 5.636 Vrms @ 1KHz, volume control at maximum

Output Power (100 Ohm Headphones): 1W (10 V RMS) (28 V P-P)

Output Power (600 Ohm Headphones): 1W( 25 V RMS) (70 V P-P)

Power Consumption: 170 Watts (1.4 A @ 120VAC)

Operating Mains Voltage: Factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.

Operating Mains Voltage: changeable with power transformer re-wiring and fuse value change.

Mains Voltage Frequency: 50~ 60Hz

Mains Fuse Value: 3A SLO-BLO (100, 120VAC operation), 1.5A SLO-BLO (220-240VAC operation)

Dimensions: W=19" x L=13"

Top Deck Height: 4"

Transformer Height: 3 1/2"

Suggested shelf height minimum: 10" (depending on height of 300B tube)

Shipping Weight: 28 Ibs.
