WESAUDIO

ngSumBox

Line & Summing Mixers

Analog summing system, 18×2 architecture, THD control, LCR routing, DAW recall, VU metering, dual inserts, balanced outputs, external control ready

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

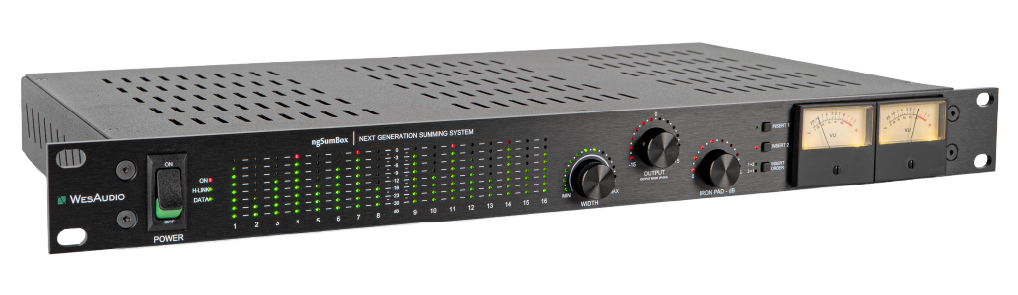

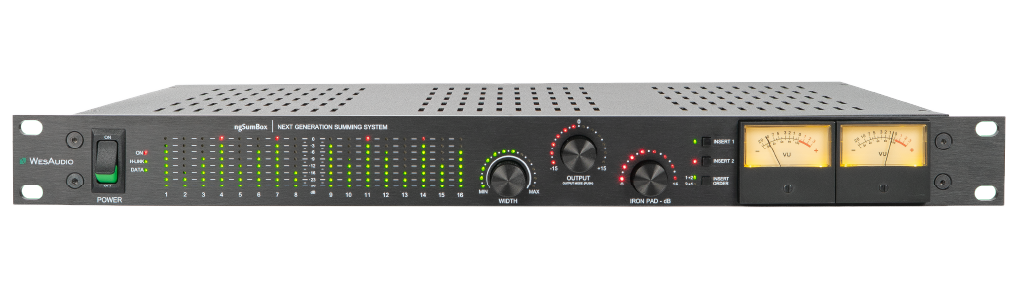

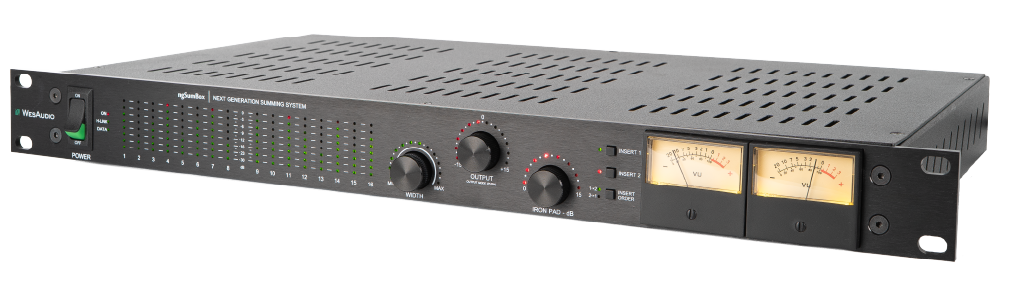

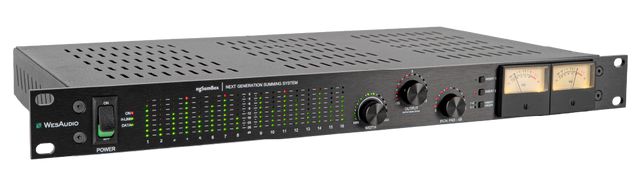

The WesAudio ngSumBox is a modern analog summing system that brings classic sound together with advanced digital functionality. Designed as an 18×2 summing solution, it offers the depth, width, and musical cohesion that analog mixing is known for, while providing full digital recall, automation, and compatibility with external control surfaces. This blend of analog tone and digital convenience makes it a practical centerpiece for hybrid studios seeking efficient, high-quality workflows.

With 16 fully controllable channels and two additional stereo inputs, the ngSumBox supports flexible routing and integration of effects, stems, or submixes. Each channel includes level control, variable harmonic distortion, and LCR panning, along with pre or post-fader direct outputs. The unit features selectable output stages, both electronically and transformer balanced, and includes a stereo WIDTH control for additional mix control. LED input metering and dual VU meters give clear feedback on both individual channels and the final mix. DAW plug-in integration allows seamless control and recall, and support for MC and HUI controllers offers hands-on control for a more intuitive workflow.

Features

Analog Summing Sound
Delivers rich, spacious, and musical analog sound for professional mixes.

Full Digital Recall
Easily save and recall all settings directly from your DAW.

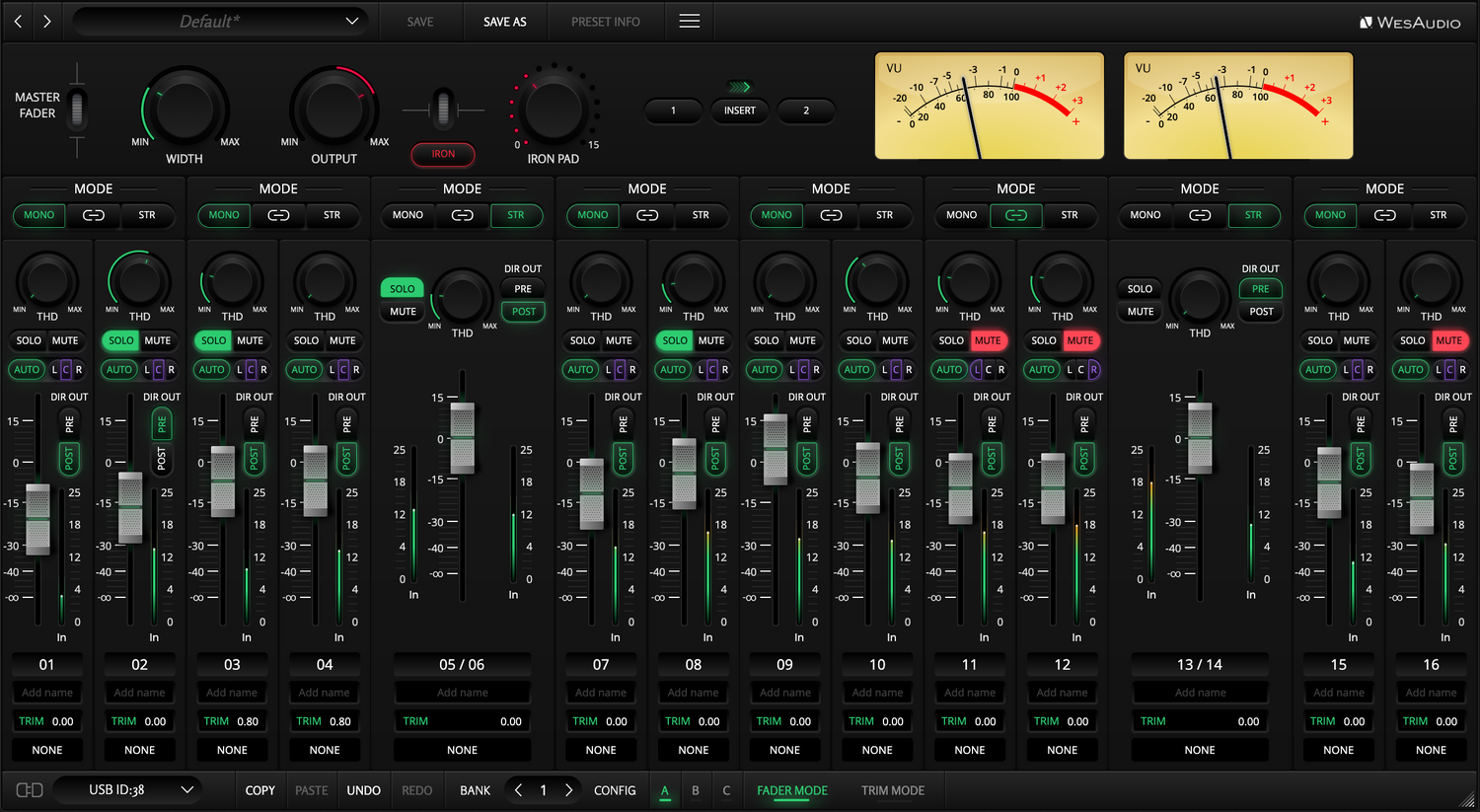

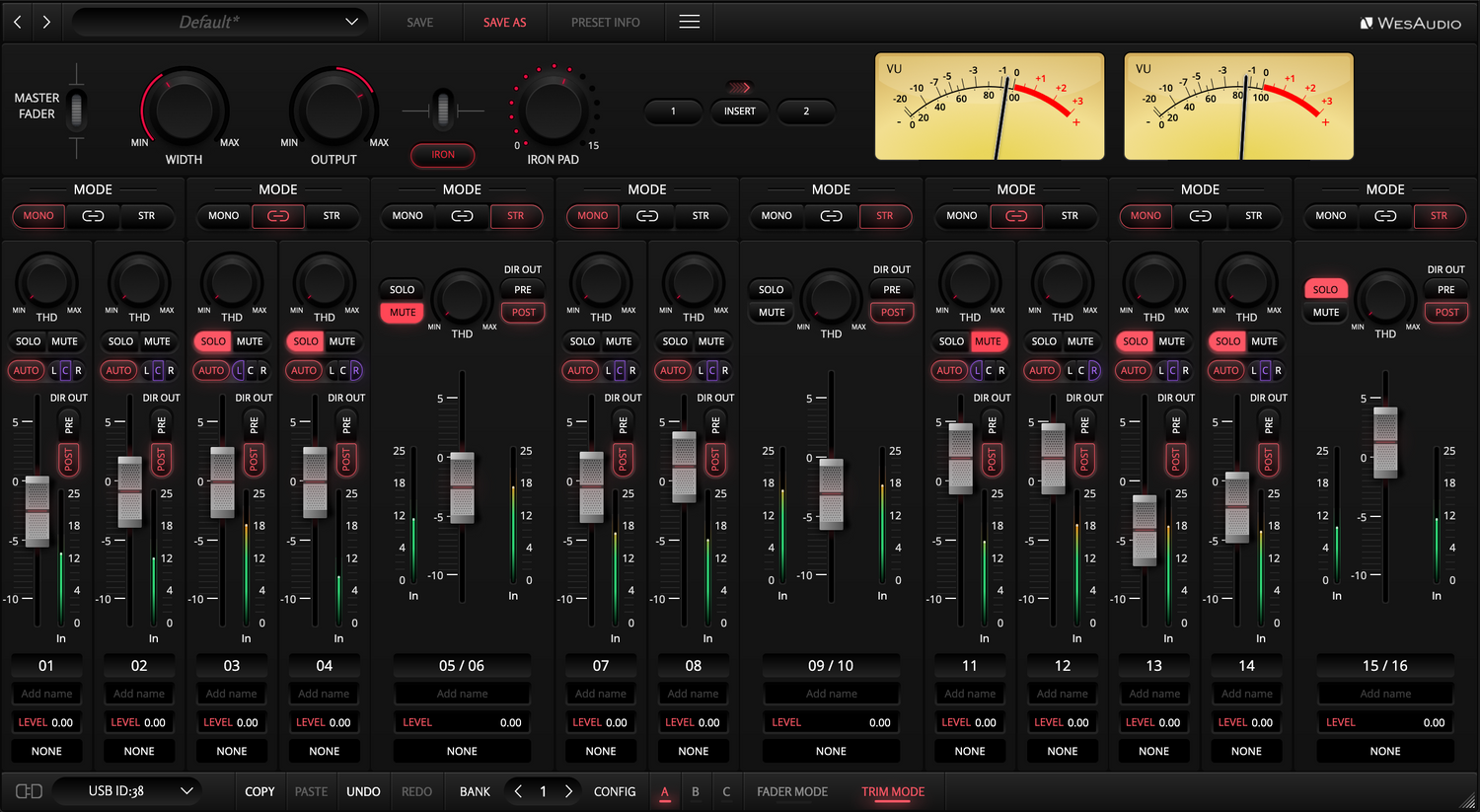

DAW Plug-In Control
Control and automate the entire unit using plug-ins in your session.

16 Controllable Input Channels
Each channel offers full level control, automation, and flexible routing.

Additional External Inputs
Two extra stereo inputs for stems, submixes, or effects returns.

Built-In Stereo Width Control
Enhance the stereo image with a dedicated WIDTH knob.

Variable Harmonic Saturation
Adjust THD (Total Harmonic Distortion) per channel for added color.

Flexible Output Options
Choose between electronically balanced or transformer-balanced output stages.

Dual Insert Points
Insert external gear on the mix bus with full recall functionality.

Direct Outputs Per Channel
Access each channel’s signal pre or post-fader for advanced routing.

Advanced Metering
Includes LED meters for all inputs and large VU meters for the mix bus.

External Controller Support
Works with MC and HUI controllers for hands-on, console-style mixing.

Hybrid Studio Integration
Combines analog warmth with modern digital workflow and convenience

Specifications

General Specifications
Device Type: Digitally-Controlled Analog Summing System
Architecture: 18×2 Summing
Channels: 16 Summing Channels + 2 External Inputs
Control Interface: Plug-in Control via DAW (Automation and Recall), External Surface Support (MC & HUI Protocols)
Signal Path: High-Headroom Analog Circuitry
Integration: DAW Plug-Ins, External Control Surfaces
Stereo Enhancement: Proprietary Width Control
Output Stages: Electronically Balanced and Transformer Balanced
Form Factor: 1U Rackmount
Display: LED Metering (16 Channels), Dual Illuminated VU Meters (Stereo Bus)

Channel Features
Level Control: Fully Controllable per Channel
Automation: Supported via DAW Plug-In
Routing: LCR Per Channel
THD: Variable Harmonic Distortion Per Channel
Solo/Mute: Per Channel
Direct Outputs: 16 (Pre or Post Fader Selectable)
Trim: Individual Channel Trim

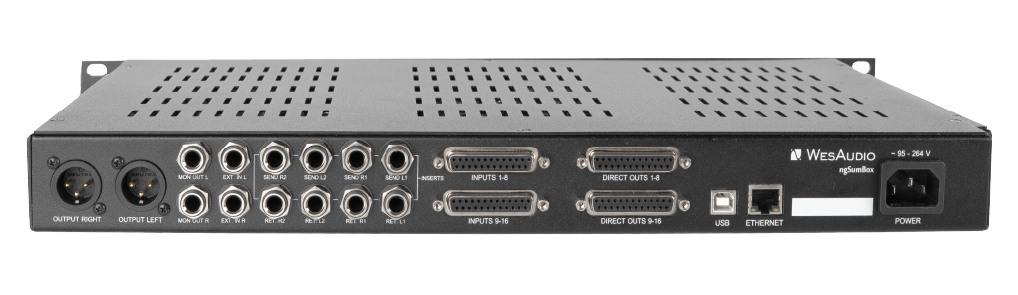

Input/Output
Inputs: 16 Summing Inputs, 2 External Inputs
Direct Outputs: 16 (Pre/Post Selectable)
Main Outputs: Stereo Out (Transformer or Electronically Balanced)

Insert Section
Insert Points: Dual Inserts on Main Bus
Insert Control: Fully Recallable

Metering
Input Metering: 16-Channel LED Meters
Output Metering: Dual VU Meters (Stereo Output)

Compatibility
DAW Control Protocols: MC and HUI
Software Integration: Plug-In for Control and Automation within DAW
