AUSTRIAN AUDIO

OC-B6

Condensor Microphones

Bass drum microphone, large-diaphragm condenser, 170 dB SPL, cardioid, 25 Hz subsonic filter, 220° swivel head, compact no-clip design.

$859.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

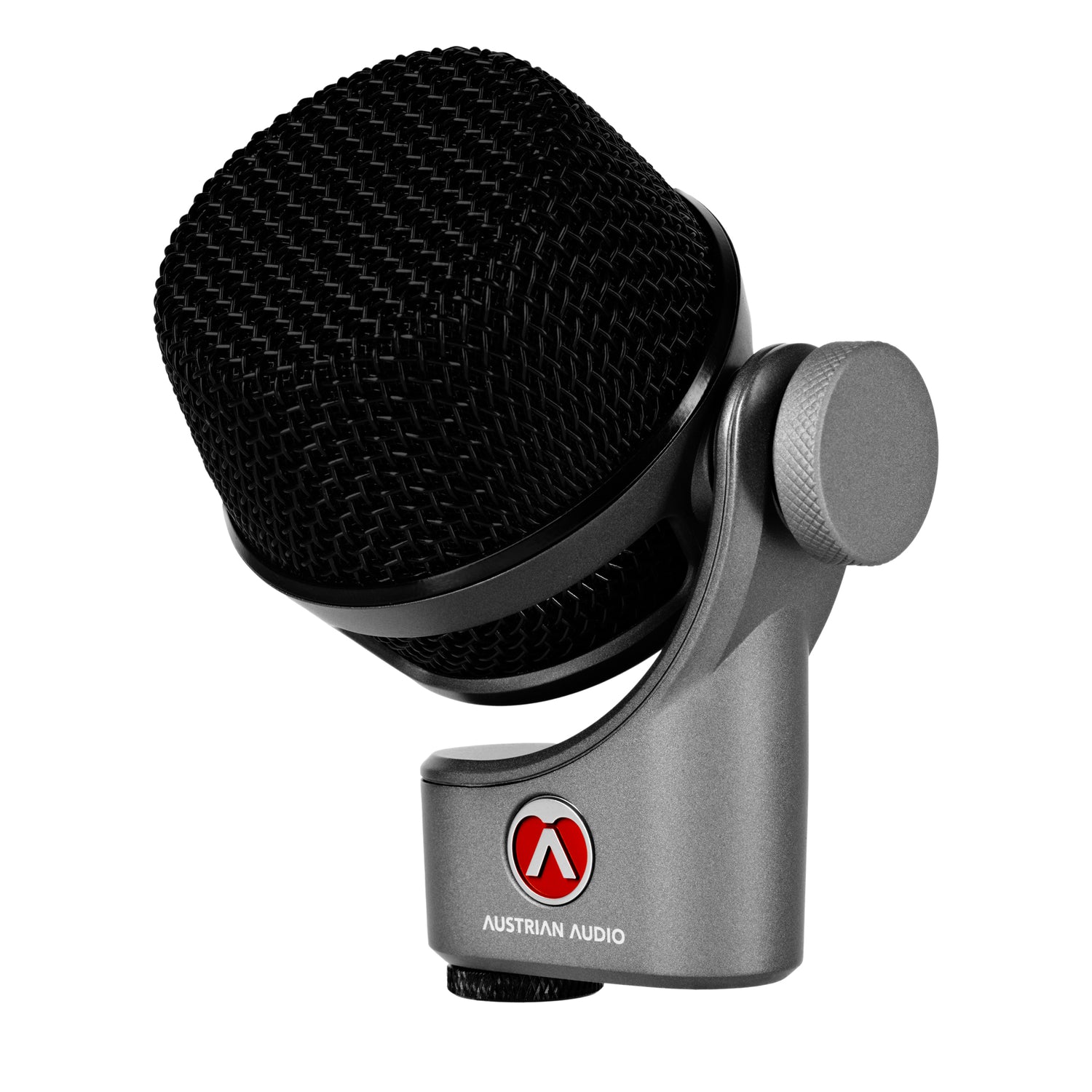

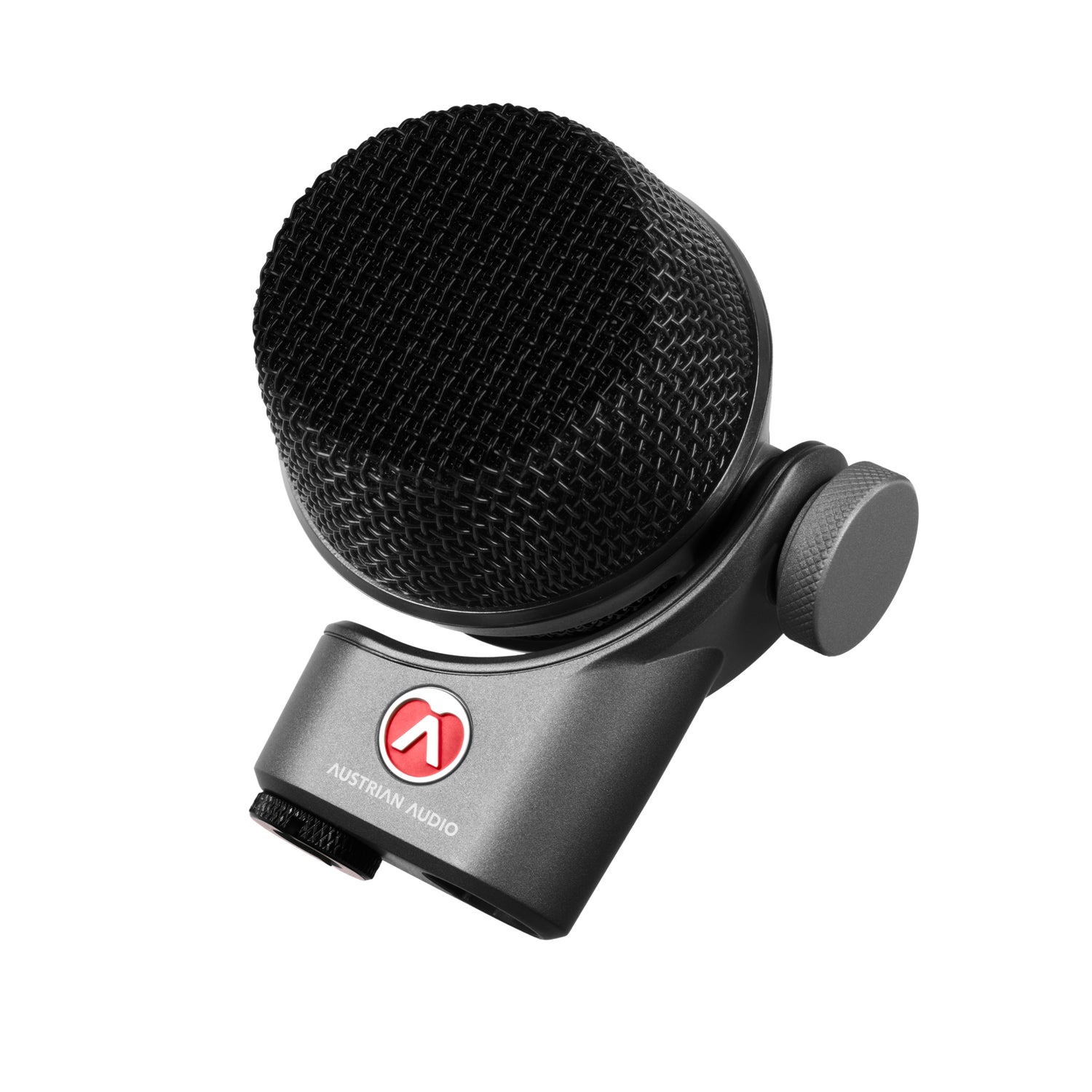

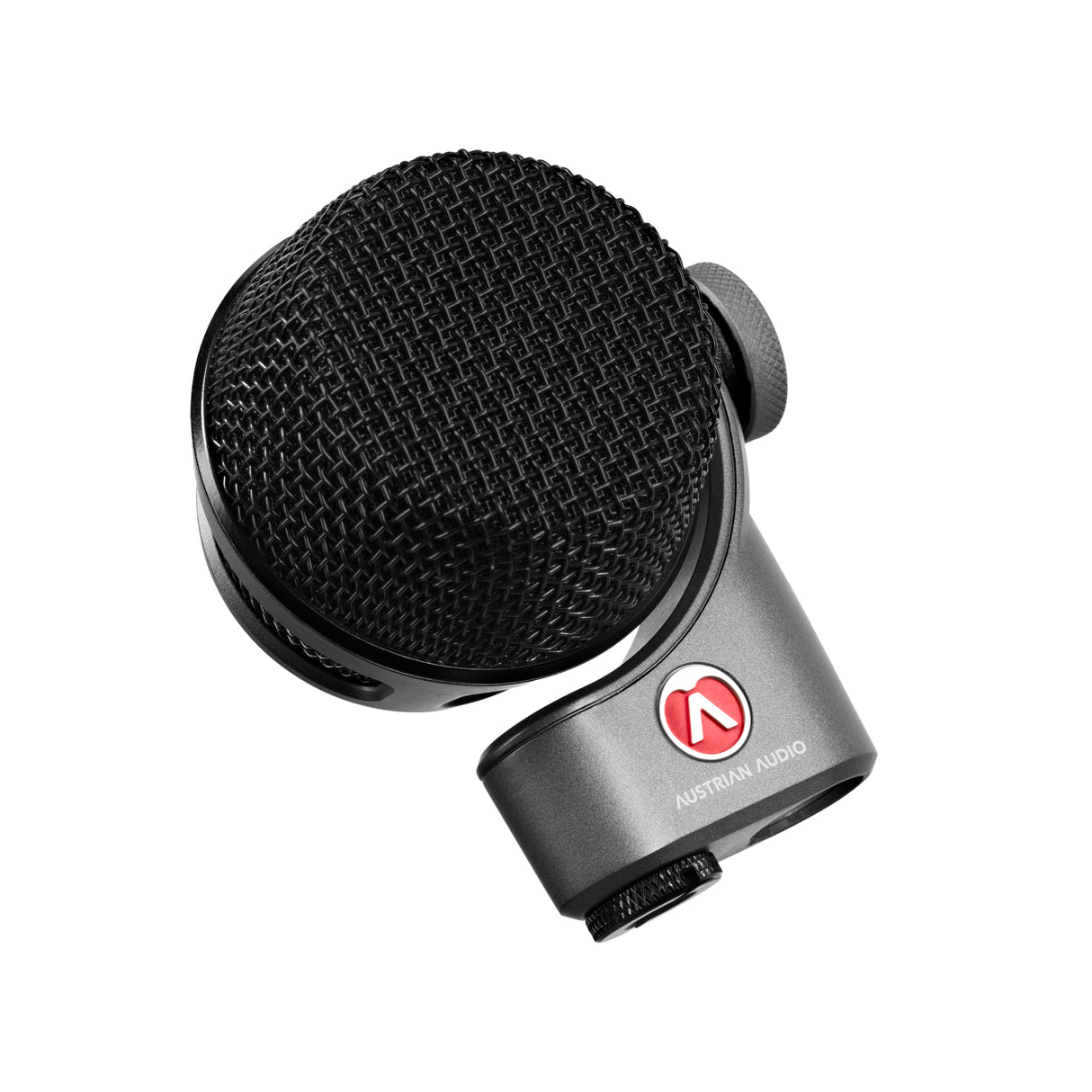

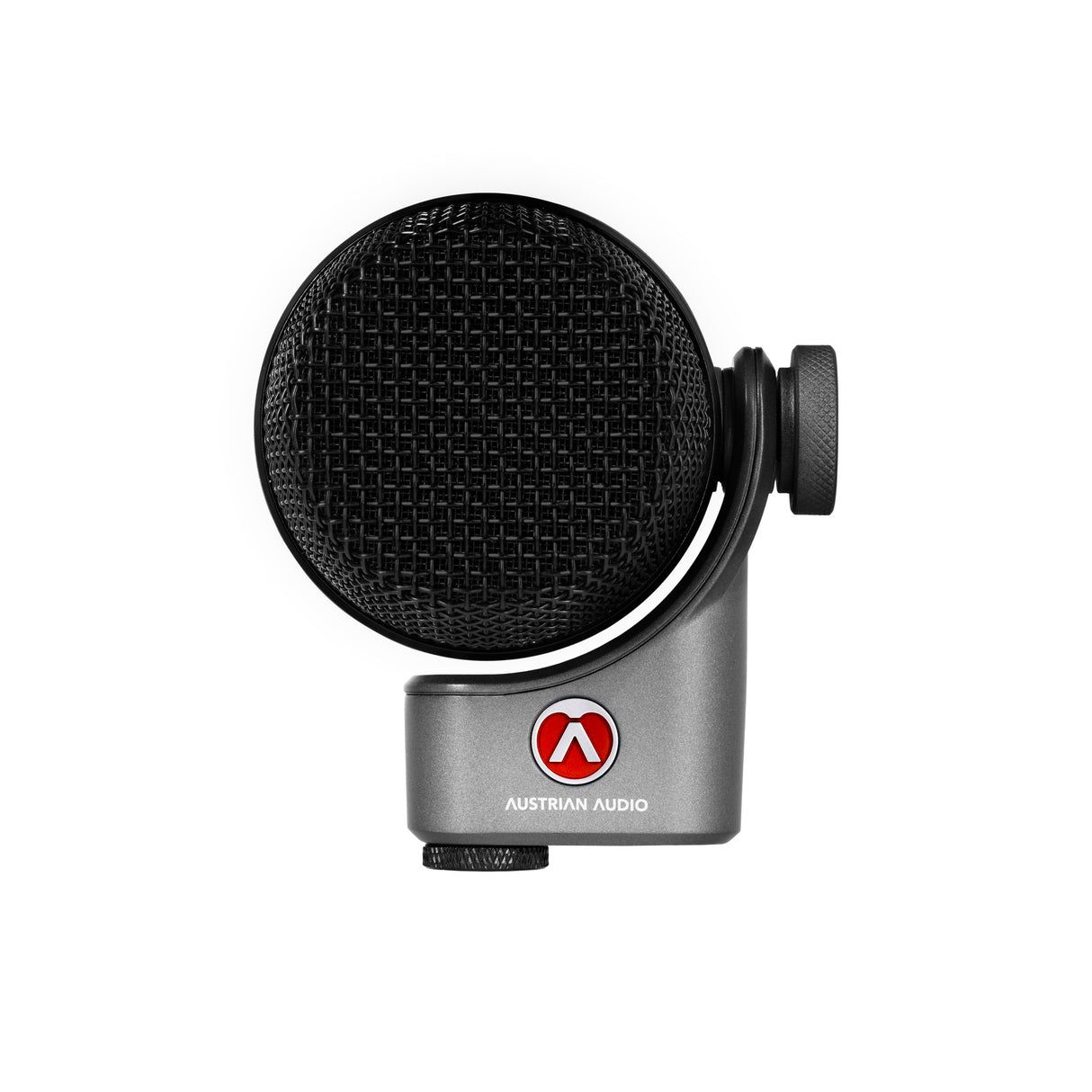

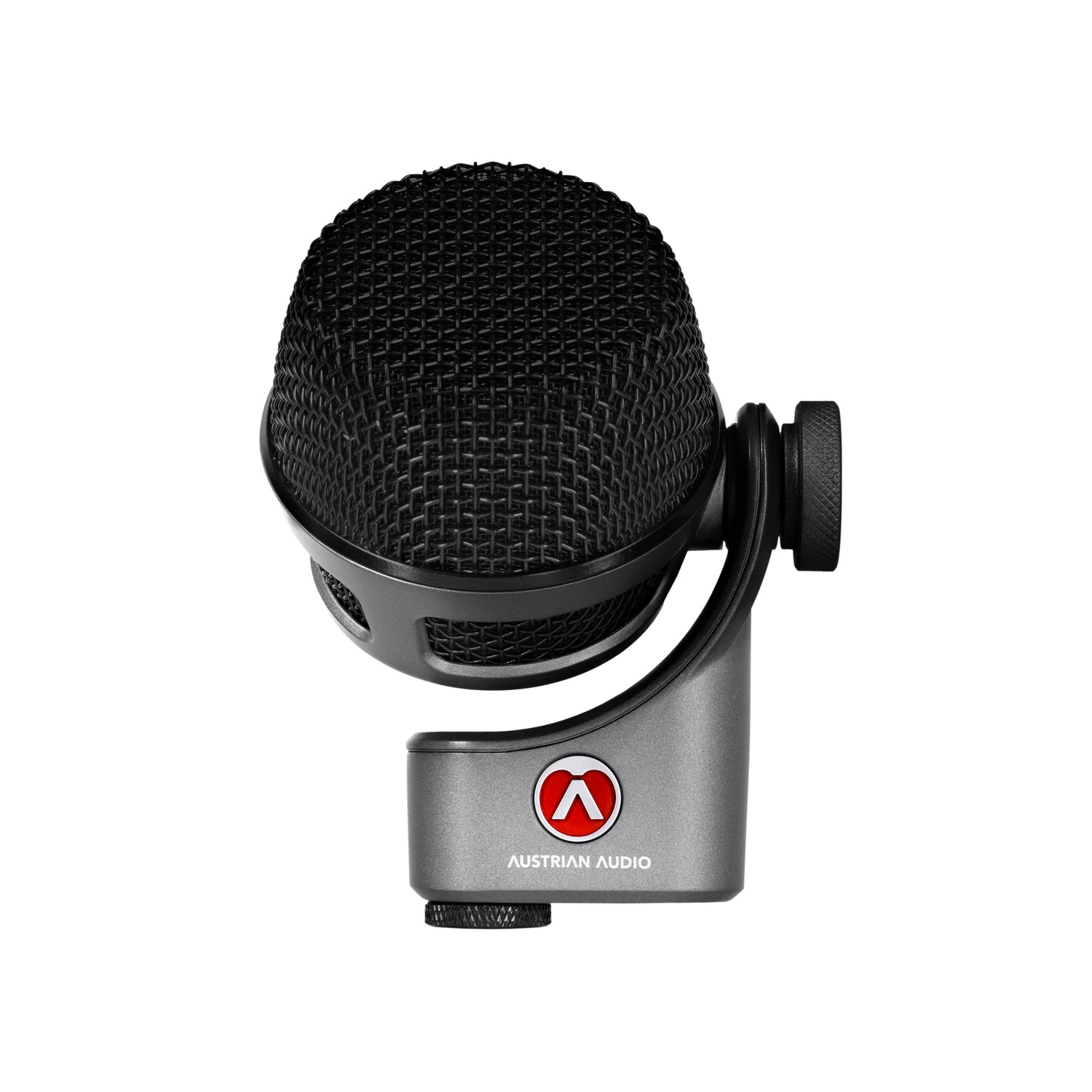

The Austrian Audio OC-B6 is a specialized bass drum microphone designed to capture the full impact of a kick with precision and clarity. As the first true large-diaphragm condenser microphone developed specifically for bass drums, it offers a clean, natural tone that can be shaped easily to fit a wide range of musical styles. Its compact form factor and robust construction are well-suited to both studio and live environments, providing reliable performance even under high-pressure conditions.

At the heart of the OC-B6 is the CKR6-B capsule, engineered to withstand extremely high sound pressure levels, up to 170 dB without distortion. Its 220° swivel head allows for flexible placement in a variety of mic positions, from inside the drum to just outside the port. A built-in subsonic filter at 25 Hz helps eliminate unwanted low-end rumble, keeping the signal focused. With no onboard EQ shaping or tonal coloration, it delivers a pure signal that sound engineers can work with freely. Its integrated mic thread also removes the need for clips or external mounts, streamlining setup in tight spaces.

Features

True Condenser Bass Drum Mic
Captures the full power of your kick drum with clarity and punch using a large-diaphragm condenser capsule.

Handles Extreme Volume
Designed to manage very high sound pressure levels without distortion, perfect for loud performances.

Pure and Flexible Sound
Delivers a clean, uncolored signal so engineers can shape the tone however they like, from warm to aggressive.

Built-In Subsonic Filter
Includes a 25 Hz filter to remove unwanted low-end rumble and keep the mix clean.

Rotatable Head for Easy Placement
A 220° swivel head makes positioning fast and simple, even in tight setups.

Compact and Rugged Design
Fits anywhere around the kick drum and is built to withstand tough live and studio conditions.

No Clip Needed
Has a built-in mic thread for direct mounting, no extra accessories required.

Versatile Positioning
Performs consistently whether placed inside the drum, at the port, or outside the shell.

Specifications

General Specifications
Device Type: Large-Diaphragm Condenser Bass Drum Microphone
Capsule: 1" CKR6-B True Condenser Capsule
Construction: Handcrafted in Vienna
Diaphragm Design: Edge-Contacted
Isolation: Ceramic Internal Isolator
Special Tuning: Increased Diaphragm-to-Backplate Distance for High SPL

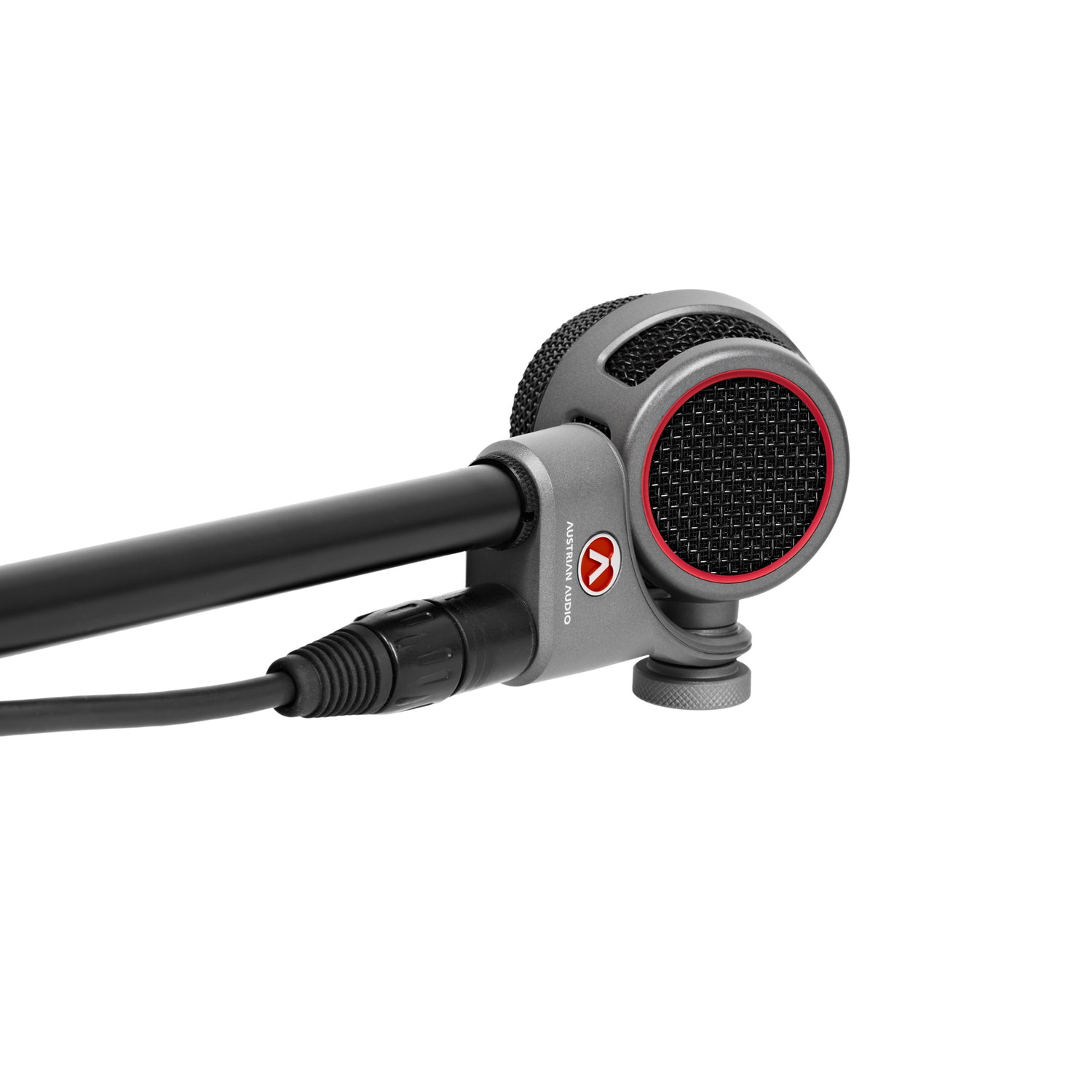

Design Features: Integrated Mic Thread, No Clip Required
Swivel Head: 220° Rotatable for Flexible Positioning
Form Factor: Compact, Rugged Design
Placement Flexibility: Inside Shell, At the Port, Outside Kick Drum

Frequency & Polar Response
Directional Characteristic: Cardioid
Frequency Range: 18 Hz – 20 kHz
Subsonic Filter: 25 Hz

Gain and Sensitivity
Sensitivity: 0.8 mV/Pa
Maximum SPL: 170 dB SPL

Input/Output
Output Impedance: 108 Ω
Minimum Load Impedance: > 1 kΩ
Connector: XLR 3-Pin

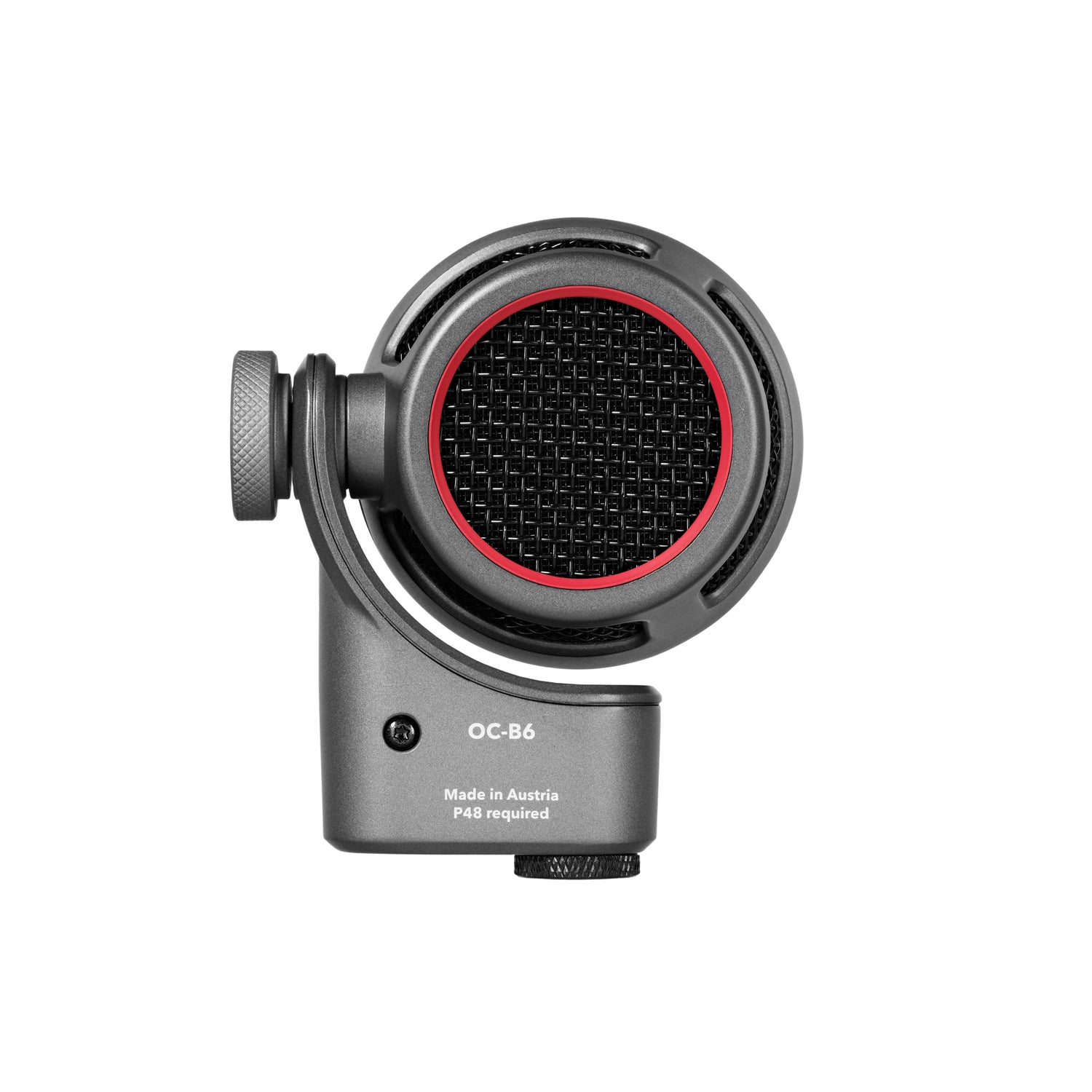

Phantom Power Requirement: 48 V (<2.2 mA)

Physical
Dimensions: 92 × 82 × 57 mm
Weight: 280 g
