BLACK LION AUDIO  |  SKU: 23306

PBR-TT-LIT

Patchbays

96-Point Gold-Plated TT/DB25 Patchbay with customizable, brightly-lit LED displays for every input and output

$1,499.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

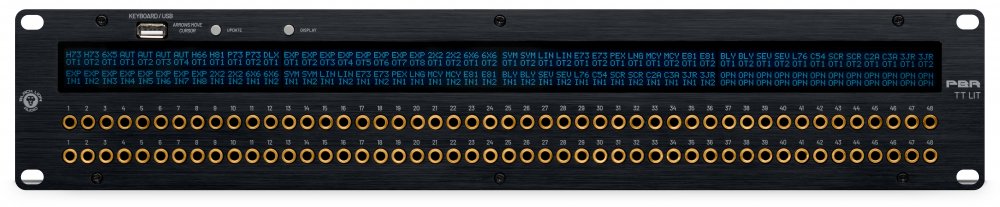

The Black Lion Audio PBR TT-LIT is a premium 96-point TT/DB25 patchbay that combines exceptional functionality with innovative design to enhance your studio workflow. Featuring gold-plated, audiophile-grade connectors for both TT and DB25 connections, it ensures top-tier signal clarity and conductivity. Its standout feature is a customizable, brightly lit LED display, which adds a modern, functional touch to your studio setup. This LED display can be programmed via a USB keyboard or the included PatchCAD software, allowing you to label each connection point clearly and eliminate the need for traditional patch labels.

This robust patchbay is built for demanding studios, with mode-switching for various normalization modes, durable switches rated for over 10,000 uses, and a sturdy black-anodized aluminum faceplate reinforced with steel for reliable operation. Whether you're streamlining your signal routing or simply adding a sleek aesthetic, the PBR TT-LIT offers unmatched performance and versatility, making it a valuable addition to any professional audio environment.

Features

Customizable LED Display: Easily personalize each connection with a bright LED display supporting up to six characters per channel.

Versatile Customization Tools: Edit display labels using a USB keyboard or the included PatchCAD software for detailed customization.

Studio-Grade Connectivity: Features 96 gold-plated TT connectors and 12 gold-plated DB25 connectors for superior signal clarity.

Durable Construction: Built with a reinforced steel chassis and black-anodized aluminum faceplate for long-lasting reliability.

Mode-Switching Options: Offers Normal, Non-normal, and Half-normal configurations via high-durability switches.

Noise Reduction: Includes a grounding connection to minimize ground loop noise.

Enhanced Workflow: Eliminates manual labeling, simplifying studio setup and adding a polished aesthetic.

PatchCAD BLA Edition: Comes with software to customize LED displays and create labels for traditional patchbays.

Specifications

General Specifications

96-Point gold-plated TT/DB25 Patchbay with customizable LED display

Bright, user-definable LED display supporting up to 6 characters per channel

96 audiophile-grade, custom-made gold-plated TT connectors on the front

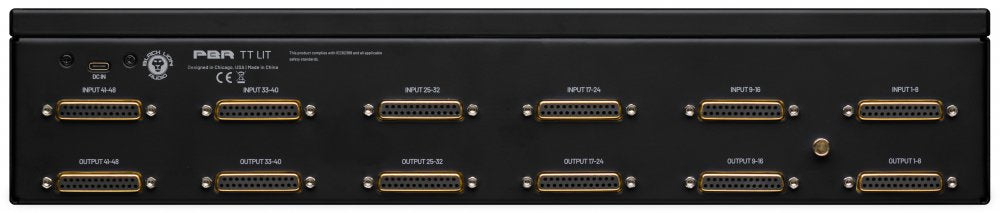

12 audiophile-grade gold-plated DB25 connectors on the rear

Mode-switching buttons for Normal, Non-normal, and Half-normal operation

Recessed mode-switching buttons rated for 10,000+ operations

Grounding connection available on the rear to prevent ground loops

Construction

Black-anodized aluminum faceplate

Reinforced steel chassis

Internal steel mounting plate for secure DB25 connections

Customization Features

USB keyboard interface for direct LED display customization

PatchCAD software (Mac/Win) for spreadsheet-like LED customization and exporting via USB

PatchCAD BLA Edition included for printing labels for traditional patchbays

Connectivity and Durability

Designed for studio-grade connectivity and signal clarity

Gold-plated connectors for maximum conductivity and audio quality

Built for professional studio environments with Black Lion Audio standards

Additional Features

Integrated Display button to turn the LED display on/off

Includes PatchCAD software for advanced customization options
