1 5
PMC

PMC10

Active Monitors

3-way active monitor, 10" LF, 75mm mid, 34mm tweeter, 2600W Class-D power, ATL™ with LaminairX™, SoundAlign2 DSP EQ, compact design for immersive setups

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

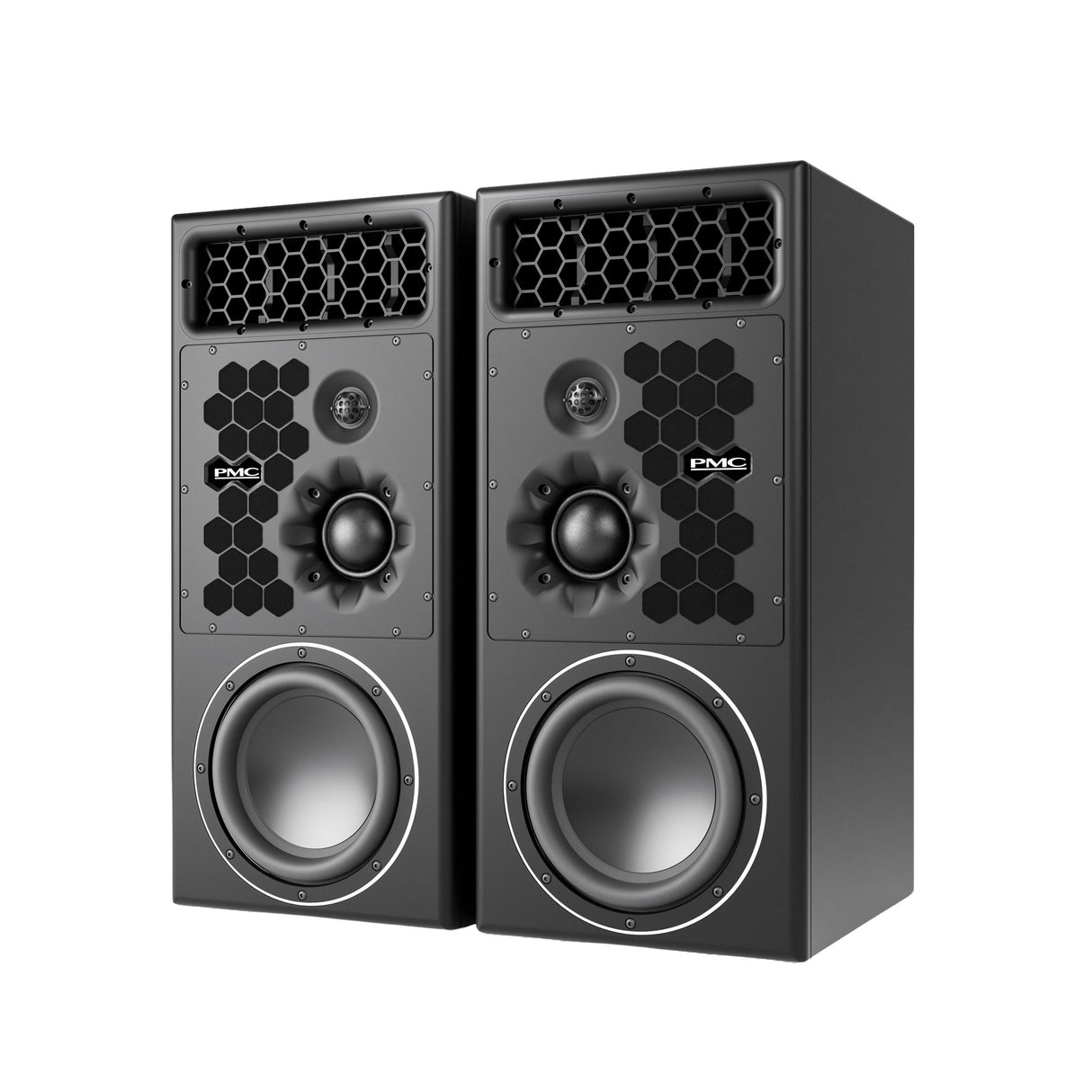

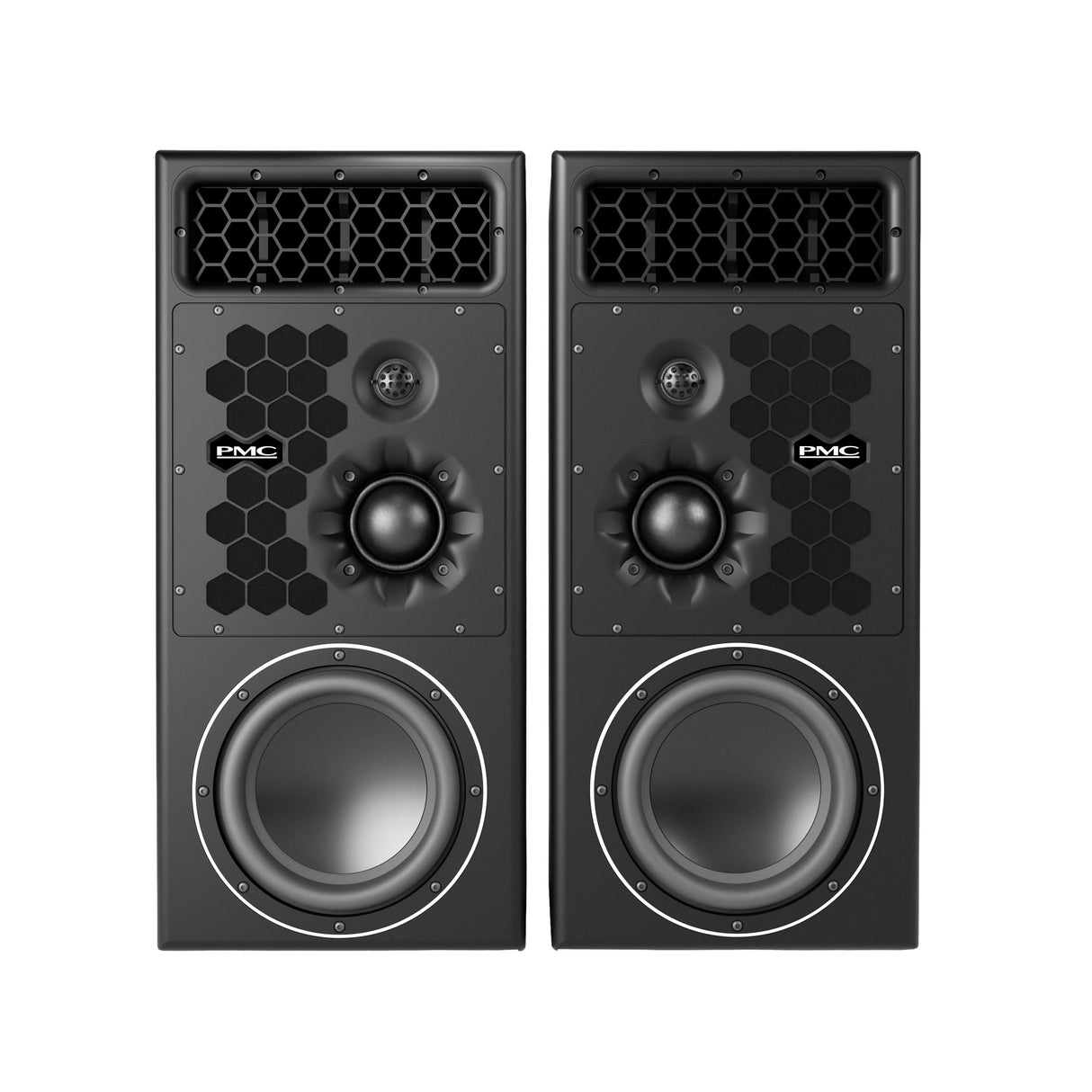

The PMC10 is a compact, high-powered three-way active reference monitor crafted for professional studios seeking precision and scale in a smaller footprint. Designed for music tracking, mixing, mastering, and post-production in stereo or immersive formats, this monitor delivers performance typically associated with much larger systems-all in a cabinet just 770mm tall.

At the core of the PMC10 is a 10-inch custom low-frequency driver, a 75mm soft-dome midrange with a-void™ damping, and a hand-built 34mm soft-dome tweeter. These are integrated into PMC’s acclaimed ATL™ (Advanced Transmission Line) cabinet design, now enhanced with LaminairX™ venting for smoother airflow and more controlled bass. Despite its compact size, the system produces deep, tight low-end and high-resolution detail across the spectrum which is ideal for rooms where space is limited but sonic expectations remain high.

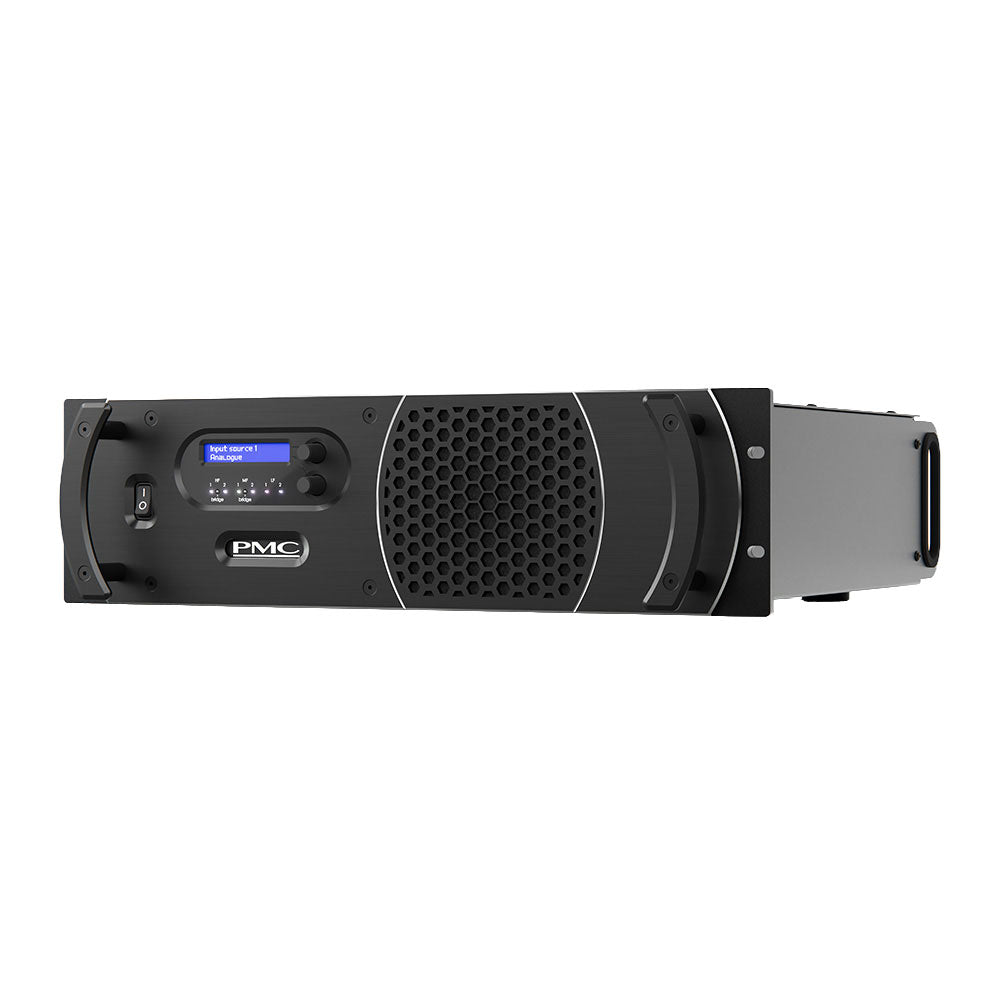

The PMC10 is powered by a rack-mounted master36 DSP/amplifier, delivering 2600W total per cabinet (HF: 800W, MF: 800W, LF: 1000W). This amplifier supports DSP-optimized crossovers, transparent protection, and room alignment EQ, all accessible through the SoundAlign2 browser interface. With both analog and digital (up to 192kHz) inputs, the PMC10 integrates seamlessly into modern workflows and can be scaled into an XBD configuration for enhanced bass headroom and system authority.

Features

Compact High-Performance 3-Way Monitor
Delivers large-scale sound in a smaller footprint, ideal for mixing, mastering, post, and immersive setups.

Extended Low-Frequency Response
Custom 10-inch bass driver and ATL™ technology provide deep, precise bass typical of much larger systems.

Advanced ATL™ Cabinet with LaminairX™
Offers smooth airflow and exceptional low-end control, even at high volumes.

Premium Driver Configuration
Includes a 34mm soft-dome tweeter and PMC75v3 midrange driver with a-void™ damping for clear, detailed imaging.

2600W of Class-D Power
Supplied by the Master36 DSP amplifier: 800W each to the tweeter and mid, and 1000W to the bass driver.

Room Calibration & DSP Control
Built-in digital crossover, room EQ, and system protection via SoundAlign2 browser-based interface.

Flexible I/O
Supports both analogue and digital inputs (up to 192kHz sample rate).

Scalable System
Expandable to an XBD configuration for more low-end headroom and greater scale in immersive environments.

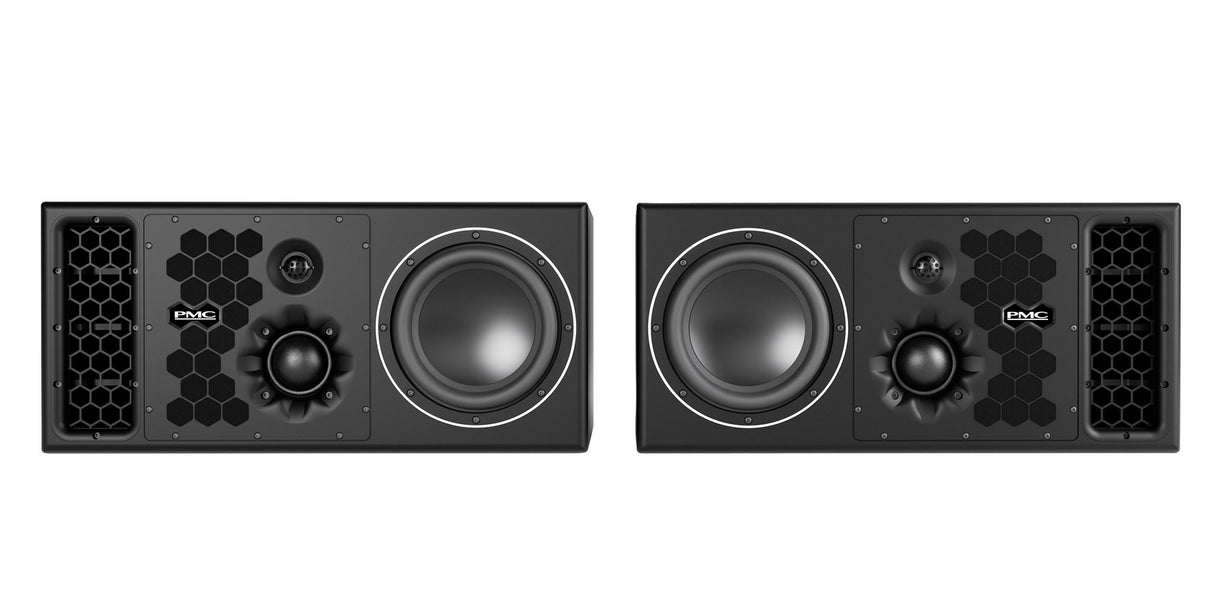

Multiple Orientation Options
Supports vertical and horizontal placement, as well as center channel use.

Professional Build Quality
Studio black finish with a weight of 52kg per unit for solid, vibration-free performance.

Specifications

General Specifications
Model: PMC10
Type: 3-Way ATL™ Active Reference Monitor
Application: Stereo and immersive monitoring in small to medium music studios, film/TV post-production, mastering, and streaming facilities
System Variants: Standard cabinet or XBD configuration for increased low-frequency headroom
Mounting Options: Vertical and horizontal orientations available
Finish: Studio Black

Cabinet
Dimensions: H 770 mm × W 355 mm × D 420 mm (+10 mm LF driver surround)
Weight: 52 kg per unit
ATL™ Length: 3.6 m (11.8 ft)
Cabinet Design: ATL™ with LaminairX™ airflow vents

Driver Configuration
Low-Frequency Driver: 1 × 10" custom in-house long-throw bass driver
Midrange Driver: PMC75v3 75 mm soft dome with a-void™ damping
Tweeter: 34 mm hand-built soft dome

Amplification & DSP
Amplification Type: Class-D (ultra-transparent)
Electronics Per Channel: 1 × PMC master36 DSP/Power amplifier
Total Power per Cabinet: 2600 W
– HF: 800 W
– MF: 800 W
– LF: 1000 W
DSP Functions: Precision digital crossovers, excursion limiting, and full-room EQ via SoundAlign2 interface
Input Types: Analogue & Digital (up to 192 kHz)
Control Interface: SoundAlign2 (browser-based over LAN)

Options & Upgrades
Compatible Extensions:
– PMC10 SUB
– PMC10 SUBXBD
Available Layouts:
– Vertical centre
– Horizontal centre
– Stereo pair vertical/horizontal
