1 4
PMC

PMC10-4

Active Monitors

3-way active reference monitor, 4x10" LF drivers, ATL™ bass tech, 5600W Class-D power, DSP EQ via SoundAlign2, analogue/digital inputs, 138 kg, studio black

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

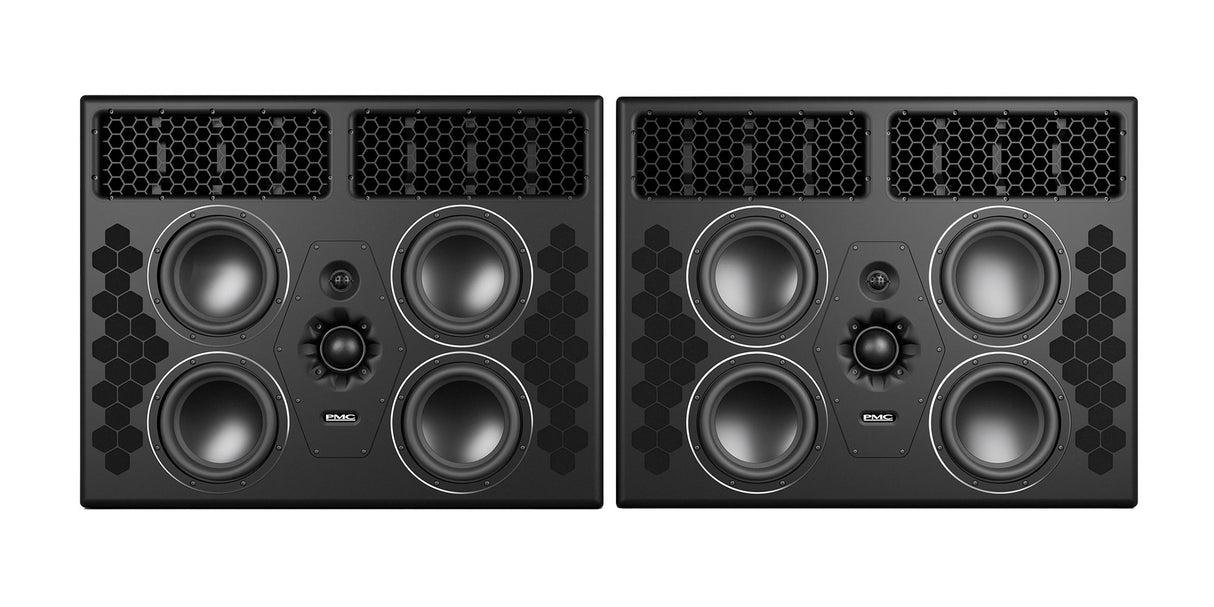

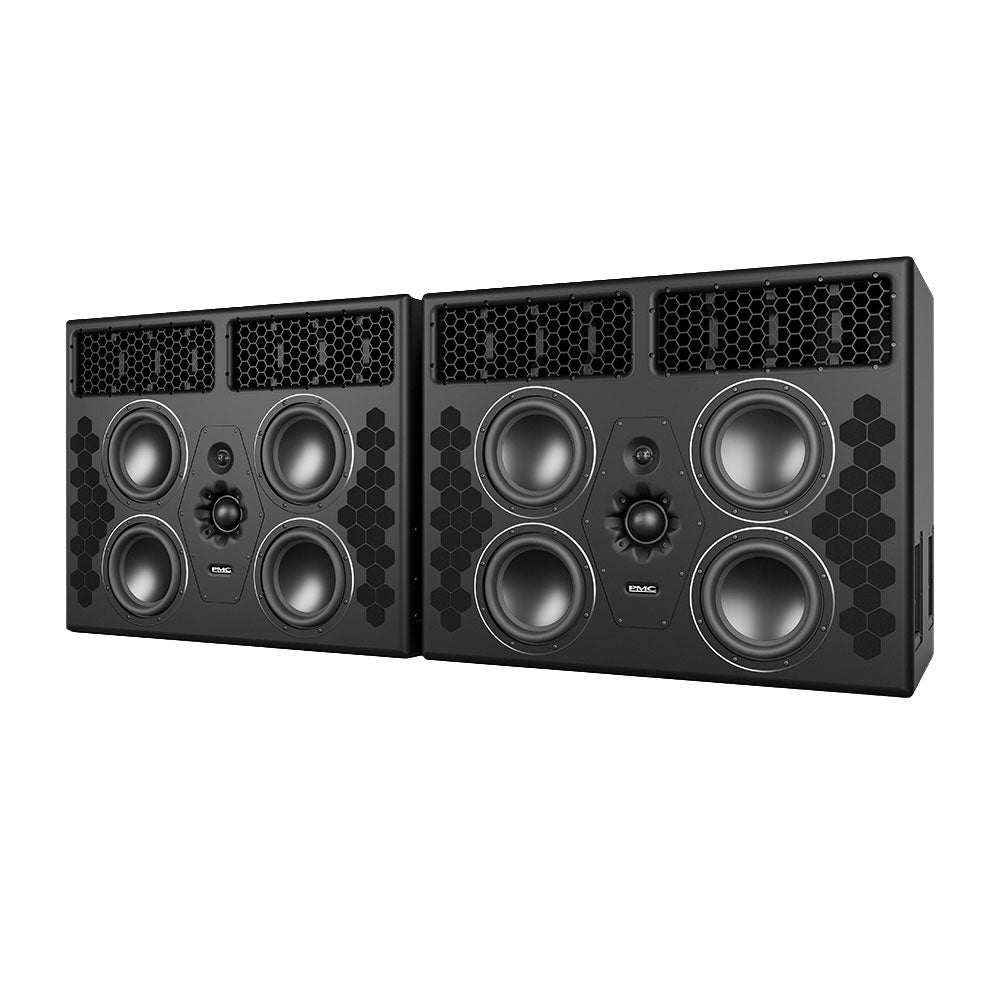

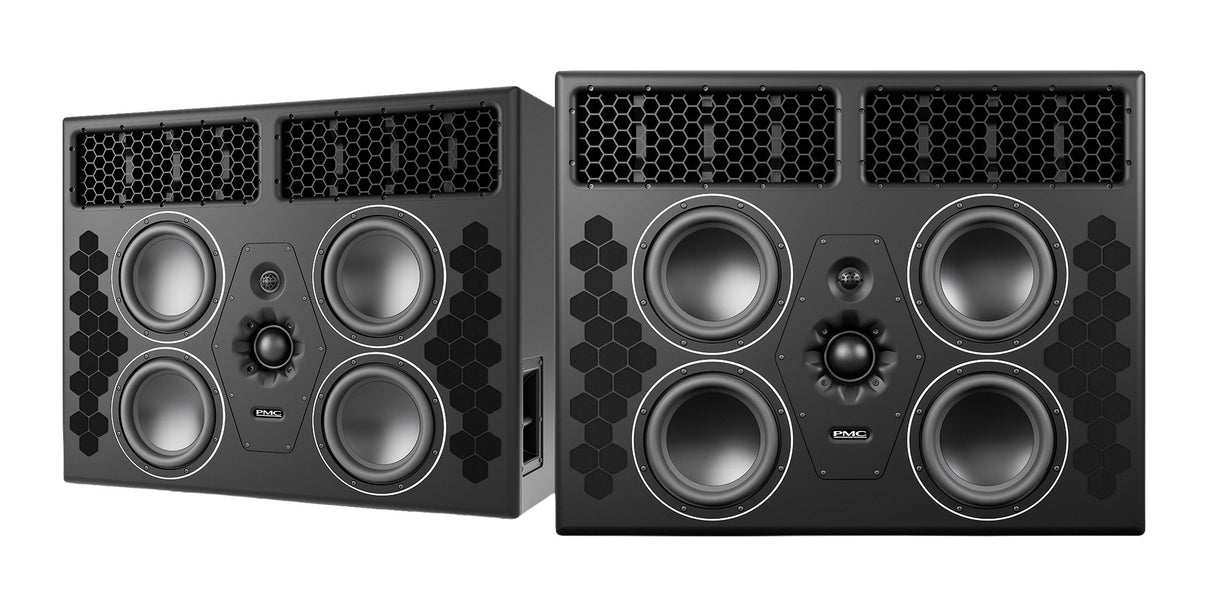

The PMC10-4 is the flagship active main monitor from PMC, engineered to meet the demands of the world’s most critical control rooms. Purpose-built from the ground up, this monitor brings unmatched power, clarity, and precision to high-end recording, mixing, and mastering environments, especially those requiring extreme SPL and low-end authority.

At the heart of the PMC10-4 are four 10-inch ultra-long-throw low-frequency drivers, delivering massive bass extension through PMC’s Advanced Transmission Line (ATL™) design, enhanced by LaminairX™ venting for fast, controlled airflow. This enables the speaker to produce immense, tonally accurate low end with precision and speed, even at very high volumes. Coupled with a 34mm soft-dome tweeter and the PMC75v3 midrange driver, both integrated into the n-compass™ waveguide, the PMC10-4 achieves superior imaging, phase coherence, and wide listening dispersion which is all a key to critical decision-making in a studio setting.

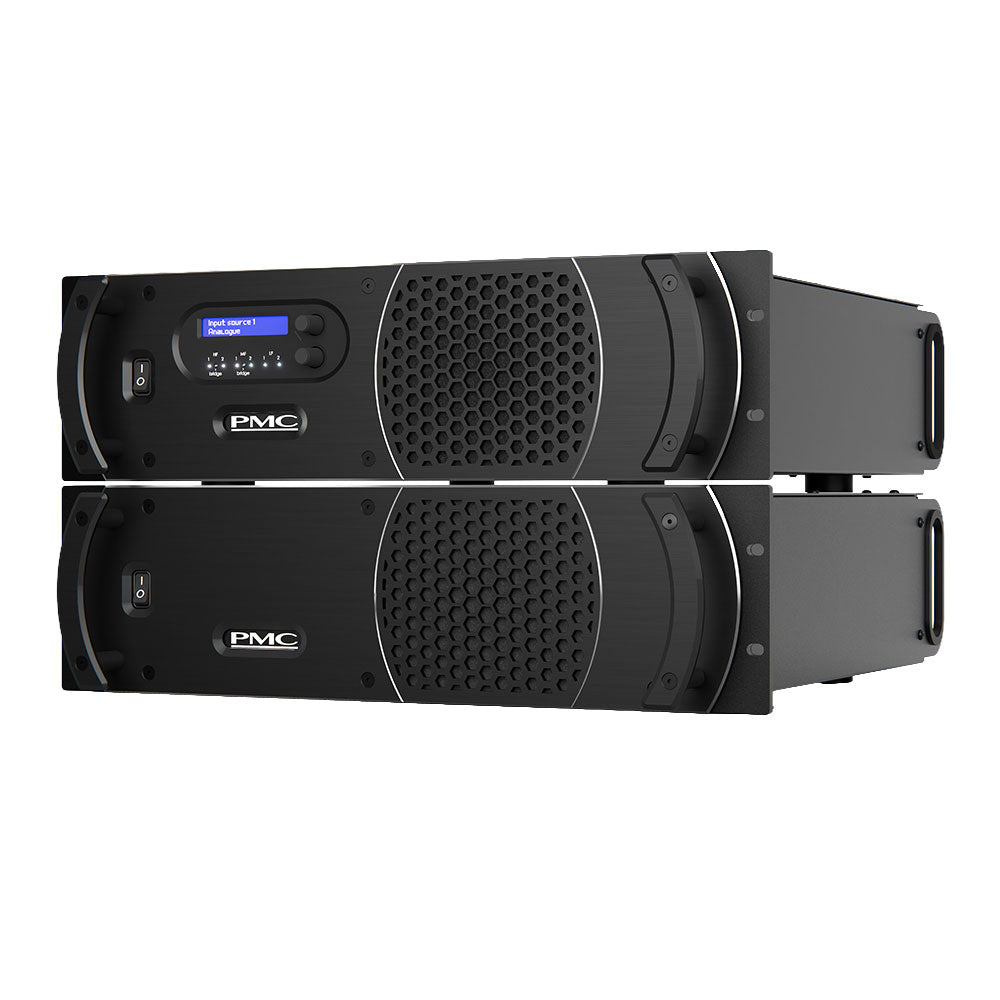

Powering each speaker is a PMC Master36 DSP/Amplifier unit and a Power20 amplifier, delivering a total of 5600W per channel (HF: 800W, MF: 800W, LF: 4 x 1000W). This massive headroom supports the speaker’s forensic accuracy and dynamic handling, while SoundAlign2 provides full DSP room alignment EQ without compromising signal integrity. With both analog and digital inputs (up to 192kHz) and PMC’s proprietary masterlink connection, the system is designed for full-range flexibility and performance monitoring at the highest level.

Features

Flagship 3-Way Studio Monitor
Designed for world-class control rooms demanding ultimate accuracy and power.

Extreme Headroom and Low-End Power
Driven by four 10" ultra-long-throw woofers, delivering deep, tight, and tonally precise bass.

Advanced ATL™ Bass Technology
Utilizes PMC’s ATL™ and LaminairX™ airflow system for clean, controlled low frequencies.

Superior Imaging and Detail
Features a 34mm soft-dome tweeter and 75mm soft-dome midrange with n-compass™ waveguide for wide, consistent coverage.

Massive Amplification
Each cabinet delivers 5600W total power-800W HF, 800W MF, and 4 x 1000W LF-via Master36 and Power20 amplifiers.

Precision DSP Control
Room EQ, crossover optimization, and protection via SoundAlign2 interface for transparent calibration.

Professional I/O Options
Supports both analog and digital inputs (up to 192kHz) for seamless integration into modern studio workflows.

Scalable Monitoring System
Can be expanded with PMC10-4 SUB or XBD modules for added low-frequency performance.

Studio-Grade Build
Finished in Studio Black and built with premium materials, each cabinet weighs 140kg for vibration-free performance.

Specifications

General Specifications
Model: PMC10-4
Type: 3-Way ATL™ Active Reference Monitor
Cabinet Dimensions: H 820 mm × W 1040 mm × D 523 mm (+10 mm LF driver surround)
Cabinet Weight: 140 kg per unit
Finish: Studio Black
ATL™ Transmission Line Length: 3.4 m (11.2 ft)
Construction: Precision-engineered for high-SPL environments, designed in collaboration with Capitol Studios

Drivers
Low-Frequency Drivers: 4 × 10" ultra-long-throw PMC drivers
Midrange Driver: PMC75v3 3" soft dome
Tweeter: 34 mm precision soft dome tweeter
Waveguide: PMC n-compass™ waveguide for optimized dispersion and coherence

Amplification & Electronics
Amplification System:
– 1 × PMC master36 DSP/Amplifier
– 1 × PMC power20 amplifier
Amplifier Power per Cabinet: 5600 W total
– HF: 800 W
– MF: 800 W
– LF: 4 × 1000 W
Amplifier Type: Class-D
Input Types: Analogue & Digital (up to 192 kHz)
Connectivity: PMC masterlink proprietary connection

DSP & Control
Room Alignment: Full DSP Room EQ via SoundAlign2 interface
Crossover: Precision DSP crossover with transparent protection circuitry
Status Indication: Illuminated logo beneath midrange driver

Mounting & Options
Deployment: Standalone or with optional PMC10-4 SUB or PMC10-4 SUBXBD extensions
Application: Designed for elite control rooms and main monitoring roles requiring high SPL, ultra-low distortion, and exceptional detail
