PMC12

Active Monitors

3-way active monitor, 12" LF, 75mm mid, 34mm tweeter, 2600W Class-D power, ATL™ with LaminairX™, SoundAlign2 DSP EQ, scalable for immersive studio use

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

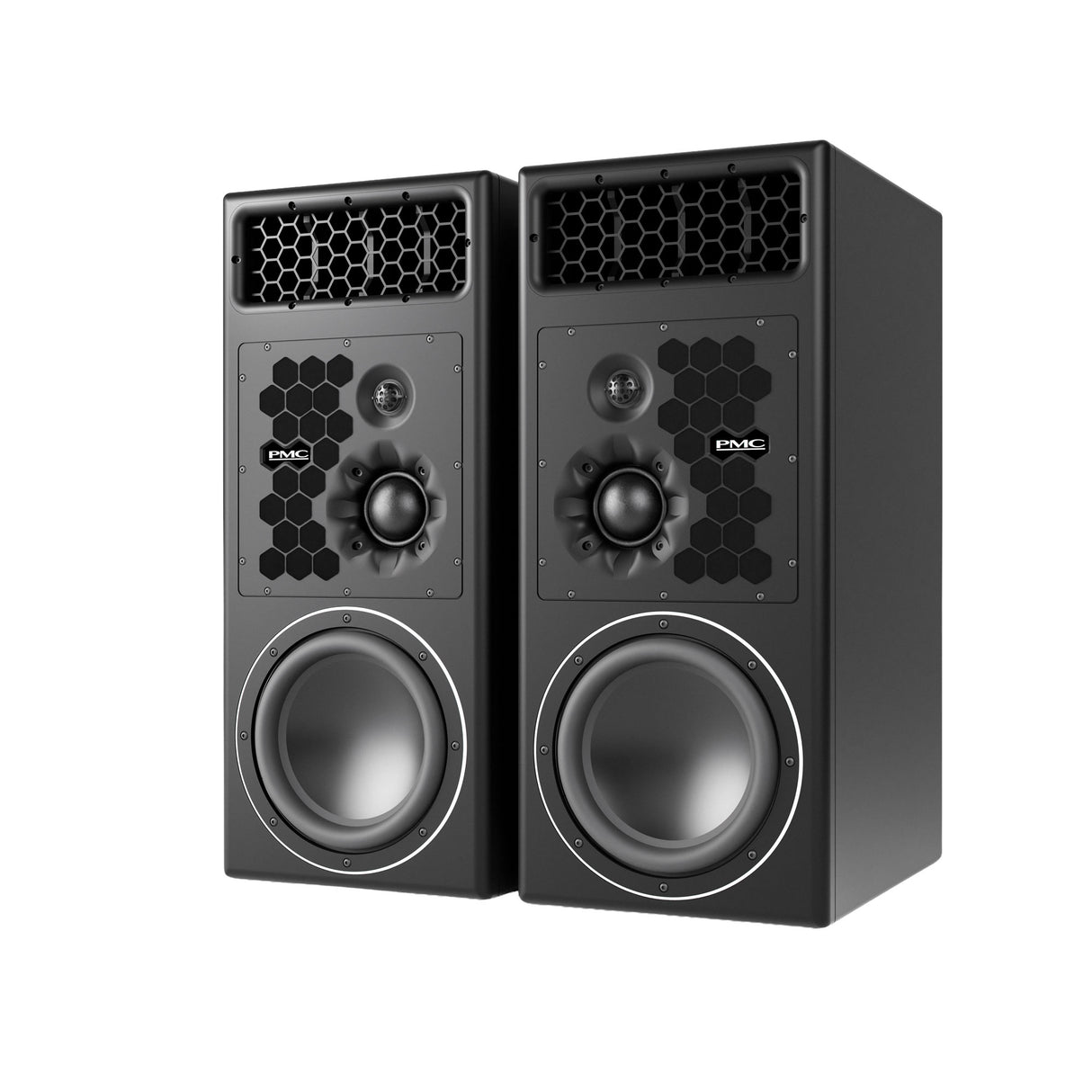

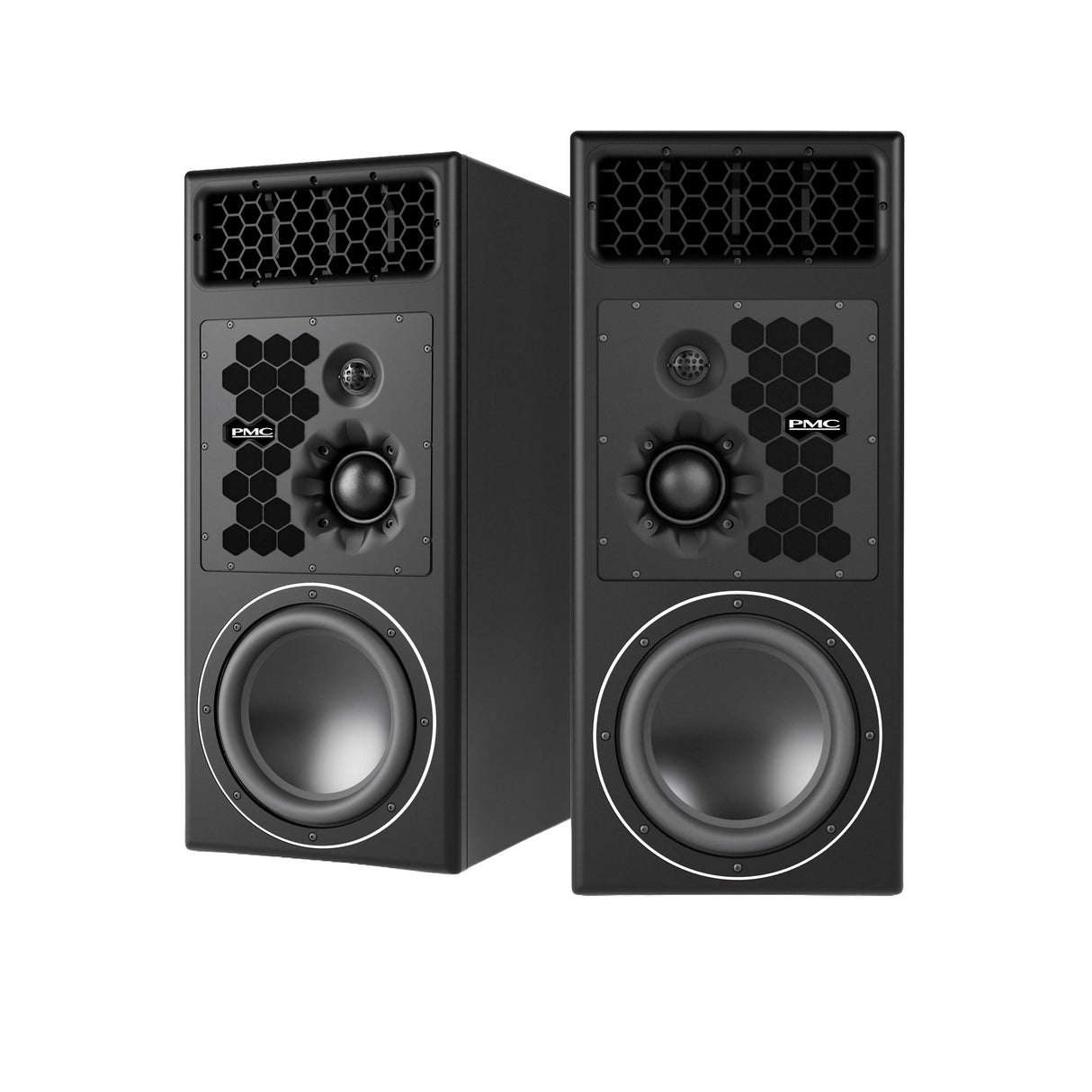

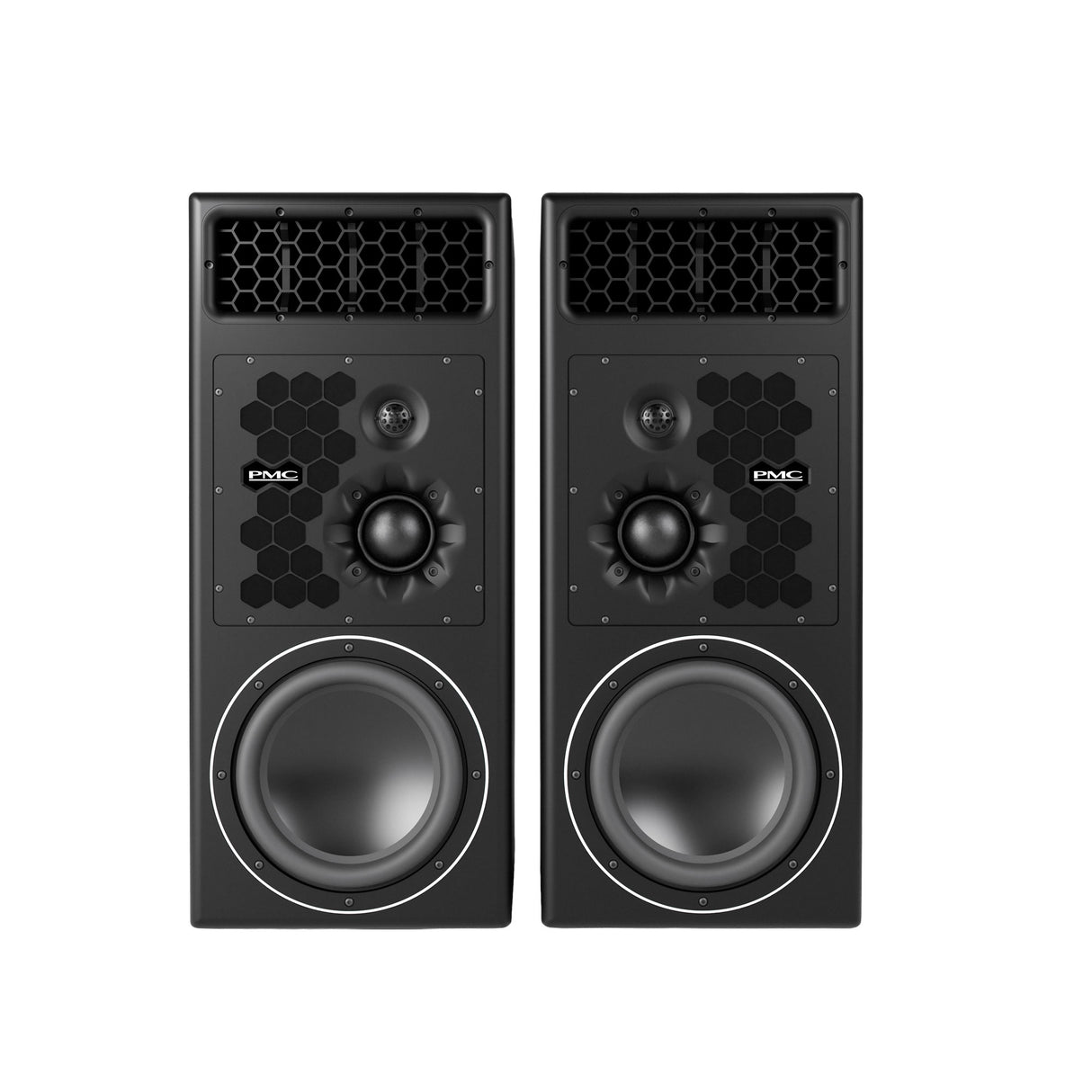

The PMC12 is a high-end, 3-way active reference monitor crafted for professional studios where absolute accuracy, power, and headroom are non-negotiable. Designed to handle the needs of advanced music production, mixing, mastering, and film or broadcast post-production, it provides a significant step up from the PMC10 in terms of scale, low-end extension, and maximum output. Whether in stereo or immersive audio setups, the PMC12 excels by delivering ultra-accurate monitoring with massive dynamic range and deep, precise bass response.

At its heart is PMC’s renowned ATL™ (Advanced Transmission Line) cabinet, refined with LaminairX™ venting to ensure enhanced low-frequency control and efficiency. It features a powerful in-house designed 12-inch bass driver, engineered with a 3-layer, 3-inch voice coil, double-stacked magnets, and a stable suspension system for distortion-free, extended low-frequency performance. Paired with a 75mm PMC75v3 soft-dome midrange and a hand-built 34mm tweeter, the system ensures perfect phase alignment and tonal integrity across the spectrum. Dispersion is controlled via PMC’s n-compass™ waveguide, providing an accurate listening experience across the room.

Each speaker is driven by the master36 DSP/Amplifier, delivering 800W each to the high and mid drivers, and 1000W to the bass driver. This 2600W per-channel amplification is supported by DSP-based crossovers, excursion protection, and room EQ, all managed through PMC’s SoundAlign2 interface. The PMC12 is also scalable into an XBD configuration for installations requiring even more low-end headroom and scale.

Features

PMC12
High-performance 3-way studio monitor for professional environments

Powerful Monitoring
Delivers 2600W of amplification per cabinet for ultra-accurate and dynamic sound.

Deep, Controlled Bass
Features a newly developed 12-inch driver and 3.5m ATL™ design for exceptional low-frequency extension.

Advanced DSP Control
Includes SoundAlign2 with room alignment EQ and precision digital crossovers for optimal performance.

High Resolution & Clarity
Equipped with PMC75v3 midrange and 34mm soft-dome tweeter using n-compass™ waveguide for accurate imaging and tonal consistency.

Low Distortion at Any Level
Uses a three-layer voice coil and double-stacked magnets to ensure clean performance, even at high SPLs.

Immersive Ready
Scales easily to XBD configuration for immersive audio setups requiring greater low-frequency output.

Flexible I/O
Supports both analog and digital inputs (up to 192kHz) for modern studio workflows.

Studio-Grade Build
Compact yet robust design finished in studio black, built for high-end music, broadcast, and film applications.

Specifications

General Specifications
Model: PMC12
Type: 3-Way ATL™ Active Reference Monitor
Application: High-end music production, mixing, mastering, broadcast, TV, and film post-production
System Options: Standalone or scalable to twin-cabinet PMC12 SUBXBD configuration
Finish: Studio Black

Cabinet
Dimensions: H 870 mm × W 380 mm × D 535 mm (+10 mm LF driver surround)
Weight: 62 kg per unit
ATL™ Length: 3.5 m (11.5 ft)
Cabinet Design: ATL™ (Advanced Transmission Line) with LaminairX™ airflow vents

Driver Configuration
Low-Frequency Driver: 12" in-house, ultra-low distortion, long-excursion design
– Double-stacked magnets
– 3" three-layer voice coil
– Highly stable suspension
Midrange Driver: PMC75v3 75 mm soft-dome
Tweeter: 34 mm hand-built soft-dome
Waveguide: PMC n-compass™ for controlled dispersion and tonal integrity

Amplification & DSP

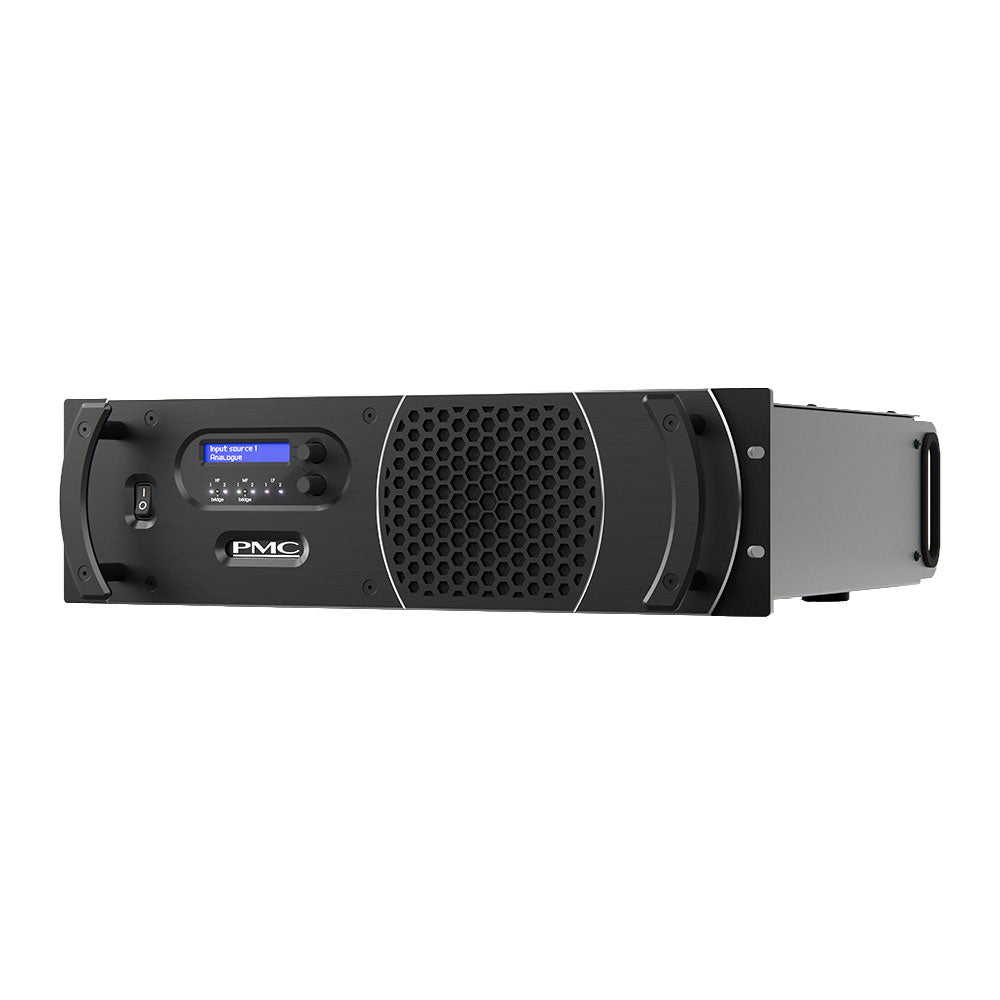

Amplifier Platform: PMC master36 DSP/Power amplifier
Amplifier Type: Class-D
Total Power per Cabinet: 2600 W
– HF: 800 W
– MF: 800 W
– LF: 1000 W
Input Types: Analogue & Digital (up to 192 kHz)
DSP Control: SoundAlign2 browser-based interface
DSP Features: Precision digital crossovers, transparent system protection, full room EQ

Orientation & Expansion Options
Available Orientations:
– Vertical

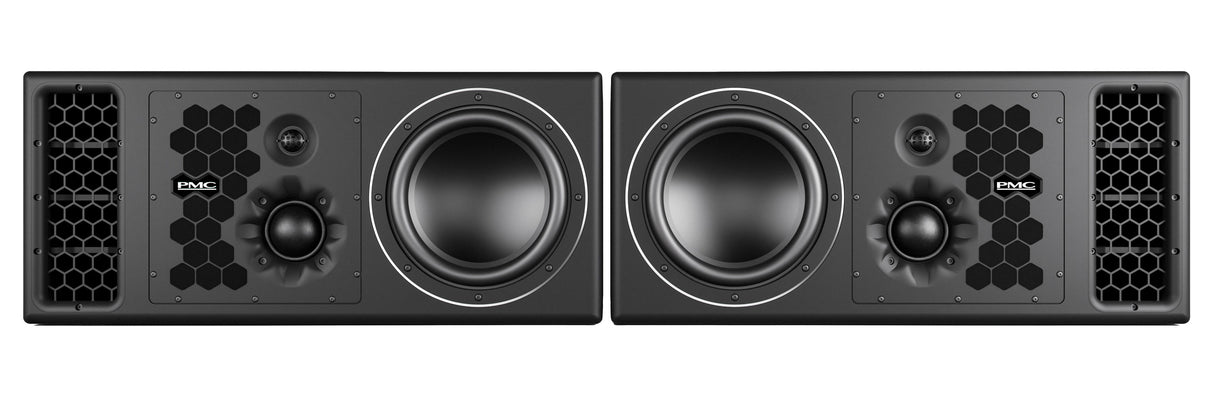

– Horizontal
– Vertical Centre
– Horizontal Centre
System Expansion:
– PMC12 SUB (single-cabinet extension)
– PMC12 SUBXBD (twin-cabinet extension for enhanced LF headroom)
