REAN

RF2C-B-0

Connectors

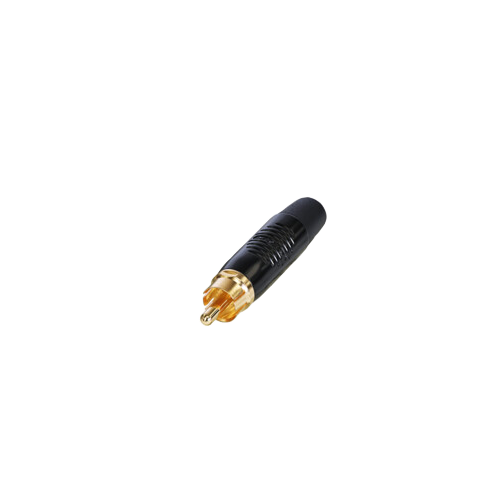

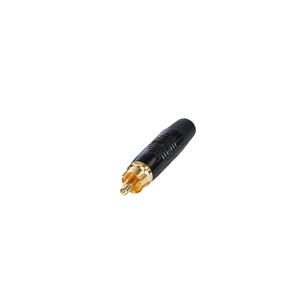

RCA plug, gold-plated contacts, black shell and boot, 4-6 mm cable compatibility, 16 AWG wire capacity

Shipping calculated at checkout.
Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

This RCA plug is designed for audio technicians, installers, and cable builders who need a dependable phono connection for custom cable assemblies. Gold-plated contacts provide a durable connection surface, while the black shell and matching black boot create a clean, coordinated finish.

The plug accommodates cables from 4 to 6 mm in diameter and wire up to 1.5 mm² or 16 AWG. A POM chuck and flexible PVC boot support secure cable installation, while the bronze ground contact and glass-fibre-reinforced pin body contribute to reliable handling through repeated use.

Features

Gold-Plated Contacts
Provides a durable contact surface for dependable signal connections.

Secure Cable Installation
The internal chuck and flexible boot help hold the cable firmly in place.

Durable Construction
Metal housing components and a reinforced pin body support reliable everyday use.

Flexible Cable Compatibility
Accommodates a practical range of common audio cable sizes.

Coordinated Black Finish
The black shell and black boot provide a clean appearance for custom cable assemblies.

Specifications

General Specifications
Device Type: RCA Plug
Connection Type: Phono ("RCA/Cinch")
Shell Colour: Black
Boot Colour: Black
Packaging: Plastic Packaging

Electrical Specifications
Contact Resistance: ≤10 mΩ
Insulation Resistance: ≥200 MΩ initial
Dielectric Strength: 50 Hz, 0.5 kV DC
Rated Voltage: <50 V

Mechanical Specifications
Insertion and Withdrawal Force: 5-40 N
Lifetime: >5,000 mating cycles
Cable Outside Diameter: 4-6 mm
Wire Size: 1.5 mm²
Wire Gauge: 16 AWG

Materials
Bush Ring: ABS
Chuck: POM
Ground Contact: Bronze
Boot: PVC
Housing Materials: Zinc, brass
Pin Body: PA6 with 30% glass fibre

Contact and Housing Finishes
Ground Contact Finish: Gold plating
Housing Finishes: Gold plating, nickel plating
