SWIT

S-4914P

Recording Monitors

S-4914P Broadcast/Film industry wireless system supports uncompressed 3G/HD/SD-SDI and HDMI to transmit 1000 meters (Line-of-Sight) distance, and less than 1 millisecond latency.

$7,255.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

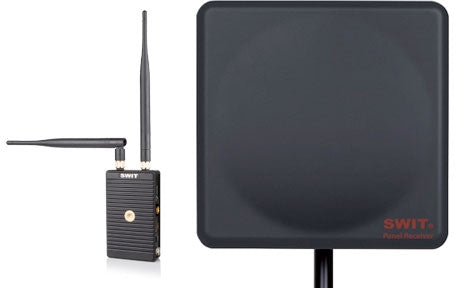

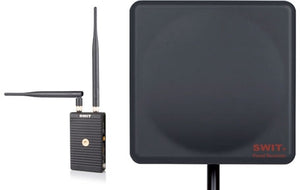

WHDI wireless transmission - 1000 meters (LOS) with Panel Receiver S-4914P Broadcast/Film industry wireless system is based on WHDI wireless technology, 5.1-5.9GHz license free bands, with a new developed high Gain Panel Receiver, supports uncompressed 3G/HD/SD-SDI and HDMI to transmit 1000 meters (Line-of-Sight) distance, and less than 1 millisecond latency. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

The Transmitter The Transmitter has 2 omni antennas, signal interfaces are:

  • 1x 3G/HD/SD-SDI input
  • 1x HDMI 1.3 input
  • (If both SDI and HDMI are connected, the system transmits SDI as priority.)
  • 1x 6-17V DC input

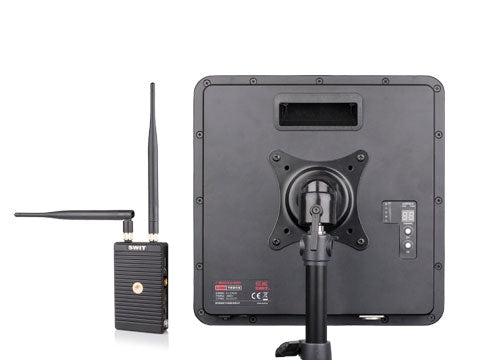

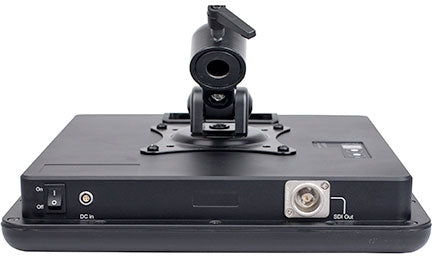

    • Panel Receiver The Panel Receiver adopts 14dBi high Gain Panel Antenna and build-in wireless receiver design, to set up by lighting tripod. The Panel Receiver interfaces are: 1x 3G/HD/SD-SDI output 1x 7-36V 4pin LEMO DC input

    1000m Transmission In Line-of-Sight, S-4914P supports non-compressed 3G/HD/SD-SDI and HDMI 1000 meters (3300 feet) transmission, with less than 1 millisecond latency.

    Embedded Audio Transmission S-4914P supports SDI and HDMI embedded audio (CH1&2) transmission.

    5.1-5.9GHz Frequency S-4914P wireless system works at 5.1-5.9GHz License-free frequency. The frequency bands are user configurable and support 3-4 pairs wireless channels to work together in one location. The wireless output power is less than 63mW, which will not do harm to human bodies.

    Multicast Setting Users can set several Receivers at the same frequency point as the Transmitter, to enable 1 Transmitter to multi Receivers multicast mode.

    S-4914P package includes: 1x Transmitter (Various DV plates types option) 3x Antennas (For transmitter, 2+1 backup) 1x Articulating arm trestle (Cold shoe and 1/4") 1x D-tap DC cable (For transmitter) 1x Band switching driver (For transmitter) 1x Panel Receiver 1x VESA bracket for lighting tripod (For Receiver) 1x D-tap to 4-pin LEMO DC cable (For Receiver) 1x Battery plate with clamp (V-mount / Gold mount option) 1x Carrying case (for everything)

    Features

    S-4914 T/R - SDI/HDMI 1000m Wireless System

    WHDI (MIMO/OFDM) technology

    5.1-5.9GHz license-free frequency

    Uncompressed 3G/HD/SD-SDI and HDMI

    1000meters (Line-of-Sight) distance

    Less than 1 millisecond latency

    Less than 63mW radio power

    14dBi Panel Antenna build-in Receiver

    2-ch SDI/HDMI embedded audio transmission

    Support 3-4 pairs working in one location

    Multicast - 1 transmitter to multi receivers

    Mini Transmitter with various DV plates selection

    All-metal housing, durable

    Pure hardware connection; Plug and Play

    Specifications

    Transmitter


    Input: 3G/HD/SD-SDIx1; HDMIx1

    Format


    1080P (60 / 59.94 / 50)
    1080i (60 / 59.94 / 50)
    1080p (30 / 29.97 / 25 / 24 / 23.98)
    1080psf (30 / 29.97 / 25 / 24 / 23.98)
    720p (60 / 59.94 / 50)
    480i (59.94)
    576i (50)

    Wireless frequency: 51505850MHz
    Radio modules: OFDM 16QAM
    Transmission distance: Approx 1000m (Line of sight)
    Latency: 1 millisecond
    Power consumption: 6.5W
    Radio power: Max 63mW
    Input Voltage: DC 6.517V
    Working environment Temperature: 0C -+40C
    Dimension: 71x120x37 (mm)
    Net weight: 300g (with antenna)

    Transmitter Input : Supported formats

    SDI


    SMPTE-425M 1080p (60 / 59.94 / 50)
    SMPTE-274M 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-296M 720p (60 / 59.94 / 50)
    SMPTE-125M 480i (59.94)
    ITU-R BT.656 576i (50)

    HDMI


    480i/ 576i / 480p / 576p
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

    Receiver


    Output: 3G/HD/SD-SDIx1
    Format: Same as transmitter
    Wireless frequency: 51505850MHz
    Radio modules: OFDM 16QAM
    Transmission distance: Approx 1000m (Line of sight)
    Latency: 1 millisecond
    Power consumption: 7W
    Receiving antenna gain: 14dBi Β± 0.5
    Input voltage: DC 736V
    Working environment Temperature: 0C -+40C
    Dimension: 305x305x58.5 (mm)
    Net weight: 2380g (with VESA bracket)
