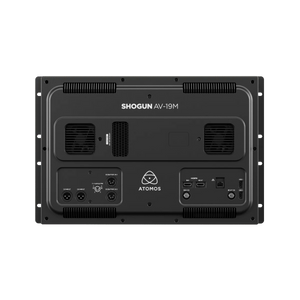

Shogun AV19 M

4K HDR Touchscreen
The bright 19-inch touchscreen provides a detailed, shared view for evaluating images in studio, broadcast and location environments.

Hybrid Video Monitoring
Monitor NDI HX3, SDI or HDMI sources within conventional and IP-based production workflows.

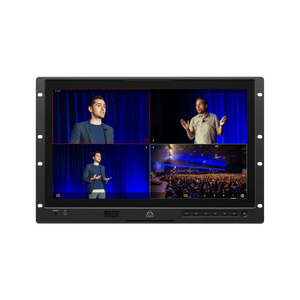

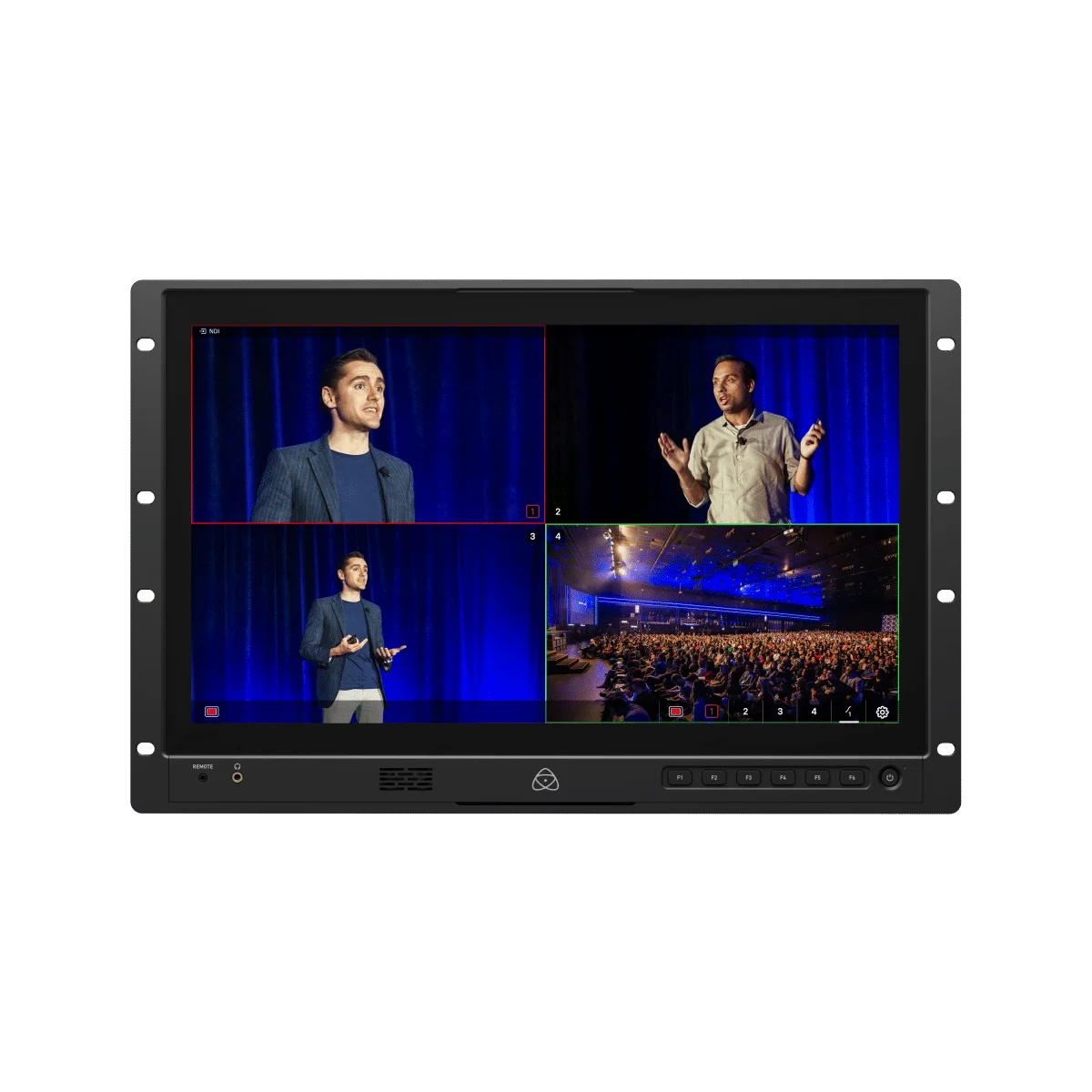

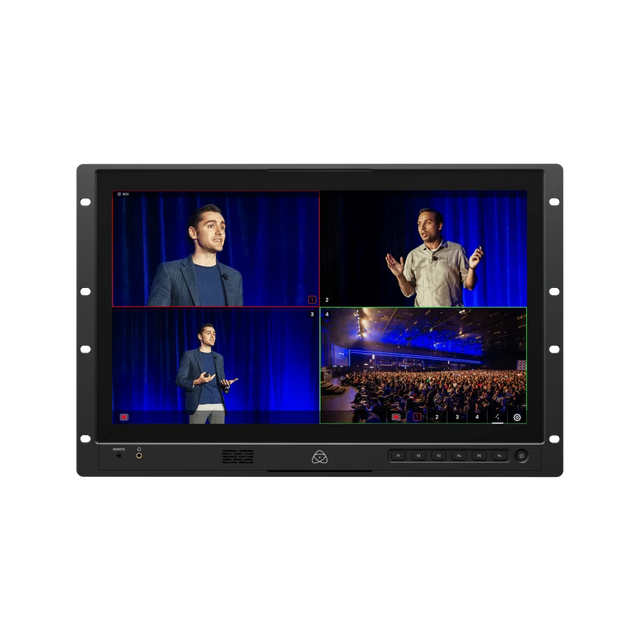

NDI Quad-View
Display one NDI HX3 source full-screen or monitor up to four networked NDI sources together in a quad-view layout.

Professional Monitoring Tools
Assess exposure, focus, color and framing with waveform, RGB parade, vectorscope, focus peaking, false color, zebras and composition guides.

Flexible LUT Support
Preview Log and HDR signals using built-in monitoring modes or compatible custom cube LUT files.

Assignable Controls
Six user-definable function buttons provide fast access to frequently used monitoring tools, LUTs and display functions.

Professional Audio Monitoring
Monitor embedded audio through on-screen meters, built-in speakers or headphones, with balanced XLR outputs for external equipment.

Cross-Conversion
Convert HDMI signals to SDI or SDI signals to HDMI for easier integration across mixed production systems.

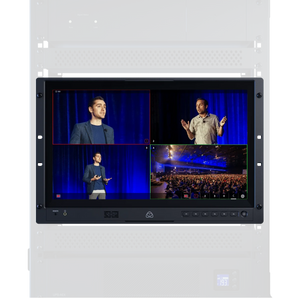

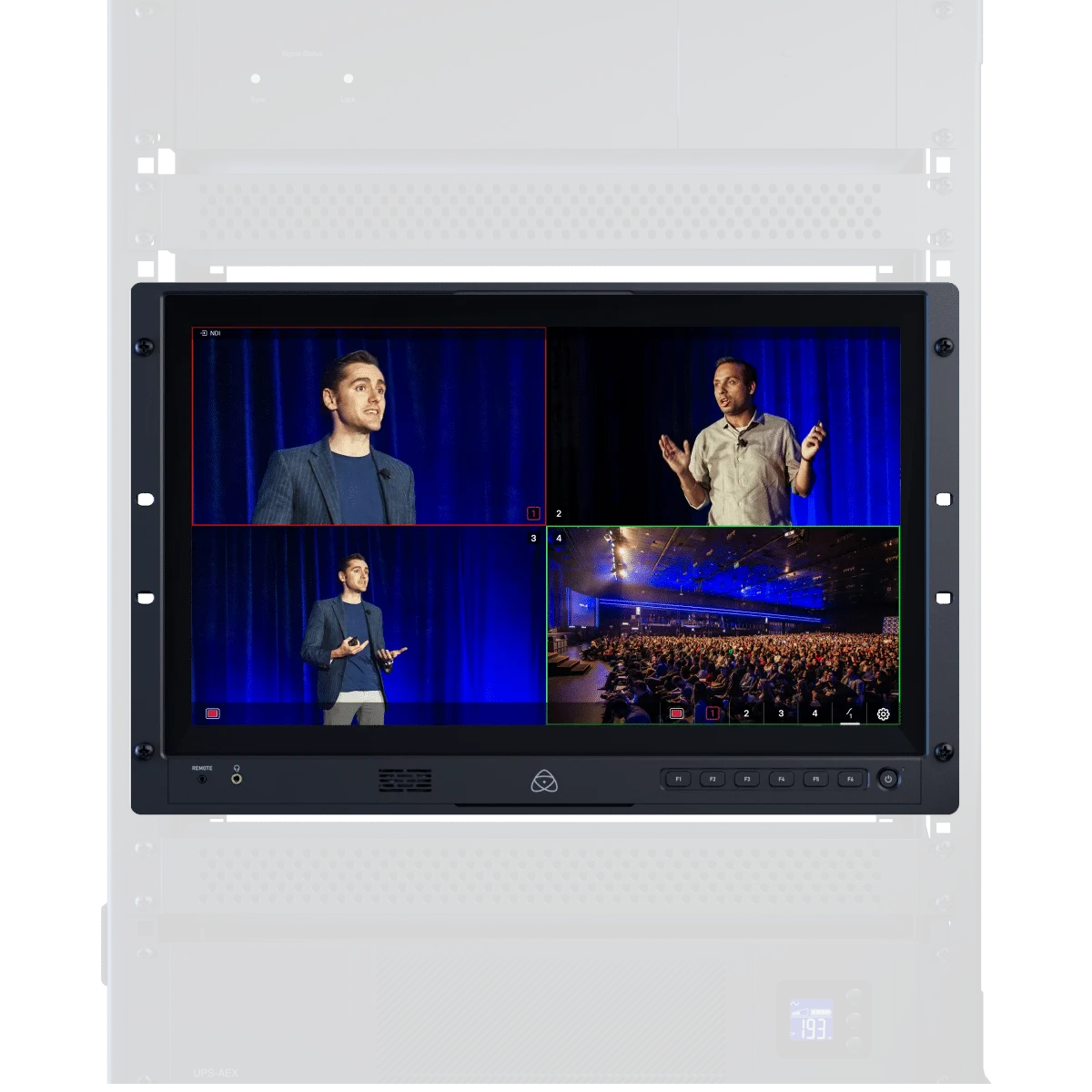

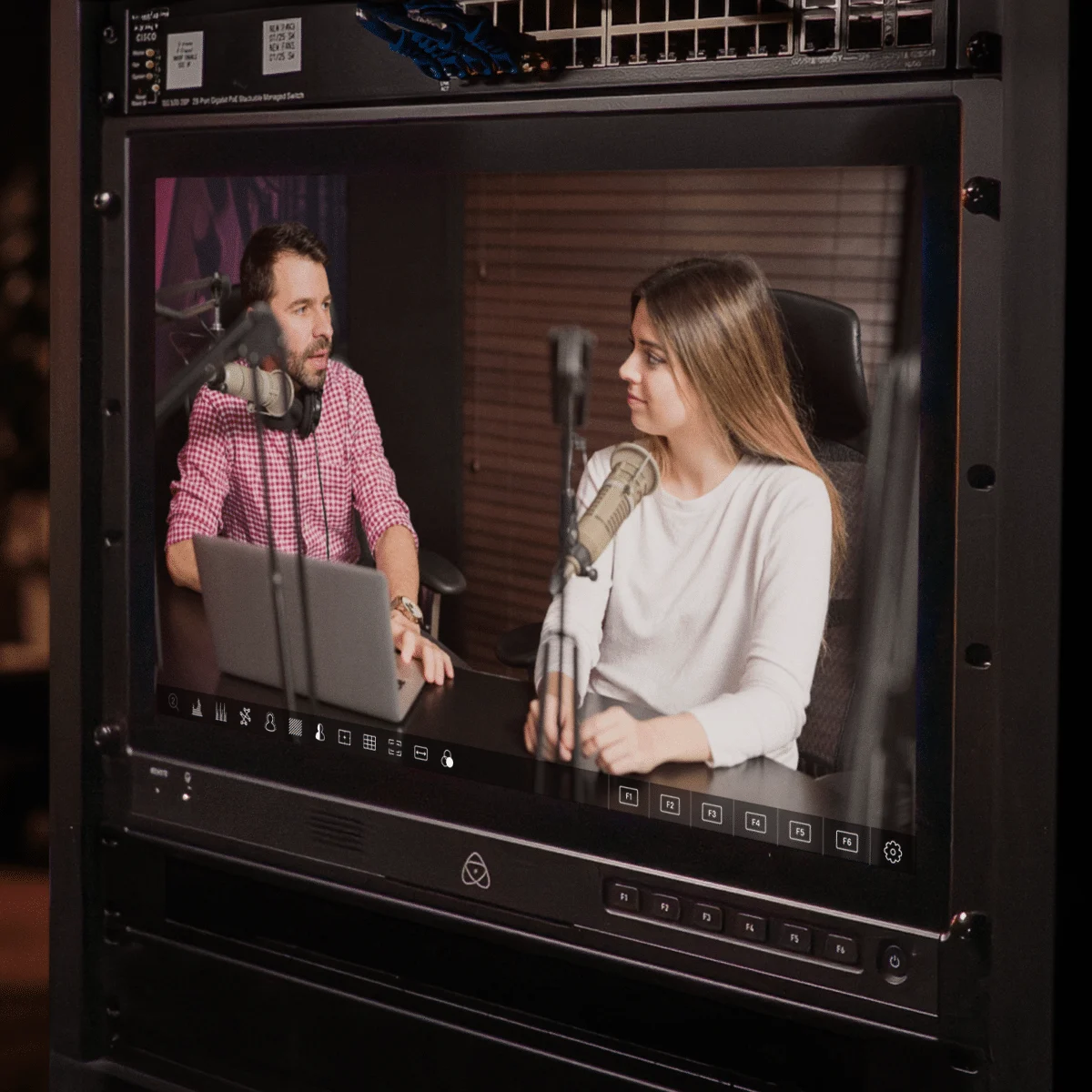

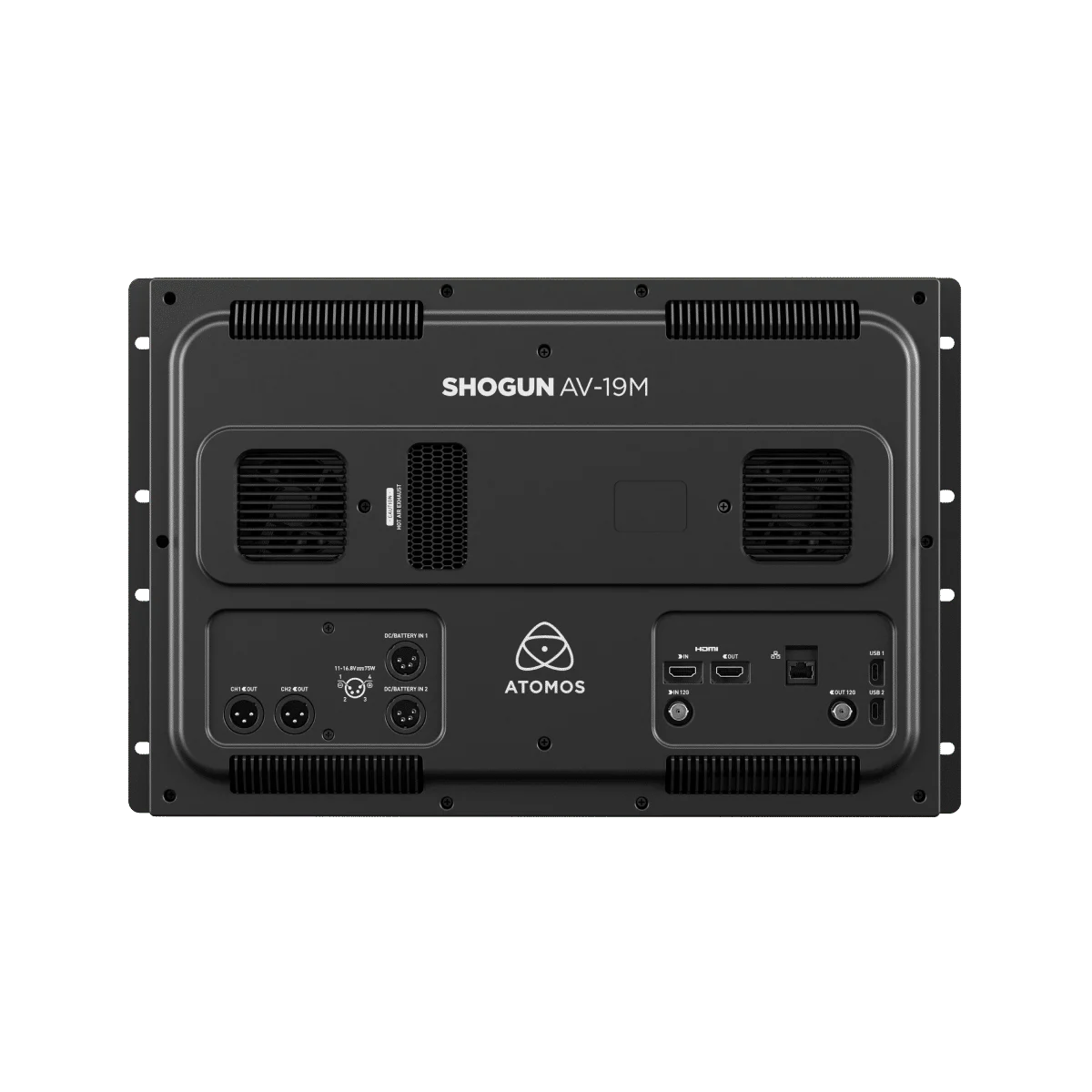

Rack-Ready Construction

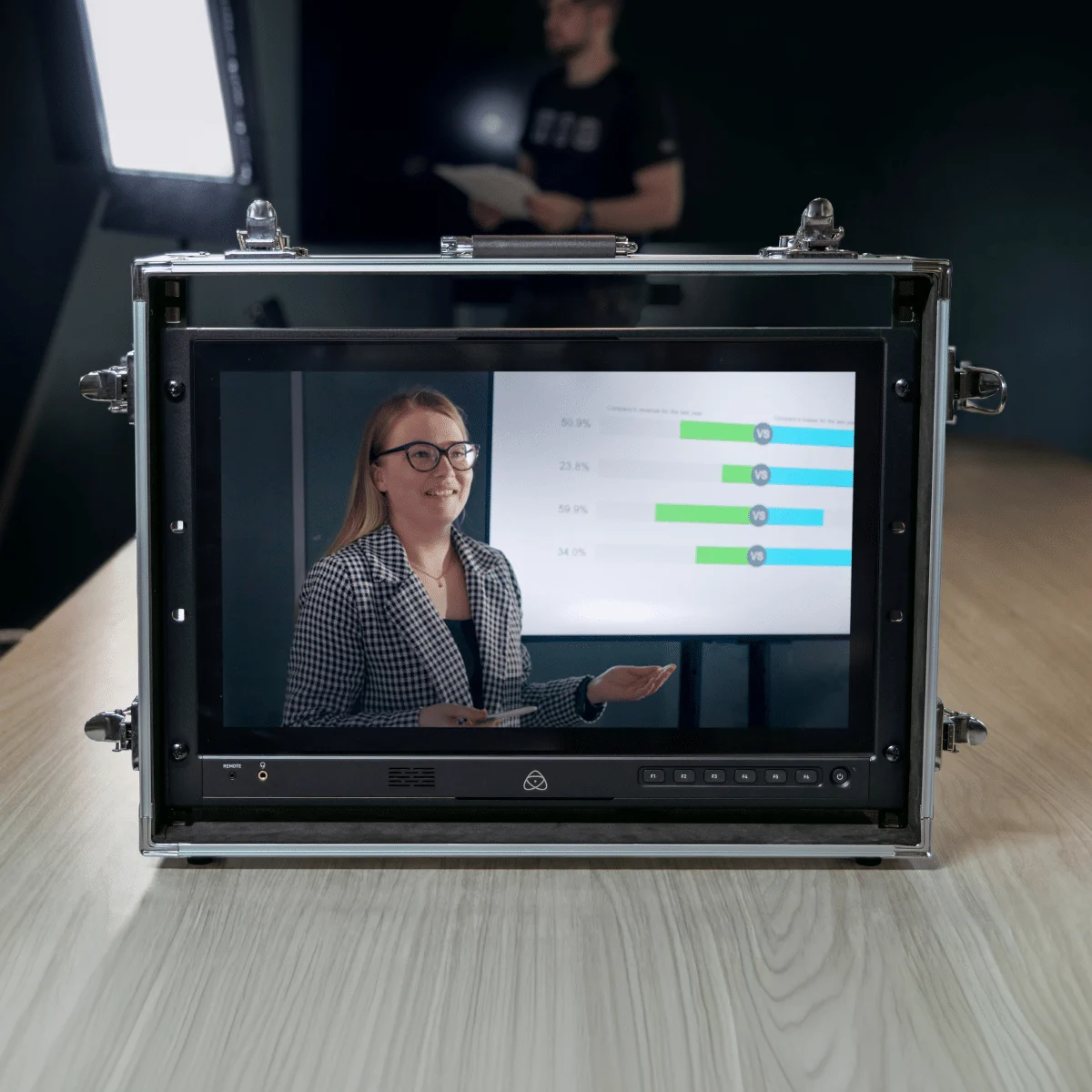

The rugged 7RU chassis fits standard 19-inch production racks and is suitable for control rooms, OB vehicles and portable flypacks.

Calibration Support
Compatible calibration probes and software help maintain dependable HDR and Rec.709 monitoring across production environments.

Physical
Product Type: Rackmount production monitor
Dimensions: 482 × 310 × 60 mm
Weight: 5.22 kg
Rack Height: 7RU
Mounting: 19-inch rack ears
VESA Mount: No

Construction
Body: Aluminium with ABS plastic
Cooling: Actively controlled fan and heat sink
Touchscreen: Capacitive
Tally Light: Front LED
Controls: Power button and 6 assignable function buttons

Environmental
Maximum Ambient Operating Temperature: 40°C

Display
Screen Size: 19 inches
Resolution: 3840 × 2160 4K UHD
Bit Depth: 10-bit, 8-bit + 2-bit FRC
Backlight: Double edge-lit
Brightness: 1200 nits
Aspect Ratio: 16:9
Color Gamut: 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
Calibration Compatibility: Calibrite Display Pro and Display Plus probes

Color Pipeline
Monitoring Modes: Native, HLG, PQ, 3D LUT
HDR Output Conversion: Log/HDR to HLG or PQ
3D LUT Format: .cube
3D LUT Sizes: 17-point and 33-point
3D LUT Loop Output: Supported
3D LUT Split View: 50/50
Supported HDR Formats: PQ HDR10, HLG
Supported Log Formats: Sony S-Log series, Canon C-Log series, ARRI LogC EI series, Panasonic V-Log, JVC J-Log, RED Log series, Fujifilm F-Log, Nikon N-Log
Supported Gamuts: DCI-P3, DCI-P3+, DCI-P3 D65, Rec.709, BT.2020, Sony S-Gamut series, Canon Cinema, Panasonic V-Gamut, ARRI Alexa Wide Gamut, JVC LS300, RED color spaces

Video Inputs
HDMI Input: 1 × HDMI 2.0
Maximum HDMI Input: 4K60p
HDMI Input Locking Port: Yes
SDI Input: 1 × 12G-SDI
SDI Compatibility: 12G, 6G and 3G
Input Bit Depth: 8-bit or 10-bit
Input Chroma Subsampling: YCbCr 4:2:0 and 4:2:2
IP Video Input: NDI HX3 over Ethernet

Video Outputs
HDMI Output: 1 × HDMI 2.0
Maximum HDMI Output: 4K60p
HDMI Output Locking Port: No
SDI Output: 1 × 12G-SDI loop output
Output Bit Depth: 8-bit or 10-bit
Output Chroma Subsampling: 4:2:2

Networking
Ethernet: 1 × RJ45
NDI Monitoring: NDI HX3
Full-Screen NDI Sources: 1
NDI Quad-View Sources: Up to 4
Quad-View Compatibility: NDI HX3 only
NDI Input Switching: Supported

Connectivity
USB: 2 × USB-C 2.0/3.0
LANC: Yes
Wi-Fi: No
Bluetooth: No

Video Conversion
HDMI to SDI: Yes
SDI to HDMI: Yes
4K UHD Downscaling: 4K UHD to Full HD via loop output
DCI Crop: 17:9 to 16:9 via loop output
Pulldown Removal: 24/25/30 PsF to 24/25/30p, 60i to 24p

Audio
Audio Format: 24-bit/48kHz PCM
HDMI Audio: Up to 8 channels, input dependent
SDI Audio: Up to 12 channels, input dependent
Analog Audio Outputs: 2 × 3-pin XLR male
Built-In Speaker: Mono confidence speaker, up to 1.5W
Headphone Output: 3.5 mm, 2-channel

Timecode
Embedded Timecode: HDMI and SDI
Time-of-Day Timecode: Yes
Wireless AirGlu RF: No
Wireless AirGlu Bluetooth: No

Power
Input Voltage: 12V to 16.8V DC
Operating Power: 75W
DC Input: 1 × 4-pin XLR
Nominal Battery Voltage: 14.4V
Battery Input: Single battery via dedicated 4-pin XLR
D-Tap Support: Third-party D-Tap to 4-pin XLR cable

Supported Monitoring Formats
4K DCI: Up to 4Kp60
4K UHD: Up to UHDp60
2K DCI: Up to 2Kp60
1080p: Up to 1080p120
1080 PsF: Pulldown to progressive
1080i: 1080i50 and 1080i60
720p: Up to 720p60

Monitoring Tools
Waveform: 3 sizes with adjustable opacity and brightness
RGB Parade: 3 sizes with adjustable opacity and brightness
Vectorscope: 2 sizes with adjustable opacity and brightness
Zoom: 2×
Focus Peaking: Adjustable color and threshold, color, monochrome and edges-only modes
False Color: Atomos with scale, ARRI and EL Zone
Zebras: Adjustable
Color Channel Isolation: Blue only
Cine Frame Guides: 2.4:1, 2.35:1, 1.9:1, 1.85:1 and 4:3
Social Frame Guides: 9:16, 1:1, 1.91:1 and 4:5
Safe Areas: Action and graphic
Grid Markers: 9-grid
Onion Skin: Yes
Anamorphic Desqueeze: 1.25×, 1.33×, 1.5×, 1.6×, 1.65×, 1.79×, 1.8× and 2×
Display Flip: Vertical

Supported Media
USB Media: Certified USB 3.0 media
File System: ExFAT

Included Items
Monitor: 1
4-Pin XLR Power Supply: 1
International IEC Power Cables: 5
Rack Nuts and Bolts: 10
Screen Cloth: Included
Quick Start Guide: Included

Packaging
Box Dimensions: 581 × 383 × 165 mm
Box Weight: 10 kg including cables and accessories
