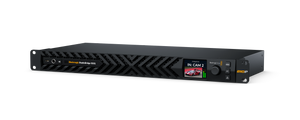

StudioBridge 100G IP video bridge converter, 1U

StudioBridge 100G
Professional IP video bridge designed to connect high-bandwidth 100G SMPTE ST 2110 devices into fully redundant broadcast IP infrastructures.

100G to Redundant 100G Bridging
Bridges a single 100G Ethernet SMPTE ST 2110 connection into a dual redundant 100G broadcast network for maximum reliability.

Dual 100G Network Connections
Features two 100G QSFP28 network interfaces with support for redundant SMPTE ST 2022-7 operation.

Dedicated 100G Camera Interfaces
Includes two separate 100G QSFP28 camera connections for direct integration of high-bandwidth camera systems.

Supports High-Bandwidth Cinema Cameras
Designed to connect cameras such as URSA Cine 12K, URSA Cine Immersive, and URSA Immersive directly into SMPTE ST 2110 infrastructures.

Multi-Camera Connectivity
Supports one 100G URSA Cine camera or two immersive camera systems per 100G connection pair.

Integrated 10G Accessory Connections
Includes dedicated 10G SFP optical fiber and 10G RJ45 Ethernet ports for accessories and supporting devices.

Native SMPTE ST 2110 Support
Fully compatible with SMPTE ST 2110 video, audio, and ancillary data workflows used in modern broadcast facilities.

SMPTE 2022-7 Redundancy
Provides seamless network protection switching across redundant network paths for uninterrupted operation.

HD, Ultra HD and 8K Support
Supports HD, Ultra HD, and immersive 8K video workflows across SMPTE ST 2110 networks.

10-Bit Broadcast Quality Video
Delivers professional 10-bit 4:2:2 video processing for high-end broadcast and live production applications.

16-Channel Embedded Audio Support
Supports up to 16 channels of embedded audio on every SMPTE ST 2110 video stream.

PTP Synchronization
Supports IEEE 1588 Precision Time Protocol and SMPTE ST 2059 standards for precise network-wide timing.

NMOS Integration
Supports NMOS discovery, registration, and connection management for streamlined routing and control.

Ancillary Data Support
Supports timecode, closed captions, HDR metadata, and other SMPTE ST 2110 ancillary data streams.

Blackmagic IP10 Codec Support
Supports the Blackmagic IP10 codec for efficient transport of Ultra HD formats when required.

Dedicated Control Network Port
Includes a separate 1G Ethernet connection for NMOS control, system configuration, and software updates.

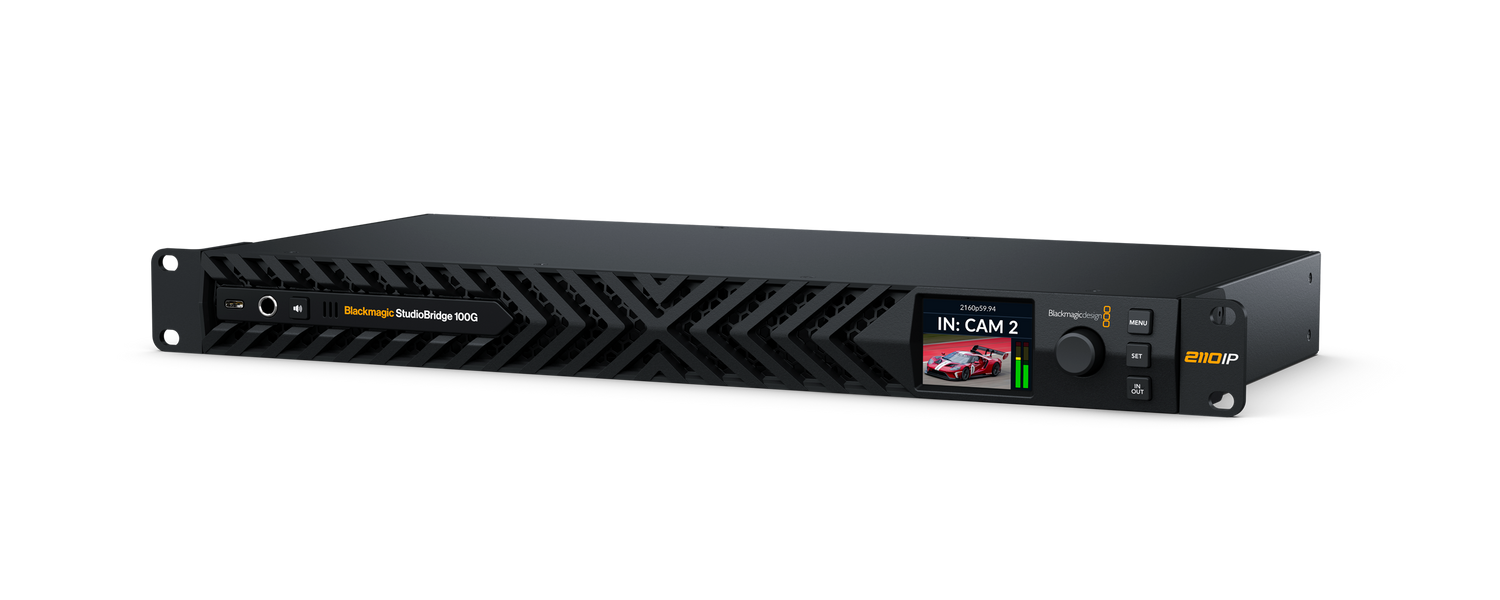

Front Panel LCD Monitoring
Features a built-in color LCD for monitoring video, audio, timecode, and system status directly from the front panel.

Integrated Audio Monitoring
Includes a built-in speaker and headphone output for convenient confidence monitoring.

Front Panel Controls
Provides dedicated buttons and a control knob for source selection, routing, monitoring, and configuration.

USB-C Configuration Port
Supports local setup, management, and firmware updates through USB-C connectivity.

Dual Redundant Power Supplies
Features dual internal AC power supplies for continuous operation in mission-critical broadcast environments.

1RU Rackmount Design
Compact 1RU form factor enables easy deployment in broadcast racks, machine rooms, and live production facilities.

Ideal for High-Bandwidth SMPTE ST 2110 Workflows
Perfect for connecting advanced cinema cameras, immersive production systems, and 100G broadcast infrastructure while maintaining full redundancy and reliability.

General Specifications
Device Type: SMPTE ST 2110 IP video bridge converter
Application: Bridge single 100G SMPTE ST 2110 connections into redundant dual 100G broadcast systems
Form Factor: 1RU rackmount
Compatibility: HD, Ultra HD, 4K and immersive SMPTE ST 2110 workflows

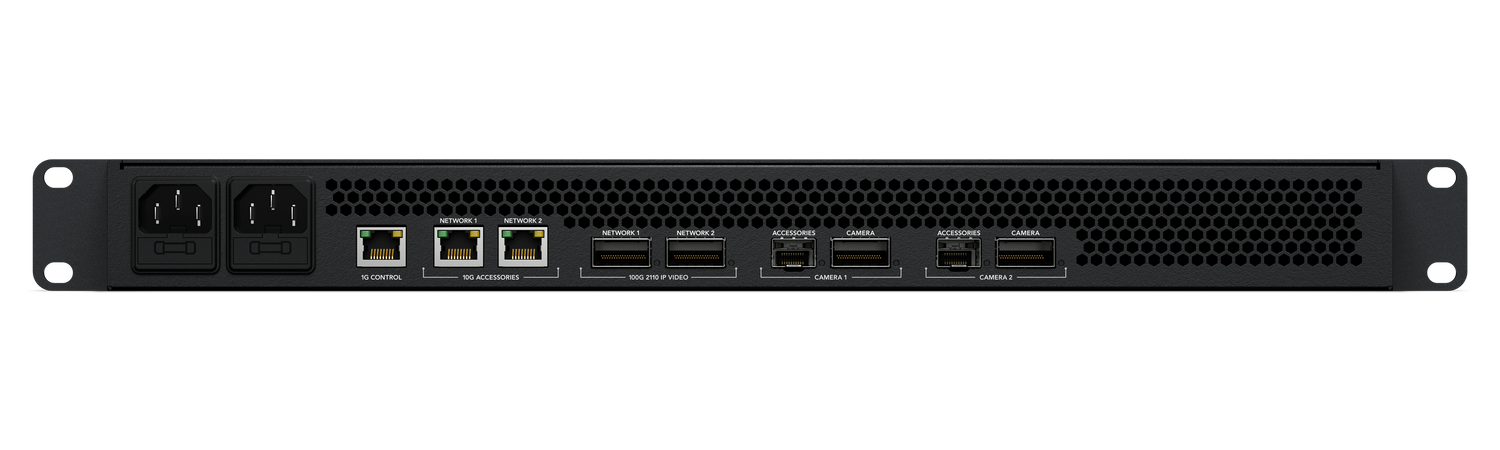

100G IP Connectivity
100G Broadcast Network Ports: 2 x 100G QSFP28
100G Camera Ports: 2 x 100G QSFP28
Redundancy Standard: SMPTE ST 2022-7
100G Camera Support: 1 x URSA Cine 100G
100G Camera Support: 2 x URSA Cine Immersive / URSA Immersive
100G Camera Aggregation: Supported when combined bandwidth does not exceed 100 Gb/s

10G IP Connectivity
10G Optical Ports: 2 x 10G SFP
10G Ethernet Ports: 2 x 10G RJ45
10G Channel Capacity: Up to 8 Ultra HD or HD senders and receivers
Accessory Connectivity: Dedicated 10G Ethernet channel

Control Connectivity
Control Network Port: 1 x 1G RJ45
Computer Interface: 1 x USB-C
Functions: NMOS control, configuration and software updates

Audio Specifications
SMPTE ST 2110 Audio Inputs: 16 channels embedded audio per stream
SMPTE ST 2110 Audio Outputs: 16 channels embedded audio per stream
Headphone Output: 1 x 6.35 mm front panel jack
Built-In Speaker: Supported

Video Standards
HD Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF Standards: 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
8K Standards: 8160 x 7200 x 2 stereo immersive

Video Processing
Color Precision: 10-bit 4:2:2 YUV
Color Space: Rec.709, Rec.2020
Auto Detection: HD, Ultra HD and 4K

SMPTE Compliance
SMPTE ST 2110-20
SMPTE ST 2110-21
SMPTE ST 2110-30
SMPTE ST 2110-40
SMPTE ST 2022-7

IP Standards
IGMP v3
SMPTE ST 2110-21 Sender: Narrow
SMPTE ST 2110-21 Receiver: Narrow
SMPTE ST 2110-21 Receiver: Wide Synchronous
SMPTE ST 2110-21 Receiver: Asynchronous
SMPTE ST 2110-30 Audio Conformance: Level C

Ancillary Data Support
Timecode: RP188 / SMPTE 12M-2
Closed Captioning: Supported
HDR Static Metadata: Supported
Full SMPTE Ancillary Data Stream Access: Supported

PTP & NMOS
Precision Time Protocol: IEEE 1588-2008 (PTP v2)
Synchronization: ST 2059-1
Synchronization: ST 2059-2
NMOS IS-04 Discovery and Registration: v1.3.2
NMOS IS-05 Connection Management: v1.1.2
NMOS BCP-002-01: Natural Grouping
NMOS BCP-004-01: Receiver Capabilities
Peer-to-Peer Discovery: mDNS/DNS-SD

Codec Support
Blackmagic IP10 Codec: Optional for 2160p59.94 and 2160p60 SMPTE ST 2110 IP video

Control & Monitoring
Display: 2.2-inch color LCD
Front Panel Controls: 3 buttons and spin knob
Video Monitoring: Built-in LCD preview
Audio Monitoring: Built-in speaker and headphone output
External Control: Ethernet and USB-C

Power Specifications
Power Supplies: Dual internal redundant power supplies
AC Input Voltage: 100-240V AC, 50/60Hz
Power Inputs: 2 x IEC C14

Physical Specifications
Form Factor: 1RU rackmount
Width: 482.6 mm
Depth: 218 mm
Height: 44.2 mm

Operating Systems
macOS: macOS 15 Sequoia or later
macOS: macOS 26 Tahoe or later
Windows: Windows 11

Environmental Specifications
Operating Temperature: 5°C to 40°C
Storage Temperature: -20°C to 45°C
Relative Humidity: 0% to 90% non-condensing
