WARM AUDIO  |  SKU: 10437

WA76

Mono Compressors

Discrete compressor with premium grade input and output CineMag USA Transformers true to the Classic '76 compressor in design and performance, modeled after the D revision

$899.00 CAD $999.00
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

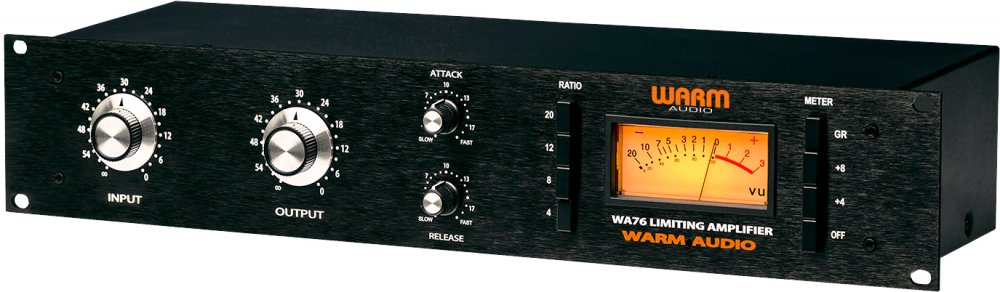

The WA76 has a fully discrete signal path and uses the original Reichenbach Engineering's (now CineMag) transformer design. The classic '76 was a major breakthrough in limiter technology, and used on hundreds of hit records since its inception. Engineers have craved the ultra-fast attack time and trademark sound of the '76 for decades, and now it is finally affordable!

Specifications

True to the Classic '76 compressor in design and performance

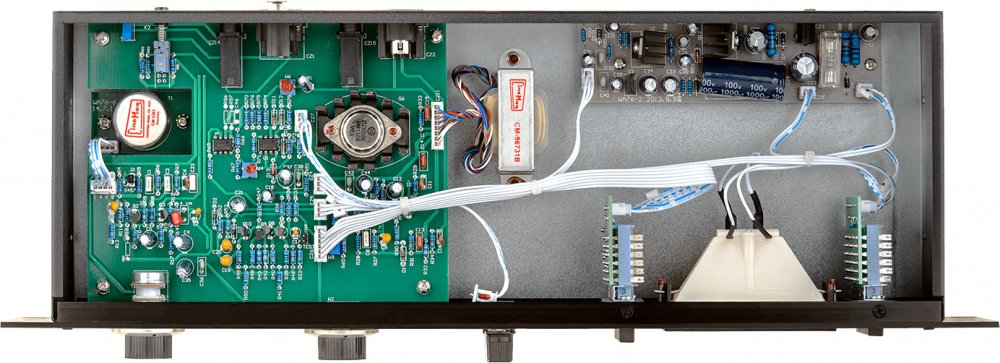

Completely discrete signal path

Modeled after the D revision

Utilizes USA made CINEMAG input and output transformers

Supports the famous "all buttons in" ratio setting

Ultra fast attack time

Class A line level output amplifier

Input impedance - 600 ohms, bridges-T control (floating)

Frequency Response ± 1 dB 20 Hz to 20kHz

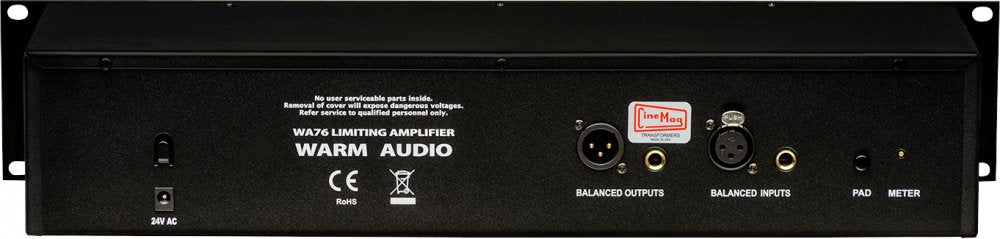

XLR and TRS inputs. XLR and TRS outputs

50db of gain

Less than 0.4% total harmonic distortion from 50 Hz to 20 kHz with limiting

Signal to noise ratio is greater than 74 dB at +25 dBm

EIN -104.1 dbm

Attack time, 20 microseconds to 800 microseconds

Release time, 50 milliseconds to 1 second

Meter provides dB gain reduction and dB output

Internal power supply, external 24v AC power transformer

19 Rackmount chassis, 2U
