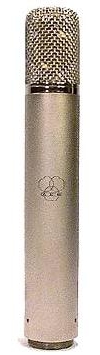

The C 12 is a studio condenser microphone of the highest professional quality. It has been specially designed for use in sound recording and broadcasting studios, and is therefore the choice of many studios both at home and abroad.
Nine different directional characteristics can be selected by means of a remote control unit without any change in frequency response or sensitivity. In addition to three basic characteristics, omni-directional, cardioid and bi-directional, six intermediate patterns (including hypercardioids) are available. The S 12 control unit is connected to the N 12 power supply unit by the RL 12 remote control cable, and the power supply unit to the microphone by the MK 12 microphone cable.
Technical Data
Frequency Range: 20 to 20,000 cps
Frequency Response: ± 2 dB related to published curve
Directional Characteristics (nine different positions): omni-directional. Cardioid: better than 20 dB front-to-back ratio at 180° sound incidence, bi-directional: 20 dB front-to-back ratio
Sensitivity: 1.0 mV/µbar (?60 dB re 1 V/dyne/cm2), unloaded (200 ohms)
Equivalent Noise Level: less than 20 dB
Impedance: 50/200 ohms (change solder lugs)
Tube Complement: 1 x 6072, 6.3 volts DC filament voltage, 120 volts DC plate voltage
Mains Connection: 110/125/145/220/245 volts AC at 50/60 cps
Stand Connector: 3?8", ˝", 5?8"-27 with microphone cable MK 12
Dimensions: 10" (255 mm) with connector, 11?16" diameter (43 mm)
Weight: 1 lb. 3.2 oz. net (560 g), shipping weight 29 lbs. 12.8 ozs. (13.5 kg)
