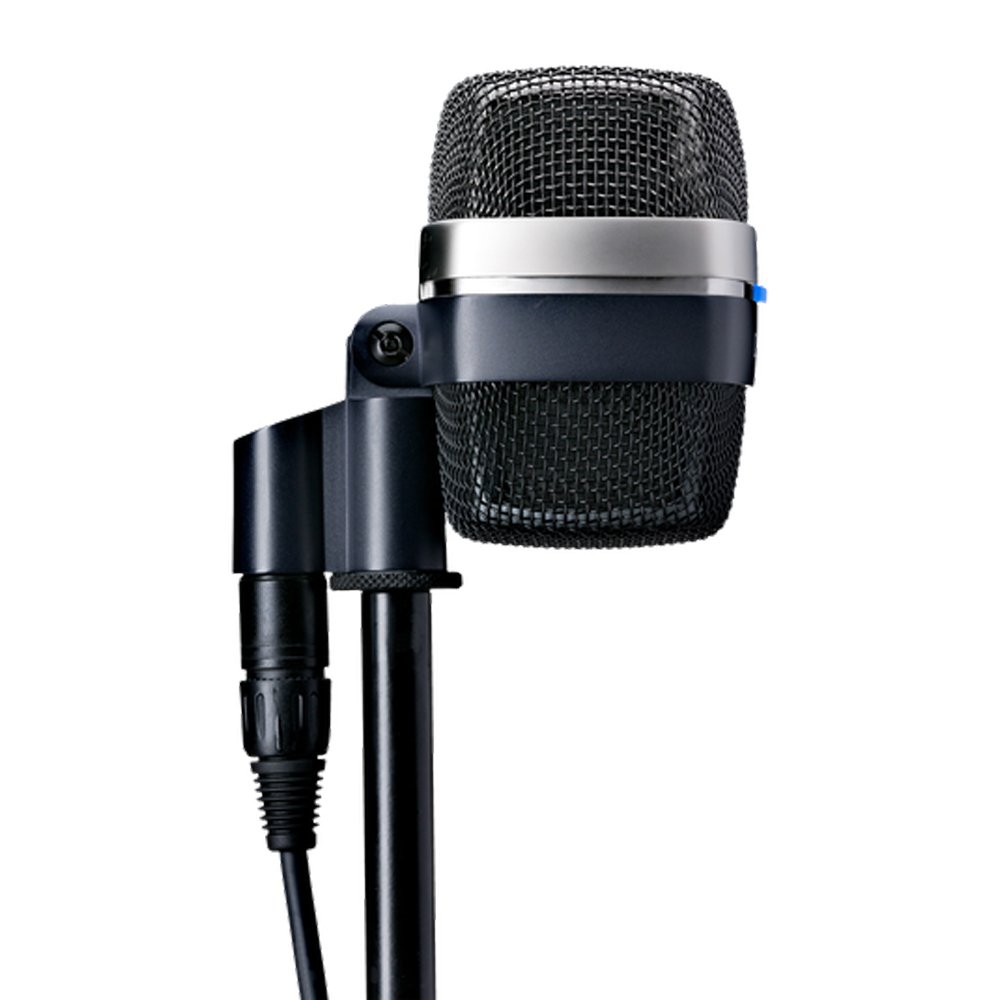

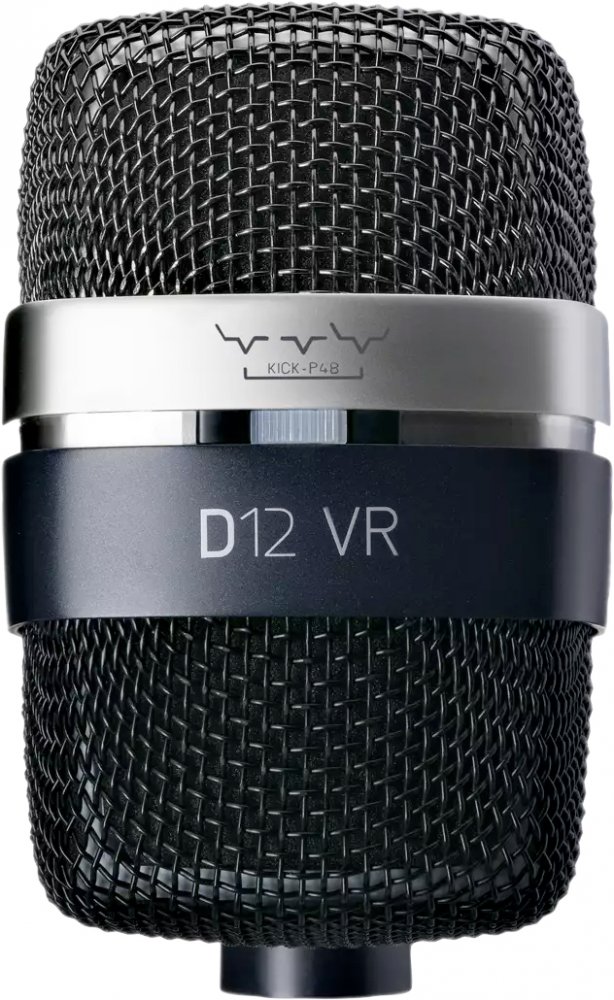

The AKG D12 VR is a reference large-diaphragm dynamic microphone with cardioid polar pattern. Optimized bass chamber for enhanced low frequency performance.
Designed specifically for kick-drum recording applications, the microphone has a thin diaphragm to enhance the low frequency performance. Its warm sound is realized by the original C414 transformer, especially impressive at high signal levels.
The D12 VR features three active filter presets to match its sound shape with the kick drums character. When activated, the output level is automatically reduced by 10 dB. The filter settings can be controlled using a switch on the microphone body. Without phantom power, the microphone operates in passive mode and delivers the instruments pure sound.
Ultra thin diaphragm
for accurate reproduction of the instruments sound Optimized bass chamber
for enhanced low frequency performance Patented switchable active-filter presets
to match the drums character Original C414 transformer
delivers a warm sound especially at high signal levels Cardioid polar pattern
rejects overspill from nearby instruments
Audio Frequency bandwidth: 17 to 17000 Hz
Sensitivity: 1.2 mV/Pa
Electrical Impedance: 200 Ohms
Recommended Load Impedance: 1000 Ohms Polar Pattern
Cardioid Audio Output
Type: Balanced XLR
Contacts: 3-pin Design
Finish: galvanized nickel matte/black Dimensions / Weight
Length: 101 mm
Width: 66 mm
Height: 125 mm
Diameter: 66 mm
Net Weight: 500 g
