Allen & Heath XONE:23C

MPN #XONE:23C

$749.00

Save 8.5%, MSRP $819.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

2 stereo channels, 4 stereo USB interface, Xone:VCF filter, 3-band total kill EQ, FX loop, XLR out, booth and record outputs, MIDI over X:LINK

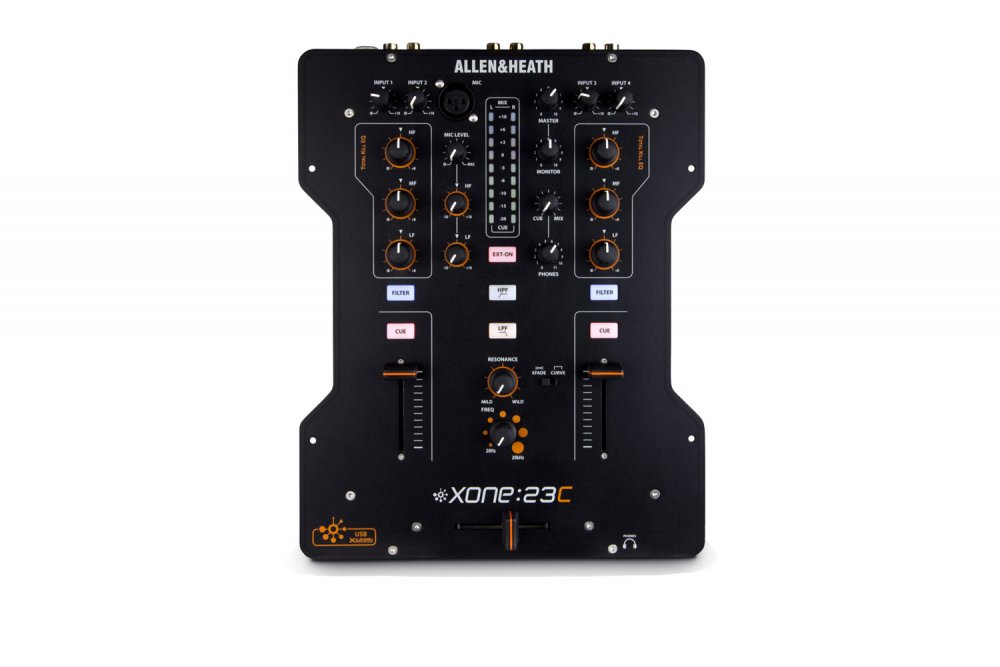

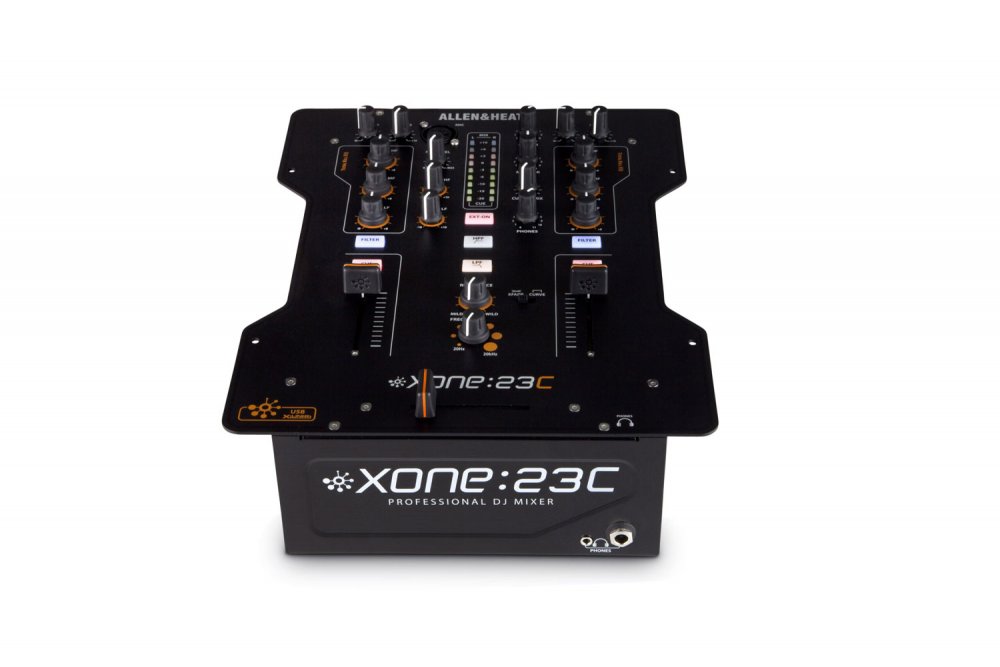

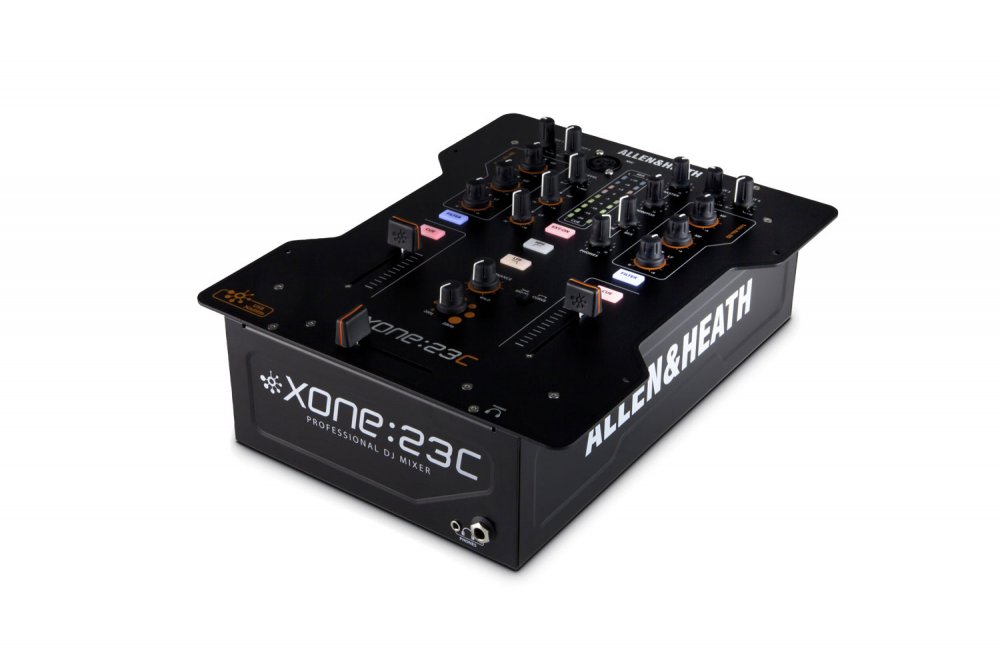

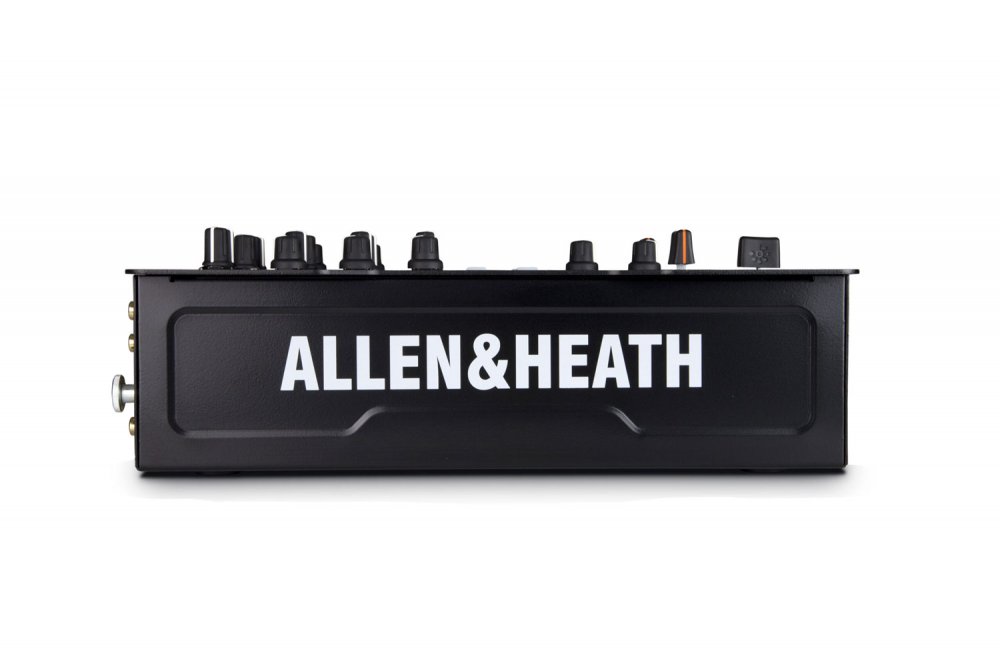

The Xone:23C is a compact DJ mixer that masterfully blends traditional analogue mixing with the power of digital DJing. Designed for DJs who want hands-on control without sacrificing modern connectivity, it features a built-in 4-stereo channel 96kHz 24-bit USB soundcard for seamless playback and recording with DJ software.

At its core is the legendary Xone Voltage Control Filter (VCF) system, offering expressive low-pass and high-pass filtering, frequency sweeps, and resonance control-from subtle shaping to wild effects. The dual stereo inputs per channel allow up to four sources to be mixed simultaneously, while a dedicated FX loop integrates external effects gear through the filter path for further sonic creativity.

Each channel includes a 3-band 'total kill' isolator EQ for aggressive frequency shaping, ideal for dynamic mixing. Balanced XLR main outputs, a separate booth output with volume control, and record output ensure professional-grade connectivity. X:LINK enables MIDI and power connection to Xone:K controllers over Ethernet, expanding control while saving USB ports.

With robust build quality, flexible routing, premium sound, and support for DVS, Traktor Pro 3, and Virtual DJ, the Xone:23C is a powerful tool for DJs who want the best of both analogue and digital domains.

Features

Analog & Digital in One: Combines classic analog mixer feel with a 4-channel 24-bit/96kHz USB soundcard for digital DJing and recording.

Iconic Xone Filter: Includes analog VCF filter with Low-Pass, High-Pass, resonance control, and FX loop integration.

Creative 3-Band EQ: Total kill EQ lets you fully cut or bring back frequencies for dynamic mixing.

Flexible Input Control: Each of the 2 channels can handle 2 stereo sources, allowing up to 4 stereo inputs at once.

Pro-Level Connectivity: Balanced XLR main outputs, separate booth and record outs, and mic input ensure full performance setup.

X:LINK Control Integration: Connects to Xone:K controllers via Ethernet for expanded MIDI control without using USB ports.

Digital DJ Ready: DVS compatible and supports Traktor Pro 3 & Virtual DJ for seamless digital workflows.

Specifications

General

Type: 2 (+2) Channel Analog Mixer with Integrated USB Interface

Interface: 4 stereo channel, 24-bit / 96kHz USB soundcard

DVS Compatibility: Yes

Software Support: Traktor Pro 3, Virtual DJ

X-Link: Yes (MIDI + power over Ethernet to Xone:K controllers)

Channels & Inputs

Channels: 2 stereo channels (with dual level controls for 3+3 stereo sources)

Mic/Aux Input: Yes, with dedicated control

FX Loop: Yes, external send/return via filter

Digital Audio I/O: USB (4 in/4 out)

EQ & Filters

Channel EQ: 3-band Total Kill Isolator EQ per channel

Filter Type: Xone:VCF analogue voltage control filter

Filter Modes: Low-Pass, High-Pass

Filter Controls: Frequency sweep, Resonance

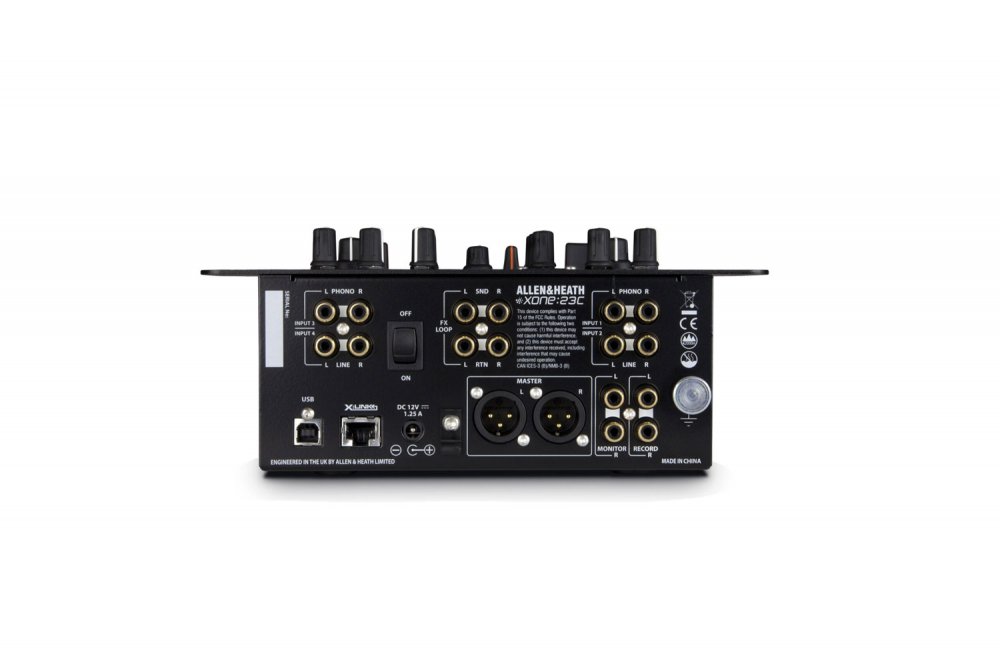

Outputs

Main Mix Out: Balanced XLR

Booth Out: Dedicated with independent level control

Record Out: Yes (RCA)

Monitoring & Metering

Cue System: Cue/Mix control

Metering: 9-segment LED peak hold meters

Construction

Faders: VCA

Crossfader: Curve selector switch

Illuminated Controls: Yes

Connectivity

USB: Yes (for audio interface and MIDI)

X-Link: Yes (to Xone:K controllers)

Use Case

Ideal for hybrid DJ setups combining traditional vinyl/CD decks and digital DJ software with hands-on analog control
