MPN #Edge Note Bundle

$325.00

Free shipping in Canada. Conditions

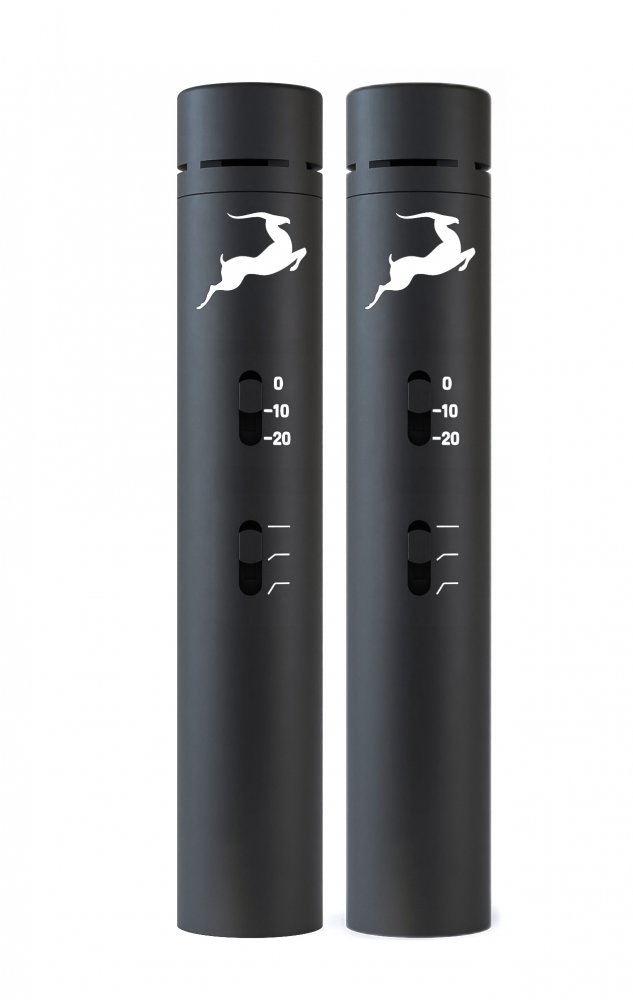

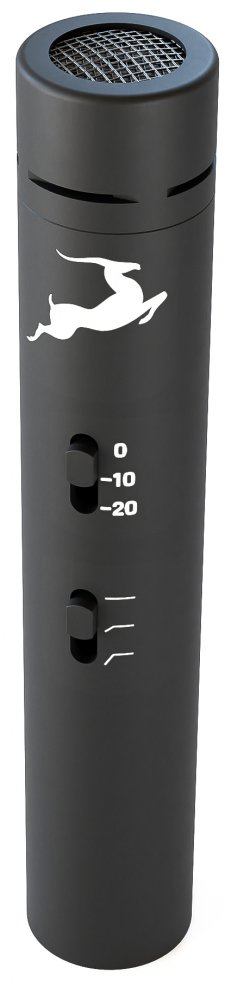

Small condenser modeling microphone pair with switchable pad and high pass filter



A next generation modeling microphone with impressive recording capabilities, allowing you to get creative by applying the sound of more than a dozen classic microphone models. The Edge Note is a perfect studio solution for capturing a wide range of musical instruments. Thanks to its exceptionally high Sound Pressure level and extra features like the Pad attenuation and High-pass filter make the Edge Note the ideal choice for instrumentalists, sound engineers and studio owners who are searching for a flexible, high-quality affordable recording tool.
  • Mic modeling technology reproduces the sound of classic microphone models either natively inside your DAW or via FPGA processing inside an Antelope interface (in real time).
  • High sound pressure level provides plenty of headroom to record loud sources such as drums, guitars, brass instruments and more.
  • Pad attenuator functionality with -10 and -20db ensures virtually zero distortion or clipping"even with the loudest sources.
  • Compact size and stylish black matte color.
  • Fully compatible with 3rd party audio interfaces. Optimized for use with Antelope Audio discrete technology preamps.

  • Innovate with all the classics
    The Edge Note takes on the character of some of the finest small diaphragm mics in existence, delivering stunning detail and realism.
    A total of 13 mic emulations reproduce the sound of legendary microphones used in the best recordings from the last century. They can be used in real-time with an Antelope interface (via Synergy Core processing). If the user doesn?t have an Antelope interface, a native plug-in emulation is available for any DAW and the microphone emulations can be easily applied to the dry audio recording
    *iLok 2 or 3 required to use emulations as native plugins within your DAW

    The key to transparent recordings
    The flat frequency response of the Edge Note provides an exceptionally clean signal. Capturing the smallest detail of an acoustic guitar or a graceful cello becomes an easy task.
    Capturing audio in the most neutral way without dramatically boosting frequencies across the spectrum ensures that when applied, the mic emulations will sound as close as possible to the original microphone being emulated.

    Loudness is no obstacle anymore
    With an astonishing SPL of 146dB, the Edge Note is an excellent choice for recording the loudest sources. Get the most out of a drummer?s performance or a blasting trumpet solo without clipping the converter. For particularly demanding scenarios, the attenuation pad can reduce the level with -10 or -20dB. Additionally, the high-pass filter facilitates the handling of the low-end frequencies and negative aspects of the proximity effect.
  • 13 microphone emulations of classic microphone models
  • Back-electret design provides transparent, balanced sound, & accurate transient responses
  • Cardioid polar pattern suitable for wide variety of recording scenarios
  • Frequency response of 20Hz"20kHz covers the audible spectrum
  • Signal-to-noise ratio of 69dB
  • Pad attenuation switch (-10db and -20dB) improves close-miking of loud sources, ensuring a clean signal without distortion.
  • Maximum sound pressure level of 146dB
  • High-pass filter switch (75Hz and 115Hz) eliminates low-frequency rumble and compensates for proximity effect
  • Metal housing and black-matte finish provides style and endurance
  • Includes shock mount holder to eliminate unwanted vibrations and provide easy positioning
  • 48V DC Phantom Power required
  • Included Mic Emulations
    Edge Note comes with 13 mic emulations, accessible via native plug-in or within an Antelope interface:
    Aalborg 4006
    Berlin 184
    Berlin K53
    Berlin K54
    Berlin K86
    Freiburg 6
    Hamburg 211
    Hamburg 40
    Hamburg 441
    Illinois 57
    Illinois 7B
    Perth 55
    Vienna D112

    Technical Specifications
    Diaphragm type: Back-electret Condenser
    Diaphragm diameter: 0.63" (16.1mm)
    Polar Pattern: Cardioid
    Freq. response: 20Hz ~ 20kHz
    Sensitivity: -42dB | 8mV/Pa (+/-3dB)
    SNR: 69dB (A)
    Max input SPL: 146dB
    Output impedance: 65 Ohms
    Power Requirements: 48V DC Phantom Power
    Output Connector: 3-pin male XLR
    Color: Black matte
    Dimensions (mic body): 4.5" x 0.8" (114mm x 20mm)
    Mount: Shock absorber type
    Breakout Cable: not included

    Inside the box
  • 2x Edge Note small condenser microphone
  • 2x Getting started guide
  • 2x Shock mount holder
