$1349.00

Free shipping in Canada. Conditions

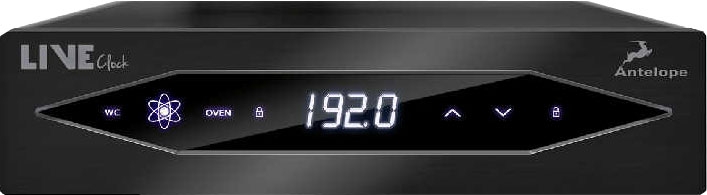

LiveClock is Antelope Audio's portable master clock for location recordists, home studio producers or traveling artists looking for the best live sound. Reinvent your live sound!



SMALL SIZE, BIG SOUND
The best clock will always stand for best sound. Now you have both on the go.
The competitive price and elegantly small footprint make LiveClock the perfect choice for all location recordists, home studio producers or traveling artists.
The LiveClock utilizes the same clocking technology, therefore sounds as amazing as Antelope's legendary Trinity or latest OCX HD master clock.

Reinvent Your Live Sound
A unique in terms of size, sound quality and price audio master clock, designed to perfectly suit any live sound set up. Fitting perfectly into a FOH console dog house, the clock carries the signature Antelope sound packed in a robust aluminum case with a lockable touch screen. Taking up just 1U space and with additional rack ears, it's a breeze to set it in the rig.

192 KHZ SAMPLE RATE SUPPORT
Clock multiple devices simultaneously and sync with Antelope's Atomic Clocks
LiveClock supports up to 192 kHz sample rate, distributed via four Word Clock outputs on BNC and two pairs of AES/EBU and S/PDIF outputs. The unit allows simultaneous clocking of multiple devices, providing the perfect synchronization of either a large live rig or a contemporary studio set up. A 10 MHz input for connection with Antelope's 10MX or 10M offers even greater stability and sound quality.

User-friendly Control Interface
The new LiveClock is easy to configure via the sleek touch buttons. The convenient 'Panel Lock' function prevents from sampling rate changes during a session or live show.
The LiveClock features an exciting new approach to control, allowing convenient device management from various access points. All aspects of the device are easily operated via the OS X and Windows software applications and fully controllable from multiple computers.

Features

  • Oven Controlled Discrete Transistor Crystal Oscillator for lowest jitter
  • Easy to configure via touch-control
  • OS X and Windows compatible software
  • Atomic clock input for perfect stability
  • Network-enabled control panel
  • Specifications

    Atomic Clock Inputs
  • 10 MHz Sinusoidal, BNC, 75 Ohm, 1Vpp typical

  • Inputs
  • 1x Word Clock up to 192kHz
  • 1x Atomic Input

  • Word Clock Specs
  • TTL Level, 75 Ohm Output Impedance

  • Outputs
  • 4x Word Clock Outputs up to 192 kHz
  • 2x AES/EBU Outputs up to 192 kHz
  • 2x S/PDIF Outputs up to 192 kHz

  • Power Supply
  • DC Universal Input 12 - 18V

  • Clocking System
  • 4th Generation Acoustically Focused Clocking
  • 64-bit DDS
  • Oven Controlled Crystal Oscillator

  • Power Consumption
  • 6W max.

  • Operating Temperature
  • 0-50°C/ 32 - 122°F

  • Dimensions (device only)
  • Width: 190 mm / 7,48"
  • Height: 46,8 mm / 1,84"
  • Depth: 134,8 mm / 5,30"

  • Clocking Stability
  • <+/-0.02 ppm, oven controlled at at 64.5ºC/ 148.1ºF

  • Clock Aging
  • < 1 ppm per year

  • Clock Calibration
  • <+/-0.001 ppm

  • Sample Rates
  • 32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

  • USB
  • USB 2.0 Hi-Speed, Type B, only for control

  • System requirements

    Windows
  • OS: Windows 7/8/8.1/10
  • Disk Space: Minimum 512 MB available disk space
  • USB: 1x USB 2.0 Port
  • Required USB bandwidth (for firmware update): 80%-90%
  • CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
  • Memory (RAM): 4GB Minimum (8GB or more Recommended)

  • MAC
  • OS X: 10.9/10.10/10.11 (El Capitan 10.11.5 Recommended)
  • Disk Space: Minimum 512 MB available disk space
  • USB: 1x USB 2.0/3.0 Port
  • Required USB bandwidth (for firmware update): 80%-90%
  • Memory(RAM): 4GB Minimum (8GB or more recommended)
  • CPU: Intel Core 2 Duo (Minimum) Intel Core i3 or higher (Recommended)
  • Additional Info: Internet connection required for product activation.

  • In the box:
  • LiveClock 192 kHz Live Master Clock
  • Wall Wart Power Supply Unit
  • USB cable
  • Rack Mount Kit
  • Dog House Mount Kit
  • Fasteners Set
  • Assembly Instructions
  • Cleaning Cloth
  • Owner's manual
  • Warranty card
  • GTIN (UPC/EAN) : 853744004366
    Manufacturer Part Number : LIVE
