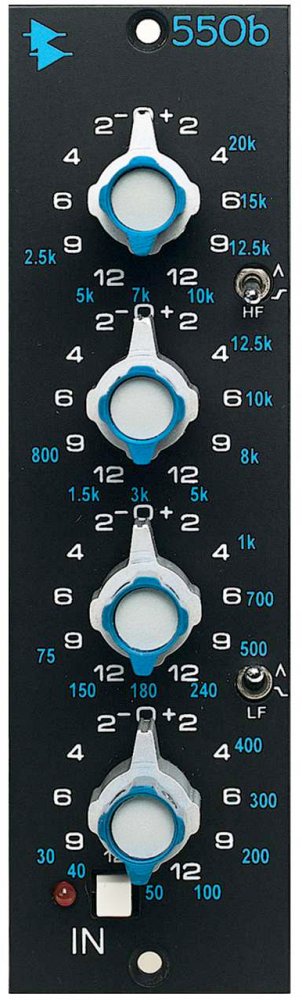

Based on the original API 550, the API 550b is a continuation of the EQ but with an additional filter band and several new frequencies.
Incorporating API's exclusive circuitry and proprietary components (such as the legendary API 2520 Op Amp), the 550b artfully blends the past with the present. So many hit records still depend on the unique 550 sound that engineers around the world find it to be an invaluable tool. In fact, the 550b design has been taken from the original blue prints and spec control drawings from the API archives. It is unlike any other EQ you will ever use.
Rather than offer a huge assortment of complex features, the API 550b provides exactly the right number of controls. Its four EQ bands are overlapped significantly to aid in dual roles as problem solver and sweetening device with each band offering seven switchable filter frequencies that span four-to-five octaves. These frequencies, purposely selected to be musical rather than numeric, were selected by an experienced "who's who" list of the industry's most proficient engineers.
Making use of API's "Proportional Q," an innovation designed by Saul Walker in the '60s, the 550b intuitively widens the filter bandwidth at minimal settings and narrows it at higher settings without the need for additional bandwidth controls. This unique feature minimizes the "phase-shift" sound found in many equalizers. In addition, the reciprocal nature of the 550b enables the user to "undo" what has been done previously with exact precision.
The benefits of the API 550b are most obvious to those who work with EQ on a continuous basis. If major tonal restructuring is required, the extraordinary headroom made possible with API's 2520 Op Amp offers the predictable and warm analog performance, even under duress. With a surprisingly wide range of tonal variations, the 500b is an invaluable and professional audio tool with great flexibility and excellent sonic ability.
Four bands of our famous sounding equalization
Each band offers seven API selected frequency centers
Reciprocal and repeatable filtering
12 dB of boost/cut per band
EQ band 1 and 4 offer shelf/peak switching
"Proportional Q" narrows filter Q at extremes
Traditional API fully discrete circuit design
High headroom +30 dB clip level
Re-issue of 1967 API 550 EQ with an extra band
Number of Bands: Four Filter Type: "Low" and "High" bands are Peak/Shelf switchable. Low-Mid and Mid-High are peaking type Filter Frequency Centers: Low: 30, 40, 50, 100, 200, 300, 400Hz Low-Mid: 75, 150, 180, 240, 500, 700, 1Khz Mid-High: 800, 1.5K, 3K, 5K, 8K, 10K, 12.5K High: 2.5K, 5K, 7K, 10K, 12.5K, 15K, 20K Filter Boost/Cut: ±12 dB Filter Slope: 12 dB per Octave Input Impedance: 18.5 K +4 in, 7.5 K -2 in Output Impedance: Less than 75 Ohms Nominal Levels: -15 to +15 dBu Clipping Level: +30 dBu @ ±16 V Frequency Response: +0, -.3, 30 to 20 kHz Noise: Actual, unw noise, <-98 dBu, 20-20 kHz Distortion: .07% max, @ +18 dBu Output Connectors: 15 position .156sp edge connector Power Consumption: ±12/18 Volts/DC,@ 40 ma. Size: 1.5" X 5.25" X 7.5" Deep Size (Boxed for Shipping): 4.5" X 6.25" X 10" Actual Weight: 2.02 lbs. Shipping Weight: 2.43 lbs.
