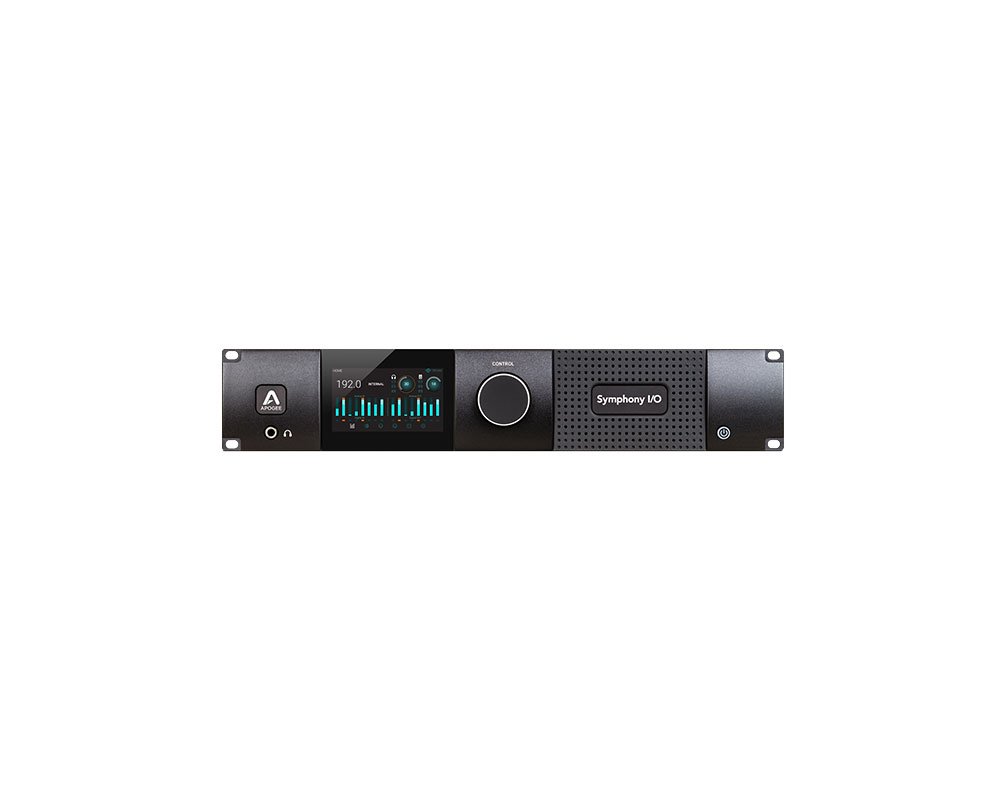

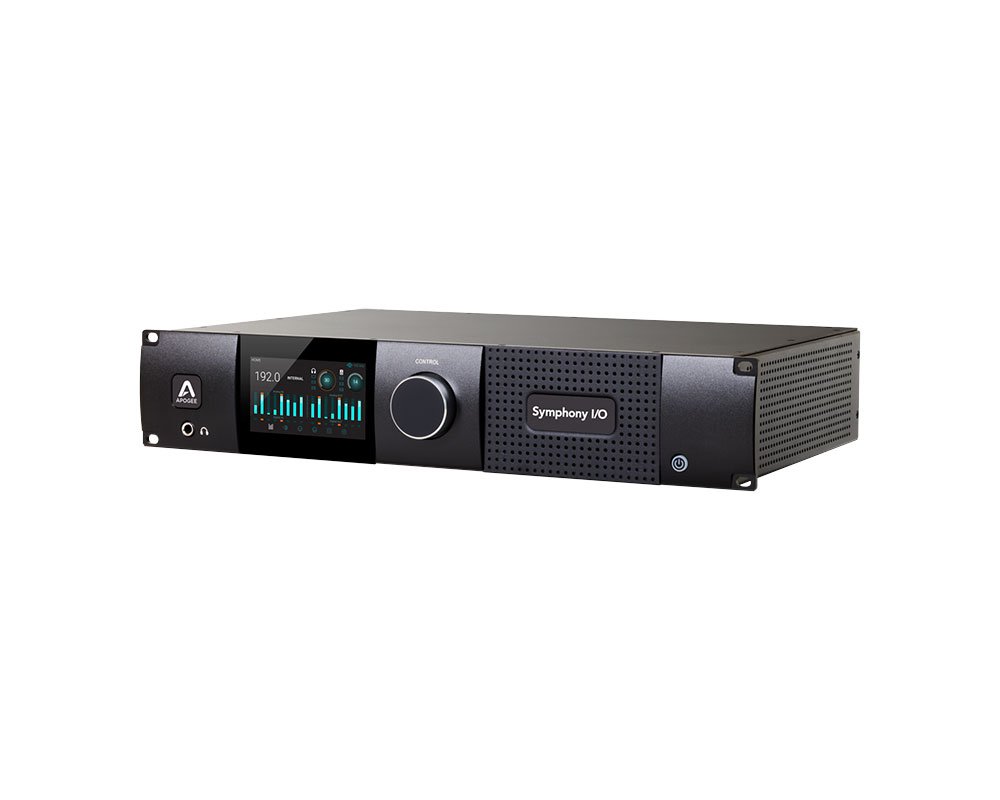

Apogee Symphony I/O MKII Chassis with Thunderbolt/ProTools HD+/Dant
UPC/EAN #805676303352
MPN #SYM2-TB-DANTE
Chassis with Thunderbolt, Pro Tools HD Plus and Dante Plus cards, modular I/O ready, immersive audio support, ultra-low latency, touchscreen control
The Symphony I/O MkII Chassis with Thunderbolt, Pro Tools HD Plus, and Dante Plus Cards delivers a comprehensive solution for studios that need maximum connectivity and flexibility. This advanced configuration integrates Apogee's state-of-the-art AD/DA conversion with three high-performance connectivity options-Thunderbolt, Pro Tools HD, and Dante-offering seamless compatibility across native, broadcast, and networked audio workflows.
With support for up to 32 channels of modular I/O, this chassis is ideal for demanding recording, mixing, and mastering environments. Whether you're working in immersive formats like Dolby Atmos or integrating with large-scale studio and live sound systems, the Symphony MkII adapts effortlessly. Its intuitive touchscreen control, ultra-low latency, and pristine audio fidelity make it a future-proof hub for modern hybrid studios.
Features
Includes Symphony Mk II chassis with all three connectivity options: Thunderbolt, Pro Tools HD Plus, and Dante.Offers maximum flexibility for hybrid studios and networked audio setups.Compatible with Mac and PC for use with a wide range of DAWs and workflows.Ready to accept any Apogee I/O modules (sold separately), supporting up to 32 analog channels.Intuitive touchscreen interface for fast and easy control of routing and monitoring.Enables immersive audio workflows, supporting formats like Dolby Atmos and Sony 360.Delivers premium-quality AD/DA conversion and ultra-low latency.Built in the USA for reliable, professional-grade performance.
Specifications
General Specifications:

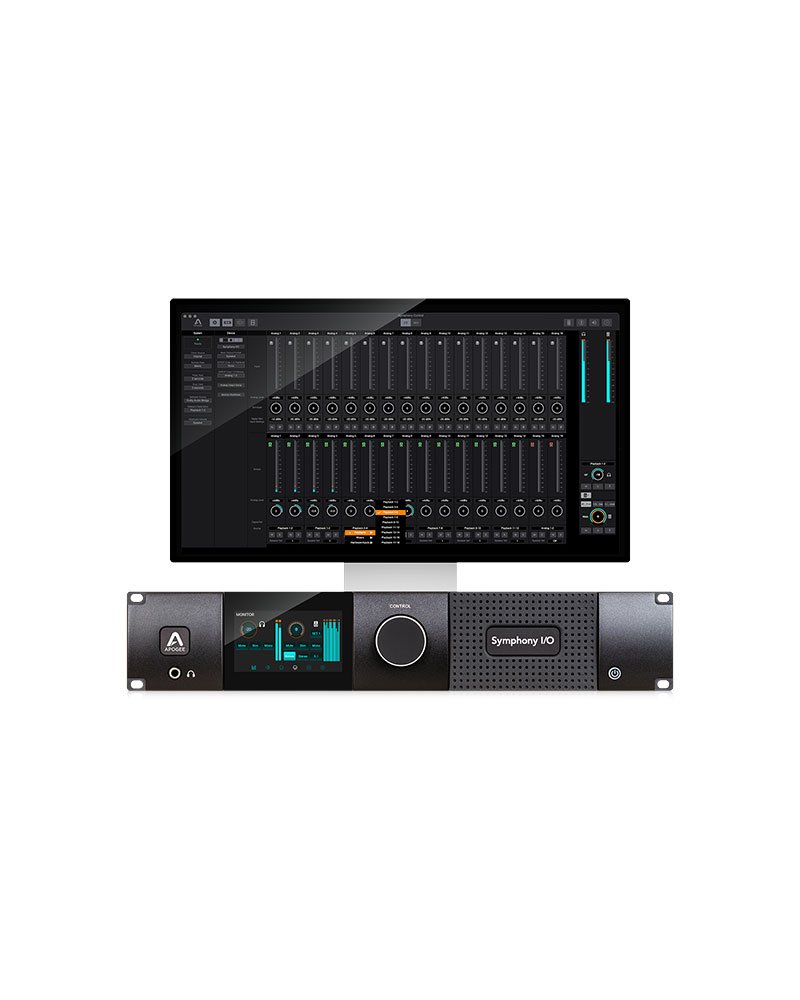

Product: Apogee Symphony Mk IIModel: Symphony I O MKII chassis with Thunderbolt, Pro Tools HD Plus, and Dante Plus cardsConfiguration: Chassis only with integrated Thunderbolt, Pro Tools HD Plus, and Dante Plus connectivity cards; no I O modules includedDisplay: Intuitive touchscreen interfaceModularity: Supports up to 32 channels of analog I O via user-selected modular cardsPower: 90 to 240 VAC, 50 to 60 Hz, 150 WBuild: Designed and built in the USA

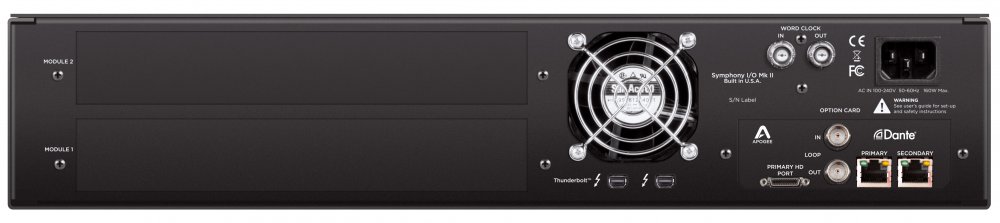

Connectivity Options:
Platform: Thunderbolt, Pro Tools HD Plus, Dante PlusThunderbolt Compatibility: Mac OS 10.10 and abovePro Tools HD HDX Compatibility: Mac or PC with Pro Tools HD 9 or greaterDante Compatibility: PC compatible
Digital Conversion Specifications (available with I O modules):
Analog to Digital THD plus N: minus 115 dB at 22 dBu unweightedAD Dynamic Range: 122 dB A weightedDigital to Analog THD plus N: minus 119 dB at 21 dBu unweightedDA Dynamic Range: 126 dB A weightedFrequency Response: 44.1 kHz to 20 kHz plus minus 0.05 dB
Headphone Output:
Connector: 1 stereo quarter inch front panelTHD plus N: minus 110 dB at 19 dBu into 600 Ohm, minus 101 dB at 14 dBu into 32 OhmDynamic Range: 121 dB A weightedOutput Design: Apogee Constant Current Drive
Monitor Control and Immersive Audio:
Thunderbolt Monitor Workflows: Supports up to 32 speaker outputsImmersive Audio Ready: Compatible with Dolby Atmos and Sony 360 Reality Audio
Use Case:
Ideal for professional studios needing maximum flexibility and redundancy with Thunderbolt, Pro Tools HD, and Dante platformsRequires additional modular I O cards for input and output functionality
SKU and Configuration:
SKU 1: Symphony I O MKII chassisSKU 2: Thunderbolt, Pro Tools HD Plus, and Dante Plus interface cards installedConfiguration Type: Chassis with full connectivity, no analog or digital I O modules installed
