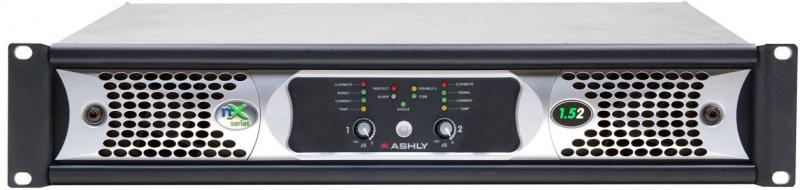

Ashly nX1.52

The Ashly nx1.52 is a 2 channels amplifier with programmable output. Use the rear panel DIP switches to program each channel.

The unit shall be a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power shall be 1,500W per channel at Low Z and 70V modes, and 1,250W in 100V mode. There shall be an automatic but defeatable sleep mode consuming <1W. A switch mode power supply shall auto-detect 120VAC or 240VAC mains, and a Neutrik® powerCON shall be used for the AC cord. Each channel shall have selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel shall have remote DC level control. Input connectors shall be Neutrik® XLR/TRS combo jack and Euroblock, while output connectors shall be Neutrik® speakON.

The unit shall have a front panel power switch and level controls that can be disabled. LEDs shall indicate Protect, Sleep, Disabled, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The amplifier shall have temperature dependent variable speed forced-air cooling. The unit shall weigh <22 lbs (10kg), measure 19"W x 3.5"H x 16.8"D (483mm x 89mm x 428mm), and mount in a standard 19" rack. There shall be a five year warranty for units purchased in the US. No other unit shall be acceptable unless all specifications represented herein are met or exceeded and submitted in writing by an independent testing agent.
  • Power Amplifier 2 x 1,500 Watts @ 2
  • High output: Up to 12,000W in 2U
  • Automatic sleep-mode, <1W on all nX amplifiers
  • Ethernet monitoring and control, RTC event scheduler and integrated programmable power sequencing delay (nXe & nXp only)
  • Load impedance monitoring (nXp only)
  • Optional AES3 digital-in w/ pass-through, CobraNet and Dante
  • Networkable, serial, and passive remote control options
  • Combo and Euroblock inputs and Neutrik speakON connectivity
  • Neutrik powerCON easy-disconnect power cord
  • Specifications
  • Voltage Gain : Selectable at 26dB, 32dB, 38dB, or 1.4V
  • Damping Factor : >250 (8 Ohms load <1kHz)
  • Input High Pass Filter : 80Hz 2nd order
  • Distortion (SMPTE, typical) : <0.5%
  • Distortion (THD-N, typical) : <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)
  • Channel Separation : -75dB (dB from full output, 1kHz)
  • Signal to Noise (20Hz-20kHz, unweighted) : >111dB (all 1.5x models)
  • Frequency Response : 20Hz-20kHz, +/-0.05dB
  • Balanced Input Connector : Euroblock 3.5mm, 1/4" TRS and XLR Combo jack
  • Input Impedance : 10k Ohms
  • Maximum Input Level : +21dBu
  • Speaker Output Connector : Neutrik® speakON®
  • Remote DC Level Control : Euroblock 3.5mm - Gnd, CV, V+ per input
  • Attenuators (per channel) : Front panel and remote. Fully off = Mute
  • Amplifier Protection : Inrush current limitation, temperature monitoring, output over-power protection, mains fuses
  • Airflow : In through sides, Out through front
  • Cooling : Continuously variable temperature controlled axial fan(s)
  • Environmental : 32-113 deg F, (0-45 deg, C) (noncondensing)
  • Unit Weight : 22lb ( 10Kg)
  • Shipping Weight : 28lb ( 12.8Kg )
  • Unit Dimensions : 19"W x 3.5"H x 16.84"D (483mm x 89mm x 428mm)
  • Shipping Dimensions : 24.5"W x 22"H x 5.25"D (622mm x 559mm x 133mm)
  • Reviews
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the nX1.52, please visit the website of Ashly
