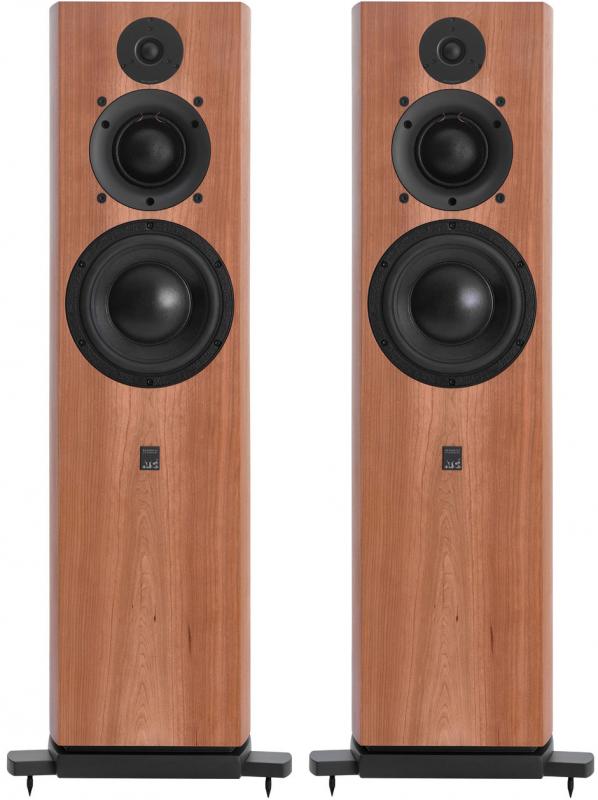

The ATC SCM40A floor Standing Speakers are a full range 3-way Floor Standing ATC design. Using world renowned ATC 75mm midrange driver unit, the ATM SCM 40A's ability to reproduce music at realistic levels is truly amazing. The ATC SCM40A floor Standing Speakers employ the same 'soft dome' technology found in the reference systems built for the recording industry. This design feature among others contribute to the wide bandwidth and exceptional dynamic range of this outstanding loudspeaker. Available in real wood veneers and 'professional black' finish, the ATM SCM40A offers all the unique sonic advantages for which ATC speakers are valued the world over.
Manufactured in house to exacting tolerances, ATC's drivers are legendary for their many design innovations. The hand-wound short voice coils use only high density edge-wound flat OFC wire and operate in a precision long magnetic gap. Front and rear magnetic venting not only reduces airflow and noise, but increases power handling and long term reliability. Meanwhile, massive motor assemblies offer no-compromise optimization for each voice coil diameter.

New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.

ATC Soft Dome mid-range driver.

ATC 164mm short coil bass driver.

All drive units incorporate massive optimised motor assemblies.

On-board grounded source 242 watt Class A/B Tri-amplifier.

Active filters and overload protection.

6 year warranty.

Drivers: HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC

Matched Response: ±0.5dB

Frequency Response (-6dB): 48Hz-22kHz

Dispersion: ±80 Coherent Horizontal, ±10 Coherent Vertical

Max SPL: 112dB

Crossover Frequencies: 380Hz & 3.5kHz

Connectors: Male XLR

Input sensitivity : 1V

Filters : 4th Order critically damped with phase compensation.

Overload Protection : Active FET momentary gain reduction.

Fault Protection : DC fault protection and thermal trip. Fault indication on rear panel mounted LED.

Amplifier Output: 150W LF, 60W MF, 32W HF

Cabinet Dimensions (HxWxD): 980x265x344mm (inc. foot plinth 980x370x349, without spikes grill adds 34mm to depth)

Weight: 36kg
