The entire Studio Economik's website is now priced in Canadian Dollars only.

$659.00

Free shipping in Canada. Conditions

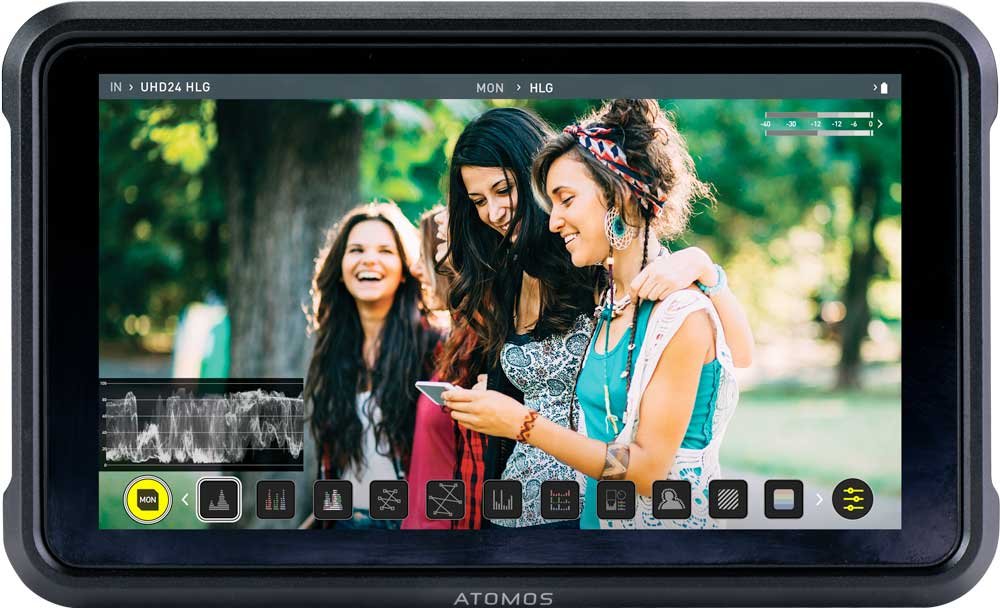

With a stunning 5" 10-bit HDR or SDR display, the Shinobi SDI allows you to see your images clearly in daylight with the near edge-to-edge 1000nit anti-reflection screen.



The sleek light-weight design is crafted for maximum efficiency and weighing in at just 226g/7.8oz, it is one of the lightest 4K SDI and HDMI monitors on the market, stealthily attaching to any SDI & HDMI camera setup.

The Shinobi SDI utilizes our revolutionary AtomOS 10 platform, packed with an extensive suite of scopes and one touch simple operations. Shinobi SDI includes monitoring tools for focus, framing & exposure, including Focus Peaking, 4:1 / 2:1 / 1:1 Zoom, Zebra, False Color, Frame Guides, SMPTE Safe Area, Waveform, Histogram, RGB parade, Vectorscope, Anamorphic De-squeeze, new multi-view 'Analysis' mode and more. Each feature customizable and interchangeable in size, best suiting the Shinobi SDI user.

Specifications

Weight
Without batteries: 226g / 7.8oz.
Dimensions (W x H x D mm): 151 x 91.5 x 31.5mm
Construction: Polycarbonate ABS
Mounting points: 1/4"-20 screw mount. 1x top and 1x bottom

Power
Operating power: 4 - 7W
Compatible batteries: NP-F series and supporting accessories. AtomX or other.
Input voltage (battery): 6.2V to 16.8V

Battery time (based on 7.4V)
Standby: 2600mAh - 3hrs, 5200mAh - 6hrs, 7800mAh - 12hrs
Monitor: 2600mAh - 1.5hrs, 5200mAh - 3hrs, 7800mAh - 6hrs

DC In: via Battery Eliminator

Touchscreen
Size: 5.2"
Resolution: 1920 x 1080
PPI: 427
Aspect ratio: 16:9 native
Color Gamut: REC709 HDTV
Look up table (LUT) support: 3D LUT (.cube format) *Extended Support planned
Anamorphic de-squeeze: 2x, 1.5x, 1.33x
Technology: IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

HDR
AtomHDR: Yes

HDR Monitoring (Gamut)
  • Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3
  • Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
  • Panasonic Vlog
  • JVC JLog1
  • RED Log3G10 /RED LogFilm
  • FujiFilm F-log
  • PQ10k
  • HLG
  • Nikon N-Log

  • HDR Monitoring (Gamma)
  • Sony SGamut / SGamut3 / SGamut3.cine
  • Canon Cinema / DCI P3 / DCI P3+
  • Panasonic V Gamut
  • Arri Alexa Wide Gamut
  • Rec709 / BT.2020
  • JVC
  • RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4

  • Bit Depth: 10-bit (8+2 FRC)
    Brightness: 1000nit (+/- 10%)
    Screen Mirror/Flip: Horizontal Flip (Selfie mode), Vertical Flip * Landscape/Portrait mode planned for future firmware release
    Anti-reflective: Special AR coating and Anti-fingerprint technology

    Video Input
    SDI: 1 x HD-SDI 1.3G/1.5G
    HDMI: 1 x HDMI (1.4)
    Signal: Up to Uncompressed true 10-bit or 8-bit 422 (camera dependent)

    Supported Formats (Video Input)
    2k DCI 2048 x 1080: 23.98p, 24p, 25p, 29.97p, 50p, 59.97p
    UHD 3840 x 2160: 23.98p, 24p, 25p, 29.97p
    HD 1920 x 1080: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
    HD 1280 x 720: 50p, 59.94p

    Audio In (48kHz)
    HDMI: 2ch 24-bit 48kHz
    SDI: 8ch 24-bit 48kHz

    Audio Out
    Headphone out: 3.5mm

    SD Card Slot
    Full size SD Card slot: SD Card Slot allows LUTs to be loaded to the unit and is also used when updating AtomOS firmware

    AtomOS
    Monitoring Features: Luma Waveform, RGB parade, RGB Overlay, Vectorscope, Vectorscope Zoom, Histogram, RGB Histogram, Anlaysis mode (Multiview scopes: Waveform, Histogram, Vectorscope), Focus Peaking, Zebra, False Color, Blue Only Exposure, Zoom (1:1, 2:1, 4:1), SMPTE Safe Areas, Cinema Guides, Anamorphic Desqueeze.

    What's In The Box
    Included: Shinobi SDI unit, 12V-15W AC power supply, Quick Start guide

    Optional Accessories
  • Power Kit: 2 x NP-F Batteries, 1 x charger, 1 x power supply
  • AtomX 5" Cage for Shinobi SDI (by SmallRig)
  • AtomX 5" Sunhood (compatible w. Shinobi SDI / Ninja V)
  • AtomX 5" Screen Protector (compatible w. Shinobi SDI / Ninja V)
  • AtomX 10" Arm & Quick Release Plate (by Lanparte)

  • Other
    Atomos HDMI cables
    Xrite i1 Display Pro Calibrator and USB to Serial cable, AtomX 5" Accessory Kit

    Warranty: 1 year

    Reviews

    $659.00

    Free shipping in Canada. Conditions
