The entire Studio Economik's website is now priced in Canadian Dollars only.

$4919.00

Free shipping in Canada. Conditions

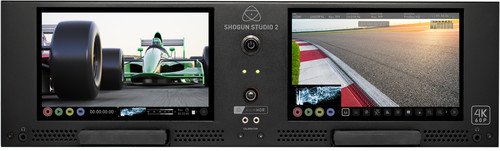

Harnessing the latest 4K/HD recorder, monitor and playback technologies the Shogun Studio enhances existing HD workflows and provides an rack mount solution for creating 4K Masters



Preserve your sensor's pristine pixels in ProRes RAW at up to 5.7kp30, 4kp120 DCI/UHD and 2kp240 DCI/HD. CDNG supports up to 4kp30 DCI. Inferno is compatible with Sony FS series, Canon C300MKII/C500 or Panasonic EVA-1/Varicam LT.

10-bit ProRes/DNxHR up to 4Kp60
Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in ProRes or DNxHR codecs at 4Kp60 or 2Kp240, depending on the camera's capability.

The depth and quality of the image is preserved with data rates of up to 1.8Gbs, 220MB/s.

Bright, vibrant HDR images anywhere
The 7" 1920x1200 1500nit high bright HDR display allows you to see your images with unparalleled accuracy. Nail focus and exposure, even outside in daylight. The AtomHDR panel shows 10+ stops of HDR resolved in real time from RAW/Log/PQ/HLG sources.

Balanced XLR monitor & record
Eliminate the need for a separate audio recorder. Add 48V stereo mics via the balanced XLR breakout cable. Select Mic or Line input levels, record up to 12 channels of digital audio from HDMI or SDI. Monitor selected stereo via the 3.5mm headphone jack. There are dedicated meters, gain controls and adjustments for frame delay.

Professional monitoring tool
Shogun Inferno has extensive monitoring tools, including custom 3D LUTs, false color, peaking, movable 1-1 and 2-1 pixel magnification, waveform, RGB parade, vectorscope. You can even calibrate for color accuracy.

Portable Playback Deck
The ultimate battery-powered playback deck, review and playout footage anywhere - scrub through, jog frame-by-frame and even watch back in slow motion. Metadata tag footage as you go to mark favorites, rejects and more. Bring your footage into your timeline and immediately filter your tags.

Quad SDI & HDMI 2.0 In/Out
Seamlessly connect any SDI or HDMI device for monitoring and recording. Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G/Quadlink SDI in almost any combination and eliminate the need for specialist converters.

Edit HDR in the field
After shooting, immediately feed HDR into your Shogun directly from your Final Cut Pro X timeline using an I/O box for mobile HDR grading. We support any NLE or Grading suite that support our file formats - basically all of them!

Specifications

Weight
Weight: 5.0kg / 11lb
Rack height: 3Ru
Rack mounting: Removable rack ears
Dimensions (W x H x D mm): 447 x 152 x 251mm, 17.6 x 6.0 x 9.9" (without rack ears)
490 x 152 x 251mm, 19.3 x 6.0 x 9.9" (with rack ears)
Construction: Steel construction for durability
Cooling: Actively controlled fan with heat sinks

Power
Operating power (including SSD): 20 - 60W
Redundant PSU: Yes
Compatible batteries: No
Input voltage (battery) -
DC Out: No
Continuous power
* Patent pending -

Touchscreen
Size: 7.1"
Resolution: 1920 x 1200
PPI: 320
Aspect ratio: 16:9 native
Color standard: Rec.709 HDTV
Look up table (LUT) support: 3D LUT (.cube file format)
Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional X-Rite unit
Video analysis tools: Luma waveform, RGB parade, Vectorscope, Vectorscope zoom
Calibration: Calibration in factory to Rec.709, in eld
calibration with optional X-Rite unit

HDR
AtomHDR: Yes
Supported Log formats: Sony SLog2 / SLog3, Canon CLog / CLog2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog
Supported Gamuts: Sony SGamut / SGamut3 / SGamut3.cine
Canon Cinema / BT2020 / DCI P3 / DCI P3+
Panasonic V Gamut
Arri Alexa Wide Gamut
Bit depth: 8-bit
Brightness: 400nit
PQ in/out
In = Post Out = Monitor: Yes / Yes

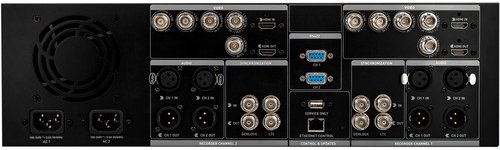

Video Input/Loop Out
HDMI: 1 x HDMI (1.4b) per channel
SDI: 1 x 4K-SDI 12G/6G or HD-SDI 3G/1.5G per channel
Signal: Uncompressed true 10-bit or 8-bit 422
(camera dependent)

Video Output (Play Out)
HDMI: 1 x HDMI (1.4b) per channel
SDI: 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE) per channel
Signal: Uncompressed true 10-bit or 8-bit 422
(playback file dependent)

Supported Codecs & Frame Rates (Record & Playback)
Raw to ProRes / DNxHR:
Raw cameras supported (Sony FS5/FS7/FS700, Canon C300MKII, C500)

Codecs
Apple ProRes HQ, 422, LT
AVID DNxHR HQX. HQ, SQ, LB

Frame rates
4K DCI / 4K UHD; 24/25/30B
2K / 1080p; 24/SF24/25/SF25/30/SF30

Video to ProRes / DNxHR Codecs
Apple ProRes HQ, 422, LT
AVID DNxHR HQX. HQ, SQ, LB

Frame rates
4K DCI / 4K UHD; 24/25/30
2K*** / 1080p; 24/SF24/25/SF25/30/SF30/50/60/100/120
1080i; 50/60i
720p; 50/60p

Onboard Processing
HDMI: 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
SDI: Yes - Always on
Analogue audio: On HDMI/SDI loop out (Rec & Playout)

Audio In/Out (48kHz PCM Audio)
HDMI: 2 or 8ch 24-bit, camera dependent
SDI: 12ch 48kHz 24-bit
Analogue audio: 2 x XLR in & 2 x XLR out on rear per record channel.
Mic or line level with phantom 48V
Processing: Gain control on line in & headphone output
Maximum audio quality: 24-bit, 48kHz
Audio delay: Delay setting +1 to 99 frames

Remote Control
HDMI: Auto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open Standard
SDI: SDI trigger camera selectable
RS422: RS422 machine control
AMP: via Ethernet RJ45 10/100
Serial: Calibration (front)

Timecode
HDMI: Embedded timecode from camera or video device
SDI: Embedded timecode from camera or video device
LTC In: Yes (LTC loop back)
GenLock In: Yes (GenLock loop back)

Playback
Playlist: Yes (run down or reverse order) for selected, favorite or all clips
Playback options: Loop in & out markets

Recording
Dual channel: Record 4K master with HD proxies. Record both ProRes & DNxHR versions, indepen- dent dual channel record.
Continuous record: Single channel 4K / HD recording automatically switches between drive when at capacity
Pre-roll record: Yes (HD 8s, 4K 2s)
Custom timelapse: Yes (Key frameable up to 10 video and single frame Intervals, can be triggered from internal clock).
Meta data tagging: Yes (10 tags available)

Recording Media
Drive slots: 2 (1 per record channel)
Drive connection types: SATA
Supported media
(Approved List at atomos.com/drives): 4K / HD (50/60/120p*)
SSD 2.5", HDD (7,200 up to 1080p60)

HD
SSD 2.5", HDD (5,400 up to 1080p30)
Master caddy case Master Caddy II (included)
75mm x 105mm x 12mm
Master caddy dock: 2.5" SATA to USB 2.0/3.0
Supported applications: Supported Applications FCPX/FCP7+
Media Composer 5.0+
Premiere 5.5+
EDIUS 6.0+
Vegas Pro 10+
Lightworks
Autodesk Smoke 2015
XML support FCPX XML native, FCP7 supported with conversion
(Adobe compatible)

Accessories included:
Shogun Studio unit, 2x Rack ears with screws,
5x Master II Caddies, 4x Rubber feet, 2x Large rubber feet,
2x IEC power cable, 1x Screen cleaning cloth
Optional extras: Master Caddy II x 5, X-Rite calibration
Warranty: 1 year. Extended to 3 years on product registration
Manufacturer Part Number : ATOMSHSTU2
