Aviom AN-16/O V.4

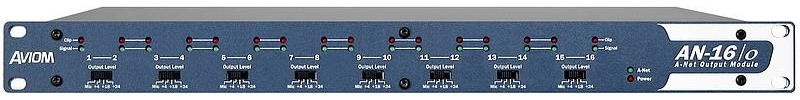

The Aviom AN-16/o v.4 Output Module is a 1U rack-mount 16-channel digital-to-analog converter for Pro16 digital snake and audio distribution systems.

The AN-16/o v.4 Output Module connects to any Pro16 input module, console card, or A-Net distributor and provides 16 balanced TRS line-level analog outputs. Five output levels, from mic to +24dBu, are available to easily accommodate the level requirements of the gear its output signals are being connected to.

Use the AN-16/o v.4 anywhere analog outputs are required: on stage or at FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module. Sixteen balanced outputs are provided on the rear panel via DB25 multipin connectors. The analog outputs can be set (per channel pair) to +24dBu, +18dBu, +4dBu, or mic level.

Connecting to Wireless In-Ear Monitors
In personal mixing systems using the A360 Personal Mixer with the D800 or D800-Dante A-Net Distributors, the AN-16/o v.4 simplifies connections to wireless IEM systems. Each A360 Personal Mixer sends its stereo mix output back into the network which appears as a pair of channels on the AN-16/o v.4. Each AN-16/o v.4 supports up to eight A360s. Simply patch the analog outputs on the AN-16/o v.4 into the IEM transmitter's inputs. No analog cables are required at the A360 on stage.

Digital Snakes and Audio Networks
Use the AN-16/o v.4 anywhere analog outputs are required: on stage or FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module. The AN-16/o v.4 can be connected to a Pro64 digital snake or audio network by adding the ASI A-Net Systems Interface.
Features
  • 16 balanced mic- or line-level outputs
  • Four-position output level switch per channel pair
  • +24, +18, and +4dBu line-level, or mic-level outputs
  • Converts A-Net digital stream to 16 analog audio channels
  • 48kHz, 24-bit D/A converters
  • Unlimited splits and digital copies
  • Optional AN-16SBR System Bridge combines up to 4 A-Net streams onto one cable
  • Cat-5e cable runs up to 500 feet (150 meters) between devices
  • Specifications
    Audio Outputs
    16 channels, balanced
    Outputs
    DB25 multipin connectors (2); TascamĀ® analog audio pinout
    Impedance balanced output for mic, +4dBu, and +18dBu; differential output for +24dBu
    D/A Conversion
    48kHz sample rate, 24 bit
    Frequency Response
    4Hz-22kHz
    A-Net Input/Output
    one EtherCon Category 5 (RJ45 connector)
    A-Net Expansion
    one EtherCon Category 5 (RJ45 connector)
    Output Level Settings
    Four-position switch, per channel pair;
    +24dBu, +18dBu, +4dBu, and Mic
    Channel LED Indicators
    Signal Present and Clip, per channel
    Metering
    LEDs; green: Signal Present; red: Clip; per channel
    Maximum Output Level
    +24dBu
    Output Impedance
    226 ohms (+18dBu, +24dBu); 100 ohms (+4dBu and mic)
    Freq. Response
    4Hz-22kHz +0.2dB/-3dB
    THD +N
    < 0.004%
    Crosstalk
    -90dB
    Bit Error Rate (BER)
    10(-12)
    Signal to Noise (unweighted)
    92dB typical, A/D to D/A
    Measured from AN-16/i to AN-16/o v.4 Output Module
    Digital Connections
    A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1;
    Neutrik EtherCon connectors
    A-Net Pro16 A-Net Expansion combines two A-Net streams (32 channels of audio)
    onto one Cat-5e cable; uses unshielded Cat-5e UTP (or better) cable
    Latency
    <0.620 msec (measured from analog input to analog output)
    Power Supply
    External, DC, universal switching type
    Input Voltage
    100-240 volts, 50/60Hz, 30VA
    Output Voltage
    24 VDC, 0.5 amp
    Plug Size
    2 mm
    Power
    24 VDC, 500mA
    Dimensions
    19" (482.6 mm) wide x 5.75" (146 mm) deep;
    1U high
    Weight
    6.8 lbs. (3.08 kg)
    Options
    SB4 System Bridge; used to combine up to four A-Net streams for
    transmission over one Cat-5e cable
