Aviom AV-M8

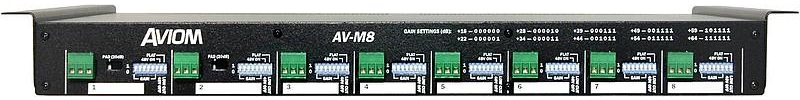

The Aviom AV-M8 Mic Input Module is an installation-style product that provides eight mic-level inputs via latching 5mm Euroblock connectors to a Pro16 system.

Two of its channels also include a 20dB switchable pad for use with line-level input sources. A second group of eight channels of digital audio may also be input to the same A-Net stream by cascading a second AV-M8 module via the built-in ADAT I/O connections.

The AV-M8 is compatible with all Pro16 Series products including Personal Mixers, A-Net distributors, and output modules. The unit may be mounted in a rack using the detachable rack ears or directly to a table or podium using the reversible mounting flanges.

The versatile AV-M8 Mic Input Module is an eight-input mic preamp for Pro16® systems. Two of its channels also include a 20dB switchable pad for use with line-level input sources such as a computer or CD player. Eight channels of digital audio may also be input to the same A-Net digital stream from a second AV-M8 module suing the built-in ADAT® connections. For permanent installations in conference rooms or other settings, the unit may be mounted in a rack or directly to a table or podium, using the detachable rack ears or reversible mounting flanges.

Input Connections
Analog audio is input via eight latching 5.0mm Euroblock connectors. Each analog input channel features configuration DIP switches for the individually selectable gain settings, +48V phantom power, and a low cut filter.

Analog input channels from the AV-M8 are routed to Channels 1-8 in the A-Net® stream, while channels input via the ADAT link from a second AV-M8 become A-Net Channels 9-16. Stereo linking for all eight A-Net channel pairs is supported through an eight-position rear-panel DIP switch.

Network Connections
A-Net connections include A-Net Out and A-Net Expansion, using locking Neutrik EtherCon connectors. The A-Net Expansion jack allows up to 32 channels to be carried on a single Cat-5e cable, in either 32x0 or 16x16 configurations. Larger systems (up to 64 channels on a cable) can be built using Aviom's SB4 System Bridge. Pro16 A-Net supports Cat-5e cable runs up to 500ft/150m between devices.
Features
  • Converts eight analog audio channels to a Pro16 A-Net digital stream
  • ADAT® In and ADAT Out for cascading two AV-M8 modules
  • 48kHz, 24-bit A/D converters
  • Per-channel controls for gain, +48V phantom power, and low cut filter
  • 20dB switchable pad (Channels 1 and 2)
  • Stereo Link per channel pair
  • Reversible mounting flanges and rack ears
  • Specifications
    Analog Audio Inputs
    6 mic-level, 2 balanced line- or mic-level
    8 female Euroblock connectors, 5.0mm, panel-mount
    Screw terminals: Audio +; Audio -; Ground
    8 male Euroblock connectors supplied in box
    A/D Conversion
    48kHz, 24-bit
    Gain Settings
    +16dB to +64dB (10 settings)
    6-position DIP switch, per channel
    Max. Input Level
    Mic: -2dBu; Line: +18dBu
    Stereo Operation
    Stereo Link, per channel pair;
    Two-position switch (Normal, Link)
    ADAT
    1 ADAT In, 48kHz, 8 channels routed to A- Net Out, Channels 9-16
    1 ADAT Out, 48kHz, 8 channels routed from analog inputs
    Input Impedance
    Channels 1-2, without pad: 2.48k ohms
    Channels 1-2, with pad: 5.63 ohms
    Channels 3-8: 2.68k ohms
    Freq. Response
    4Hz-22kHz +0.2dB/- 3db
    THD +N
    < 0.003%
    Crosstalk
    -90dB
    Signal to Noise (unweighted)
    A/D: -105dB
    Low Cut Filter
    - 3dB @ 85Hz, -18dB per octave
    Phantom Power
    +48 volts, per channel
    Pad
    20dB, switchable, Channels 1 and 2 only
    Mic Input
    EIN (Equivalent Input Noise): -128dBu
    (Rs = 150 ohms, 20kHz BW, Gain = +60dB)
    CMRR (Common Mode Rejection Ratio): 80dB @ 120Hz (Gain = +60dB)
    Bit Error Rate (BER)
    10-12
    Pro16 A-Net
    Out: 1; Expansion: 1; EtherCon® connectors
    A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable
    Uses unshielded Cat-5e UTP (or better) cable
    Latency
    <0.880 msec (measured from analog input to analog output)
    Power Supply
    Internal, universal switching type; IEC jack
    Voltage
    100-240VAC, 50-60Hz, 60W; Fuse: 250VAC, F4AL
    Dimensions
    19 in. (482.6 mm) wide x 9.25 in. (243.9 mm) deep; 1U high
    Weight
    8 lb (3.63 kg)
