MPN #STUDIO SUB2-18C

$3850.00

Save 7%, MSRP $4140.00
Financing available
Free shipping in Canada. Conditions

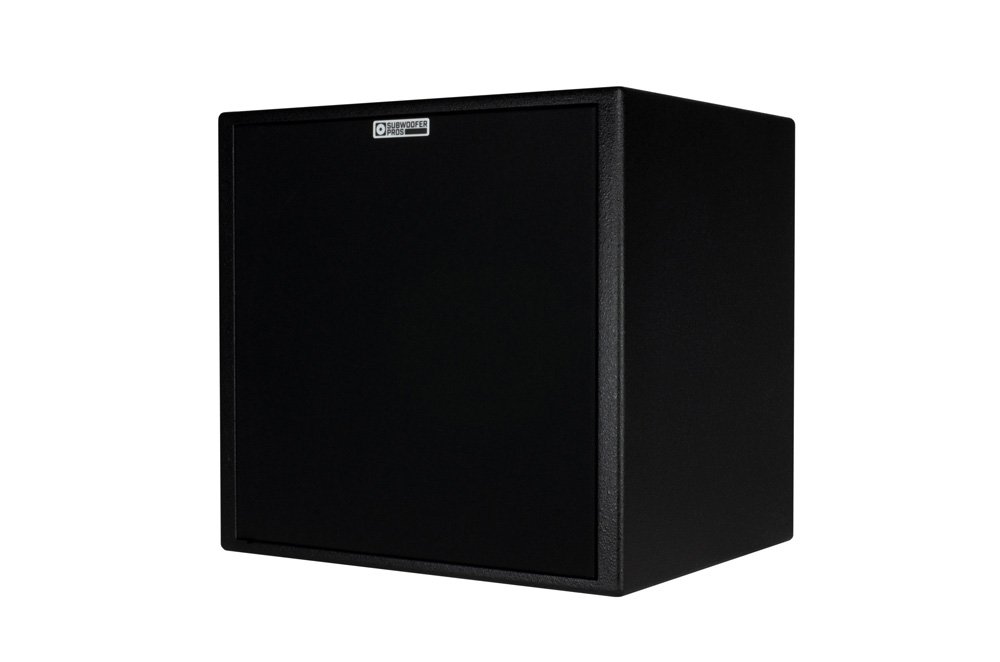

Active 700w 18 inch studio subwoofer 40/60/80/95Hz Infra Filter Low Pass selector



The ISUB2-18 is a self powered professional subwoofer system. It employs stereo summing management combining Two inputs for a mono summed bass system.

The signal is processed by the INFRA dual integrator driving a 700 watt power amplifier into a front firing 18" cone loudspeaker in a sealed box. This provides a flat acoustical response down as low as 8 Hertz. Two isolated inputs allow the combining of a stereo signal for mono summed bass. Two units can be used separately for stereo bass systems.

The internally set Dynamic Filter protection maintains undistorted audio reproduction under accidental overload conditions. An optional remote indicator module may be placed in a convenient visible location to indicate the dynamic filter protection threshold has been reached.

INFRA TECHNOLOGY: The INFRA driver is operated below resonance and flattened with an electrical boosting circuit, the INFRA dual integrator. Operating below resonance the INFRA system exhibits predictable, uniform responseand reproduces each note with the same emphasis, reducing the influence of the resonances found in conventional above resonance bass systems. In addition, the use of a low pass filter is eliminated (and with it the associated long variable delay) and replaced with the INFRA dual integrator with its short uniform delay.Upon close listening, it is clear that the impression of power and impact is greater with an INFRA system when compared to conventional bass systems. This is true even when the two systems will measure the exact same Sound Pressure Level on a calibrated SPL meter. This is because the INFRA subwoofermaintains the bass energy in a tight packet, aligned with the upper range signal, providing a greater body impact and a seamless musical connection with the main loudspeakers.
Objectively, the INFRA system exhibits superior frequency and phase response.

INFRA TECHNOLOGY: The INFRA driver is operated below resonance and flattened with an electrical boosting circuit, the INFRA dual integrator. Operating below resonance the INFRA system exhibits predictable, uniform responseand reproduces each note with the same emphasis, reducing the influence of the resonances found in conventional above resonance bass systems. In addition, the use of a low pass filter is eliminated (and with it the associated long variable delay) and replaced with the INFRA dual integrator with its short uniform delay.Upon close listening, it is clear that the impression of power and impact is greater with an INFRA system when compared to conventional bass systems. This is true even when the two systems will measure the exact same Sound Pressure Level on a calibrated SPL meter. This is because the INFRA subwoofermaintains the bass energy in a tight packet, aligned with the upper range signal, providing a greater body impact and a seamless musical connection with the main loudspeakers.
Objectively, the INFRA system exhibits superior frequency and phase response.

DYNAMIC FILTER:
The Dynamic Filter circuit is a complimentary technology to the INFRA dual integrator. It insures that unexpectedly large signals will not overload the system resulting in possible damage or audible distortion. This allows high level operation close to the maximum system capabilities without fear of accidental overload.

The Dynamic Filter circuit dynamically reduces the bass extension to prevent over- load. It is inherent in the INFRA design that an overload condition will occur with the low- est notes first, as they require the greatest amount of amplifier power and driver excur- sion. In an overload condition, the Dynamic Filter circuit will reduce the lowest frequen- cies to their maximum safe level while not affecting the bass content above the fre- quency that exceeded the threshold.
  • 18? High Excursion EL-18R driver
  • Switchable Low Pass Filter: 95Hz, 80Hz, 60Hz, 40Hz
  • Low Frequency Limit: 16Hz
  • 700w Max Continuous Amp Power
  • Max SPL: 103dB SPL @ 1 meter @ 40Hz
  • 2x XLR Input, summing
  • Cabinet Dimensions: 23.5? x 21.25? x 18.5?
  • Weight: 64.5 lbs
  • Made in The USA

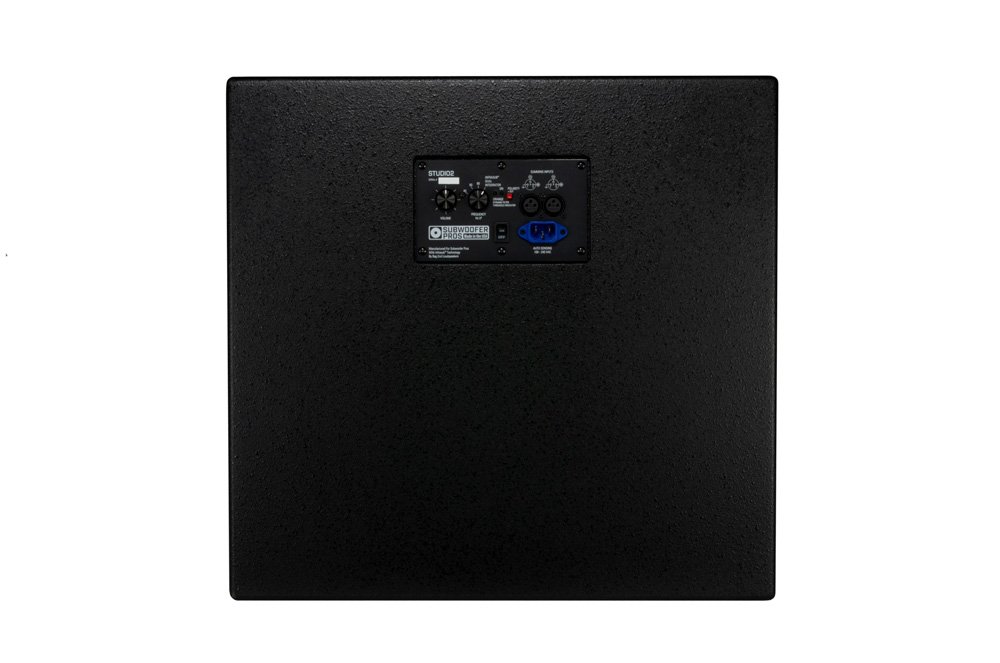

  • Input Configuration:
    2 Isolated Balanced XLR
    female line level
    Input Mode: 2 Summing inputs
    INFRA Module: 8 Hz dual integrator
    INFRA Frequency Response:
    ±3 dB 8 Hz to 95 Hz (2p Steradians)
    INFRA system -6 dB frequency 95 Hz
    (notadjustable)
    INFRA Level Control: Adjustable level
    INFRA Cutoff Frequency: Internally set 8 Hz or 16 Hz
    INFRA Overload Protection: Preset threshold Dynamic Filter circuitry
    INFRA Polarity: ± Push button switch
    RTI: Optional Remote Threshold Indicator Threshold exceeded indication red LED
    Amplifier Output Power: 700 Watts continuous sine wave
    Low Frequency Transducer: EL-18R 18" Cone
    Enclosure: 13 ply birch plywood
    AC Power Requirements: Auto sensing 100 to 250 VAC
    Finish: Black textured finish or optional high gloss automotive finish
    Grille: Black nylon cloth on frame
    Dimensions:
    22"h x 21"w x 18"d
    55.8cm x 53.3cm x 45.7cm
    Weight: 75lbs - 34kg


    APPLICATIONS:
    Recording Studio
    Mastering Lab
    Professional Surround Systems
    Screening Rooms
    Discriminating Home Theater
