The EQ 232P MKII Remote is an analog EQ with 10 filters (5 on each channel) based on classic designs including 2 famous P sections, 2 Highpass filters and 4 parametric filters
Besides their pure analog signal paths, these units have a full digital recall with 399 cells for your own presets, which you can recall with one touch.
You can save your settings in the internal memory of the EQ's as well as in your D.A.W....AND... in your project with your AUTOMATION.
You also have an A/B comparing function known from plugins.
By building these equalizers, Bettermaker wanted to create devices that would have a maximum range of usage and a very characteristic, but clean sound. We picked out the best classic designs and modified them to be more practical. As we work faster and faster every day, we need to have the highest quality and maximum speed we can get. That was the main motivation to develop the Bettermaker EQ 232P. Now we took a step forward and presented EQ232P MKII.
Between EQ232P and EQ232P MKII we took a huge step improving this amazing EQ even more. There is over 30 changes and improvements in construction, firmware and software. This is by far our most complex and perfect product and by it's sound and functionality compared to it's price the unit presents huge value to a professional engineer.

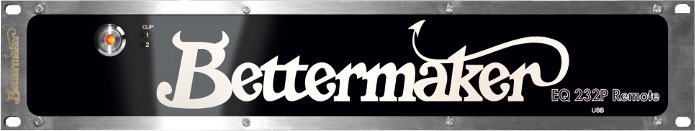

The remote version of the Bettermaker EQ232P MKII has the Exactly same circuit as the original EQ232P MKII. The only difference is that all operations are done via a dedicated plugin in your D.A.W.
10 filters (5 on each channel) based on classic designs including 2 famous Pultec sections, 2 Highpass filters and 4 parametric filters with wide frequency ranges.Pultec section- Shelf filters based upon legendary constructions, offered in combined, matched stereo, with all the features including separate boost and attenuation knobs.24dB/Oct Highpass filter, the only one on the market4 Parametric filters (2 on each channel) covering form 15Hz to 15kHz.Full digital recall with 399 cells for your own presets.USB link to use the EQ's just as you would use a plugin, including Automation.AU, VST, RTAS, AAX (32 & 64 bit, WIN, OSX) supportedA/B comparing functionFully isolated analog and digital path for maximum separation of these two worlds.7 presets to have a kick start!24 dB headroom.Stereo, Dual Mono, M/S modes!
Frequency response: 5Hz to 100kHz (-0.5dB)
Dynamic range: more than 106 dB
S/N ratio: more than 104 dB
THD+N: less than 0.004%
Supply voltage: 110V AC 50/60Hz or 230V AC 50Hz (depending on model)
Power consumption: 15 W
Input impedance: 10k Ohm unbalanced, 20k Ohm balanced
Output impedance: 100 Ohm unbalanced, 200 Ohm balanced
Max input level: +24dBu balanced or +18dBu unbalanced
Max output level: +24dBu balanced or +18dBu unbalanced
Unity gain: balanced: 0dB, unbalanced: -6dB
Clip detector: present
High-pass filter: 24db/oct 18...200Hz (variable)
EQ 1 freq. range: 45...1000Hz
EQ 1 gain: -15...+15dB
EQ 1 bandwidth: 0.2oct...3oct
EQ 2 freq. range: 650...15000Hz
EQ 2 gain: -15...+15dB
EQ 2 bandwidth: 0.2oct
P EQ low freq. range: 20, 30, 60, 100Hz
P EQ high freq. range: 3, 4, 5, 6, 10, 12, 16 kHz
P EQ high cut freq: 5, 10, 20 kHz 6db/oct
Preset storage capacity: 399 presets
Manufacturer Part Number : EQ232PMKII Remote
